Key Features

PD1610
Product Description

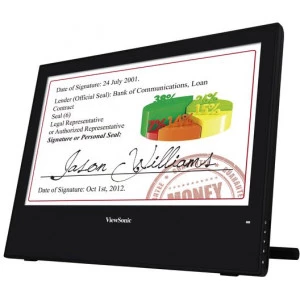

With its revolutionary electromagnetic resonance pen (EMP) technology, ViewSonic's new 16" (15.6" viewable) PD1610 pen display provides an intuitive and comfortable way to digitally write, design and draw directly on its 1366 x 768 high-definition resolution screen. The PD1610 detects a 1024 pressure level from the battery-free V Pen, replicating an authentic pen and paper interaction. With a display accuracy of 200 PPS and 5,080 LPI, every detail is precisely reproduced on the responsive display as easy as it is on paper. The PD1610 is ideal for a variety of applications such as for digital signatures, professional drawing and demonstrations, as well as in numerous settings such as hotel and rental reception areas from its compatiblity of Windows, Mac OS and various customized signature software.
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Display Area: 344.232 (W)X195.538 (H) mm
    Optimum Resolution: 1366 x 768, 16:9
    Brightness: 160 cd/m2
    Contrast Ratio: 1000 : 1
    Viewing Angles: 130°(V) / 90° (H)
    Backlight: LED Light-Bar
    Surface Treatment: 7H tempered glass
  • TOUCH
    Technology: Electromagnetic Resonance
    Touch Pen: Battery-Free
    Writing Response: 200 PPS (point per second)
    Pressure Level: 1024 Levels
    Digitizer Resolution: 5080 LPI
    Accuracy: ± 0.5mm (center), ± 1 mm (edge)
    Detectable Height: 5 - 15mm above glass
  • COMPATIBILITY
    PC: Windows 7, Windows 8
    MAC: Yes
  • CONNECTOR
    Power: DC Jack x 1
    Video: USB x 1
    USB: x 1
  • ERGONOMICS
    Tilt: 5°, 15°
  • POWER
    Voltage: 12V / 2A
    Consumption: 6.5 W
  • OPERATING CONDITIONS
    Temperature: 0°C to 60°C
    Humidity: 20% - 80%(Max), Non-Condensation
  • DIMENSIONS
    Physical (in / mm): 385 x 234x 285 mm
  • WEIGHT
    Net (lb / kg): 1.76 kg
