Archived

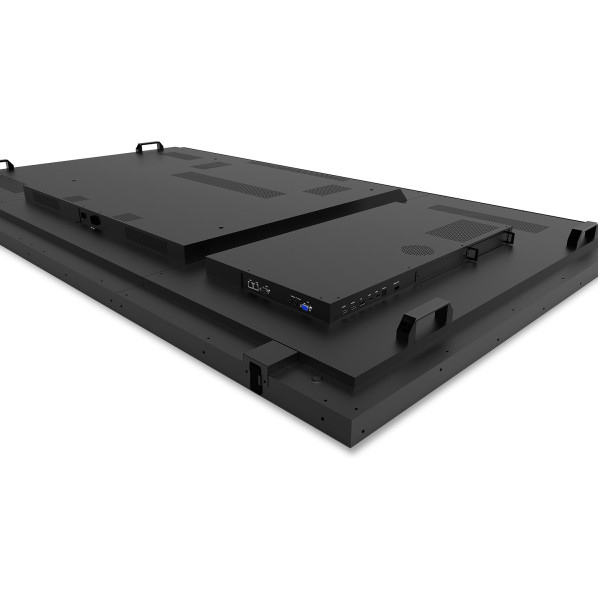

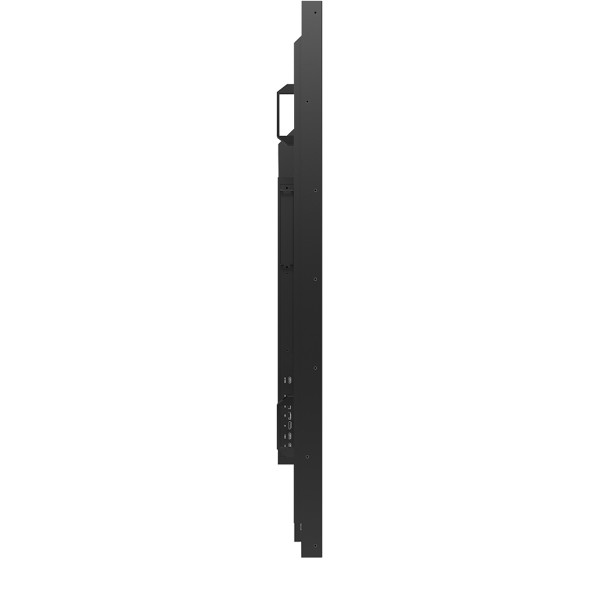

CDE9800

98" 4K Ultra HD Presenation Display

  • ViewBoard® Cast 4-way split screen content sharing software
  • USB Plug and Play
  • Remote Management with vController™ Software
  • Supports HDMI CEC Pass Through
  • Embedded LAN, Optional Wi-Fi, Internet Browser

SPECIFICATIONS


  • Display
    Panel Size: 98"
    Type/ Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 2158.848mm*1214.352mm
    Native Resolution: 3840 x 2160
    Aspect Ratio: 16:9
    Colours: 1.07B (10bit)
    Brightness: 500 nits(typ.)
    Contrast Ratio: 1300:1
    Response Time: 5 ms(typ.)
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight Life: 30,000 hrs(min.)
    Surface Treatment: 3H, Haze 1% (typ)
    Bezel: 20.3mm
    Orientation: Landscape
  • INPUT
    HDMI: x2
    1 port to support CEC
    RGB / VGA: 1
    DisplayPort: DP1.2 x1
    Audio: PC audio in (3.5 mm) x1
    RS-232: x1
    OPS: OPS x1
    SDM-L x1
  • OUTPUT
    HDMI: HDMI2.0 x1
    Audio: 3.5mm Earphone Out x1
    SPDIF: x1
