Archived
CDE9800

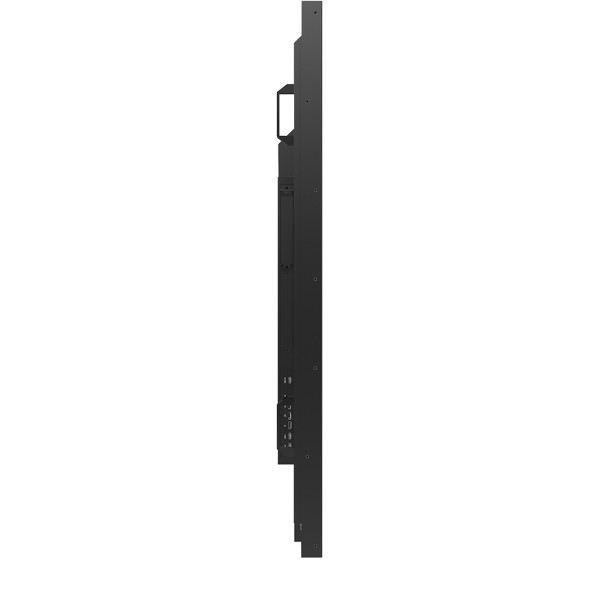

98" 4K Ultra HD LED Commercial Display
- ViewBoard® Cast 4-weg split software om content te delen
- USB Plug & Play
- Management op afstand met vController™ Software
- Ondersteunt HDMI CEC Pass Through
- Embedded LAN, Optionele Wi-Fi dongle, Internet Browser
SPECIFICATIONS
- DisplayPaneelgrootte: 98"
Type: TFT LCD Module with LED Backlight
Weergavegebied (mm): 2158.848mm*1214.352mm
Native resolutie: 3840 x 2160
Aspectratio: 16:9
Kleuren: 1.07B (10bit)
Helderheid: 500 nits(typ.)
Contrastverhouding: 1300:1
Reactietijd: 5 ms(typ.)
Kijkhoeken: H = 178, V = 178 (typ.)
Levensduur achtergrondverlichting: 30,000 hrs(min.)
Oppervlakte behandeling: 3H, Haze 1% (typ)
Bezel: 20.3mm
Oriëntatie: Landscape - INPUTHDMI: x2
1 port to support CEC
RGB/VGA: 1
DisplayPort: DP1.2 x1
Audio: PC audio in (3.5 mm) x1
RS-232: x1
OPS: OPS x1
SDM-L x1 - OUTPUTHDMI: HDMI2.0 x1
Audio: 3.5mm Earphone Out x1
SPDIF: x1
- LANRJ45: X2
10M/100 - USBType A: USB2.0 x2
- SPEAKERSSPEAKERS: 16W x2
- COMPATIBILITYHDMI: HDMI in: 4k@60Hz
HDMI out: 1080/4k @60Hz
DisplayPort: 3840x2160@60Hz
Android-versie: Resolution: 1080p - POWERSpanning: 100-240VAC +/- 10% Wide Range
Consumptie: On: 385W(Typ.)
Off: <0.5W - ERGONOMICSWandmontage (VESA®): 800x600mm
- OPERATING CONDITIONSTemperatuur (º C): 0°C to 40°C
Luchtvochtigheid: 20% ~ 80% RH non-condensing - AFMETINGEN (B x H x D)Fysiek (mm): 2198.8*109.5*1253.8mm
Verpakking (mm): 2525*435*1750mm - WEIGHTNetto (kg): 104.5 kg
Bruto (kg): 153.65 kg - VERPAKKINGSINHOUDVERPAKKINGSINHOUD: 1. US/EU/UK/AU power cord 3M
2. QSG
3. Compliance statement
4. HDMI cable 3M*1
5. Remote control with AAA batteries
6. Webcam plate
7. Wall mount screws
COMPATIBLE WITH CDE9800
Schermdeelknop met USB-C aansluiting
Schermdeelknop met HDMI/USB-A-connector
Slot-in PC for ViewBoard®
Slot-in PC for ViewBoard®
Slot-in PC for ViewBoard®
Slot-in PC for ViewBoard®
WiFi/Bluetooth adapter voor myViewBoard
