OVERVIEW
The ViewSonic 11.6-inch ID1230 Pen Display presents a drawing experience like nothing you’ve seen before. Equipped with 8,192 pen pressure levels and +-60 tilt angles, you're in for smooth and natural drawing. The full HD 1920x1080 high resolution and NTSC 85% and 90% Adobe RGB color performance displays exquisite and accurate images. The plug-and-play USB-C cable input is convenient to use, while its ultra-thin 0.39“ design, weighing in at a light 603g, makes it perfect for on-the-go creators.
Upgrade your Stylish Workstation
The ID1230 Pen Display is not only beautiful, but also designed to last. Made with durable, scratch-resistant materials and high-quality components, it's light as feather, coming in at only 550 g.

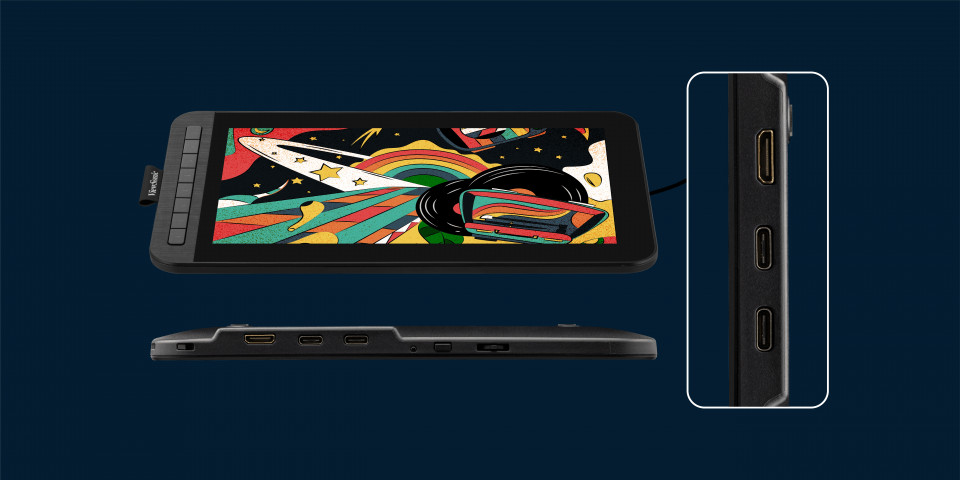

So Fresh, So Clean, So Neat
No more cable clutter. The ID1230 offers USB Type-C ports to deliver power via a single Type-C cable. Style your workspace so you can perform your best.

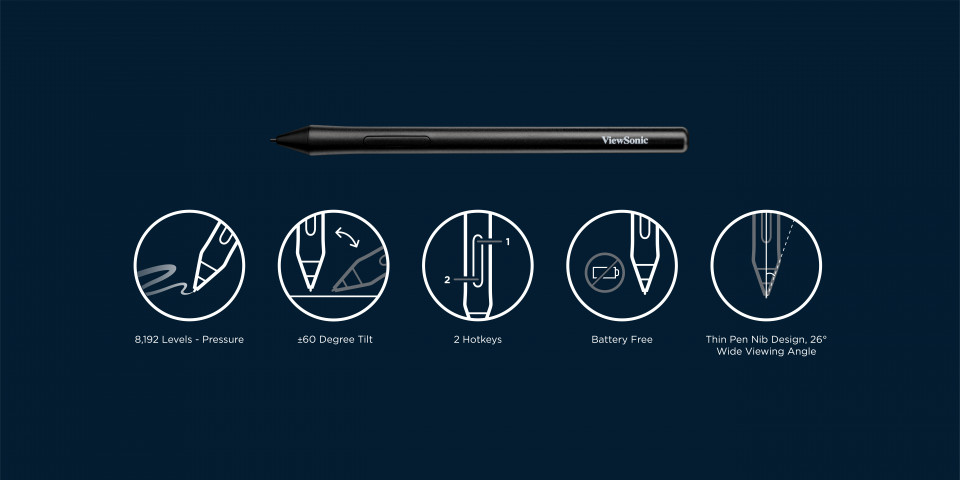

A Natural and Precise Drawing Experience
Our state-of-the-art creative pen technology offers 8,192 pressure levels and unparalleled tilt recognition. This sensitivity means that every stroke is made with unerring accuracy.
Bright and Beautiful
The ID1230 boasts a professional-grade 85% NTSC color gamut vividly displays millions of colors. With a contrast ratio of 1000:1, the ID1230 offers immersive visual effects.
Improved Texture for Accurate Viewing
With the most up-to-date full lamination technology, you'll notice there's no air gap between the LCD and the glass for precise viewing. In addition, the anti-glare glass eliminates reflections, so you have a more natural pen-on-paper drawing experience.
8 Shortcut Keys to Increase Productivity
Enjoy 8 customizable buttons designed to improve your work efficiency.
SPECIFICATIONS
- LCD PANELDisplay Area: 256 x 144mm
Optimum Resolution: 1920 x 1080
Brightness: 250 cd/㎡ (Typ.)
Contrast Ratio: 1000:1
Backlight: LCD
Viewing Angles: H:170° / V:170° - CONNECTORHDMI: Mini HDMI
USB: USB-C x 2 - ERGONOMICSTilt: +/- 60°
- COMPATIBILITYPC: Windows 7 and above
Mac®: macOS 10.15 and above - POWERVoltage: 5V
Consumption: 3W (Typ.) - OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0~40℃)
Humidity: 30%~80% - DIMENSIONS W x H x D (inch/mm)Physical (in / mm): 321 x 194 x 12.3 mm
(12.6 x 7.6 x 0.5 in)
Box (in / mm): 387 x 241 x 60 mm
(15.2 x 9.5 x 2.4 in) - WEIGHTNet (lb / kg): 0.6 kg ± 10%
(1.32 lb)
Gross (lb / kg): 1.1 kg
(2.43 lb) - REGULATIONSCE/FCC/BSMI/RoHS
- WARRANTY1 Year
- WHAT'S IN THE BOX1. ID1230 x1
2. EMP-023 Digitizer Pen x1
3. Quick start guide x1
4. Pen nibs x3
5. Pen nib remover x1
6. USB A-C cable x1
7. USB C-C cable x1
8. HDMI-mini HDMI cable x1
