TD2423

24” IR Touch Monitor

  • Intuitive 10-point touchscreen
  • Finger, stylus, and glove touch compatible
  • Magnetic pen placeholder
  • Adjustable back tilt up to 40-degrees
  • Scratch-resistant 7H hardness screen
BUY Share

OVERVIEW

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.

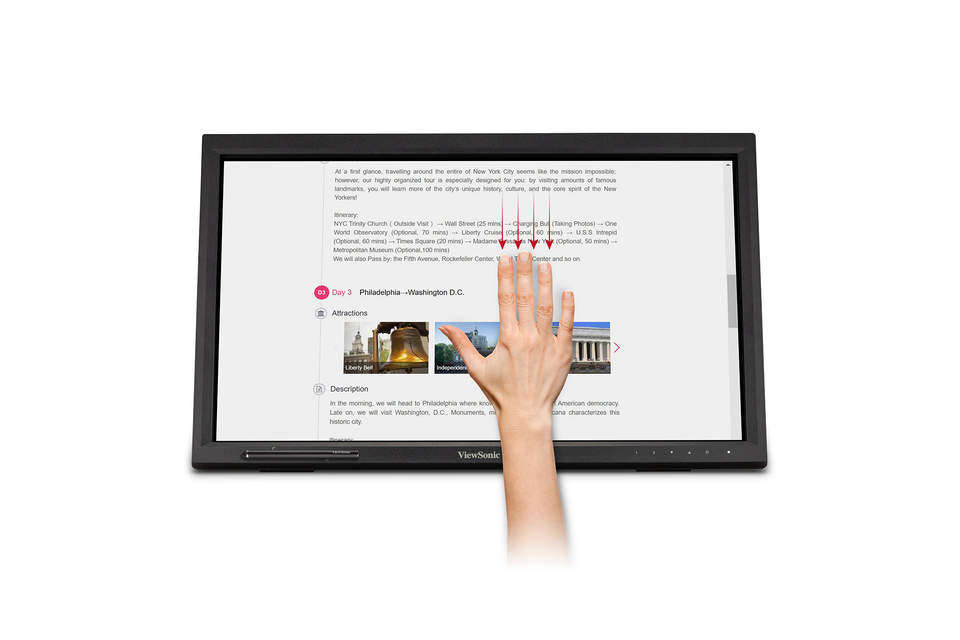

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.​
*The stylus pen only shown for reference and excluded from the package.​
IR Touch Technology
Intuitive Multi-touch Experience 1

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS
*TD2423 does not support USB Type-C for output video, audio, and touch feedback through mobile phone and tablet on Android OS, but it can support other Android devices.
Operating System Support 1

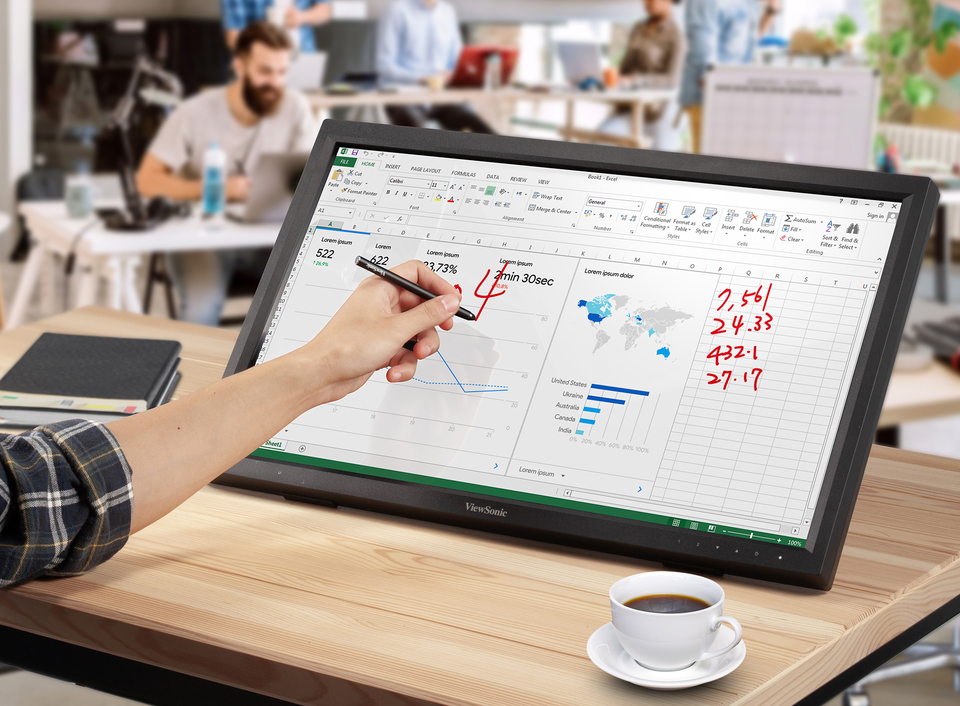

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.

*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.
Simple and Safer Way to Interact 1

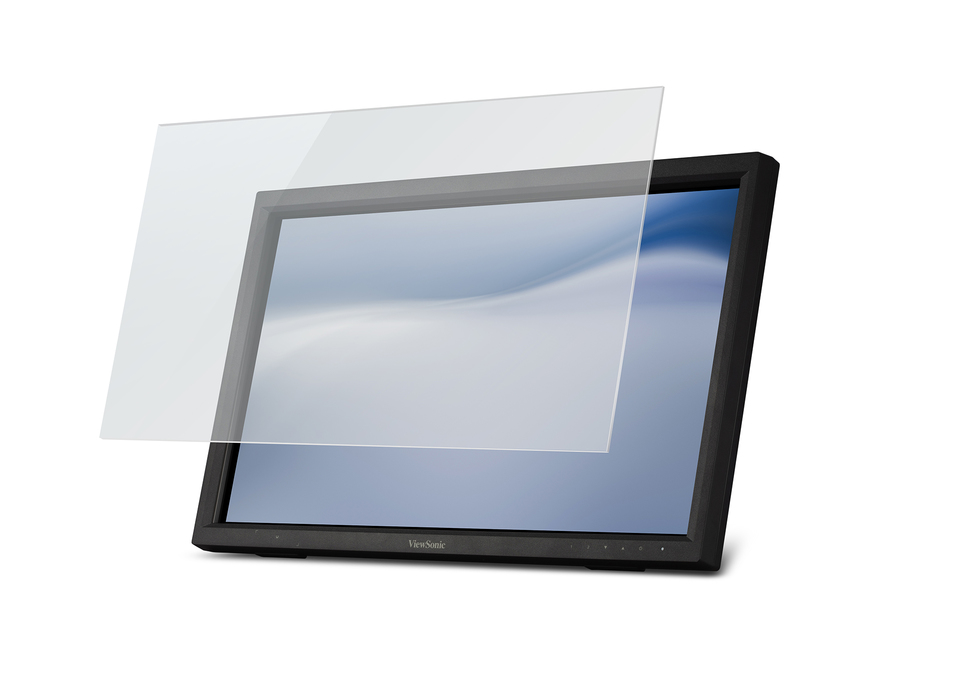

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
7H Hardness Screen
Anti-scratch Touchscreen 1

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Adjustable Tilt 1

Clear Images

This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Full HD 1080p Resolution
Clear Images 1

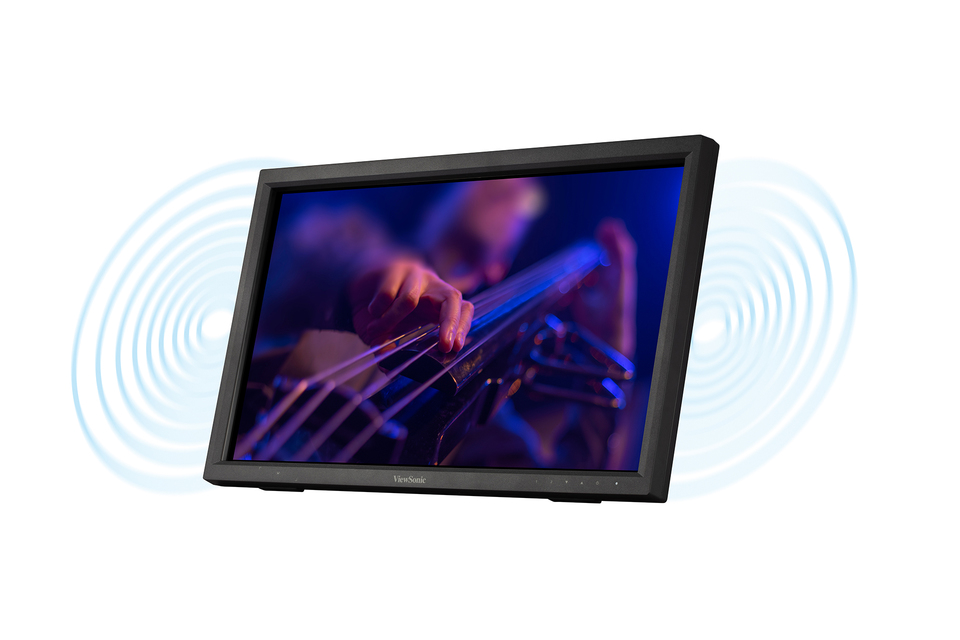

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Dual Integrated Speakers 1

Enhanced Viewing Comfort

This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Enhanced Viewing Comfort 1

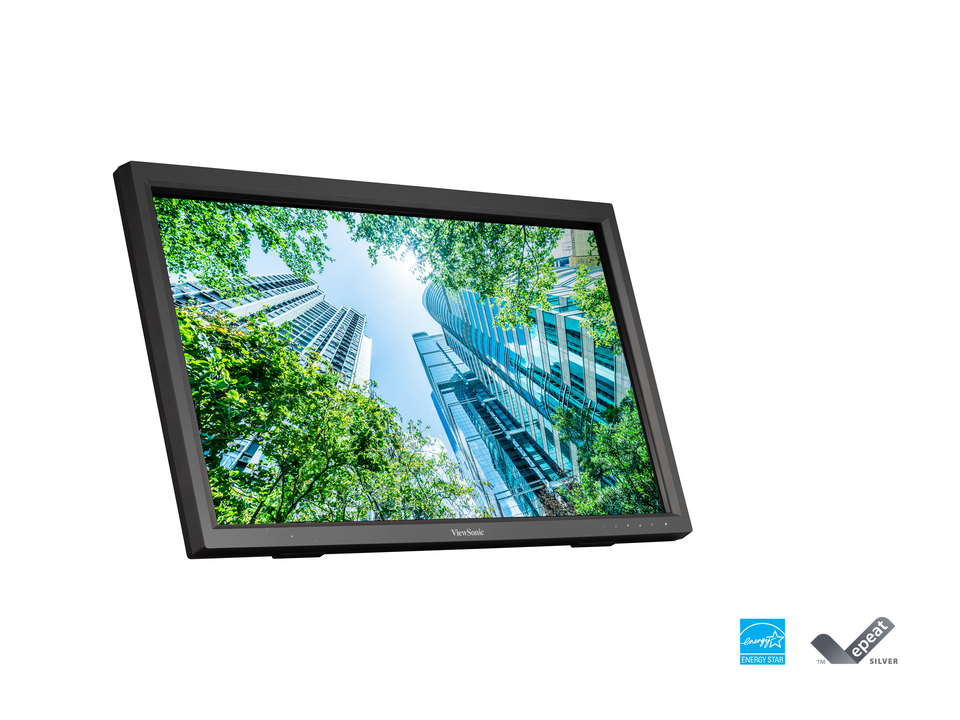

Certified Environmental Sustainability

The TD2423 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT
Certified Environmental Sustainability 1

Dimension & I/O Ports

  1. Menu Control Panel
  2. USB Down Stream x 2
  3. USB UP Stream
  4. AC In
  5. HDMI
  6. VESA Compatible
    (Wall Mount 100 x 100mm)
  7. Earphone Out
  8. Audio In
  9. VGA
  10. DVI

SPECIFICATIONS


  • Display
    Display Size (in.): 24
    Viewable Area (in.): 23.6
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 20M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 7ms
    Response Time (GTG w/OD): 7ms
    Response Time (Typical Tr+Tf): 25ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 40000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 75
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Pixel Size: 0.272 mm (H) x 0.272 mm (V)
    Touch Screen: IR, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.85mm
  • Compatibility
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8.1/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • Connector
    VGA: 1
    USB 2.0 Type A: 2
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DVI-D: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
