VPC25-S33-O1-1B

Slot-in PC for ViewBoard®

Ideal Integrated Solution for ViewBoard® Interactive Displays & Commercial Displays
Powerful Intel® 10th Core Processors
Improved System Stability, Security, & Thermal Control

Sales Enquiry

GALLERY

OVERVIEW

Seize the power to get more done when you sync your ViewBoard® interactive displays and wireless presentation display with the ViewSonic VPC25-S33-O1-1B slot-in PC. Integrated with exceptional performance from Intel® 10th Gen Core™ processors, up to 8GB DDR4 memory, and up to 256GB of SSD storage, experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, DP1.2, USB 3.2, and Gigabit LAN RJ45 for faster workflows.

Tap into a productivity powerhouse

Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 10th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.2, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.

Stability in every lesson

Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC25-S33-O1-1B intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.

Stay cool and blaze through classes

Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.

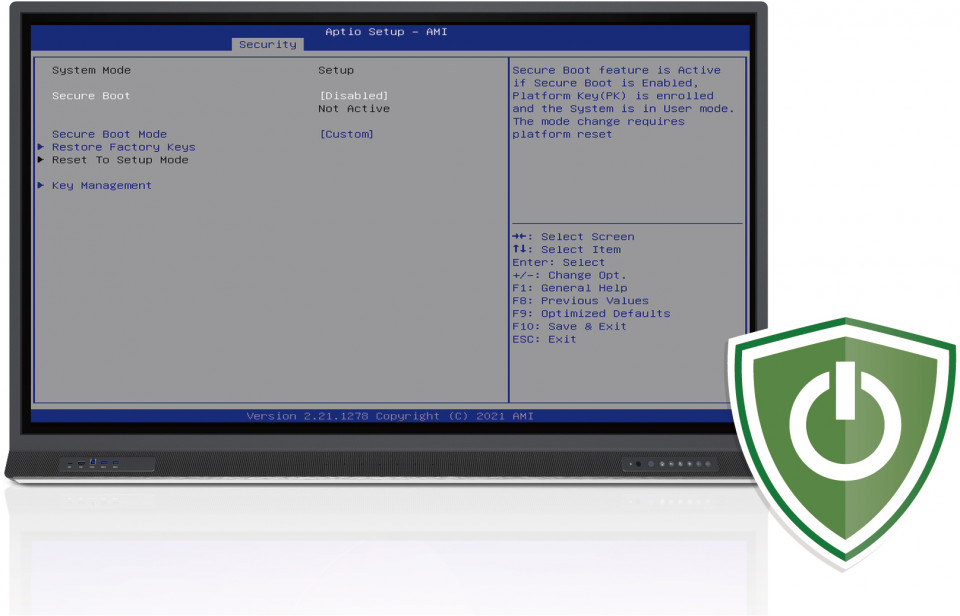

Boot up with total security

Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings.

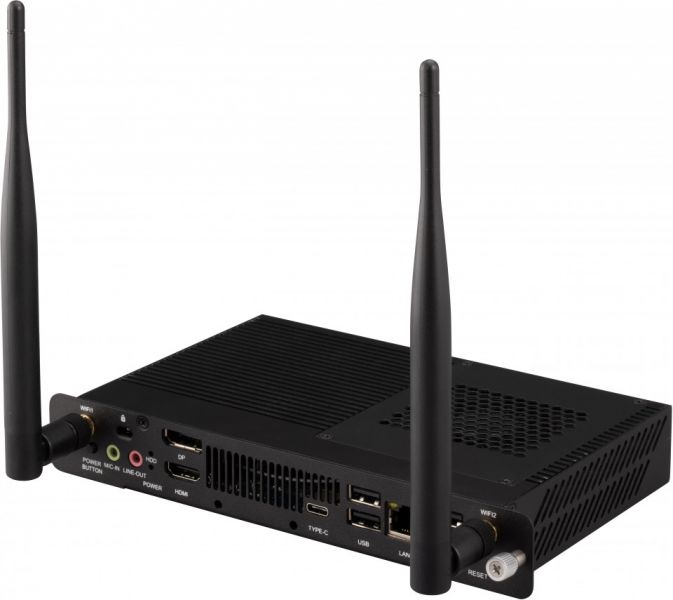

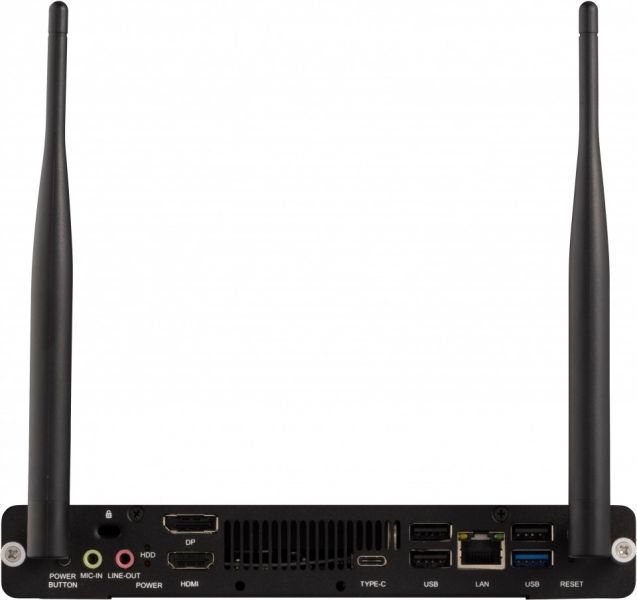

I/O Port

HDD/Power LED
LINE-OUT
MIC-IN
Power Button
HDMI
Type C
DP
USB 2.0
Reset
USB 3.2
LAN

SPECIFICATIONS

Core
CPU: Intel Core i5-10400T 2.0GHz Turbo boost 3.6GHz, (TPM 2.0 support)
Graphics: Integrated Intel® UHD graphic 630 Intel H510 chipset
Memory
Capacity: 8GB DDR4
Software
Operating System: UEFI Shell

Storage
Dimension: M.2 2280 (22 x 80 mm)
Capacity: 256GB SSD
Interface: M.2 2280 NVMe PCIe Gen3 SSD
INPUT
MIC(Microphone): x1
OUTPUT
DisplayPort: x 1 (1.2, resolution 3840x2160@60Hz)
HDMI: x 1 (1.4, resolution 3840x2160@60Hz)
Audio: x 1 Line out
LAN
RJ45: GbE LAN Port
Wireless / Bluetooth
Intel AX200 WiFi 6 + BT5.2 Module dual band
USB
Type A: USB x 4 (USB 3.2 x 1, USB 2.0 x 3)
Type C: x 1 (data only)
Power
Voltage: DC in +12V~+19V @ 3.42A
Consumption: 65 W (Typical)
OPERATING CONDITIONS
Temperature (º C): -5~45°C
Humidity: 20% ~ 80% R.H. Non-Condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 7.95” x 4.69” x 1.18” / 202 x 119 x 30 mm
Packaging (inch / mm): 10.00” x 7.72” x 3.03”/254 x 196 x 77 mm
WEIGHT
Net (lb / kg): 2.205 lb/1 kg
Gross (lb / kg): 2.646 lb/1.2 kg
REGULATIONS
cTUVus, FCC-B w/ ICES003, FCC ID+SDOC, CA IC, IC VOC, NOM, COFETEL, CE EMC, CE RED, CE LVD, CB, RoHS, REACH, WEEE, BSMI, NCC, BIS, WPC, RCM, MIC, VCCI, VNTA, CCC, SRRC
PACKAGE CONTENTS
1. VPC OPS
2. Quick Start Guide
3. Screw x 2
