IFP8650
86" 4K Interactive Flat Panel
- 20-Point Multi-Touch
- Floating Pen - Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
OVERVIEW
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP8650 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic myViewBoard™ whiteboarding software, this 86” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This display delivers optional slot-in PC capability, for more computing-intensive interactive applications. The IFP8650 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.4K Resolution with Eye-Care Technology 4K, Flicker-Free, Blue Light Filter
With four-times the resolution of Full HD, ViewBoard®’s Ultra HD 3840 x 2160 display delivers breathtaking visuals. 4K DisplayPort input is also supported for external sources. Flicker-Free technology and a Blue Light Filter come standard to help to eliminate eye strain from extended viewing periods.
20-Point Touch Multi-user annotation
ViewBoard® allows multiple users to annotate on the slim display simultaneously, increasing engagement and encouraging group collaboration.
Floating Pen Annotation on demand
Two-finger touch activates ViewBoard’s Floating Pen that allows for easy annotation on everything from powerpoint files, to text docs, USB files, internal memory, or even on images from a connected input source.
Built-in ARM Quad-core CPU with 16GB Storage
Equipped with a powerful quad-core processor and embedded OS, this display provides smooth, lightning-fast computing and responsive touch capabilities. 16GB of onboard memory provides ample storage for files and multimedia content.
Out-of-Box Collaboration
Integrated with ViewSonic vBoard and Cast software, as well as Zoom® software, this display delivers out-of-the-box annotation and content sharing capabilities.
- SPEAKERS
- VESA® WALL MOUNT 600x400 mm
- MENU CONTROLS
- USB 2.0
- CVBS IN (AV IN)
- SPDIF (COAX OUT)
- RS232 IN
- AUDIO OUT
- RJ45 (LAN)
- POWER ON / OFF
- AC IN
- USB 2.0 & 3.0
- HDMI IN
- AUDIO IN
- USB 2.0 & 3.0
- PC SLOT
- HDMI OUT
- WIFI & BLUETOOTH MODULE SLOT
- USB 2.0 (Touch)
- DisplayPort
- VGA IN
Learn more about Software
ViewBoard® Cast Content Sharing Software On-site content sharing software
ViewBoard® Cast is a content sharing app for mobile devices that enables 1080p content to be streamed from a user’s device onto ViewBoard® wirelessly or over a cable network.
Air ClassQuiz tool
Display quiz questions on ViewBoard® and allow participants to submit answers remotely. Whether deploying a single or multiple choices question, ViewBoard® will record statistic result for each device being used. Pop quizzes can be easily implemented by syncing up ViewBoard® with participants’ devices; once synced presenters can choose from multiple choice questions or the text to answer messaging function.
Zoom Conference Software On-line conference software
Zoom is a conferencing app that enables content to be streamed from a user’s devices onto ViewBoard® over the internet. It supports up to 10 participants, allowing 4 of the 10 to stream content from their laptop or smart phone.
myViewBoard™ Whiteboarding SoftwareAnnotation whiteboard
myViewBoard™ is a whiteboarding software used on the ViewBoard. The intuitive “draw with one finger, move/zoom with two fingers, and erase with three fingers” design delivers a user friendly experience.
Add-on Tamashare Software
Tamashare is the first software that allows group collaboration in any kind of work organisation.
Learn More Features
vLauncher Startup top 3 commonly used functions
Viewboard's myViewBoard™, Cast, and Browser shortcuts enable users to write, cast content, and surf the web; 3 of the most commonly used functions during meetings and in class. These easy access desktop icons are displayed as soon as the ViewBoard® is powered on.
Optional Slot-in Wi-Fi & Bluetooth Module
Offering users a complete wireless environment, the optional slot-in wireless module provides a dual band 2.4GHz/5GHz WiFi network, as well as Bluetooth support for flexible usage.
HDMI-Out Mirroring Extended display
Mirroring capabilities deliver group discussion and spatial arrangement flexibility by allowing content and sound to be mirrored on to other devices simultaneously.
Anti-Scratch, Anti-Glare Glass Faceplate Anti-scratch, Anti-glare
The 7H scratch-resistant and anti-glare screen offers a durable and consistent high-quality touch experience.
Versatile Connectivity
HDMI, USB, and VGA connections provide the versatility to connect to a wide variety of computing and multimedia devices.
SPECIFICATIONS
- LCD PANELPanel Size: 86"
Type/ Tech: TFT LCD Module with DLED Backlight
Display Area (mm): 1895.04 (H) x 1065.96 (V) (85.6” diagonal)
Aspect Ratio: 16:9
Resolution: 3840 x 2160
Colors: 1.07B colors (10bit)
Brightness: 350 nits (typ.) 300 nits (min.)
Contrast Ratio: 1200:1 (typ.)
Response Time: 8 ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight: DLED
Backlight Life: 30,000 Hours Min.
Hardness: 7H - TOUCHType/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
Response Time: <15ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
Life Time: 80,000hrs - INPUTHDMI: x 3
RGB / VGA: x 1
DisplayPort: x 1
Audio: x 1
CVBS (AV): x 1
RS232: x 1
PC Slot: x 2
- OUTPUTHDMI: x 1 (for all sources)
Audio (Earphone out): x 1
SPDIF: x 1 - LANRJ45: x 1
- USB2.0 Type A: x 4 (front x 2, for both embedded player and slot-in PC)
3.0 Type A: x 2 (front x 1, for both embedded player and slot-in PC)
2.0 Type B (For touch): x 2 - SPEAKERS16W x 2
- BUILT-IN PCProcessor: ARM Cortex A53 Quad Core 1.2G Hz CPU
Graphic: ARM Mali-450 Quad Core
Memory: 2GB DDR3
Storage: 16GB eMMC
Networking: 10/100M auto-identification and DHCP - COMPATIBILITYVGA: Refer to timing table
HDMI: 3840x2160
DP: 3840x2160
CVBS: 480i - POWERVoltage: 100-240VAC +/- 10% Wide Range
Consumption: 361W(Typ, without Slot-In PC); 456W(Typ, Including Slot-In PC) - ERGONOMICSWall Mount (VESA® ): 800 x 600mm; Screw: M8 x 25mm
- OPERATING CONDITIONSTemperature (º C): 32°F to 104°F (0°C to 40°C)
Humidity: 10% ~ 90% non-condensing - DIMENSIONS (W x H x D)Physical w/o Stand (mm / inch): 1988 x 1186 x 100 mm / 78.3 x 46.7 x 3.9 inch
Packaging (mm / inch): 2211 x 1380 x 280 mm / 87.0 x 53.1 x 11.0 inch - WEIGHTNet (kg / lb): 78kg / 171.96lbs
Gross (kg / lb): 105kg / 231.49lbs - REGULATIONSStandard: FCC, CE, cTUVus, RCM, CCC
- What's in the box?VGA cable(5 meters)/Power cable(3 meters) x 4/Remote control/USB cable(5 meters)/Audio cable(5 meters)
6.AV cable/Touching pen x 3/User manual CD wizard/Quick Start Guide/RS232 adapter/Clamp x 5/Plate/Screw x 3
COMPATIBLE WITH IFP8650
Dual Band Wireless Module for ViewBoard® IFP50 Series and IFP70(86”, 65”) series and CDE20 series(65”~86”)
1080p Ultra-wide Web Camera
Full HD 1080p All-round Web Camera
Motorised trolley cart with lift
Motorised stand
ViewBoard Cast Button (VB-WPS-001) Screen sharing button with USB-C connector
Screen sharing button with HDMI connector

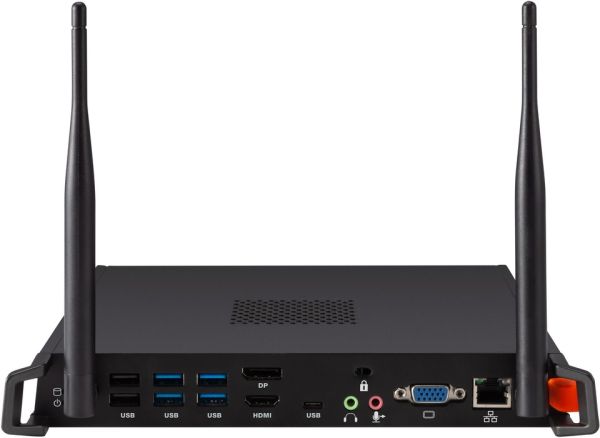

Windows Slot-in PC for ViewBoard® IFP8650/7550/6550/5550
