Commercial Display
CDE7500
Key Features
- Pre-installed ViewBoard® Cast and Zoom
- USB multimedia player
- Supports HDMI CEC pass-through
- Flicker-free and Blue Light Filter eye-care technologies
- HDMI, VGA, RS232, RJ45 input compatibility
Product Description
The ViewSonic® CDE7500 is a 75" 4K Ultra HD display with conferencing capabilities. With features including a razor sharp resolution of 3840 x 2160, ultra wide viewing angles, 2 x 20W speakers, and file sharing software, the display has been designed with the meeting room scenario in mind. The pre-installed Cast content sharing and Embedded Zoom conference software enables multiple users, whether on-site or on-line, to participate in conferences and share content with each other simultaneously, transforming CDE7500 into a dynamic content hub. This display’s integrated quad-core processor and 16GB internal memory allows users to play multimedia content from a USB without the need for a PC, while the HDMI and VGA inputs offer connection with a variety of high definition devices. Flicker-free and Blue Light Filter eye-care technologies provide viewing that is comfortable for the human eye, from start to finish.

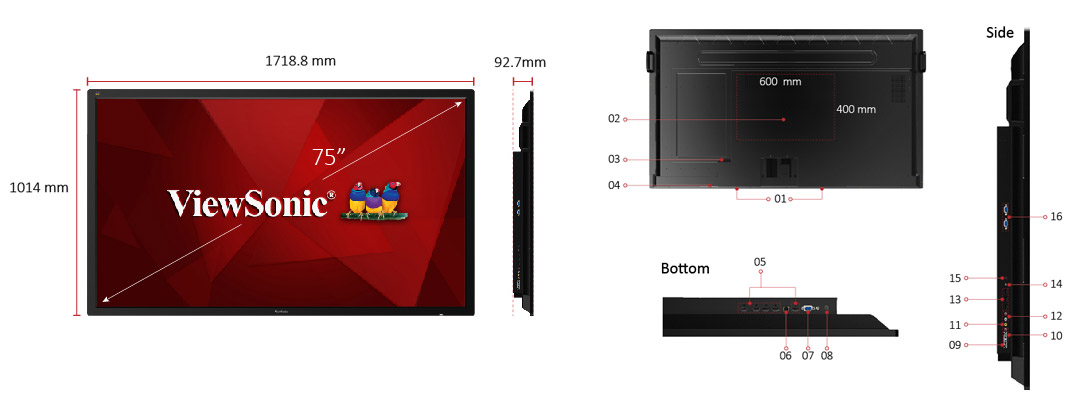

- Internal Speakers
- VESA® Compatible Wall Mount 600 x 400 mm
- AC In
- Menu Controls
- HDMI ports
- LAN ports
- VGA ports
- VGA-AUDIO
- AV-OUT
- YPbPr/YCbCr IN ports
- AV-IN ports
- AUDIO-IN ports
- USB ports
- Headset port
- SPDIF port
- RS232 IN/OUT port
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Size: 75" Type/ Tech: TFT LCD Module with LED Backlight Display Area (mm): 1649.66(H) x 927.94(V) Aspect Ratio: 16:9 Resolution: 3840 x 2160 Colors: 1.07B colors (10bit) Brightness: 450 nits(typ.) 400nits(min.) Contrast Ratio: 1200:1 (typ.) Response Time: 8 ms Viewing Angles: H = 178, V = 178 (typ.) Backlight: DLED Backlight Life: 30,000 Hours Orientation: Landscape / Portrait -
INPUT
HDMI: x 4 RGB / VGA: x 1 Audio: x 1 CVBS: x 1 YPbPr: x 1 RS232: x 1 OPS: x 1 PC Slot (Intel OPS Standard)
x1 SDM -
OUTPUT
HDMI: x 1 (for one of HDMI1/2/3) Audio (Earphone out): x 1 SPDIF: x 1 RS232: x 1 -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 2 (side x1, top x1) 3.0 Type A: x 2 (side) -
SPEAKERS
20W x 2 -
BUILT-IN PC
Processor: ARM Cortex A53 Quad Core 1.5G Hz CPU Memory: 2GB Storage: 16GB -
COMPATIBILITY
VGA: Refer to timing table HDMI: 480i, 480p,720p, 1080p, up to 2160p CVBS: 480i -
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Consumption: 300 W -
ERGONOMICS
Wall Mount (VESA® ): 600 x 400mm; Screw: M8 x 20mm -
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C) Humidity: 10% ~ 90% non-condensing -
DIMENSIONS (W X H X D)
Physical w/o Stand (mm / inch): 1735.4 x 1014.0 x 93.2 mm / 68.32 x 39.92 x 3.67 inch Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 45.87 x 12.60 in -
WEIGHT
Net w/o Stand (kg / lb): 43.05 kg / 94.91lbs Gross (kg / lb): 65.40 kg / 144.18lbs -
REGULATIONS
Standard: cTUVus, FCC, MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, CCC, China Energy Label -
WHAT'S IN THE BOX?
1. Power cable(1.5 meters) x 4 (EU, AU, UK, US)
2. Remote control with batteries
3. User manual CD wizard
