Key Features
  • USB multimedia player
  • vController software
  • Hospitality mode
  • Supports HDMI CEC pass-through
  • Flicker-free and Blue Light Filter eye-care technologies

CDE4302
Product Description

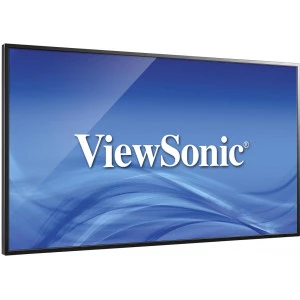

The ViewSonic CDE4302 is a 43" Full HD presenation display, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. Integrated with an embedded media player, the CDE4302 is able to easily playback high definition messaging via USB port. Versatile connectivity options also include 2 HDMI ports, VGA, RS232 and SPDIF. With Full HD resolution, 350-nit brightness, and wide viewing angles, the slim-bezel CDE4302 delivers sharp and vivid images to ensure crisp pictures and smooth content playback. HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray™ players. An RS232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, the display is equipped with Flicker-Free and Blue Light Filter technologies. In addition, free-bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 43"
    Type/ Tech: TFT LCD Module. with LED Backlight
    Display Area (mm): 940.9(H) x 529.25 (V) (43" diagonal)
    Aspect Ratio: 16:9
    Native Resolution: 1920x1080
    Colors: 16.7M
    Brightness: 350 nits (typ.)
    Contrast Ratio: 3000:1 (typ.)
    Response Time: 6.5 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight Life: 30,000 Hours (typ.)
    Surface Treatment: Hard coating (3H)
    Orientation: Landscape / Portrait
  • INPUT
    HDMI: x2
    RGB / VGA: x1
    Audio: x1 PC audio(3.5mm)
    RS232: x1
  • OUTPUT
    Audio: x1 (Earphone Out)
    SPDIF: x1
    IR Pass Thru: x1
  • USB
    Type A: x1
  • SPEAKERS
    10W x2
  • COMPATIBILITY
    RGB PC/HDMI PC: 480i, 480p,720p,1080i,1080p
    HDMI: 480i, 480p,720p,1080i,1080p
  • CONTROLS
    Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU Auto Picture, Brightness, Contrast, Color, Adanced settings, Reset picture setting
    SOUND: Auto sound, Equalizer, Balance, Reset sound settings
    CLOCK: Sleep timer, Date/Time.
    FREATURES: Language, PC settings, Button lock, Remote lock, Monitor ID, Current software info, Reset AV & features
    USB MENU: Photo, Music, Movie
    Multimedia: PICTURE: BMP, JPG, JPEG, PNG
    VIDEO: MP4, AVI, MKV, DAT, VOB, MPG, MPEG, TS
    AUDIO: MP3
  • POWER
    Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumption: 105W (typ), 125W (max), < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 200x200mm / 400x400mm
  • OPERATING CONDITIONS
    Temperature: 0°C to 40°C
    Humidity: 20%~80% @40℃ non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 38.12 x 23.59 x 12.98 / 968.2 x 599.1 x 329.6 (w/ Stand)38.12 x 22.02 x 2.36 / 968.2 x 559.4 x 59.9 (w/o Stand)
    Packaging (inch / mm): 42.13 x 27.40 x 6.26 / 1070 x 696 x159 (w/o Stand)
  • WEIGHT
    Net (lb / kg): 19.18 / 8.70 (w/o stand); 23.30 / 10.57 (with Stand)
    Gross (lb / kg): 26.90 / 12.20
  • REGULATIONS
    CE, CB, ErP, WEEE, C-tick, cTUVus, FCC, Energy Star 6.0, Mexico Energy
  • PACKAGE CONTENTS
    1. CDE4302 presenation display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable 7. RS232 cable
