Commercial Display
CDE3205-EP
Key Features
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through
- HDMI, VGA, DVI, YPbPr, USB, IR, RJ45 input compatibility
- Flicker-free and Blue Light Filter eye-care technologies
Product Description

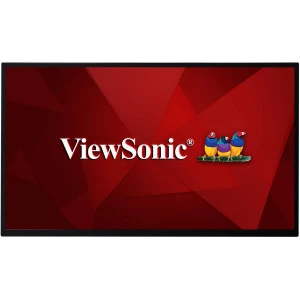

The ViewSonic CDE3205-EP is a great value 32’’ (31.5” viewable) Full HD LED presenation display with high reliability working time 16 hours per day/7 days a week for retail, hospitality, and QSR (Quick Service Restaurant) environments. In addition to versatile connectivity options, including HDMI, VGA, DVI, YPbPr, USB, IR, RJ45, the display comes with a convenient USB multimedia playback functionality. With 1920 x 1080 resolution, 350-nit brightness, IPS 178-degree wide viewing angles and 2 x 10W stereo speakers, the slim-bezel CDE3205-EP delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. Creating a more comfortable viewing experience, the display is equipped with Blue Light Filter technology.

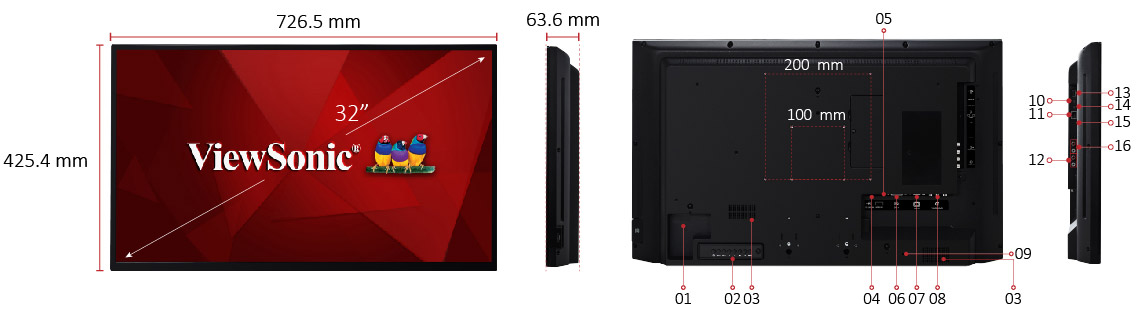

- AC In & Power Switch
- Menu Controls
- Speakers
- Audio In
- HDMI
- DVI In
- VGA In
- YPbPr IN
- Kensingtion Lock Slot
- RS232 In
- LAN
- RCA Audio In
- USB 2.0 (USB playback)
- RS232 out
- IR out
- RCA Audio Out
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Size: 32" Type/ Tech: TFT LCD Module with LED Backlight Display Area (mm): 698.4(H) x 392.85(V) Aspect Ratio: 16:9 Resolution: 1920 x 1080 Colors: 16.7M colors Brightness: 350 nits (typ.) Contrast Ratio: 1200:1 (typ.) Response Time: 8 ms Viewing Angles: H = 178, V = 178 (typ.) Backlight: WLED Backlight Life: 30,000 Hours Min. Hardness: 3H -
INPUT
HDMI: x 1 RGB / VGA: x 1 DVI: x 1 Audio: x1 PC audio (3.5 mm), x 1 (RCA L/R) CVBS (AV): x 1 (Share with Y) YPbPr: x 1 RS232: x 1 IR: x 1 (over audio port) -
OUTPUT
Audio: x 1 (RCA L/R) RS232: x 1 IR: x 1 (over audio port) -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 1 (USB Playback) -
SPEAKERS
10W x 2 -
COMPATIBILITY
VGA: Up to 1920 x 1080 DVI: Up to 1920 x 1080 HDMI: 480i, 480p,720p, 1080i, 1080p CVBS: 480i YPbPr: 480i, 480p,720p, 1080i, 1080p -
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Consumption: Normal 57 W, Max 81 W -
ERGONOMICS
Wall Mount (VESA® ): 100x100mm / 200x200mm ; Screw: M4*8 mm -
OPERATING CONDITIONS
Temperature (º C): 5°C to 40°C Humidity: 20% ~ 80% non-condensing -
WEIGHT
Net (kg / lb): 6.67 kg / 14.7 lbs (with Stand) Net w/o Stand (kg / lb): 5.20 kg / 11.46 lbs Gross (kg / lb): 7.8 kg / 17.20 lbs -
REGULATIONS
Standard: CE, CB, RoHS, ErP, WEEE -
WHAT'S IN THE BOX?
1. CDE3205-EP presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. RS232 daisy chain cable (2.4mm – 2.4mm)
9. IR sensor cable
