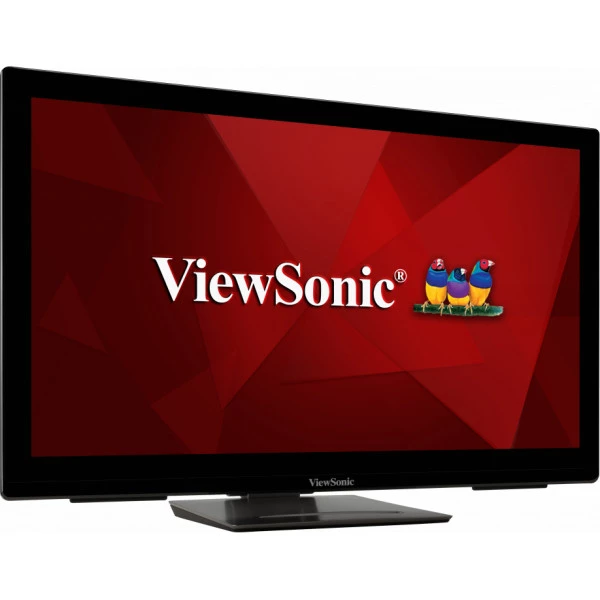

ViewBoard Mini IFP2710
27" 10-point multi-touch interactive display
- 10-point touch and passive pen touch
- Swivel and flat ergonomic design
- HDMI output to external display
- HDBaseT connection
- Durable 7H glass screen surface
스펙
- LCD PANELMonitor Size: 27.0” / 68.58cm
Panel Technology: ADS Type, a-si TFT Active Matrix LCD
결의안: 1920 x 1080
Display Area: 597.888(H) x 336.312(V)
가로 세로 비율: 16:9
밝기: 260 cd/m2 (Typ.) / 220cd/m2 (Min)
대비 비율: 1000:1 (Typ) / 700:1 (Min)
동적 대비 비율: 20,000,000:1
보기 각도: 178 degrees / 178 degrees (Typ)
Refresh Rate: 75Hz
응답 시간: 14 ms (Typ.)
Backlight: WLED light bar
백라이트 라이프: 30,000 Hrs (Min)
색: 16.7M colors, (6-bits + Hi FRC)
색역: 72% NTSC Size (Typ)
Panel Surface: Glossy type, Hard-coating (7H)
픽셀 크기: 0.3114(H) x 0.3114(V) - INPUT SIGNALFrequency: Fh = 31 ~82 kHz ; Fv = 56 ~75 Hz
Sync: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p): Separate Sync / Composite Sync / Sync on Green, HDMI (v1.4): TMDS - COMPATIBILITYPC: PC Compatibles (up to 1920 x 1080 Non Interlaced)
Mac®: Power Mac (up to 1920 x 1080 )

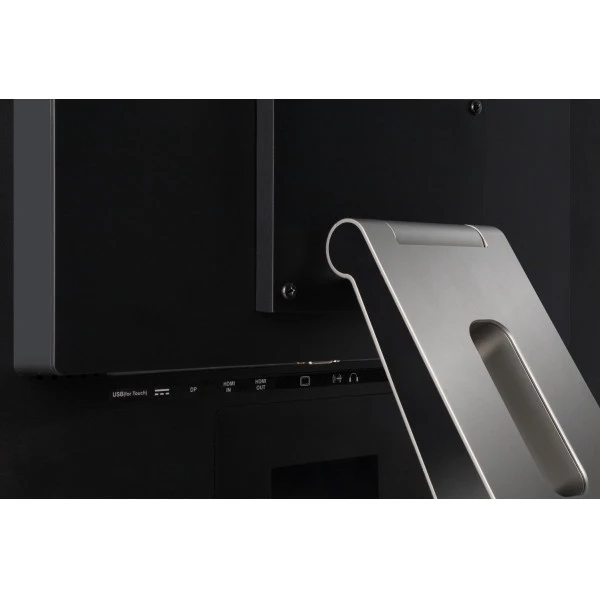

- CONNECTOR입력: D-sub, HDMI1.4, DisplayPort 1.2
산출량: HDMI1.4 x 1 - AUDIO스피커: 2W x 2
- USBUpstream: Type B x 1
Downstream: Type A x 2 - POWER힘: External Power Adapter
전압: AC 100-240V (Universal); 50/60Hz
소비.: 155W
Optimize: 143W

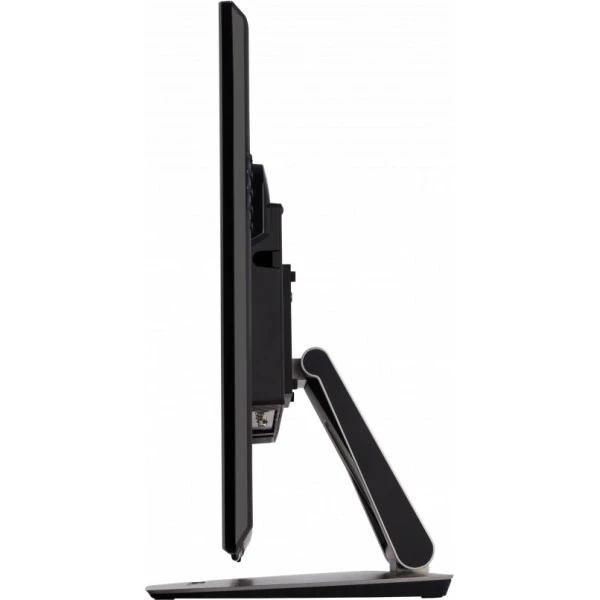

Conserve: 132W - ERGONOMICS틸트: -5°±1.0° (forward) , 90.0°±1.0°(backward)
회전: 177.5° / 177.5° - SPECIAL FEATURESEye Care: Flicker free / Blue Light Filter
- WALL MOUNTVESA®: 100mm x 100mm
- OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
습도: 20% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)Physical with stand (mm): 653.20mm (W) x 449.07 mm (H) x 270.00 mm (D)
Physical without stand (mm): 653.20mm (W) x 410.67mm (H) x 52.10 mm (D)
Packaging (mm): 754.38 mm (W) x 524.76 mm (H) x 168.91 mm (D) - WEIGHTNet with stand: 12.69kg (27.98lbs)
Net without stand: 7.97 kg (17.57 lbs)
징그러워요: 19.88 kg (43.83 lbs) - 패키지 내용물LCD Display, Power Cable (cable length :1.5M), Audio Cable (3.5mm audio male to male) (cable length : 1.8M), VGA Cable (cable length :1.5M), HDMI Cable(cable length :1.5M), USB Cable (cable length :1.8M), Passive Touch Pen, Quick Start Guide
