Key Features
  • HDMI and VGA Input
  • SuperClear® IPS Technology for rich colors at wide angles
  • 75Hz Refresh rate delivers fluid visuals
  • Eye-Care technology for comfortable viewing
  • Eco-mode for low energy consumption
  • Superior ViewMode color rendering options
  • VESA wall-mountable

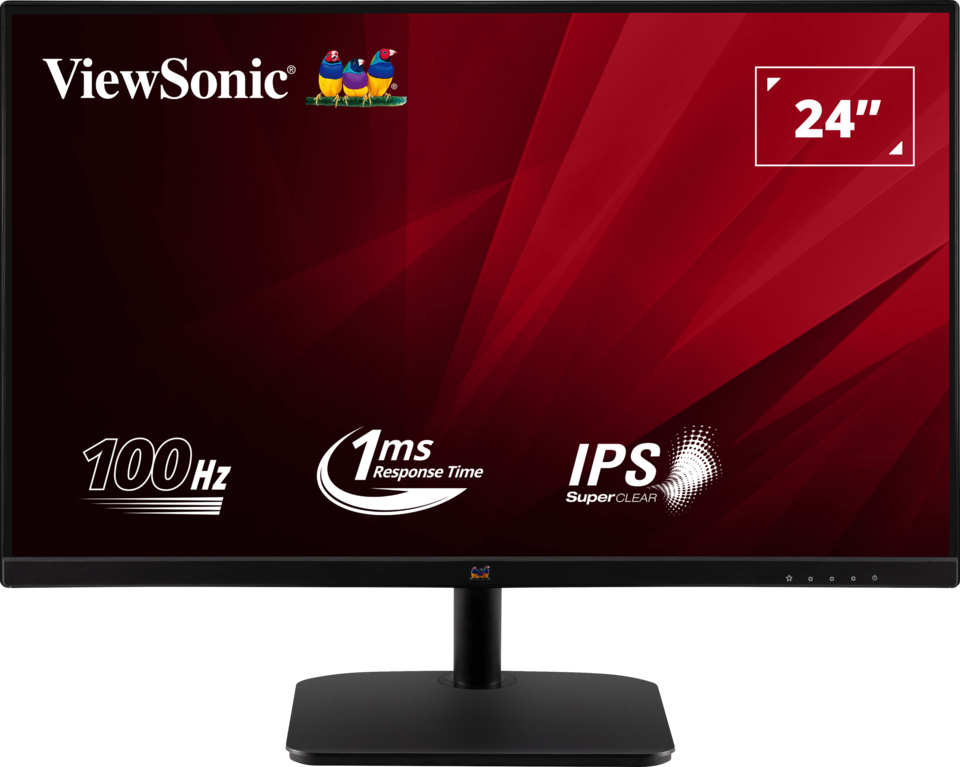

VA2432-h
Product Description
The ViewSonic VA2432-h is a 24” Full HD IPS monitor with HDMI and VGA input for business or home usage. With SuperClear® IPS technology and Full HD resolution, images are clear and detailed from a wide range of viewing angles. The VA2432-h’s three-sided frameless bezel design delivers a seamless viewing experience. This monitor provides six ViewMode presets that deliver optimized screen performance in different applications. Eye-Care technology and energy-saving Eco mode help to eliminate eye strain from extended viewing periods. With VESA-compatible mount support, this monitor is easy to setup in any environment.
  1. Menu Control Panel
  2. HDMI
  3. VGA
  4. VESA Compatible(Wall Mount 75x75mm)
  5. AC IN
Visit Us
  • www.viewsonic.com
  • 표시
    디스플레이 크기(인치): 24
    표시 가능한 영역(인치): 23.8
    패널 유형: IPS Technology
    결의안: 1920 x 1080
    해상도 유형: FHD (Full HD)
    정적 대비 비율: 1,000:1 (typ)
    동적 대비 비율: 50M:1
    광원: LED
    밝기: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    가로 세로 비율: 16:9
    응답 시간(MPRT): 1ms
    보기 각도: 178º horizontal, 178º vertical
    백라이트 수명(시간): 30000 Hrs (Min)
    곡률: Flat
    새로 고침 빈도(Hz): 100
    가변 리프레시 레이트 기술: Yes
    블루라이트 필터: Yes
    Low Blue Light: Hardware and software solution
    깜박임 없음: Yes
    Color Gamut: NTSC: 75% size (Typ) sRGB: 105% size / 99% coverage (Typ)
    픽셀 크기: 0.275 mm (H) x 0.275 mm (V)
    표면 처리: Anti-Glare, Hard Coating (3H)
  • 호환성
    PC 해상도(최대): 1920x1080
    Mac® 해상도(최대): 1920x1080
    PC 운영 체제: Windows 10/11 certified; macOS tested
    Mac® 해상도(분): 1920x1080
  • 커넥터
    VGA: 1
    3.5mm 오디오 출력: 1
    HDMI 1.4: 1
    전원 투입: DC Socket (Center Positive)
  • 힘
    에코 모드(보존): 15W
    Eco Mode (optimized): 18W
    소비(일반): 22W
    소비량(최대): 25W
    전압: AC 100-240V
    대기: 0.3W
    전원 공급 장치: External Power Adaptor
  • 추가 하드웨어
    켄징턴 잠금 슬롯: 1
  • 컨트롤
    물리적 제어: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
    화면 디스플레이: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • 작동 조건
    온도: 32°F to 104°F (0°C to 40°C)
    습도(결로하지 말 것): 20% to 90%
  • WALL MOUNT
    VESA 호환: 75 x 75 mm
  • 입력 신호
    주파수 수평: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz
    주파수 수직: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz
  • 비디오 입력
    디지털 동기화: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • 인체공학
    틸트(전진/후진): -3º / 20º
  • 무게(제국)
    네트(lbs): 6
    스탠드 없는 네트(lbs): 5.3
    총계(lbs): 8.2
  • WEIGHT (METRIC)
    순(kg: 2.7
    스탠드없는망(kg): 2.4
    그로스(kg): 3.7
  • 치수(제국)(WXHXD)
    포장(in.): 23.6 x 15.6 x 4.4
    물리적(인치): 21.3 x 16 x 7.3
    물리적(스탠드 없음): 21.3 x 12.7 x 1.4
  • 치수(메트릭)(WXHXD)
    포장(mm): 600 x 395 x 112
    물리적(mm): 540 x 406 x 185
    물리적 스탠드 미포함 (mm): 540 x 322 x 36
  • 일반
    규정: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, KC, K-MEPS, BIS
    패키지 내용물: VA2432-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x1 or 2 (by country)
    재활용/폐기: Please dispose of in accordance with local, state or federal laws.
    보증: *Warranty offered may differ from market to market
