LCD Display
VA2223-H
Key Features
- HDMI and VGA input
- Flicker-Free and Blue Light Filter
- VESA mountable
- ViewMode technology
- Eco-mode
Product Description

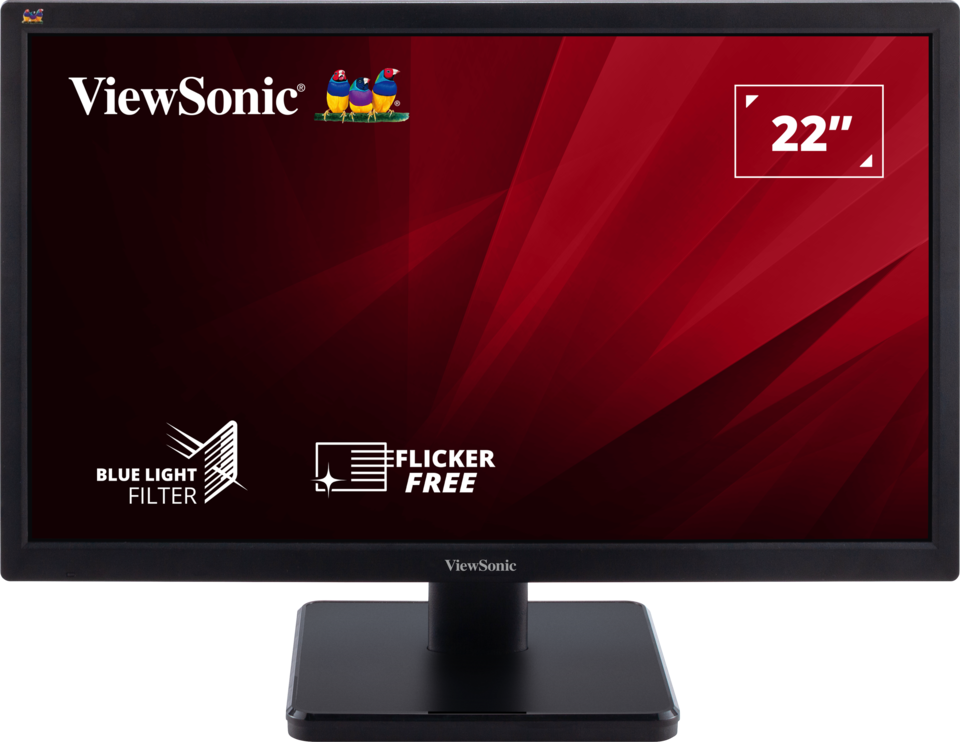

The ViewSonic VA2223-H is a cost-effective 22” Full HD monitor with HDMI and VGA input that is ideal for business or home usage. It features 1080p resolution which delivers stunning image quality and more detailed content. ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. Besides, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. A VESA-compatible mount adapts easily to multi-monitor or wall-mount set ups.
- VESA Compatible(Wall Mount 75x75mm)
- Menu Control Panel
- AC In
- VGA
- HDMI
Visit Us
- www.viewsonic.com
-
표시
디스플레이 크기(인치): 22 표시 가능한 영역(인치): 21.5 패널 유형: TN Technology 결의안: 1920 x 1080 해상도 유형: FHD (Full HD) 정적 대비 비율: 600:1 (typ) 동적 대비 비율: 50M:1 광원: LED 밝기: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) 가로 세로 비율: 16:9 Response Time (Typical Tr+Tf): 5ms 보기 각도: 90º horizontal, 65º vertical 백라이트 수명(시간): 30000 Hrs (Min) 곡률: Flat 새로 고침 빈도(Hz): 60 블루라이트 필터: Yes Low Blue Light: Software solution 깜박임 없음: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ) 픽셀 크기: 0.248 mm (H) x 0.248 mm (V) 표면 처리: Anti-Glare, Hard Coating (3H) -
호환성
PC 해상도(최대): 1920x1080 Mac® 해상도(최대): 1920x1080 PC 운영 체제: Windows 10 certified; macOS tested Mac® 해상도(분): 1920x1080 -
커넥터
VGA: 1 HDMI 1.4: 1 전원 투입: DC Socket (Center Positive) -
힘
에코 모드(보존): 18W Eco Mode (optimized): 20W 소비(일반): 22W 소비량(최대): 24W 전압: AC 100-240V 대기: 0.3W 전원 공급 장치: External Power Adaptor -
컨트롤
물리적 제어: Auto, -, +, Menu, Power 화면 디스플레이: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
작동 조건
온도: 32°F to 104°F (0°C to 40°C) 습도(결로하지 말 것): 20% to 90% -
WALL MOUNT
VESA 호환: 75 x 75 mm -
입력 신호
주파수 수평: 24 ~ 82KHz 주파수 수직: 50 ~ 75Hz -
비디오 입력
디지털 동기화: TMDS - HDMI (v1.4) Analog Sync: Separate - RGB Analog -
인체공학
틸트(전진/후진): -4º / 14º -
무게(제국)
네트(lbs): 4.6 스탠드 없는 네트(lbs): 4 총계(lbs): 6.6 -
WEIGHT (METRIC)
순(kg: 2.1 스탠드없는망(kg): 1.8 그로스(kg): 3 -
치수(제국)(WXHXD)
포장(in.): 22.1 x 14.4 x 4.3 물리적(인치): 20.1 x 14.6 x 7.3 물리적(스탠드 없음): 20.1 x 12.2 x 1 -
치수(메트릭)(WXHXD)
포장(mm): 562 x 365 x 110 물리적(mm): 510 x 370 x 185 물리적 스탠드 미포함 (mm): 510 x 310 x 25 -
일반
규정: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, PSB 패키지 내용물: VA2223-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x1 or 2 (by country) 재활용/폐기: Please dispose of in accordance with local, state or federal laws. 보증: *Warranty offered may differ from market to market
