Archived

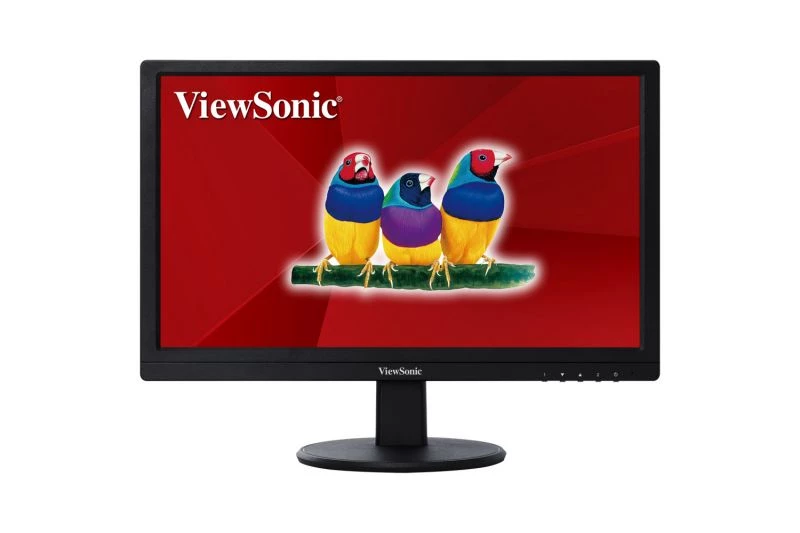

VA1630-A

16'' (15.6'' viewable) 1080p monitor

DISPLAY
Monitor Size: 16”W (15.6” Viewable)
Panel Technology: TN Technology, a-si TFT Active Matrix LCD
결의안: 1920 x 1080
Display Area: 344.16mm (H) x 193.59mm (V)
가로 세로 비율: 16:9
밝기: 220 cd/m² (Typ)
대비 비율: 500:1 (Typ)
동적 대비 비율: 50,000,000:1
Viewing Angle: 90 degrees / 60 degrees (Typ)
새로 고침 빈도(Hz): 62 (Max)
응답 시간: Tr+Tf: 12ms
GTG(AVR; Scaler OD) *2:5ms (Typ)
Backlight: 1 LED light bar
백라이트 라이프: 15,000 Hrs (Min)
색: 16.7M colors (6-bit + Hi FRC color depth)
색역: 45% of NTSC (Typ)
Panel Surface: Anti-Glare type, Hard-coating, Haze 25%
Pixel Pitch: 0.179mm (H) x 0.179mm (V)
INPUT SIGNAL
Frequency: Fh = 30 ~ 83KHz ; Fv = 58 ~ 62Hz
Sync: Separate Sync
COMPATIBILITY
PC: Windows 7, Windows 8, Windows 8.1, Windows 10 certified
Mac®: Power Mac tested

CONNECTOR
Analog: D-Sub
POWER
힘: 3-pin plug (CEE22) x 1
전압: AC 100-240V (Universal); 50/60Hz
소비.: 6W
Optimize: 5.6W
Conserve: 5.1W
ERGONOMICS
틸트: 15 ~ -5 degrees
SPECIAL FEATURES
DDC/2B, DDC/CI, Detachable Base, KENSINGTON Microsaver Security Compatible, Flicker Free.
WALL MOUNT
VESA®: 75mm x 75mm
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
습도: 20% to 90% (no condensation)
DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 377.2mm (W) x 293.1mm (H) x 154.9mm (D)
Physical without stand (mm): 377.2mm (W) x 233.2mm (H) x 40.2mm (D)
포장(mm): 430mm (W) x 320mm (H) x 120mm (D)
WEIGHT
Net with stand (kg): 1.3kg (2.8lbs)
Net without stand (kg): 1.1kg (2.4lbs)
그로스(kg): 2kg (4.6lbs)
WARRANTY
*Warranty offered may differ from market to market
패키지 내용물
LCD Display
Power Cable (1.5m)
VGA Cable (1.5m)
Quick Start Guide
*Actual content may differ from market to market
LCD Display
Power Cable (1.5m)
VGA Cable (1.5m)
Quick Start Guide
*Actual content may differ from market to market
