TD2423

24” IR Touch Monitor

Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen

Sales Enquiry

GALLERY

OVERVIEW

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.

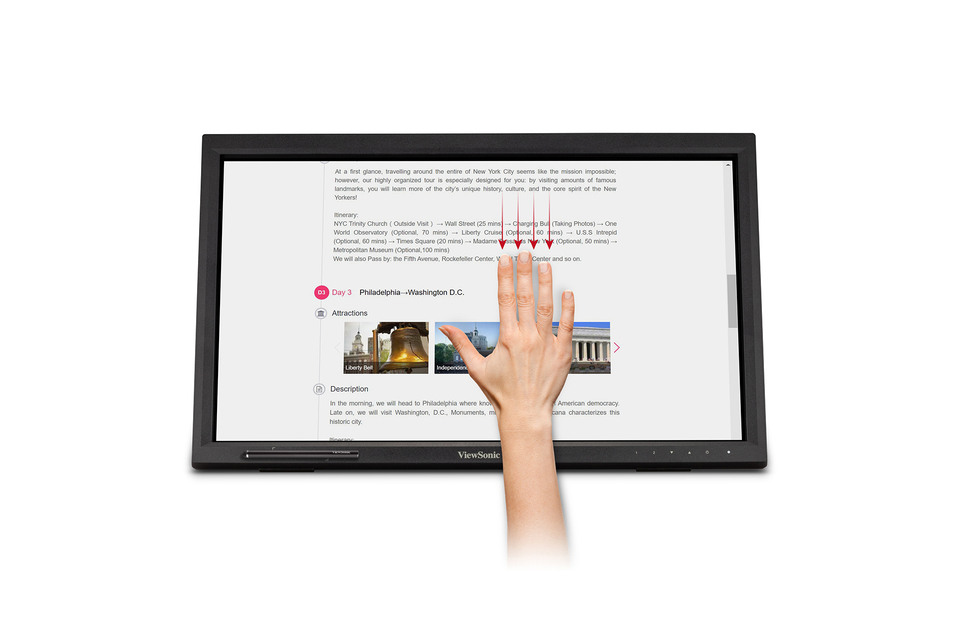

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.
*The stylus pen only shown for reference and excluded from the package.

IR Touch Technology

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS
*TD2423 does not support USB Type-C for output video, audio, and touch feedback through mobile phone and tablet on Android OS, but it can support other Android devices.

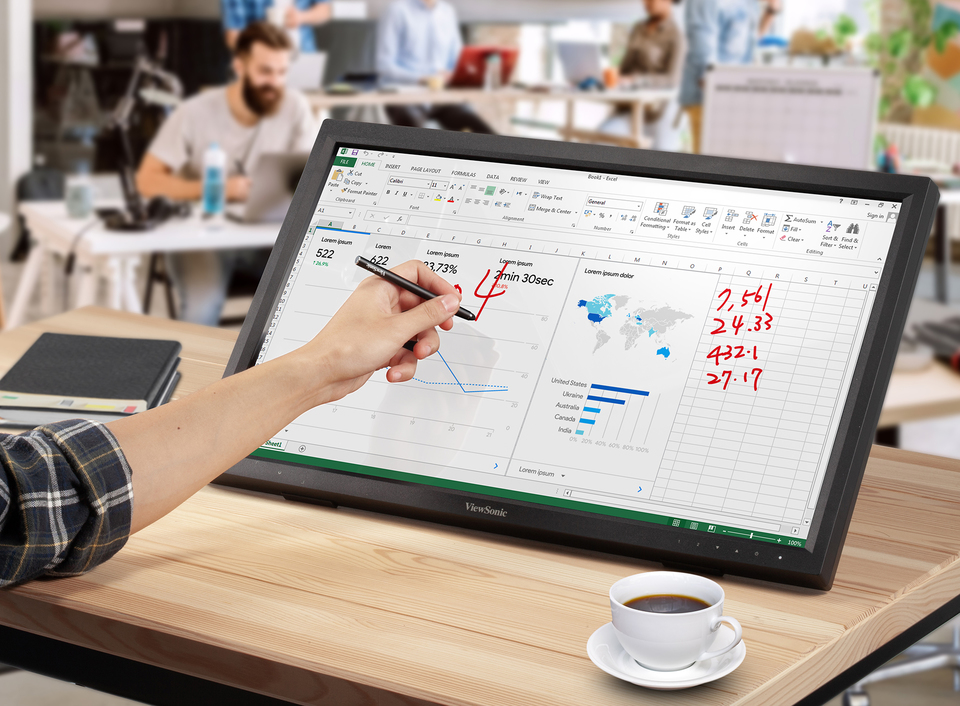

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.

*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.

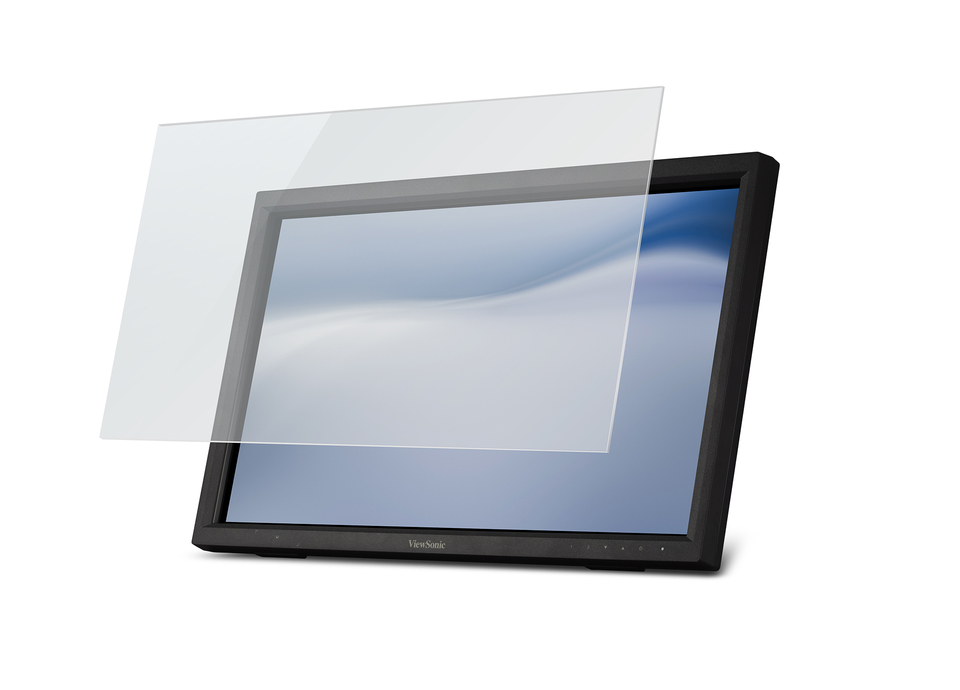

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

7H Hardness Screen

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images

This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

Full HD 1080p Resolution

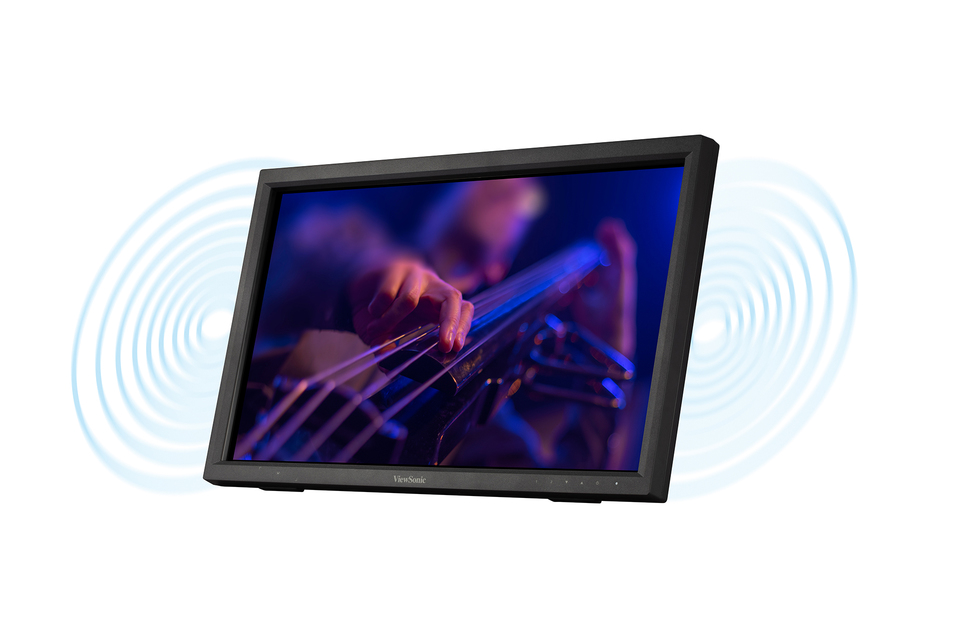

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort

This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

Certified Environmental Sustainability

The TD2423 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.

Energy Star & EPEAT

Certified Environmental Sustainability 1

Dimension & I/O Ports

Menu Control Panel
USB Down Stream x 2
USB UP Stream
AC In
HDMI
VESA Compatible
(Wall Mount 100 x 100mm)
Earphone Out
Audio In
VGA
DVI

SPECIFICATIONS

표시
디스플레이 크기(인치): 24
표시 가능한 영역(인치): 23.6
패널 유형: VA Technology
결의안: 1920 x 1080
해상도 유형: FHD (Full HD)
정적 대비 비율: 3,000:1 (typ)
동적 대비 비율: 20M:1
광원: LED
밝기: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
가로 세로 비율: 16:9
응답 시간(일반 GTG): 7ms
응답 시간(GTG 및 OD): 7ms
Response Time (Typical Tr+Tf): 25ms
보기 각도: 178º horizontal, 178º vertical
백라이트 수명(시간): 40000 Hrs (Min)
곡률: Flat
새로 고침 빈도(Hz): 75
블루라이트 필터: Yes
Low Blue Light: Software solution
깜박임 없음: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
픽셀 크기: 0.272 mm (H) x 0.272 mm (V)
터치 스크린: IR, 10-point multi-touch
표면 처리: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.85mm
호환성
PC 해상도(최대): 1920x1080
Mac® 해상도(최대): 1920x1080
PC 운영 체제: Windows 7/8.1/10/11 certified; macOS tested
Mac® 해상도(분): 1920x1080
커넥터
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm 오디오 출력: 1
HDMI 1.4: 1
DVI-D: 1
전원 투입: 3-pin Socket (IEC C14 / CEE22)

오디오
내부 스피커: 2Watts x2
힘
에코 모드(보존): 11.5W
Eco Mode (optimized): 13.5W
소비(일반): 15.5W
소비량(최대): 16.5W
전압: AC 100-240V
대기: 0.5W
전원 공급 장치: Internal Power Supply
추가 하드웨어
켄징턴 잠금 슬롯: 1
Cable Organization: Yes
컨트롤
물리적 제어: 1, 2, Up, Down, Power
화면 디스플레이: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
작동 조건
온도: 32°F to 104°F (0°C to 40°C)
습도(결로하지 말 것): 20% to 90%
Wall Mount
VESA 호환: 100 x 100 mm
입력 신호
주파수 수평: 24 ~ 82KHz
주파수 수직: 50 ~ 75Hz
비디오 입력
디지털 동기화: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog
인체공학
틸트(전진/후진): 20º / 40º
무게(제국)
네트(lbs): 11.5
스탠드 없는 네트(lbs): 10.3
총계(lbs): 15.4
Weight (metric)
순(kg: 5.2
스탠드없는망(kg): 4.7
그로스(kg): 7
치수(제국)(wxhxd)
포장(in.): 25.4 x 16.6 x 6.5
물리적(인치): 22.5 x 13.7 x 4
물리적(스탠드 없음): 22.5 x 13.7 x 2.4
치수(메트릭)(wxhxd)
포장(mm): 645 x 422 x 166
물리적(mm): 571 x 348 x 101
물리적 스탠드 미포함 (mm): 571 x 348 x 61
일반
규정: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE, BIS, CCC, China RoHS, China Energy Label, CECP
패키지 내용물: TD2423 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
재활용/폐기: Please dispose of in accordance with local, state or federal laws.
보증: *Warranty offered may differ from market to market
전원 관리: Energy Star standards, EPEAT
