New

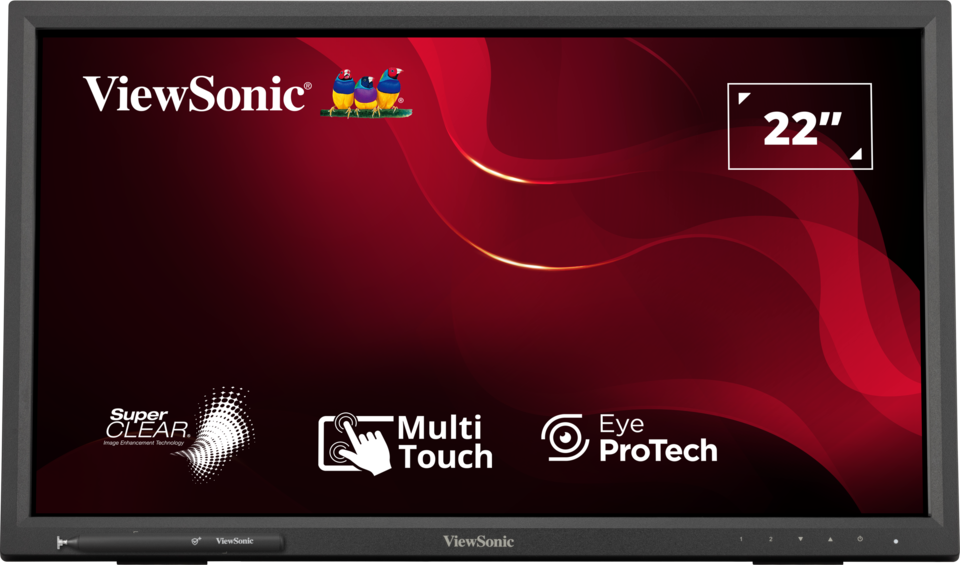

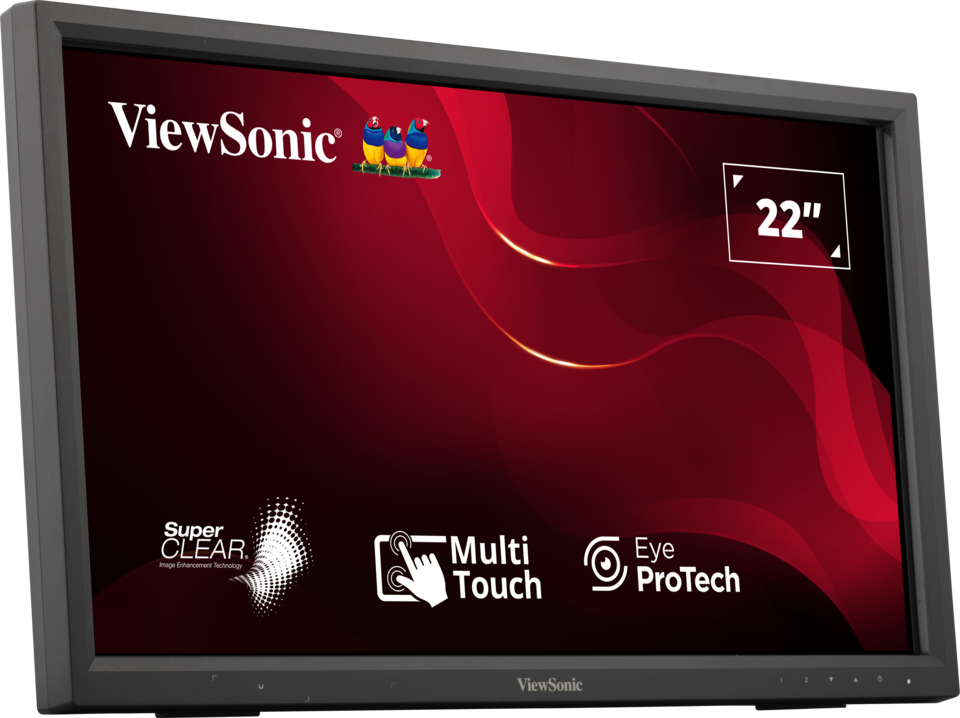

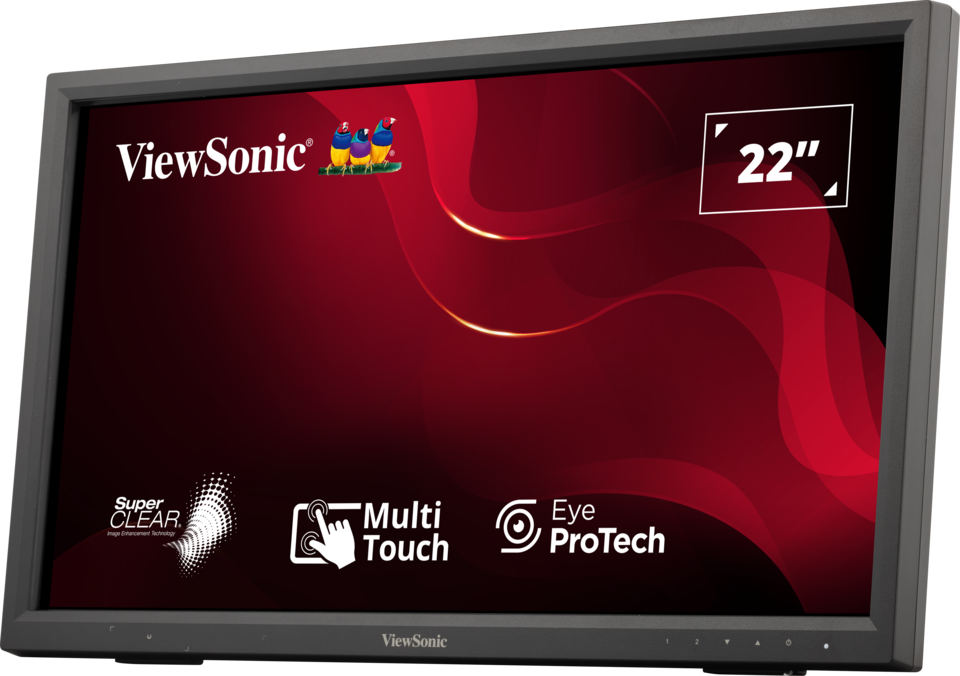

TD2223

22” IR Touch Monitor

  • Intuitive 10-point touchscreen
  • Finger, stylus, and glove touch compatible
  • Magnetic pen placeholder
  • Adjustable back tilt up to 40-degrees
  • Scratch-resistant 7H hardness screen

OVERVIEW

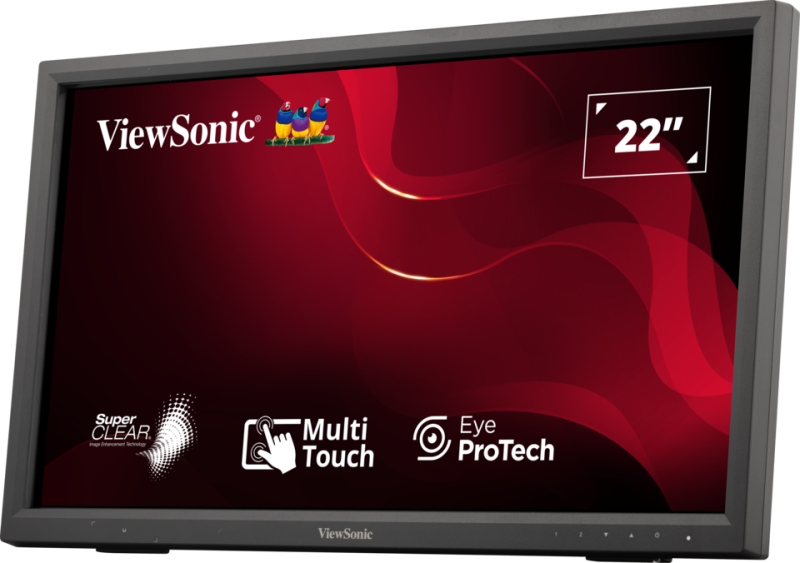

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
IR Touch Technology
Intuitive Multi-touch Experience 1

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS
Operating System Support 1

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.
Simple and Safer Way to Interact 1

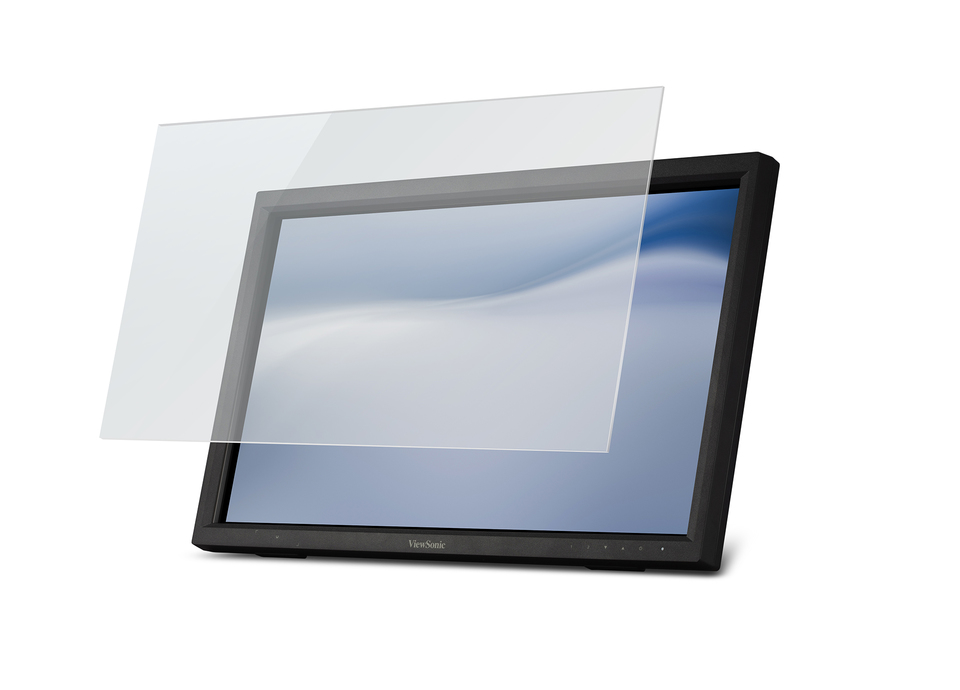

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
7H Hardness Screen
Anti-scratch Touchscreen 1

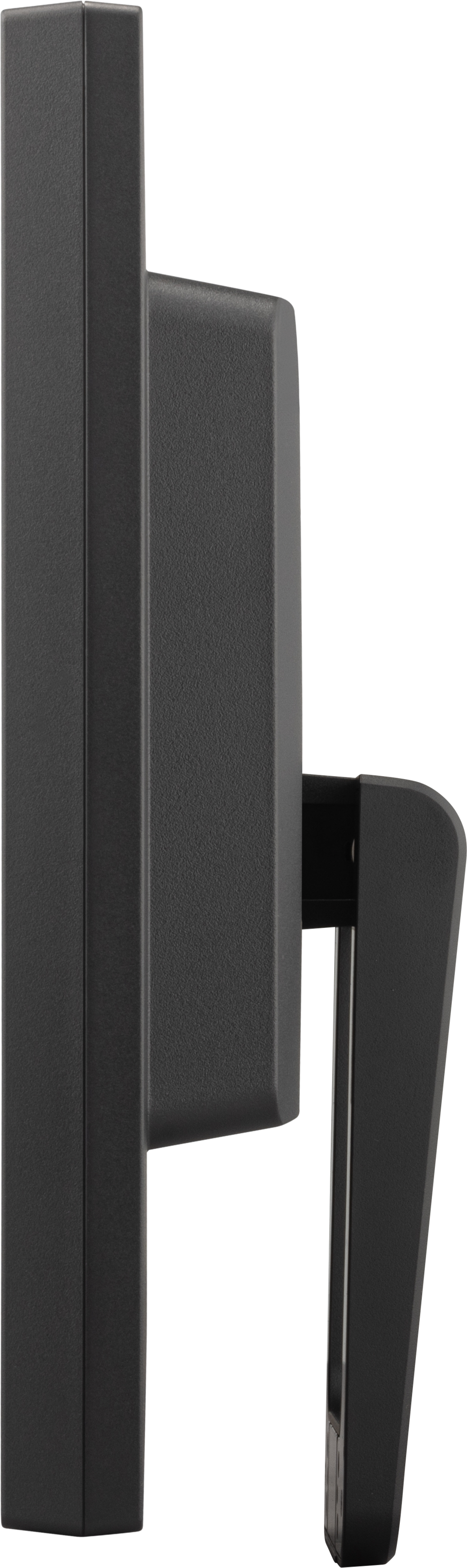

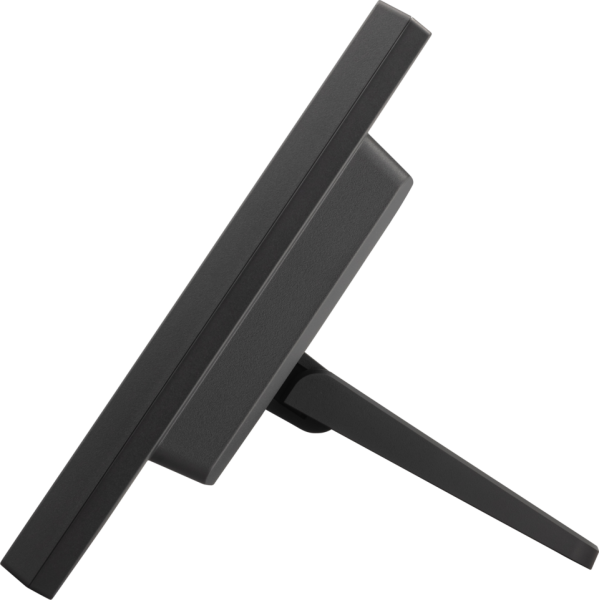

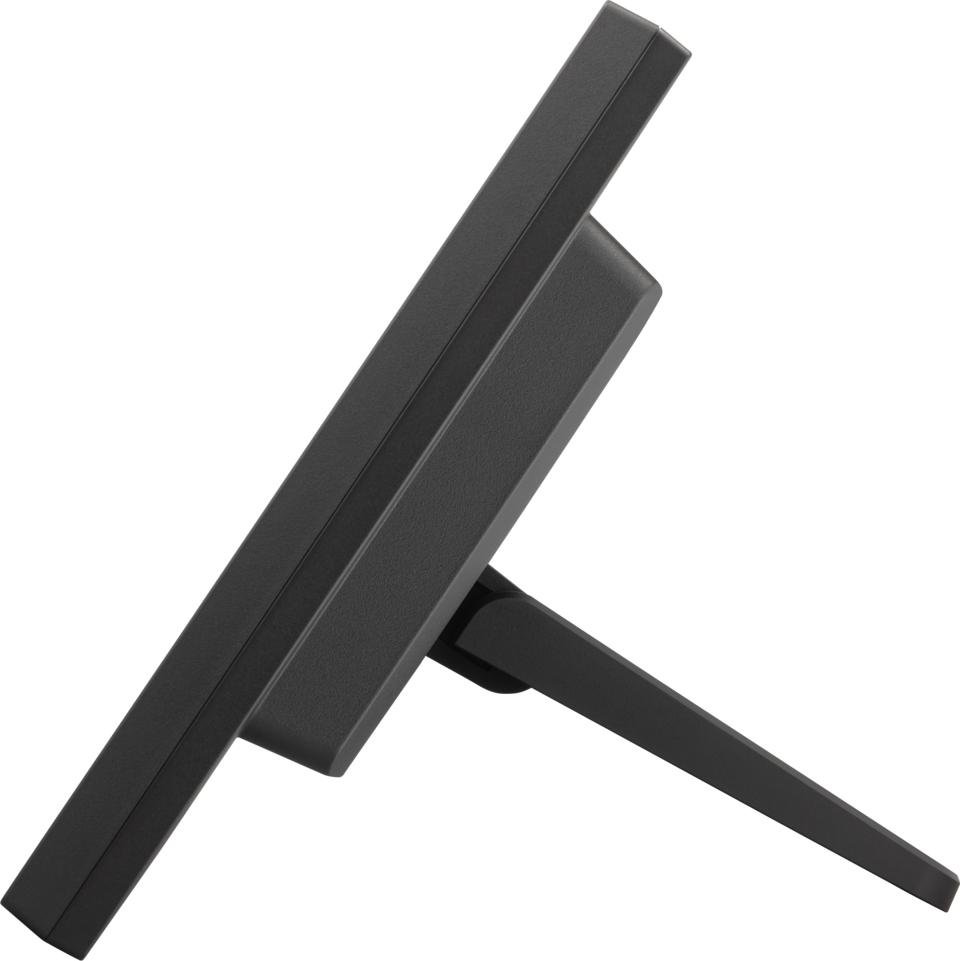

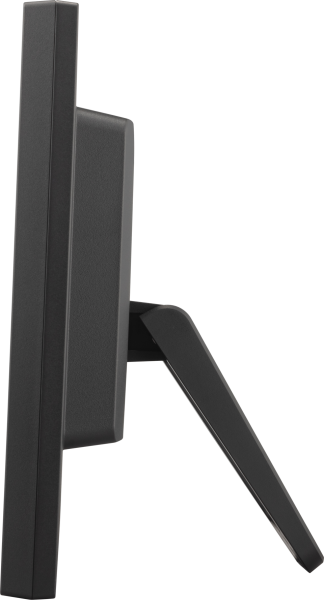

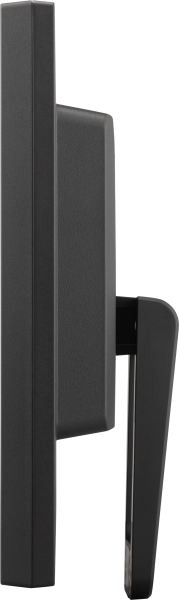

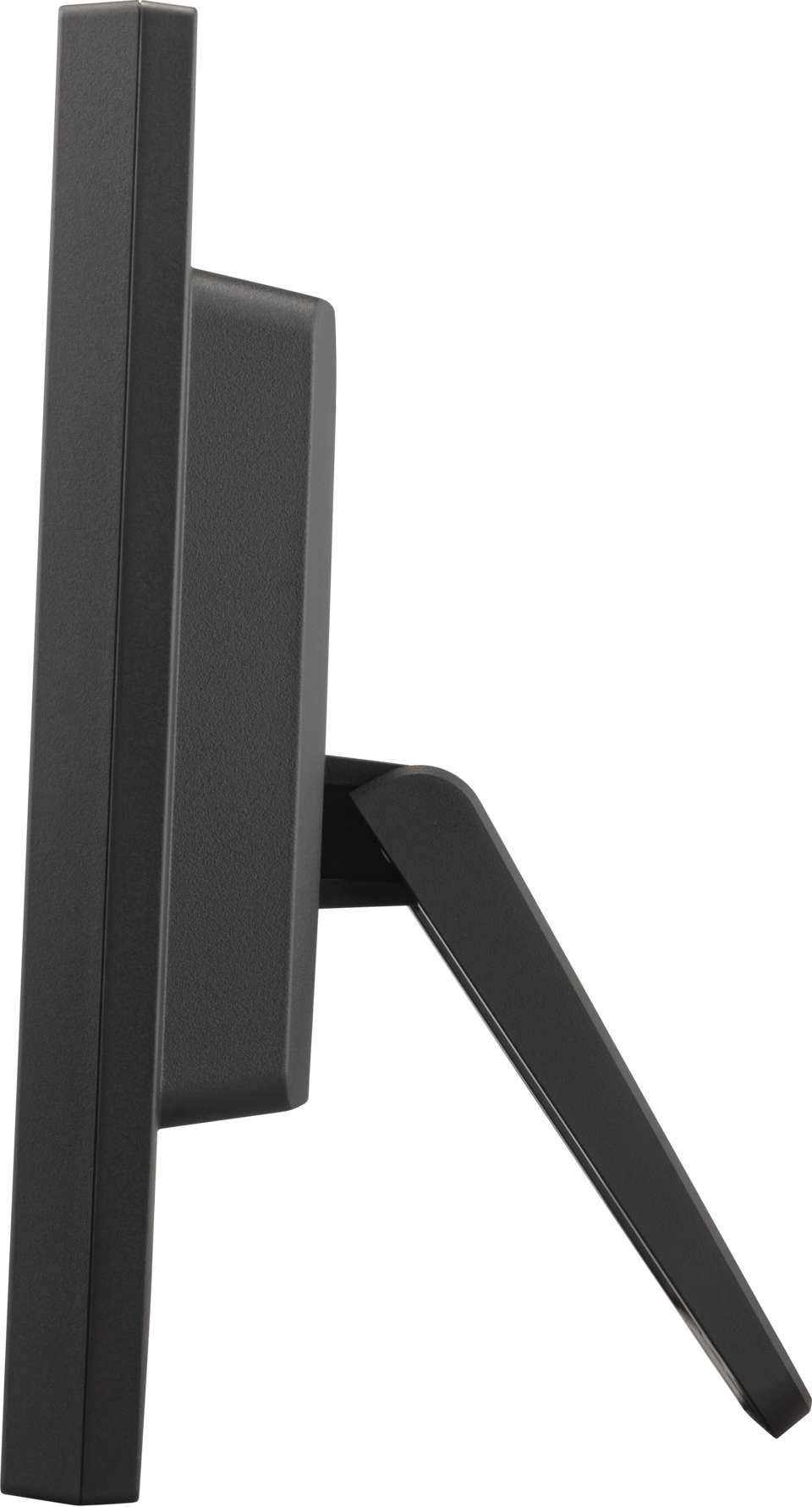

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Adjustable Tilt 1

Full HD 1080p

Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.
Full HD 1080P
Full HD 1080p 1

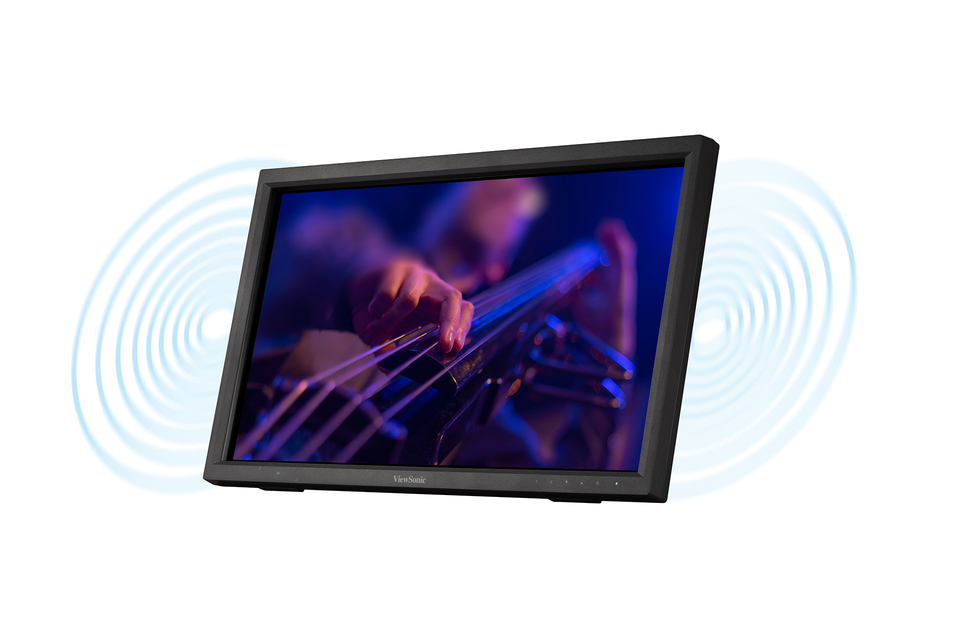

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Dual Integrated Speakers 1

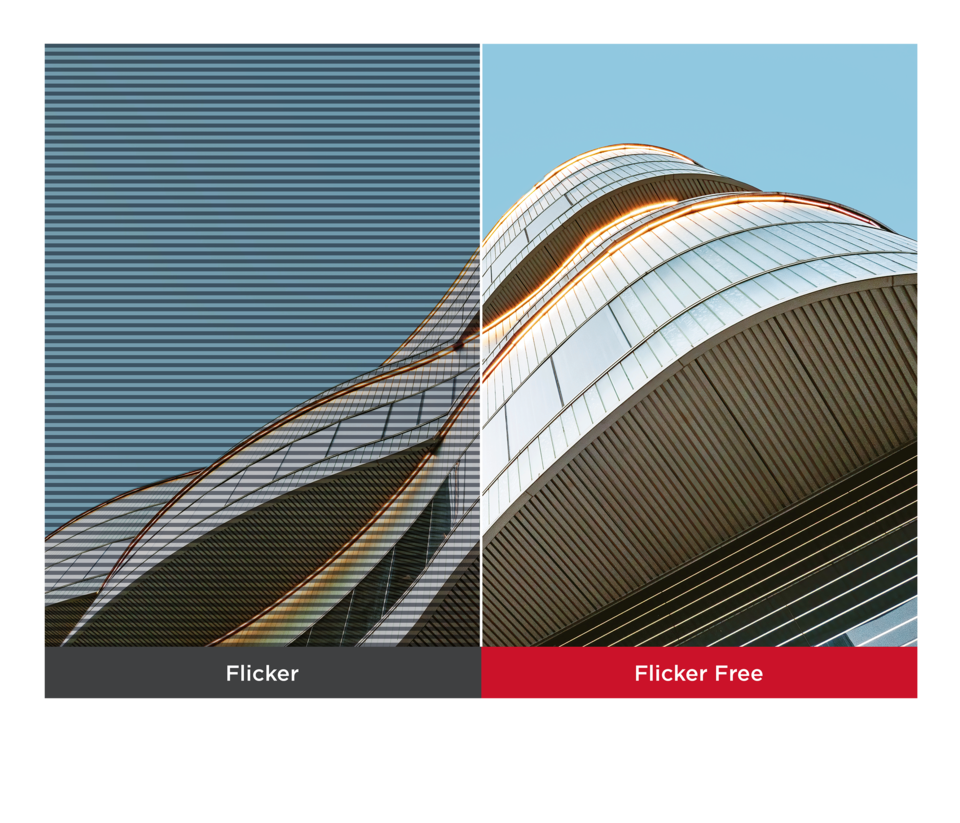

Relieve your Eyes from Strain

Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.
Flicker-Free & Blue Light Filter
Relieve your Eyes from Strain 1
Relieve your Eyes from Strain 2

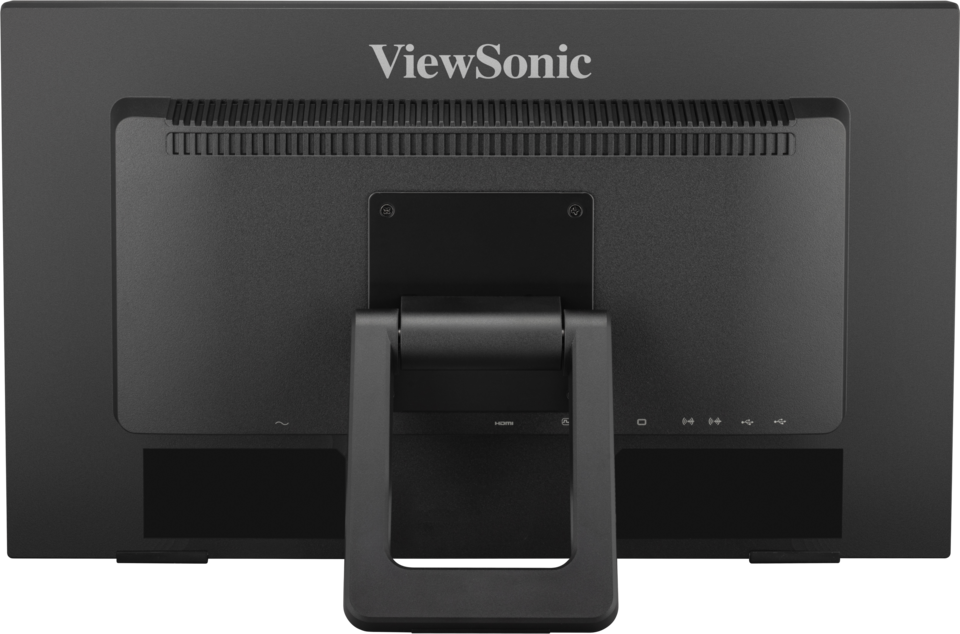

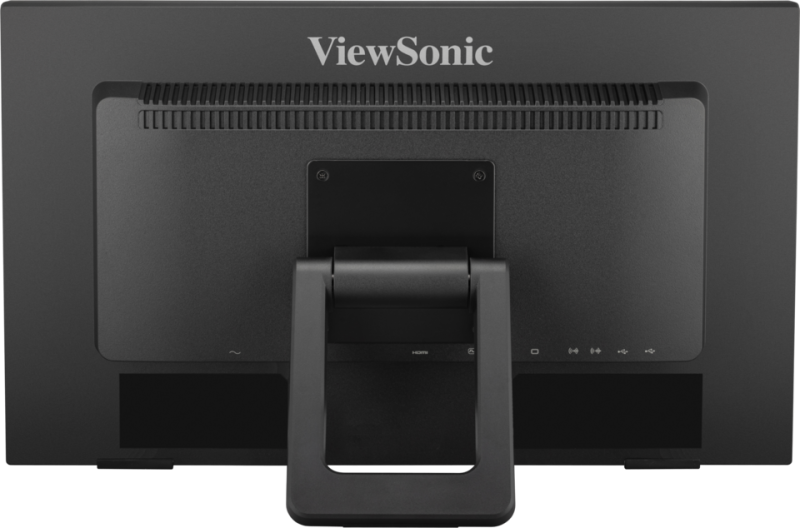

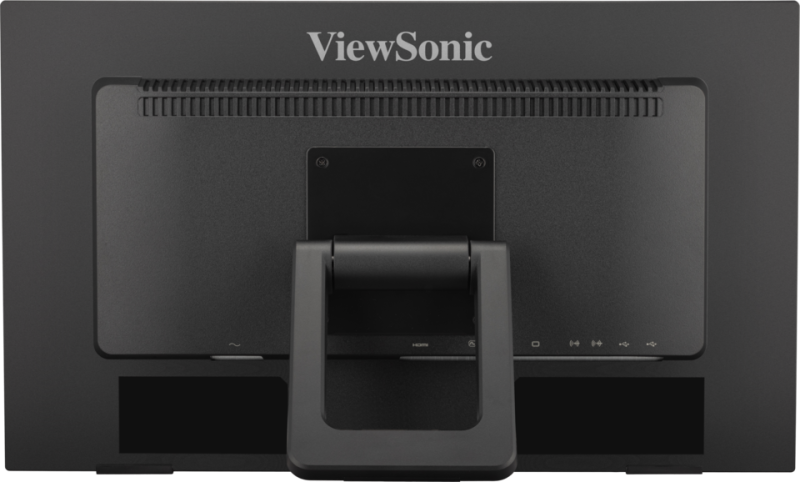

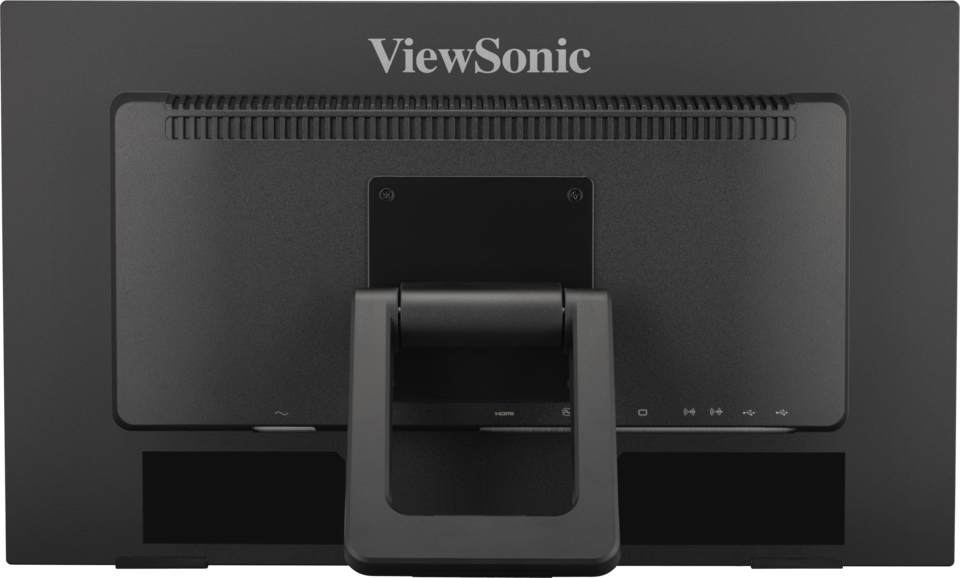

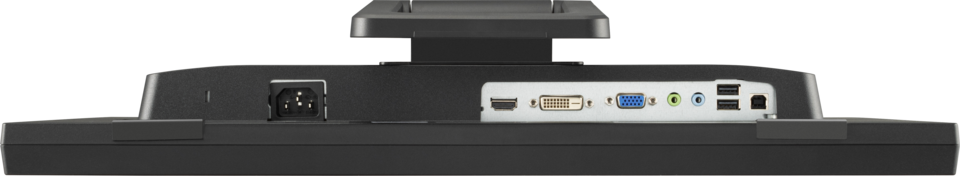

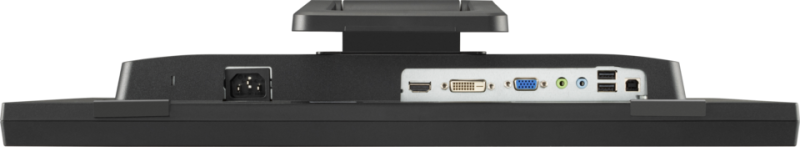

Dimension & I/O Ports

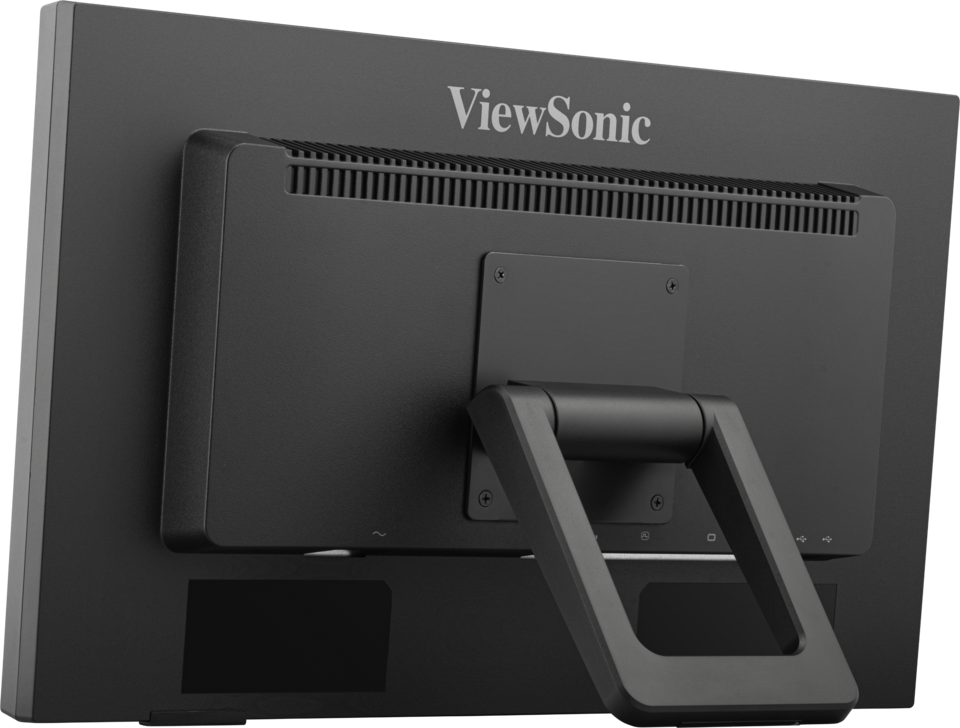

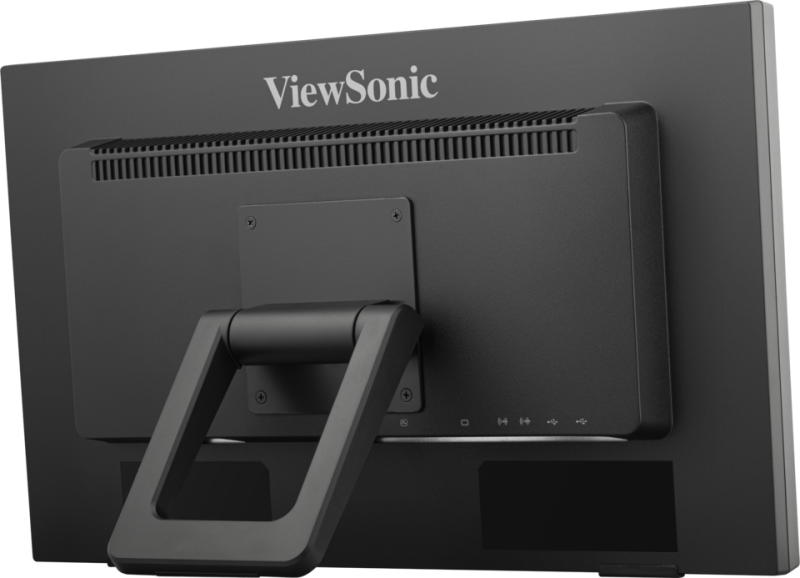

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.
100mm x 100mm VESA mount
Dimension & I/O Ports 1
  1. Menu Control Panel
  2. Power In
  3. VESA Compatible
    (Wall Mount 100 x 100mm)
  4. HDMI
  5. DVI
  6. VGA
  7. Audio In
  8. Audio Out
  9. USB Downstream
  10. USB Upstream

SPECIFICATIONS


  • 표시
    디스플레이 크기(인치): 22
    표시 가능한 영역(인치): 21.5
    패널 유형: VA Technology
    결의안: 1920 x 1080
    해상도 유형: FHD (Full HD)
    정적 대비 비율: 3,000:1 (typ)
    동적 대비 비율: 20M:1
    광원: LED
    밝기: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    가로 세로 비율: 16:9
    응답 시간(일반 GTG): 6.5ms
    응답 시간(GTG 및 OD): 6.5ms
    보기 각도: 178º horizontal, 178º vertical
    백라이트 수명(시간): 30000 Hrs (Min)
    곡률: Flat
    새로 고침 빈도(Hz): 75
    블루라이트 필터: Yes
    Low Blue Light: Software solution
    깜박임 없음: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    픽셀 크기: 0.249 mm (H) x 0.241 mm (V)
    터치 스크린: IR, 10-point multi-touch
    표면 처리: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 2mm
  • 호환성
    PC 해상도(최대): 1920x1080
    Mac® 해상도(최대): 1920x1080
    PC 운영 체제: Windows 10/11 certified; macOS tested
    Mac® 해상도(분): 1920x1080
  • 커넥터
    VGA: 1
    USB 2.0 Type A: 2
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    3.5mm 오디오 출력: 1
    HDMI 1.4: 1
    DVI-D: 1
    전원 투입: 3-pin Socket (IEC C14 / CEE22)
