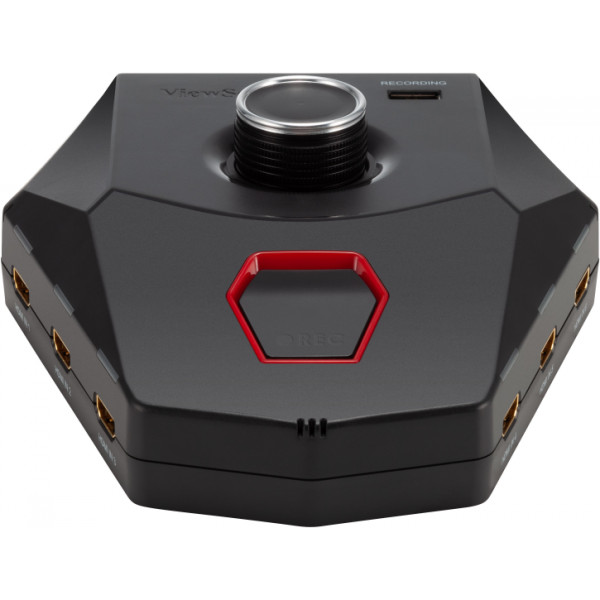

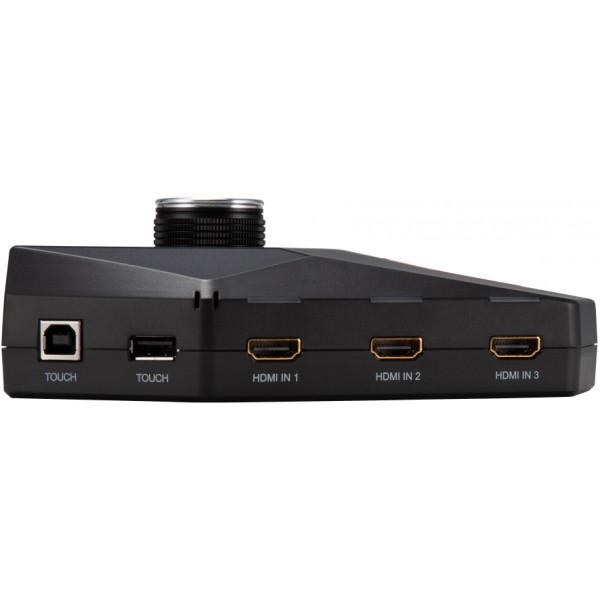

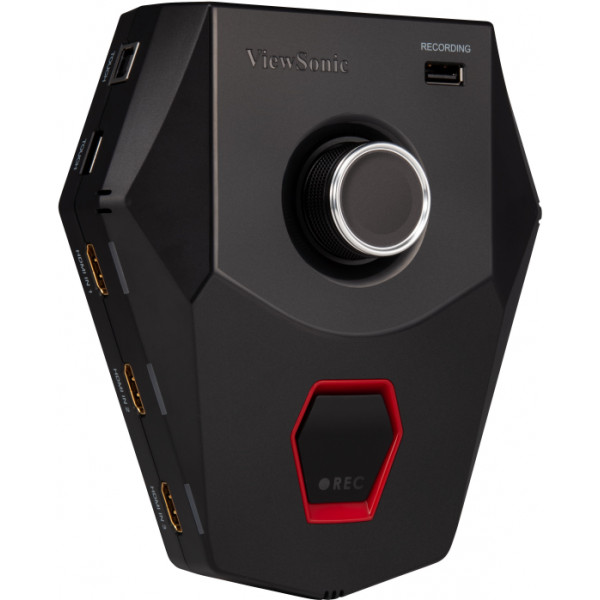

ViewBoard Huddle (VBH100)
Huddle Room Collaboration Hub
- Ideal for a huddle space, with up to 7 attendees
- Rotatable switch for presenting screen selection
- One button screen and audio recording
- Easy, takeaway session recording in a USB flash drive
- Flexible installation without distance concerns
- HDCP certified for digital copy protection
- Touch feedback control
- Plug-and-play
SPECIFICATIONS
- AUDIOMicrophone: Yes
- CONNECTIVITYUSB: USB2.0 –typeA x 2 ; USB2.0 –typeB x 1 ; USB -type C x 1
HDMI-IN: Yes
HDMI-OUT: Yes
HDBaseT: TX x 1 - SUPPORTED FILE FORMATVideo + External Audio: MP4
- POWERAC adapter: AC Input voltage 100~240VAC, 50-60 Hz (universal),
AC input current : 0.6A Aac max
DC output voltage : 5 V dc ( typical)
DC output current : 4.0 A ( typical) - INTERFACEI/O ports: HDMI-IN x6
HDMI-OUT x1
HDBaseT TX x1
USB2.0 –typeA x 2
USB2.0 –typeB x 1
USB -type C x - OPERATING CONDITIONTemperature/Humidity Charging temperature range of handset Altitude: 0°C to 40°C
- STORAGE CONDITIONTemperature/Humidity Storing temperature range Altitude: -20°C to 60°C
20%~90% non-condensing
-20~60°C [-4~140°F] - INCLUDED ACCESSORIESThe top-level assembly shall contain:
1. VSH100
2. Quick Start Guide
3. HDMI cable x 2 - DIMENSIONSPhysical (W xH xD): 150.19 x 56.3 x 169.68 mm ( 5.9 x 2.2x 6.6 inches)
Kraft Box (W xH x D): 210 x 189 x 111 mm (8.26 x 7.44 x 4.37inches) - WEIGHTPhysical (Net): 537.6 g (1.18lb)
Kraft Box (Gross): 1400 g (3.08lb)
