TD2210
22" Resistive Touch Screen Monitor
- Full HD 1080p resolution
- 20M:1 Dynamic Contrast Ratio
- VGA and DVI inputs
- Dual Integrated Speakers
- Compatible with Windows® 7/8/10
SPECIFICATIONS
- 표시디스플레이 크기(인치): 22
표시 가능한 영역(인치): 21.5
패널 유형: TN Technology
결의안: 1920 x 1080
해상도 유형: FHD (Full HD)
정적 대비 비율: 1,000:1 (typ)
동적 대비 비율: 20M:1
광원: LED
밝기: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
가로 세로 비율: 16:9
Response Time (Typical Tr+Tf): 5ms
보기 각도: 170º horizontal, 160º vertical
백라이트 수명(시간): 30000 Hrs (Min)
곡률: Flat
새로 고침 빈도(Hz): 60
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
픽셀 크기: 0.248 mm (H) x 0.248 mm (V)
터치 스크린: Resistive, 1-point single-touch
표면 처리: Anti-Glare, Hard Coating (≧3H)
Cover Glass Thickness: 1.8mm - 호환성PC 해상도(최대): 1920x1080
Mac® 해상도(최대): 1920x1080
PC 운영 체제: Windows 7/8/8.1/10/11 certified; macOS tested

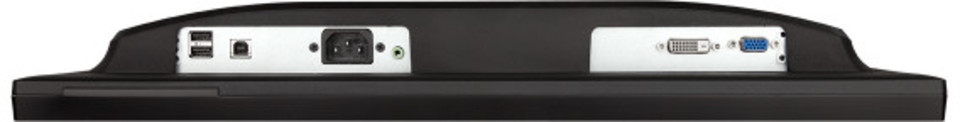

Mac® 해상도(분): 1920x1080 - 커넥터VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
DVI-I: 1
전원 투입: 3-pin Socket (IEC C14 / CEE22)
- 오디오내부 스피커: 2Watts x2
- 힘에코 모드(보존): 11.5W
Eco Mode (optimized): 14W
소비(일반): 17.5W
소비량(최대): 24.5W
전압: AC 100-240V
대기: 0.5W
전원 공급 장치: Internal Power Supply - 추가 하드웨어켄징턴 잠금 슬롯: 1
Cable Organization: Yes - 컨트롤물리적 제어: 1, 2, Up, Down, Power
화면 디스플레이: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - 작동 조건온도: 32°F to 104°F (0°C to 40°C)
습도(결로하지 말 것): 20% to 90% - Wall Mount VESA 호환: 100 x 100 mm
- 입력 신호주파수 수평: 24 ~ 83KHz
주파수 수직: 50 ~ 76Hz - 비디오 입력디지털 동기화: TMDS - DVI-D
Analog Sync: Separate/Composite/SOG - RGB Analog - 인체공학틸트(전진/후진): -5º / 20º
- 무게(제국)네트(lbs): 10.5
스탠드 없는 네트(lbs): 8.7
총계(lbs): 14.4 - Weight (metric) 순(kg: 4.8
스탠드없는망(kg): 3.9
그로스(kg): 6.5 - 치수(제국)(wxhxd)포장(in.): 22.4 x 16.8 x 8.4
물리적(인치): 20.1 x 14.3 x 9.4
물리적(스탠드 없음): 20.1 x 12.2 x 2.5 - 치수(메트릭)(wxhxd)포장(mm): 570 x 427 x 214
물리적(mm): 512 x 364 x 240
물리적 스탠드 미포함 (mm): 512 x 311 x 64 - 일반규정: cTUVus, FCC-B, ICES003, Energy Star, CEC, MX-CoC, Mexico Energy, REACH, WEEE, VCCI, BIS
패키지 내용물: TD2210 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
재활용/폐기: Please dispose of in accordance with local, state or federal laws.
보증: *Warranty offered may differ from market to market
전원 관리: Energy Star standards
