CDP4260-TL

DVI: x1
오디오: x1 Shared RCA audio (L+R)
RS232: x1

RJ45: x1

A형: x1 (for touch)

10Wx2

RGB PC/HDMI PC: Refer to timing table
CVBS: 480i,
YPbPr: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p
디스플레이 포트: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p

Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU; SCREEN: Brightness, Contrast, Sharpness, Black Level, Tint, Colour, Color Temperature, Gamma; Selection, Noise Reduction, Film Mode, Picture Reset; Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom; Zoom, Input Resolution, Screen Reset; SOUND: Balance, Treble, Bass, Audio Reset; PIP: PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset; CONFIGURATION 1: Off Timer, Schedule, Data and Time, Configuration 1 Reset; CONFIGURATION 2: Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor; Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption, Configuration 2 Reset; CONFIGURATION 3: Power Save, Heat Status, Screen Saver, Side Border Colour, Configuration 3 Reset; ADVANCED OPTION: Input Change, Terminal Setting, Scan Conversion, Colour System, Scan Mode, Serial; Control, Lan Setting, APM, Advanced Option Reset, Factory Reset;

전압: 100-240VAC +/- 10% 50/60Hz Wide Range
소비.: 120W (typ), 250W (max)
< 0.5 W ("Off")

Wall Mount (VESA® ): 200 x 200 / 400 x 200

Temperature (º C): 0°C to 40°C
습도: 20% ~ 80% non-condensing

Bezel width (B2B): 39 mm
물리적(인치/mm): 38.43x24.00x15.75 / 976.16x609.5x400 (w/ Stand)
38.43x22.42x3.14 / 976.16x569.5x79.8 (w/o Stand)
포장(inch/mm): 45.74 x 30.83 x 9.80 / 1162 x 783 x 249

순(lb/kg): 54.56 / 24.75 (w/o Stand)
58.09 / 26.35 (w/ Stand)
총중량(파운드/kg): 67.42 / 30.58

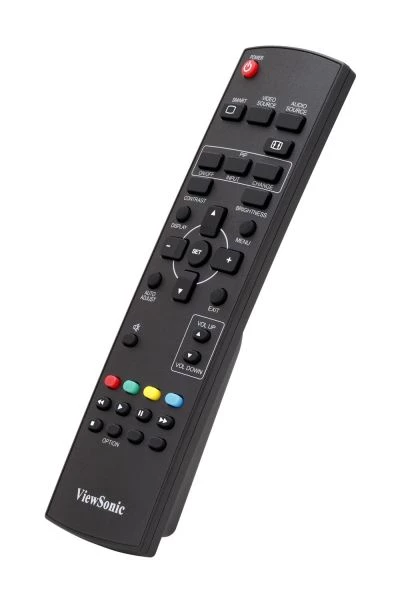

1. CDP4260-TL display 2. Remote Control with batteries 3. User manual wizard CD 4. Quick Start Guide 5. Power Cables 6. VGA cable 7. RS232 cable 8. USB cable

*Actual content may differ from market to
market
