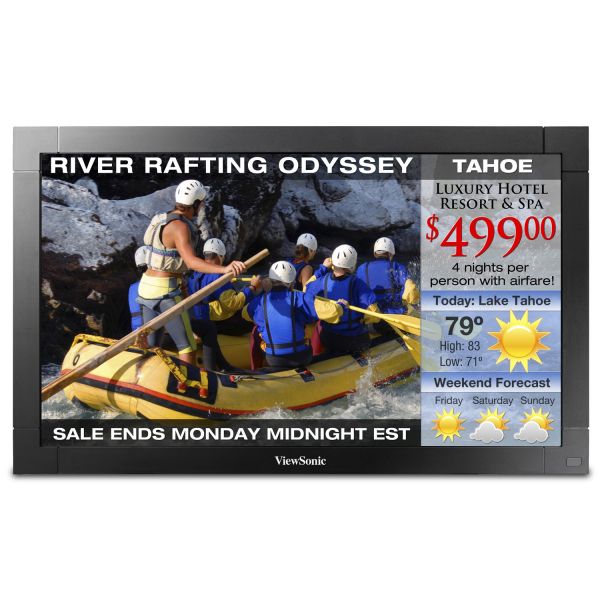

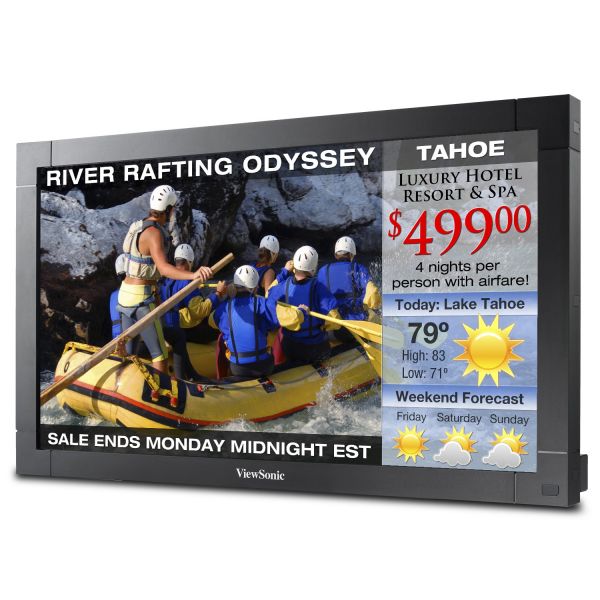

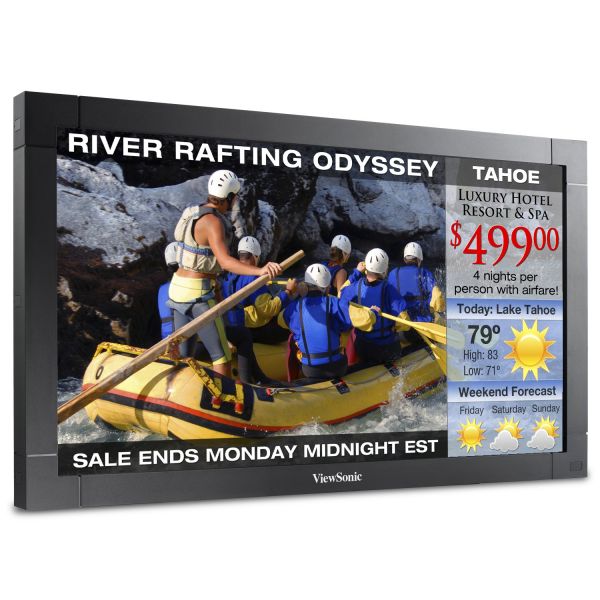

CDP3235
Perfect Solution for 24/7 Operation
스펙
- LCD유형: 32" (31.5" viewable) color TFT active matrix, wide LCD
Display Area: 27.5" horizontal x 15.4" vertical; 31.5" diagonal
Optimum Resolution: 1366x768, 530mm dot pitch
대비 비율: 3000:1 (typ)
보기 각도: 178º horizontal, 178º vertical
응답 시간: 6.5 ms
광원: Long life, 50,000 hrs. (typ)
밝기: 450 cd/m2 (typ)
가로 세로 비율: 16:9
Panel Surface: Anti-glare, hard coating (3H) - INPUT비디오 입력: HDMI, DVI, component, VGA, S-Video, composite
Control Input/Output: RS-232/RJ45 - AUDIOSpeakers: Internal 10-watt (x2)

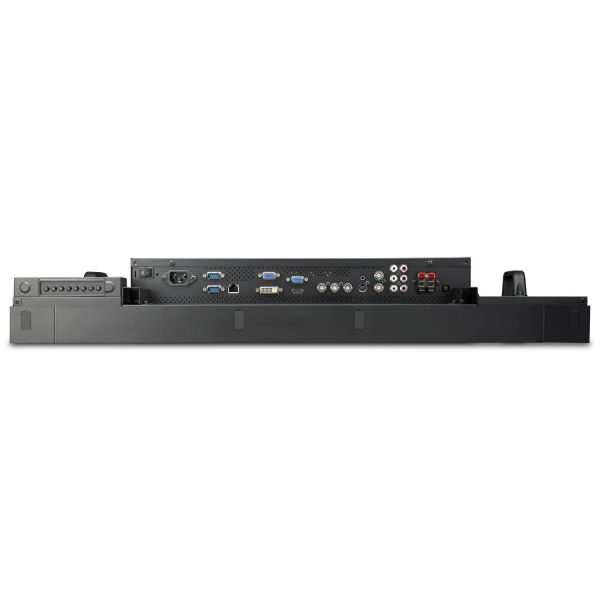

- CONNECTORAnalog: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI
힘: 3-pin plug - POWER전압: AC 100–240V (universal), 50–60Hz
소비.: 140W (typ) - CONTROLS입력: VGA, DVI, HDMI, YPbPr
Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
오디오: Volume, mute, audio source
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Panel: Power, Exit, +, –, Menu/Enter
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect - OPERATING CONDITIONS습도: 10–80% (non-condensing)
Temperature(landscape): 32–104ºF (0–40ºC)
Temperature(Portrait): 32–95ºF (0–35ºC) - DIMENSIONS (WxHxD)Physical Without Stand: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm
Physical With Stand: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm - WEIGHT징그러워요: 40.8 lb. / 18.5 kg
Net Without Stand: 32.2 lb. / 15 kg

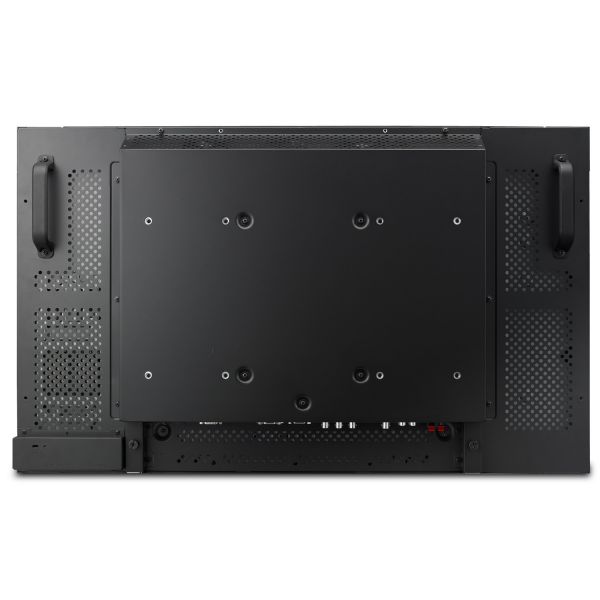

Net With Stand: 33.1 lb. / 14.6 kg - 벽 마운트VESA® 400mm x 200mm, 200mm x 200mm
- 재활용/폐기The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.
- PACKAGE CONTENTSCDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide
