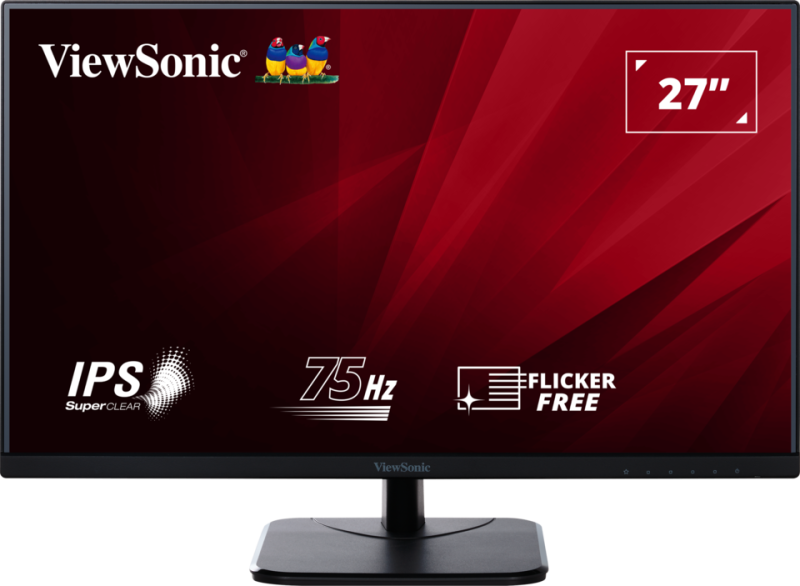

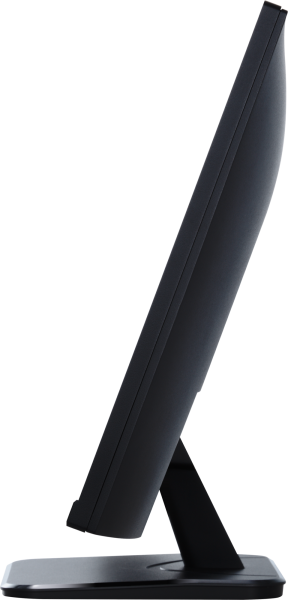

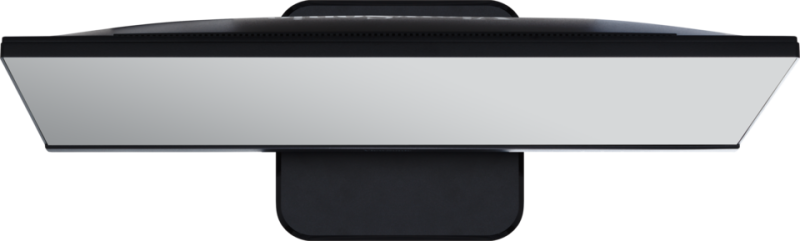

VA2756-MH

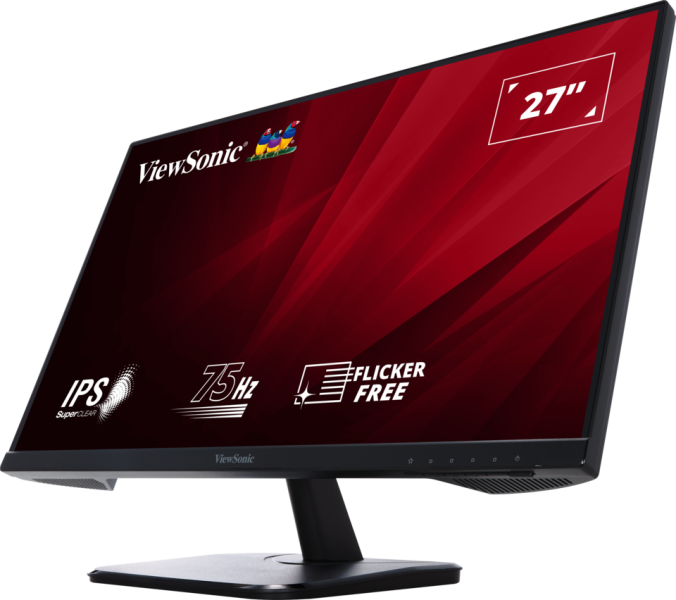

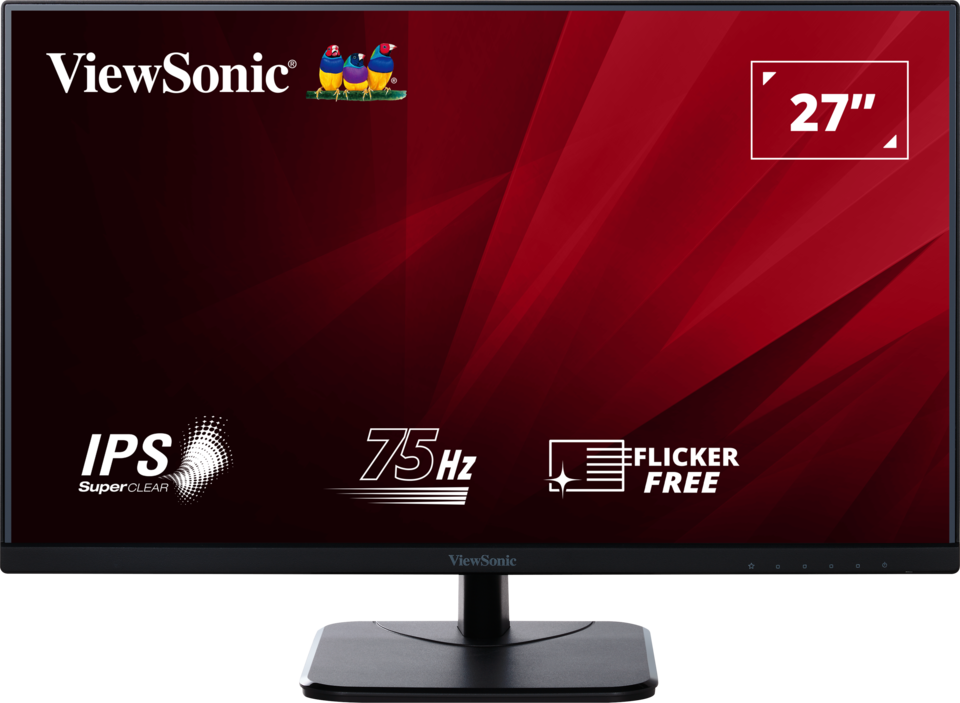

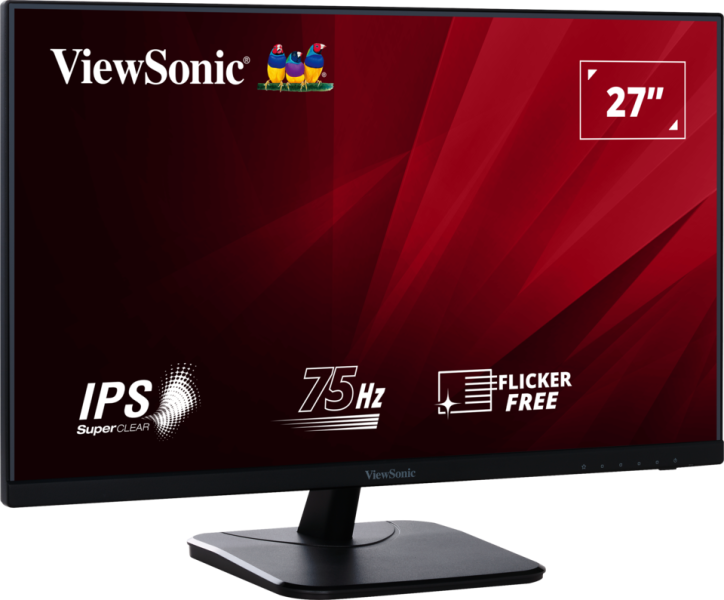

27型 IPSパネルフルHD 液晶ディスプレイ

フルHD(1920x1080)解像度
SuperClear® IPS テクノロジー
フレームレスベゼルデザイン
HDMI 、VGA端子搭載

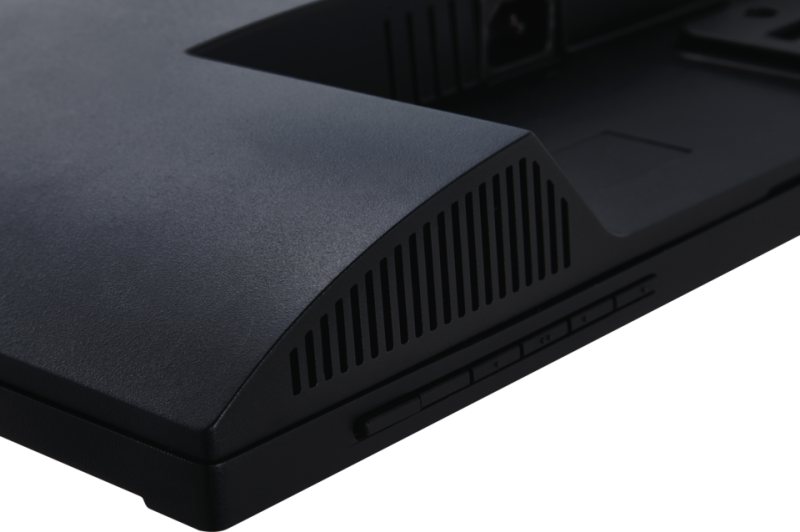

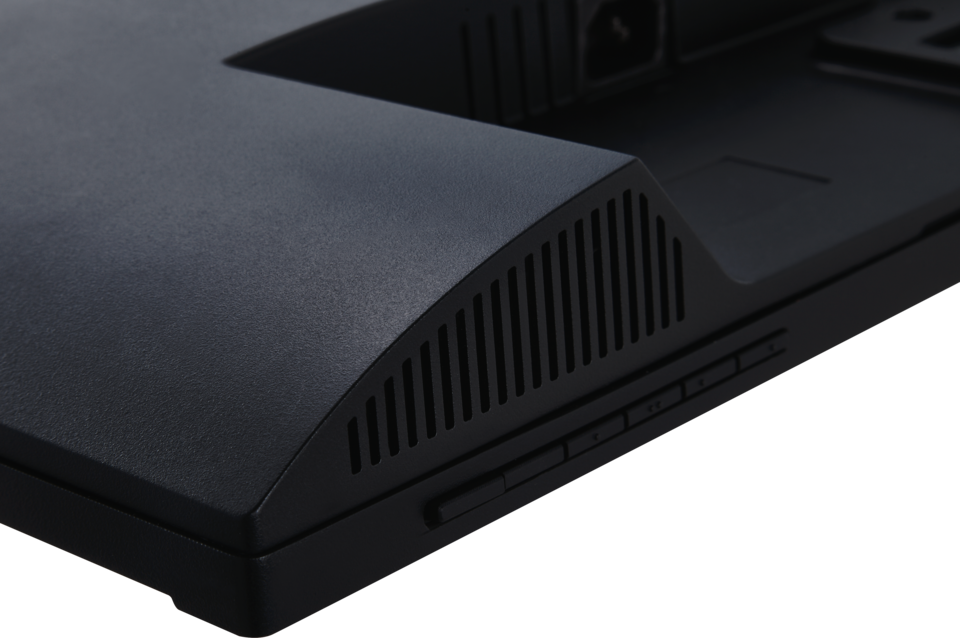

2W x 2スピーカー内蔵
フリッカーフリー、ブルーライトフィルター技術搭載

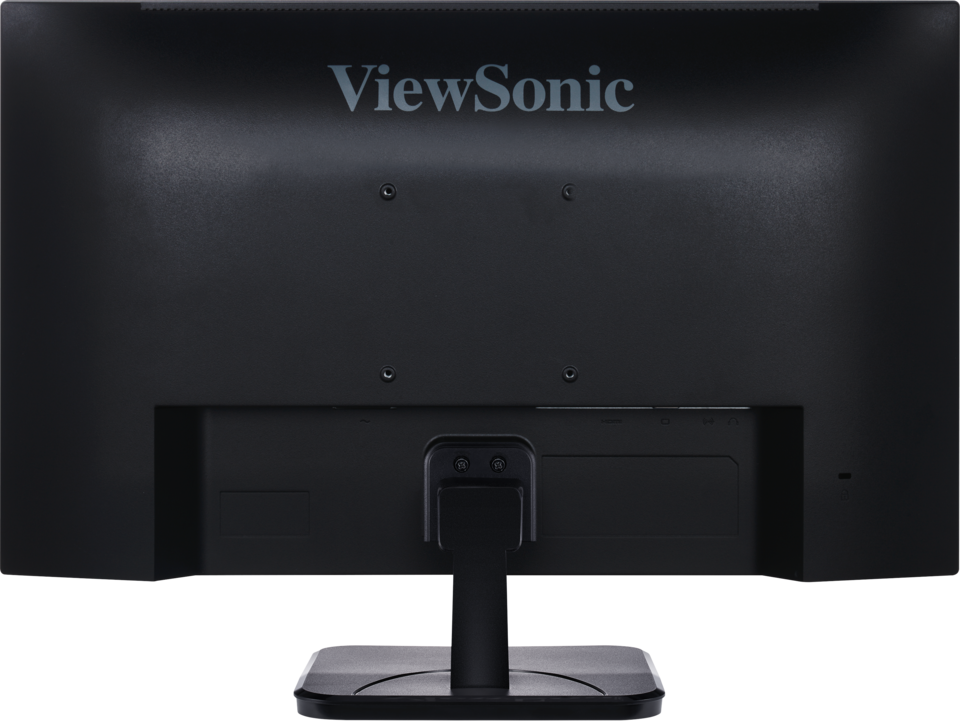

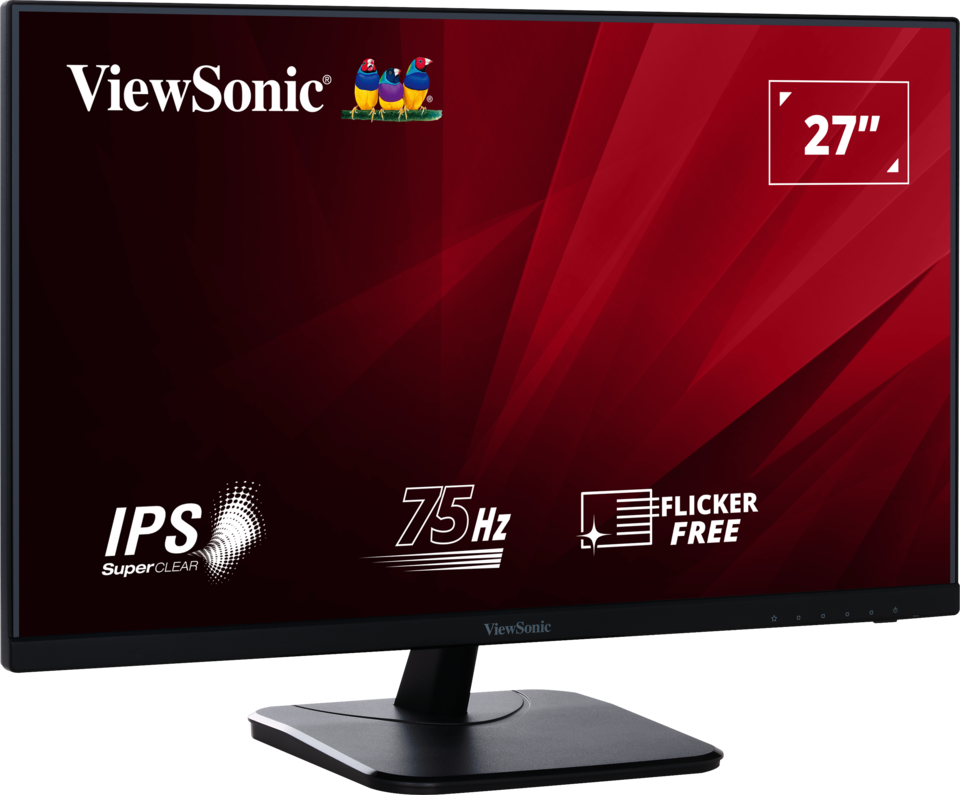

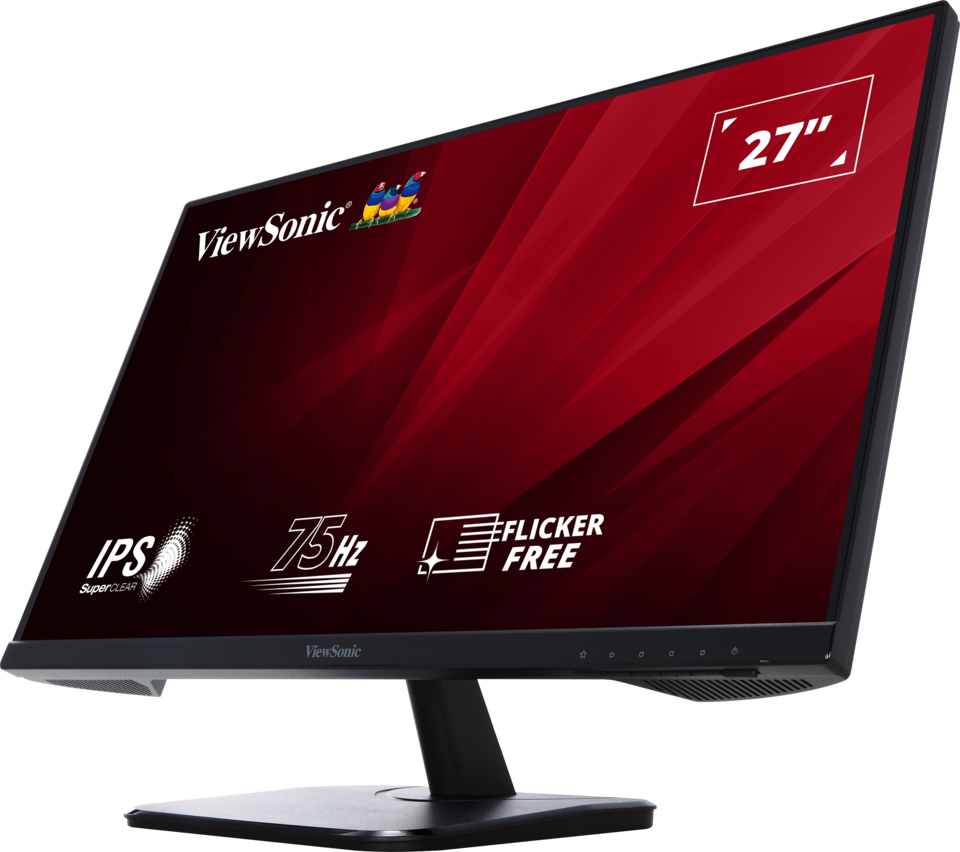

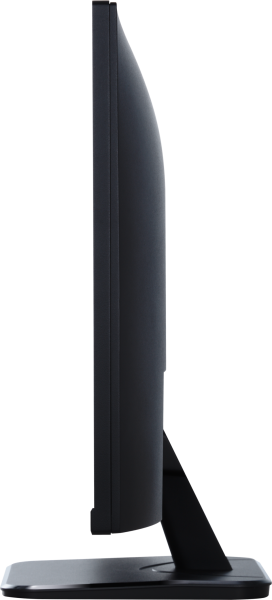

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Variable Refresh Rate Technology: Yes
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080

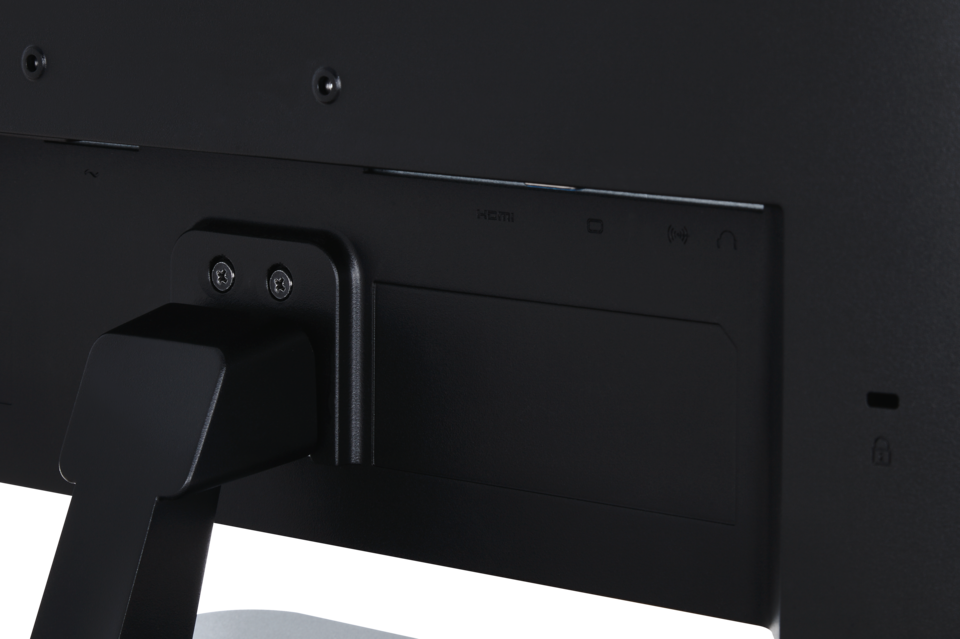

Connector
VGA: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

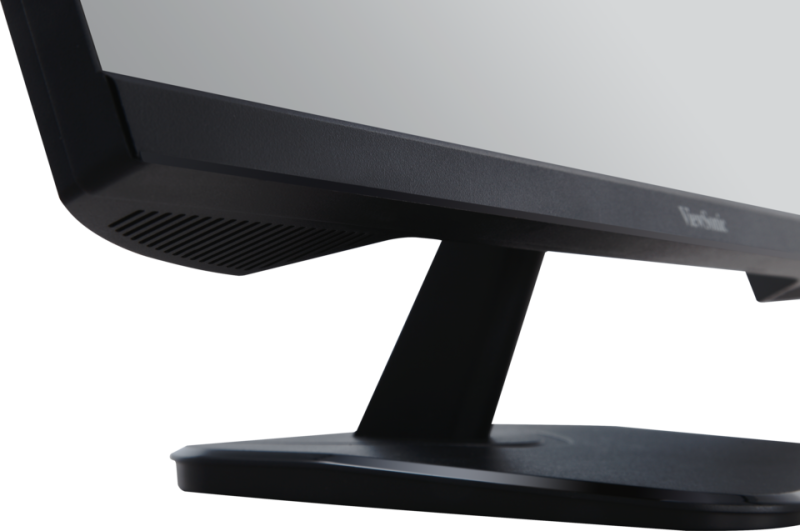

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 14W
Eco Mode (optimized): 18W
Consumption (typical): 23W
Consumption (max): 26W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

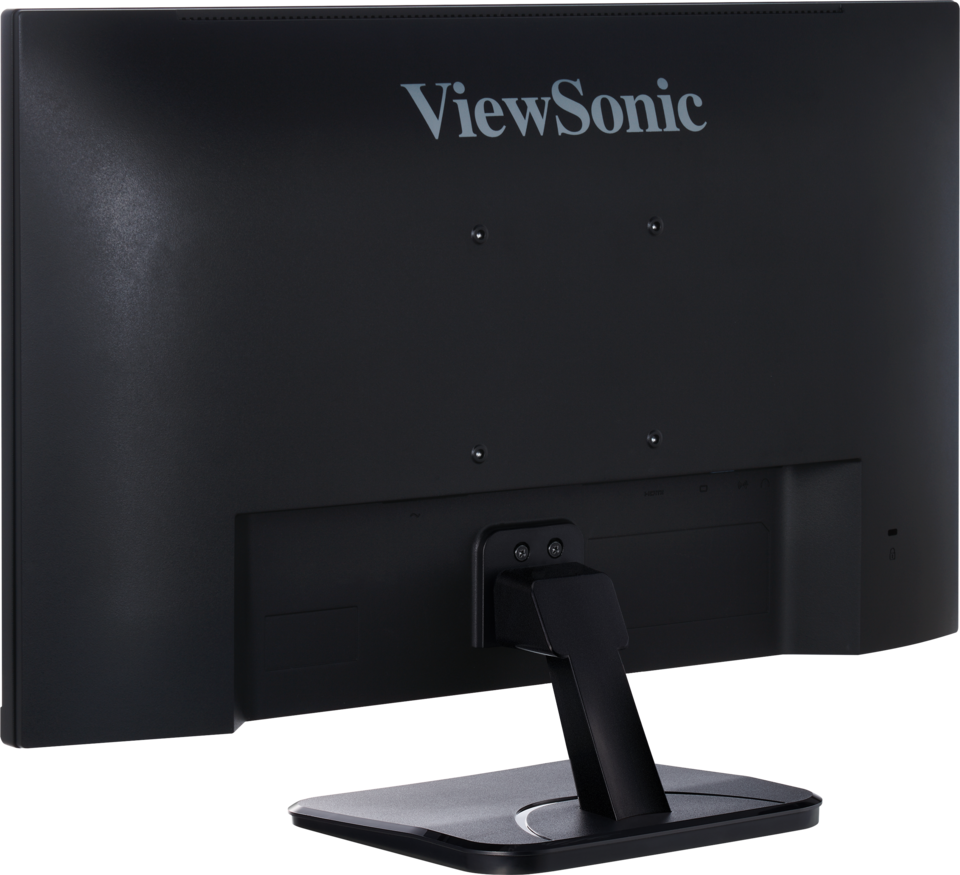

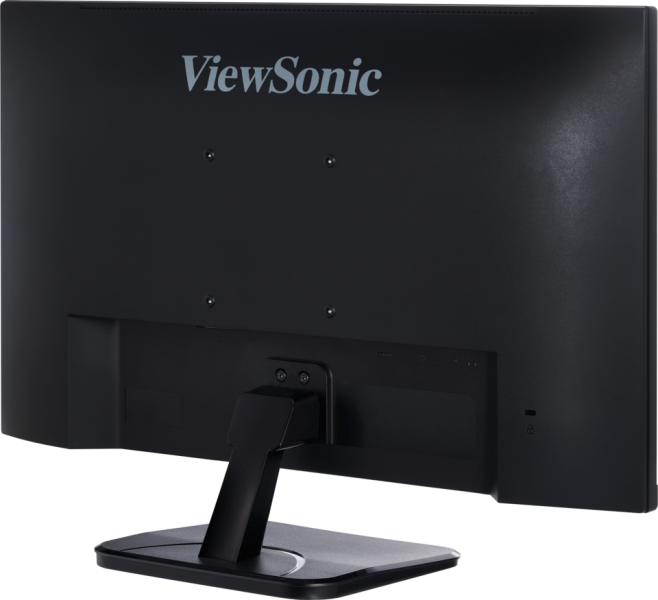

Wall Mount

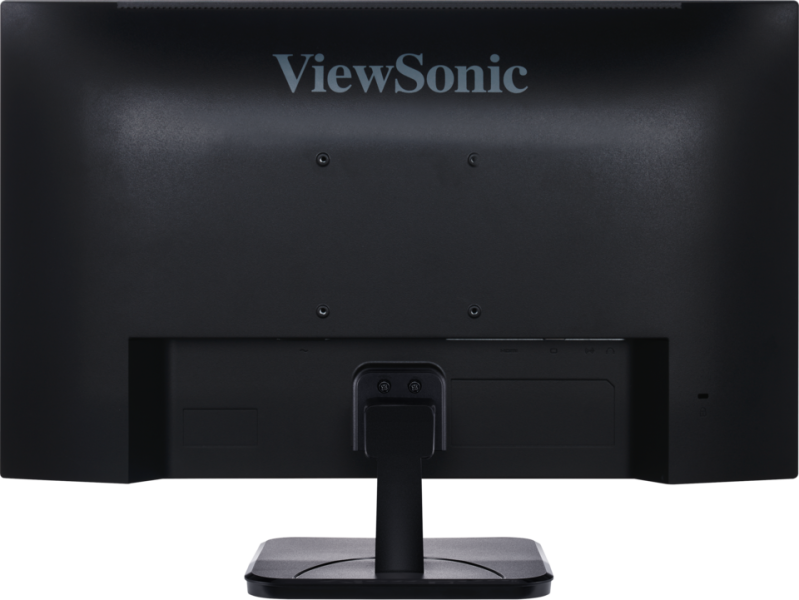

VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 83KHz, HDMI (v1.4): 15 ~ 83KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomics

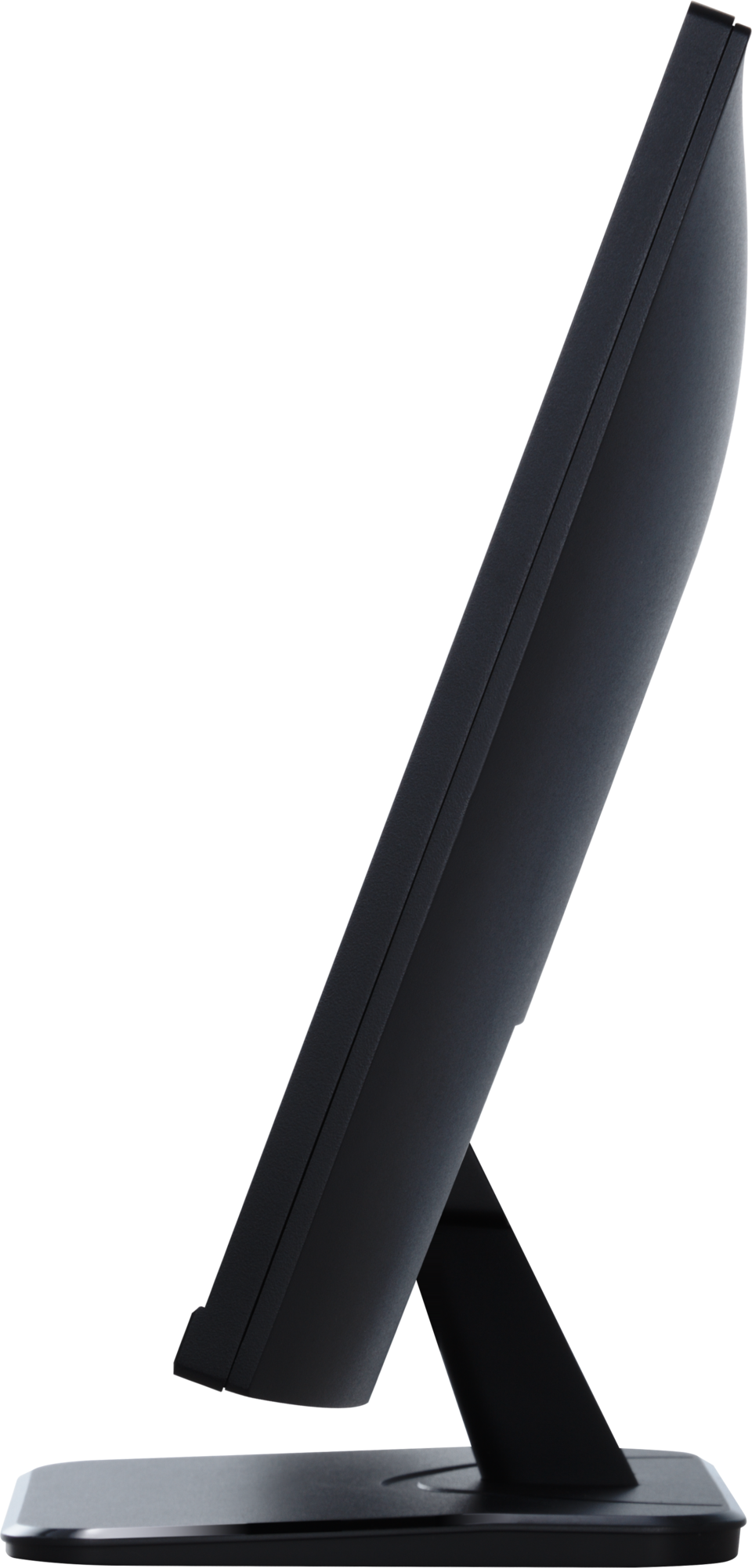

Tilt (Forward/Back): -4º / 20º
Weight (imperial)
Net (lbs): 10.8
Net Without Stand (lbs): 9
Gross (lbs): 15
Weight (metric)
Net (kg): 4.9
Net Without Stand (kg): 4.1
Gross (kg): 6.8
Dimensions (imperial) (wxhxd)
Packaging (in.): 26.7 x 19.6 x 6.5
Physical (in.): 24.1 x 16.9 x 9.2
Physical Without Stand (in.): 24.1 x 14.4 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 677 x 497 x 164
Physical (mm): 611 x 429 x 233
Physical Without Stand (mm): 611 x 367 x 52
General
PACKAGE CONTENTS: VA2756-MH x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
