ViewBoard Mini IFP2710
Caratteristiche principali
Descrizione del prodotto

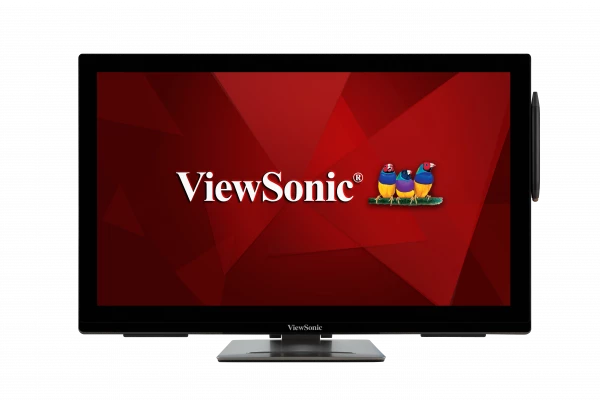

The ViewSonic ViewBoard Mini IFP2710 is a multi-touch display with finger and pen touch command capabilities that allows presenters to intuitively draw, write, and annotate directly on the display. An advanced ergonomic design allows you to swivel the display or lay it flat on a tabletop for group discussions. All annotated content on the touch display can be transferred to a larger external display or projector simultaneously via HDMI output or LAN cable from HDBaseT, creating a more engaging classroom or lecture hall environments.
Visita noi
- www.viewsonic.com
-
LCD PANEL
Monitor Size: 27.0” / 68.58cm Panel Technology: ADS Type, a-si TFT Active Matrix LCD Risoluzione: 1920 x 1080 Display Area: 597.888(H) x 336.312(V) Rapporto d'aspetto: 16:9 Luminosità: 260 cd/m2 (Typ.) / 220cd/m2 (Min) Contrasto: 1000:1 (Typ) / 700:1 (Min) Contrasto dinamico: 20,000,000:1 Angolo visuale: 178 degrees / 178 degrees (Typ) Refresh Rate: 75Hz Tempo di risposta: 14 ms (Typ.) Backlight: WLED light bar Durata (ore): 30,000 Hrs (Min) Colori: 16.7M colors, (6-bits + Hi FRC) Color Gamut: 72% NTSC Size (Typ) Panel Surface: Glossy type, Hard-coating (7H) Pixel Size: 0.3114(H) x 0.3114(V) -
INPUT SIGNAL
Frequency: Fh = 31 ~82 kHz ; Fv = 56 ~75 Hz Sync: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p): Separate Sync / Composite Sync / Sync on Green, HDMI (v1.4): TMDS -
COMPATIBILITY
PC: PC Compatibles (up to 1920 x 1080 Non Interlaced) Mac®: Power Mac (up to 1920 x 1080 ) -
CONNECTOR
Ingressi: D-sub, HDMI1.4, DisplayPort 1.2 Uscite: HDMI1.4 x 1 -
AUDIO
Speaker: 2W x 2 -
USB
Upstream: Type B x 1 Downstream: Type A x 2 -
POWER
Alimentazione: External Power Adapter Voltaggio: AC 100-240V (Universal); 50/60Hz Consumo: 155W Optimize: 143W Conserve: 132W -
ERGONOMICS
Inclinazione: -5°±1.0° (forward) , 90.0°±1.0°(backward) Rotazione base: 177.5° / 177.5° -
SPECIAL FEATURES
Eye Care: Flicker free / Blue Light Filter -
WALL MOUNT
VESA®: 100mm x 100mm -
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C) Umiditá: 20% to 90% (no condensation) -
DIMENSIONS (W X H X D) (MM)
Physical with stand (mm): 653.20mm (W) x 449.07 mm (H) x 270.00 mm (D) Physical without stand (mm): 653.20mm (W) x 410.67mm (H) x 52.10 mm (D) Packaging (mm): 754.38 mm (W) x 524.76 mm (H) x 168.91 mm (D) -
WEIGHT
Net with stand: 12.69kg (27.98lbs) Net without stand: 7.97 kg (17.57 lbs) Prodotto con imballaggio: 19.88 kg (43.83 lbs) -
REGULATIONS
Global: CB, CE, WEEE, RoHS, ErP, REACH VSA: cTUVus, FCC-B, Energy Star -
CONTENUTO DELLA CONFEZIONE
LCD Display, Power Cable (cable length :1.5M), Audio Cable (3.5mm audio male to male) (cable length : 1.8M), VGA Cable (cable length :1.5M), HDMI Cable(cable length :1.5M), USB Cable (cable length :1.8M), Passive Touch Pen, Quick Start Guide
