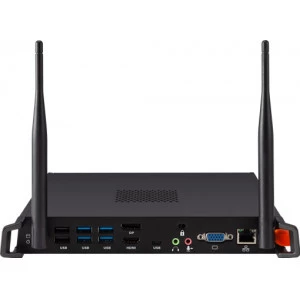

Slot-in PC
VPC15-WP-3
Caratteristiche principali
- Bundled with myViewboard and vCast software
- Powerful system with Intel® Core™ i5-8400 processor, 8GB (up to 32GB) DDR4 memory, and 128GB (up to 512GB) SSD storage
- Wired connectivity options include 4K HDMI, VGA, USB 3.1, and Gigabit LAN RJ45
Descrizione del prodotto
The ViewSonic® VPC15-WP-3 slot-in PC is the ideal integrated solution for the ViewBoard® interactive displays. This slot-in PC module easily plugs into compatible displays. Wired connectivity options, including 4K HDMI, VGA, USB 3.1, and Gigabit LAN RJ45, ensure that you stay connected to your peripheral devices. With dual-band Wi-Fi and Bluetooth, a powerful Intel® 8th Gen. Coffee Lake series i5-8400 processor, 8GB (up to 32GB) DDR4 memory, and 128GB (up to 512GB) SSD storage, the VPC15-WP-3 provides the computing power needed for fast-moving educational or corporate environments.
Visita noi
- www.viewsonic.com
-
CORE
CPU: Intel 8th Gen. Coffee Lake series i5-8400 Graphics: Intel® UHD Graphics 630, Total Available Graphics Memory: 64GB, Max Resolution up to 4096x2304@60Hz -
MEMORIA
Tipo: 260-pin DDR4 SO-DIMM x 2 Capacità: 8GB (up to 32GB) -
SOFTWARE
Sistema Operativo: Windows 10 Pro 64 bit -
ARCHIVIAZIONE
Dimensioni: M.2 2280(22 x 80 mm) Capacità: 128GB SSD (up to 512GB) Interfaccia: PCIE and SATA 3 -
INPUT
MIC(Microfono): x1 -
OUTPUT
RGB / VGA: x1 DisplayPort: x1 (max. resolution 4096x2304@60Hz) HDMI: x1 (max. resolution 3840x2160@24Hz) Audio: x1 Earphone Out -
LAN
RJ45 (controllo LAN): 1 x RTL8111(Gigabit) -
WIRELESS / BLUETOOTH
Wireless / Bluetooth: Intel 3165, 802.11 a/b/g/n/ac (2.4GHz/5GHz) / BT4.2 ; BLE -
USB
Tipo A: USB 3.0 x 4, USB 2.0 x 2 -
FORMATO MEDIA SUPPORTATO
Formato Video: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U Formato Immagine: Container: JPG, JPEG, JPE, JFIF, BMP, DIB, PNG, GIF, TIF, TIFF Codec Audio: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA -
PACCHETTO SOFTWARE
Pacchetto Software: myViewBoard for windows,vCast for Windows -
POWER
Voltaggio: AC 110-240V 50 / 60Hz Consumo: 95W -
OPERATING CONDITIONS
Temperatura (º C): -5°C to 45°C Umiditá: 10% ~ 90% @ 40°C Non-condensing. -
DIMENSIONI (LXPXH)
Prodotto (inch / mm): 246.2*265.4*32.2mm Imballaggio (inch / mm): 350*310*90mm (1pc), 495*370*340mm (5pcs) -
WEIGHT
Prodotto (lb / kg): 4.3lb / 1.95kg Imballaggio (lb / kg): 4.63lb / 2.1kg -
REGULATIONS
REGULATIONS: CE, R&TTE, FCC, FCC-IC-ID, cTUVus, RCM, BSMI, NCC -
CONTENUTO DELLA CONFEZIONE
Contenuto della confezione: 1. VPC15-WP, 2. ViewSonic Wizard CD , 3. QSG
