TD2223
22” IR Touch Monitor
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
OVERVIEW

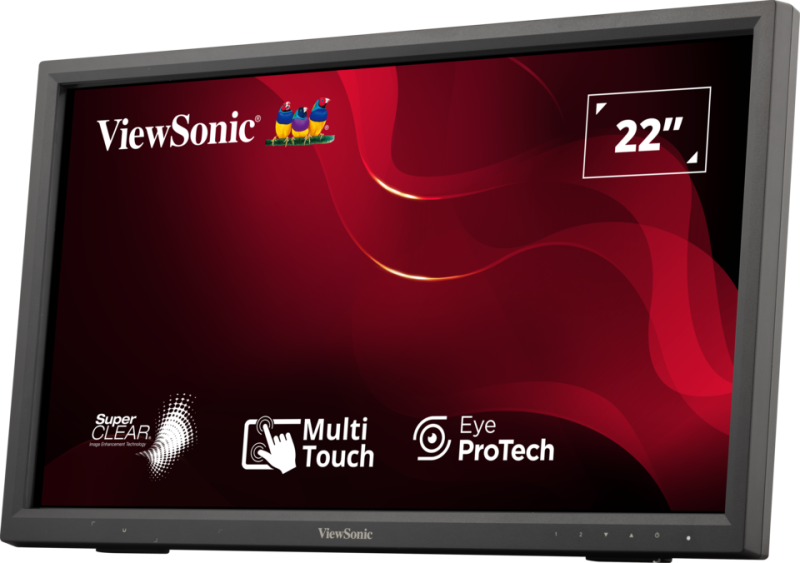

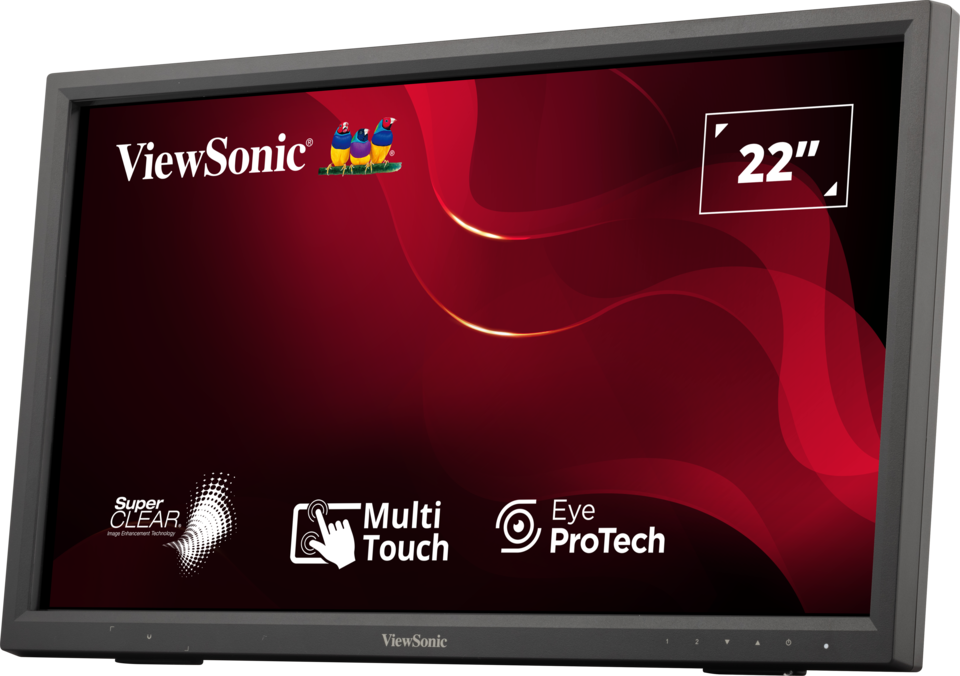

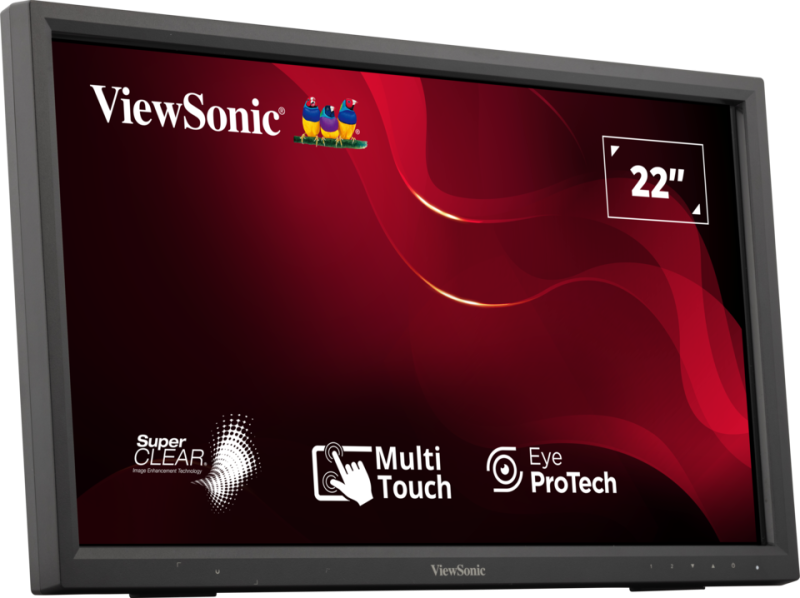

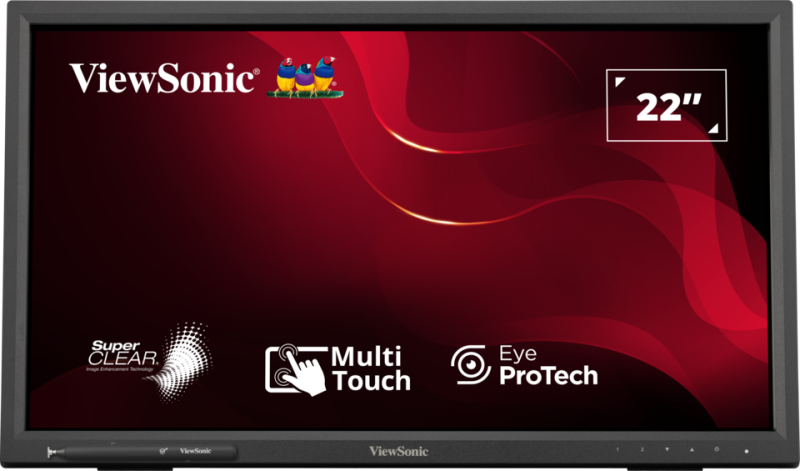

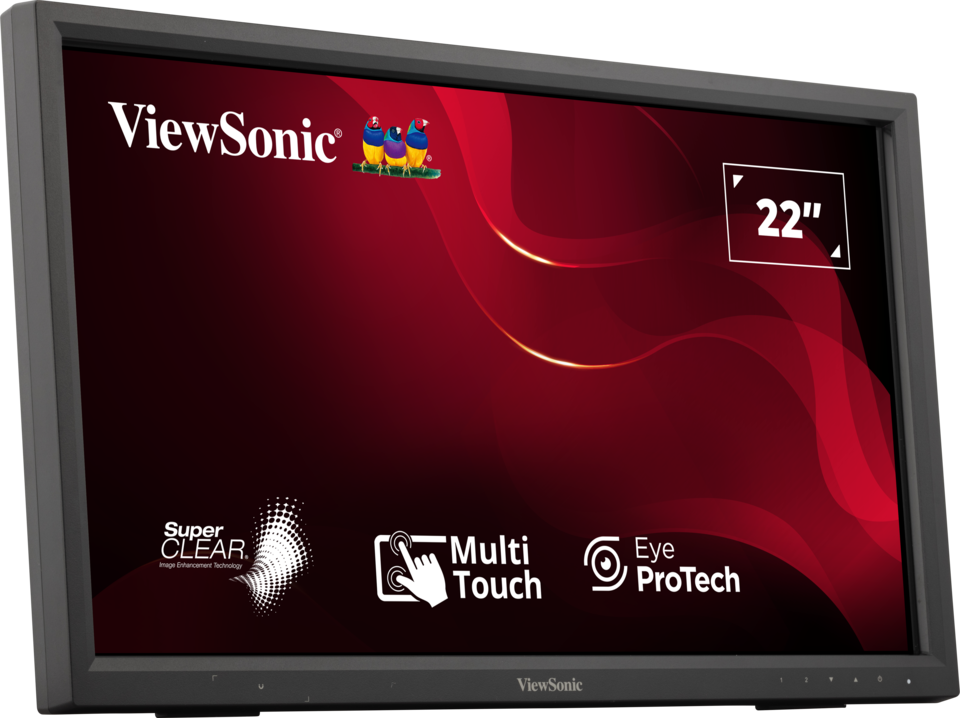

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.IR Touch Technology

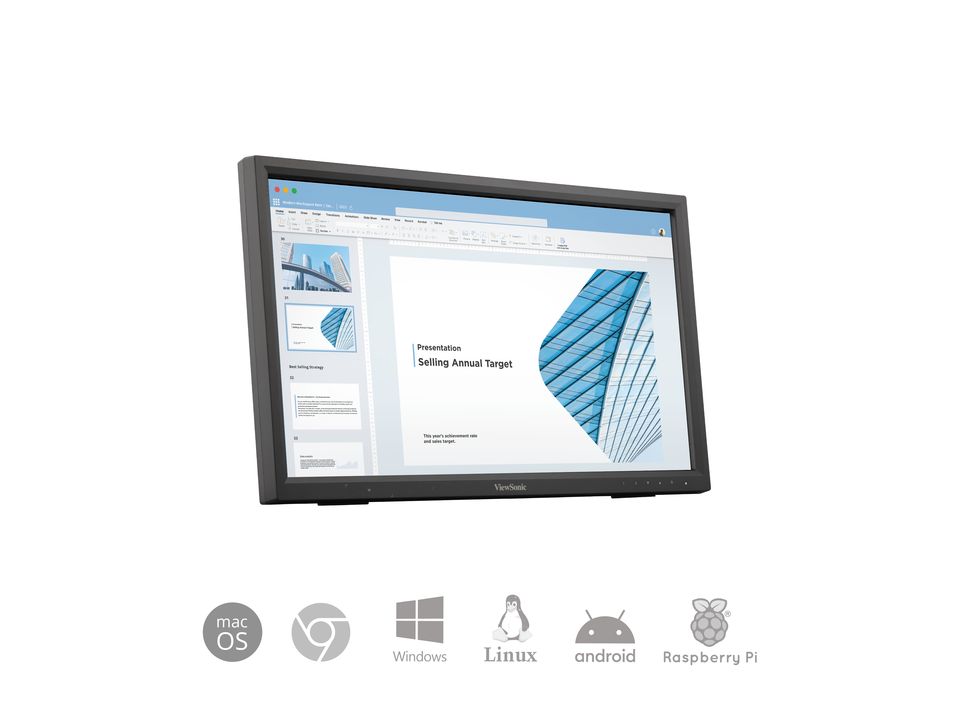

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.*Learn more about multi touch for macOS
Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.

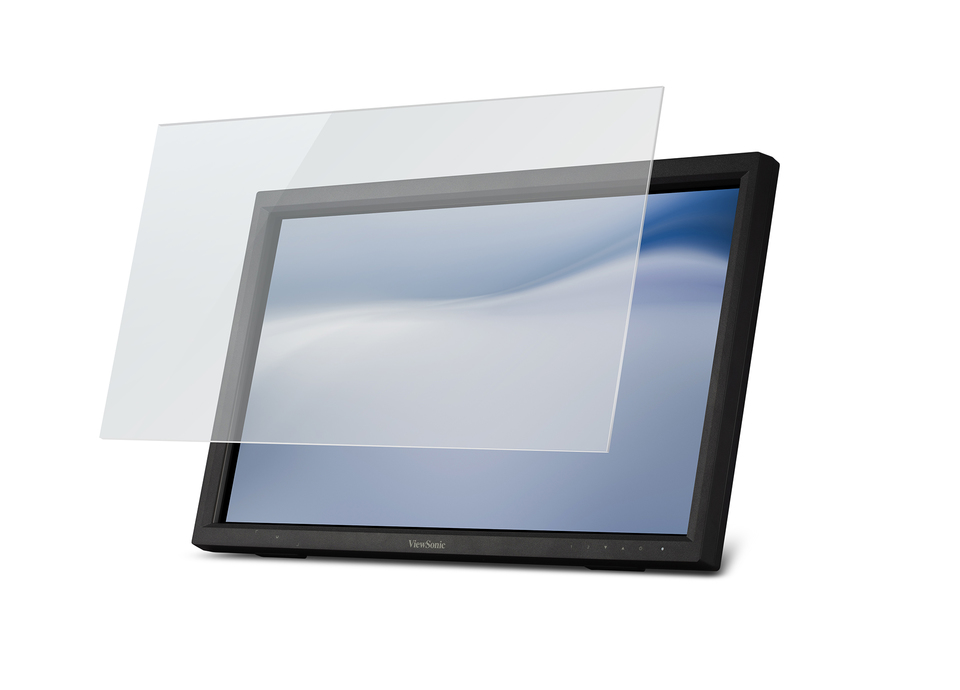

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.7H Hardness Screen

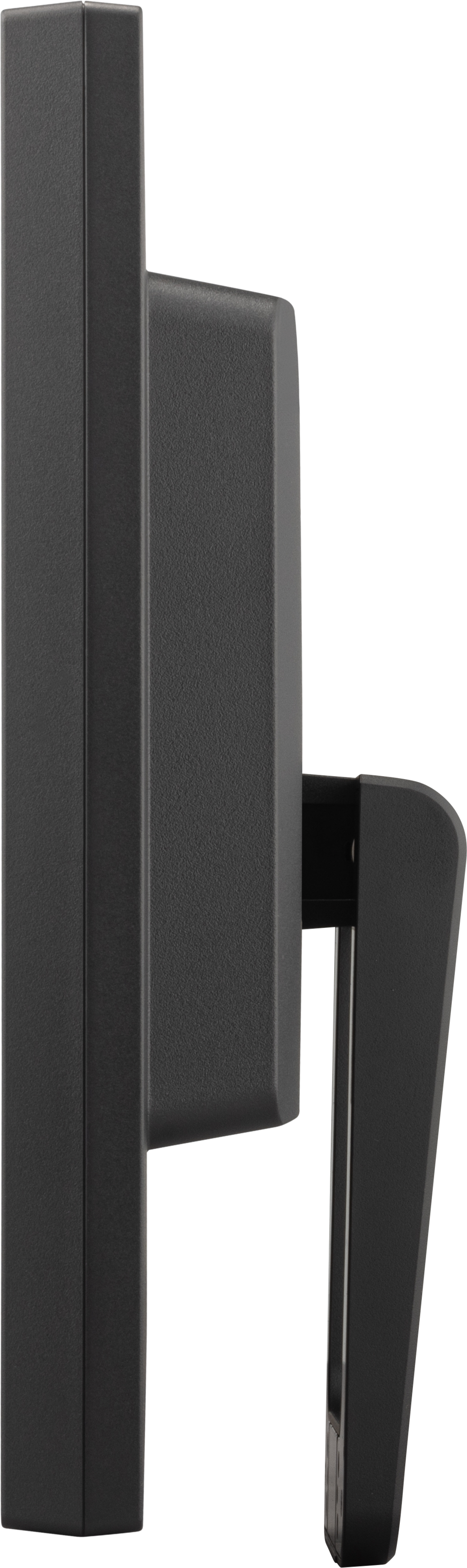

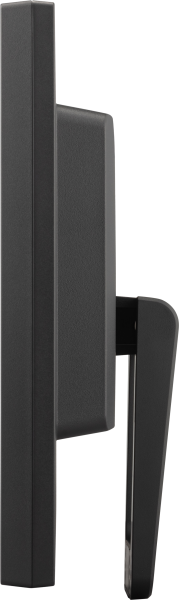

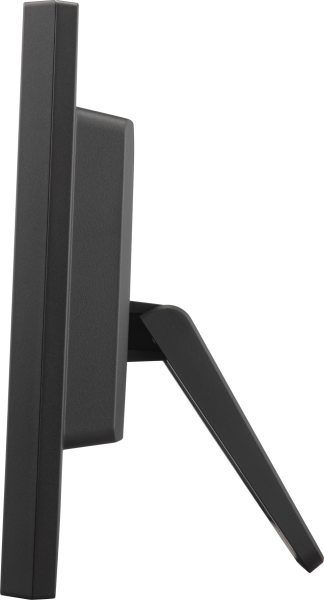

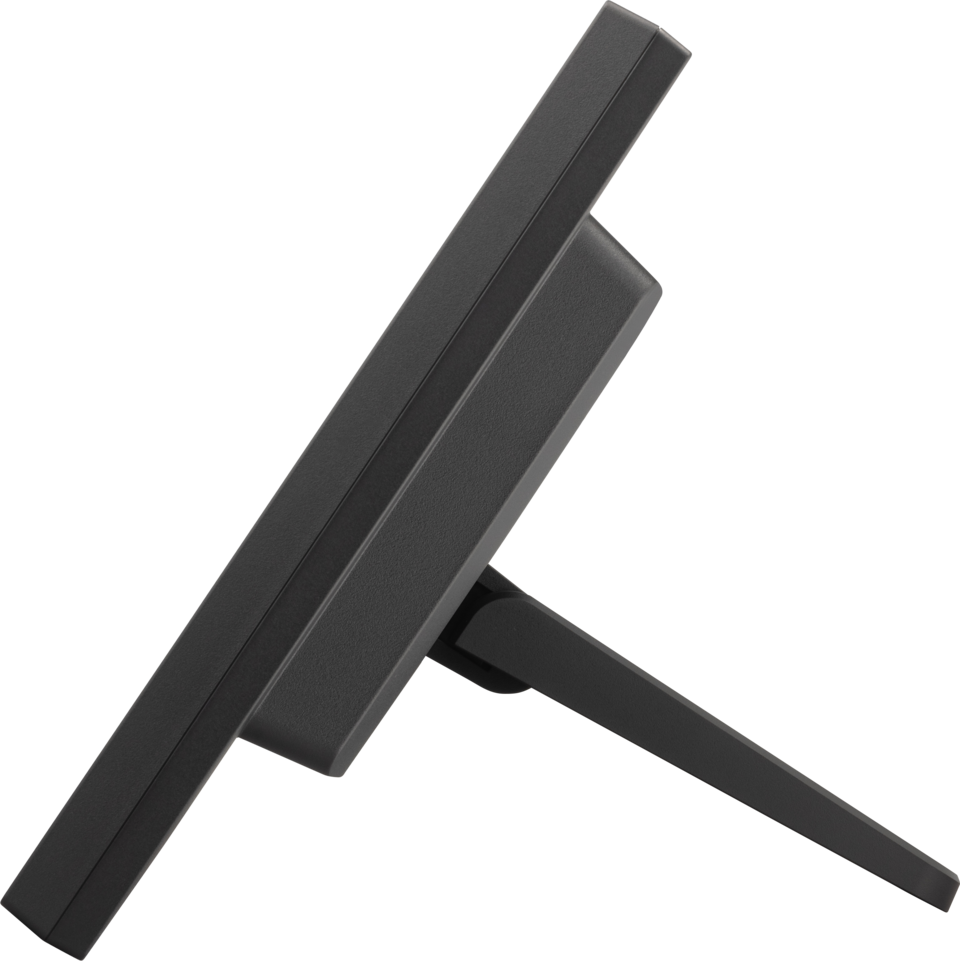

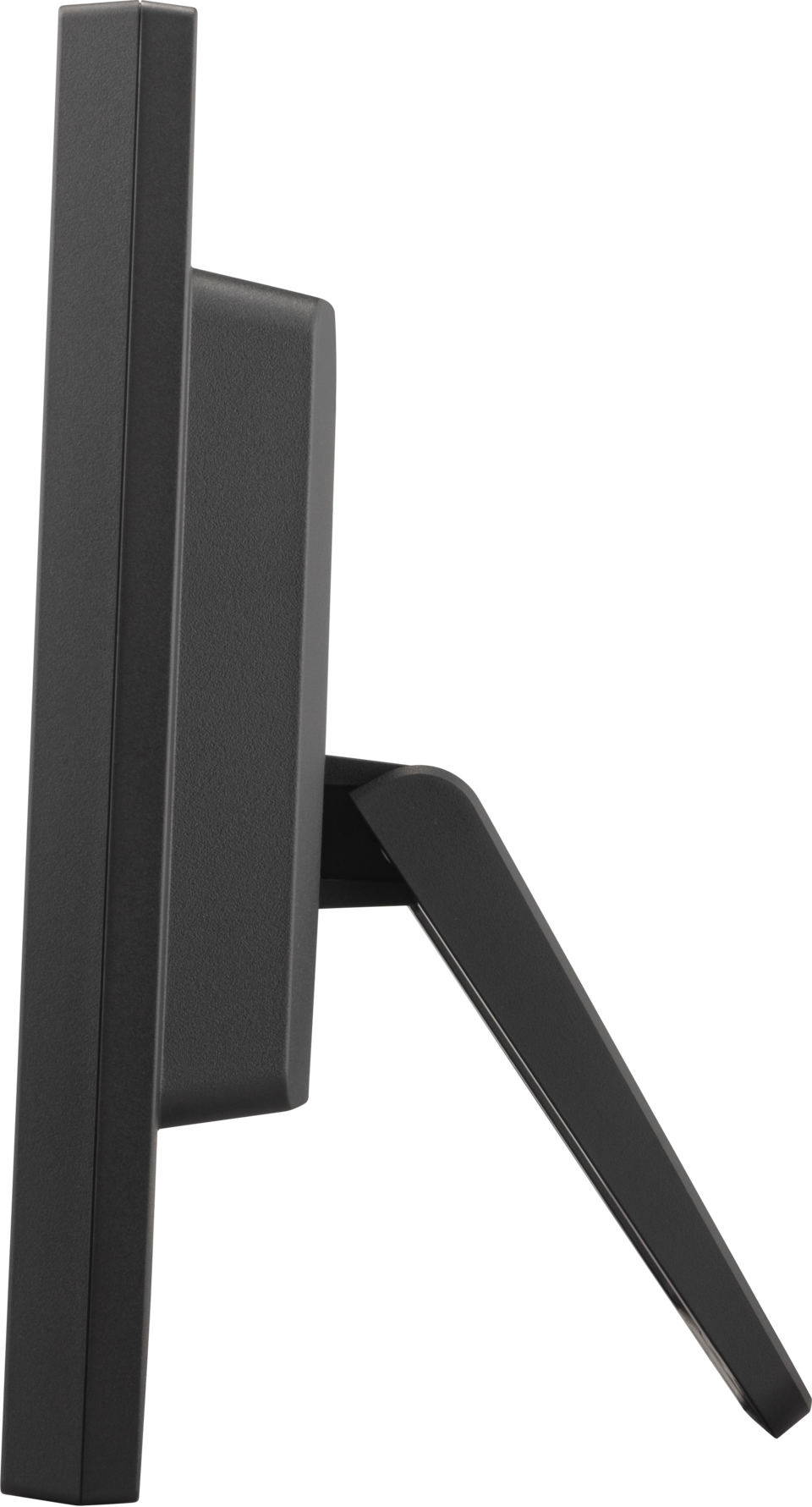

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.Full HD 1080P

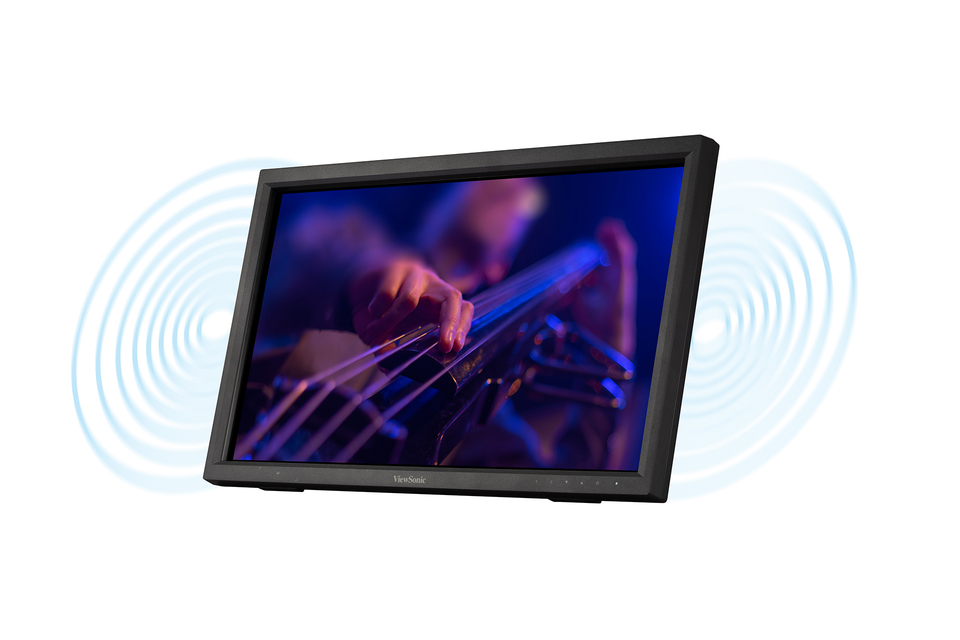

Dual Integrated Speakers

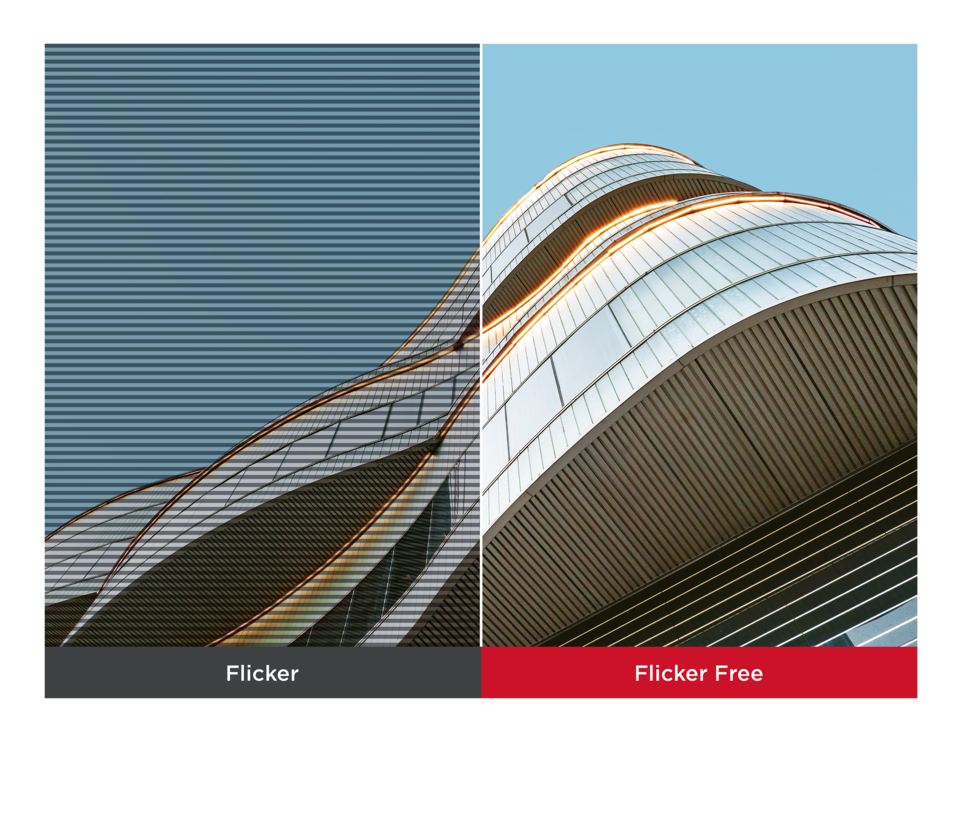

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.Flicker-Free & Blue Light Filter

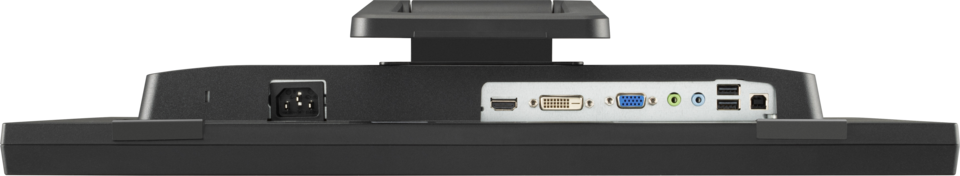

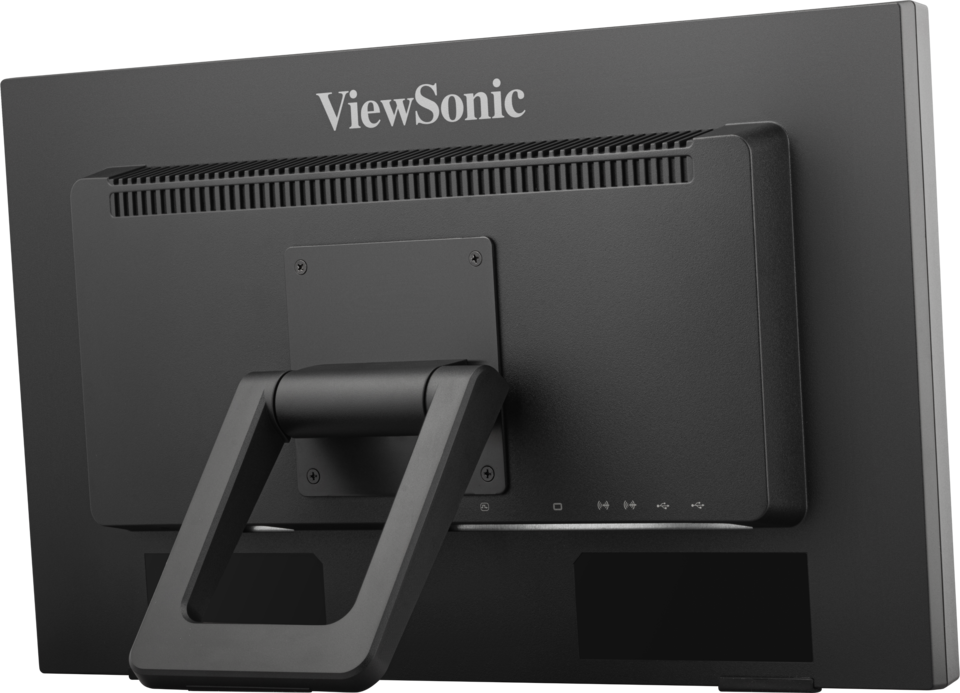

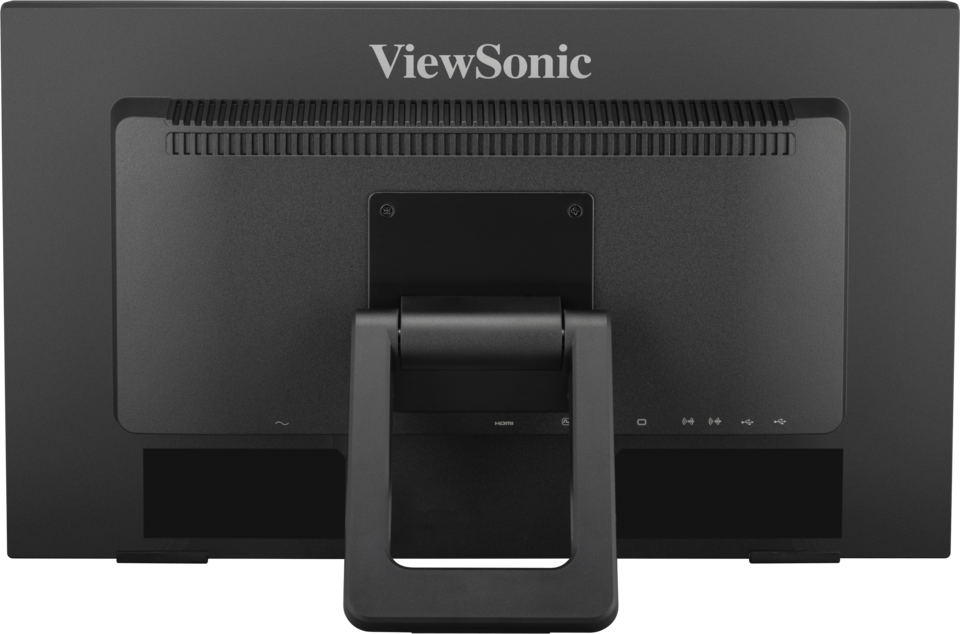

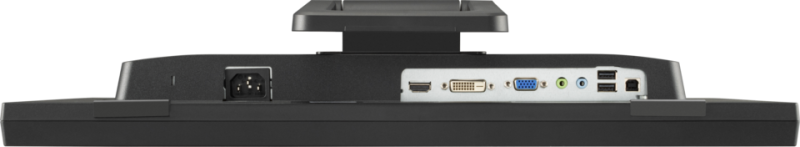

Dimension & I/O Ports

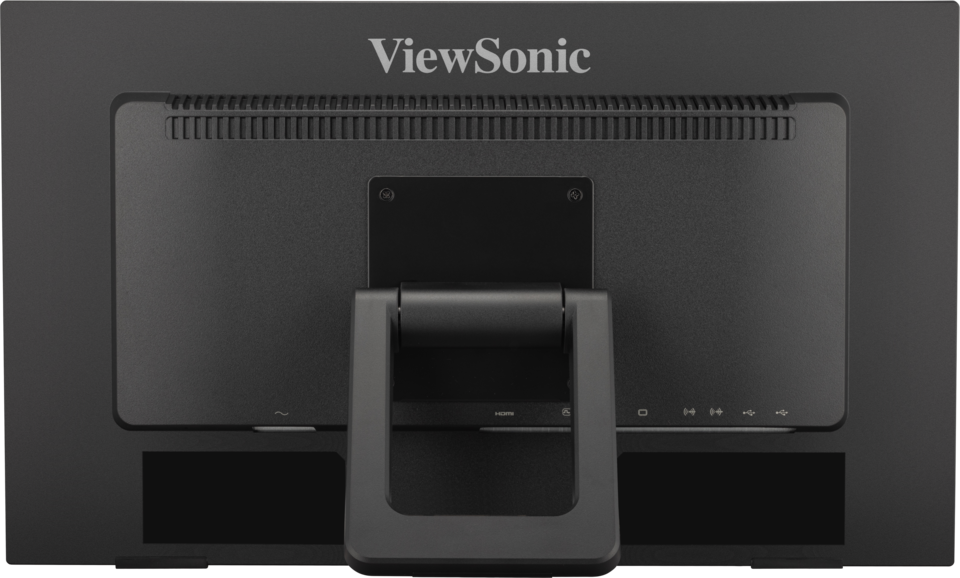

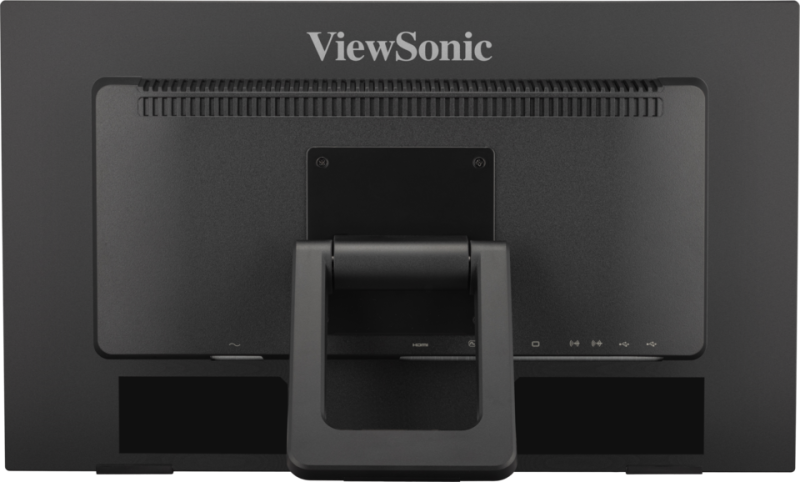

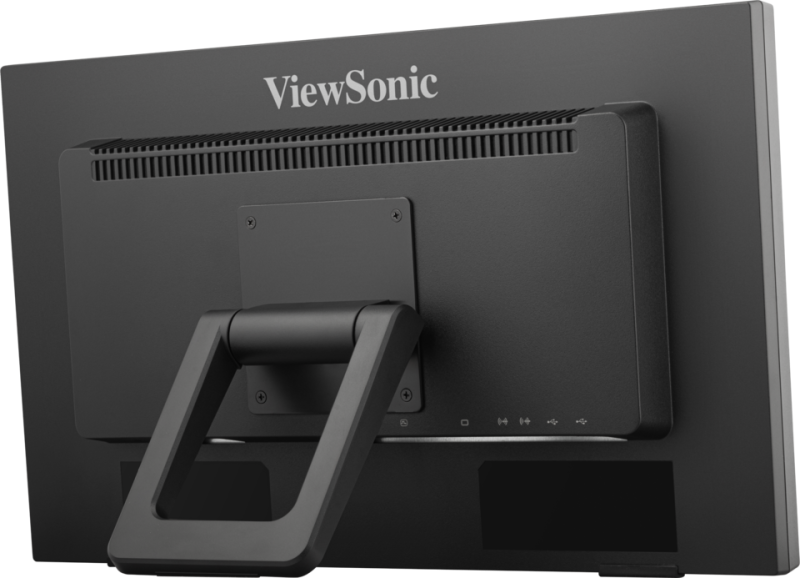

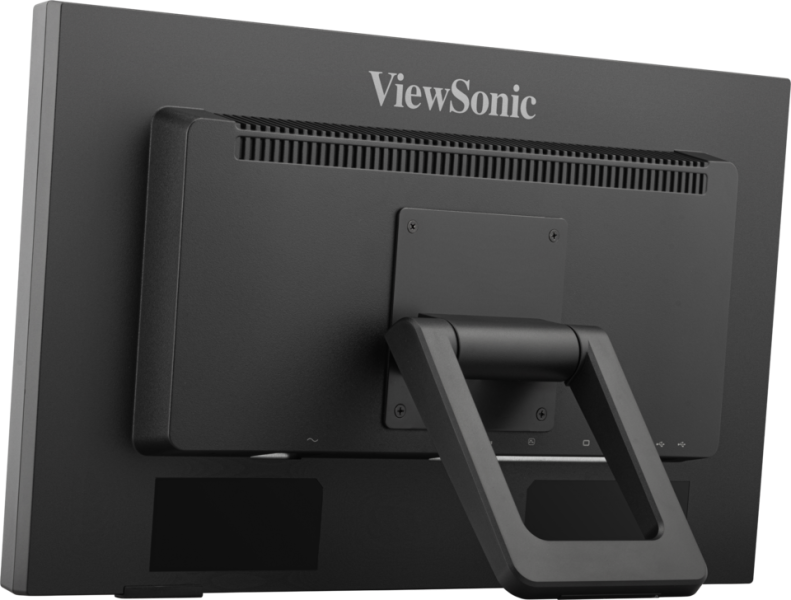

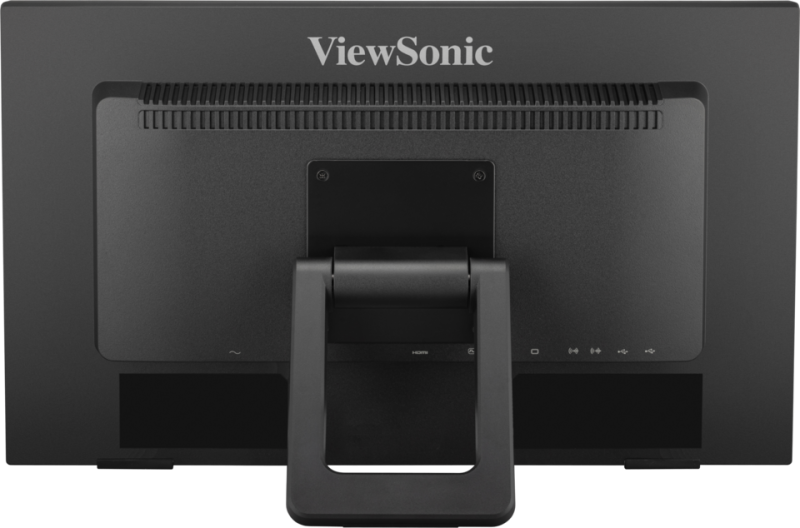

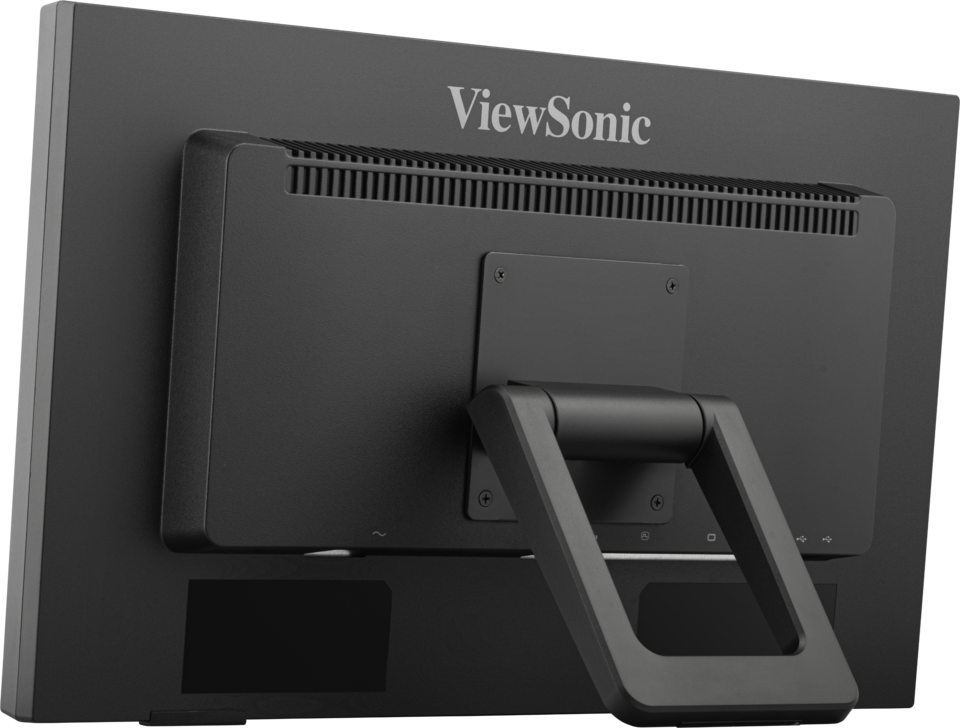

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.100mm x 100mm VESA mount
- Menu Control Panel
- Power In
- VESA Compatible
(Wall Mount 100 x 100mm) - HDMI
- DVI
- VGA
- Audio In
- Audio Out
- USB Downstream
- USB Upstream
SPECIFICATIONS
- DisplayDimensione display (in.): 22
Area visualizzabile (in.): 21.5
Tipo pannello: VA Technology
Risoluzione: 1920 x 1080
Tipo risoluzione: FHD (Full HD)
Contrasto statico: 3,000:1 (typ)
Contrasto dinamico: 20M:1
Tecnologia: LED
Luminosità: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Rapporto d'aspetto: 16:9
Tempo di risposta (Tipica GTG): 6.5ms
Tempo di risposta (GTG w/OD): 6.5ms
Angolo visuale: 178º horizontal, 178º vertical
Durata (ore): 30000 Hrs (Min)
Curvatura: Flat
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.249 mm (H) x 0.241 mm (V)
Touch Screen: IR, 10-point multi-touch
Trattamento della Superficie: Glossy, Hard Coating (7H)
Cover Glass Thickness: 2mm - CompatibilitàRisoluzione PC (max): 1920x1080
Risoluzione Mac® (max): 1920x1080
Sistema operativo: Windows 10/11 certified; macOS tested
Risoluzione Mac® (min): 1920x1080 - ConnessioniVGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
Uscita audio 3.5mm: 1
HDMI 1.4: 1
DVI-D: 1
Alimentazione: 3-pin Socket (IEC C14 / CEE22)
- AudioSpeakers interni: 2Watts x2
- AlimentazioneEco Mode (Conservativo): 13W
Eco Mode (optimized): 16W
Consumo energetico (tipico): 18.5W
Consumo energetico (max): 21.8W
Voltaggio: AC 100-240V
Stand-by: 0.5W
Alimentazione: Internal Power Supply - Hardware aggiuntivoBlocco di sicurezza Kensington: 1
Cable Organization: Yes - ControlliComandi fisici: 1, 2, Up, Down, Power
Comandi On Screen: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Condizioni di funzionamentoTemperatura: 32°F to 104°F (0°C to 40°C)
Umidità (senza condensa): 20% to 90% - Wall Mount Standard VESA: 100 x 100 mm
- Segnale in ingressoFrequenza orizzontale: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
Frequenza verticale: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz - Entrata VideoDigital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog - ErgonomiaRegolazione Inclinazione (avanti / indietro): 20º / 40º
- Peso (imperiale)Peso con supporto (libre): 9.3
Peso senza supporto (libre): 8
Peso totale con imballaggio (libre): 12.6 - Weight (metric) Peso con supporto (Kg): 4.2
Peso senza supporto (Kg): 3.7
Peso totale con imballaggio (Kg): 5.7 - Dimensioni (imperiali) (LxPxH)Dimensioni totali con imballaggio (pollici): 22.8 x 15.9 x 6.4
Dimensioni unità senza supporto (pollici): 20.4 x 12.9 x 4
Dimensioni unità con supporto (pollici): 20.4 x 12.1 x 2.4 - Dimensioni (metrico) (LxPxH)Dimensioni totali con imballaggio (mm): 580 x 405 x 162
Dimensioni unità senza supporto (mm): 519 x 329 x 101
Dimensioni unità con supporto (mm): 519 x 308 x 61 - GeneraleCertificazioni: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS
Contenuto della confezione: TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Riciclaggio/Smaltimento: Please dispose of in accordance with local, state or federal laws.
Garanzia: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
