PJD7383

Short Distance-Big Presentation

GALLERY

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
Mac®: Up to 1400×1050 (may require Mac Adapter)
PC: XGA to UXGA
DIMENSIONS
Prodotto senza imballaggio (LxPxH): 290 mm (W) x 254mm (D) x 126 mm (H)

11.42” (W) x 10 ” (D) x 4.96” (H)

Contenuto della confezione
ViewSonic projector, power cable, VGA cable, remote control, lens cap, quick start guide, ViesSonic DVD wizard, soft case
AUDIO
Speaker: 10Wx1
INPUT SIGNAL
Frequency: Fh: 31-100 KHz, Fv: 48-120 Hz
Computer and Video: NTSC M (3.58 MHz), 4.43MHz PAL (B, D, G, H, I, M, N, 60) SECAM (B, D, G, K, K1, L) 480i and 576i 480p and 576p
720p,1080i

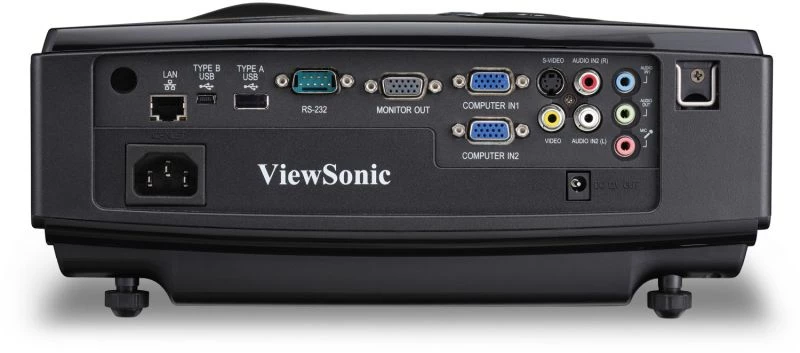

CONNECTOR
Audio Out: 1×3.5mm mini jack
S-Video Input: 1×4-pin mini-DIN
RGB: 2×15-pin mini D-sub/ 1×15-pin mini D-sub
Audio Input: 1×3.5mm mini jack(Microphone) / RCA x1
Comando: 1×RS-232 (9 Pin D-Sub)/ RJ45
USB: TYPE A x 1/ TYPE B x 1
Composite Input: 1×RCA jack
DC Output: 12V trigger
POWER
Voltaggio: 100~240VAC(Auto Switching), 50/60Hz (universal)
Consumo: 329W (Typical) / <1W (RGB out disable)
CONTROLS

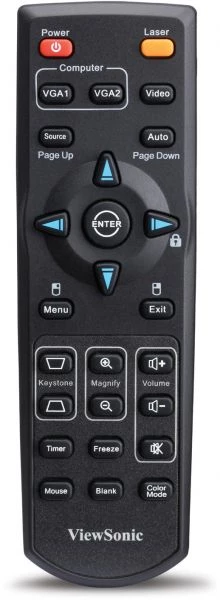

Basic: Power / Freeze/ Blank / Auto / Menu / 4 directon buttons /VGA1 &2 / Video / Source / Enter/ Exit / Keystone+/- / Magnify +/- / Volume +/- / Mute / Color Mode
OSD: (1) Display:Screen color/ Aspect raito/ Keystone/ Position/ Phase/ H. Size/ Zoom/ 3D sync/ 3D sync invert/ Color Management (2) Picture:Color Mode PC/Video: Brightest/ PC/ ViewMatch/ Cinema/ User 1/ User 2 Reference Mode: PC/Video: Brightest/ PC/ ViewMatch/ Cinema Brightness /Contrast /Color /Tint / Sharpness / Brilliant Color /Color Temp. /Save Settings (3) Source:Quick Auto Search
(4) System Setup (Basic):Language/ Projector Position / Auto Power Off /Blank Timer / Panel Key lock/ Splash Screen / Screen Capture/ Message/ LAN Control Settings/Standby Settings (Microphone/ Active VGA Out/ Active Audio Out) (5) System Setup (Advanced): High Altitude Mode /DCR /Audio Settings (Mute/ Volume/ Microphone Volume)/ Menu Settings / Closed Caption / Lamp Settings / Security Setting / Reset All Settings (6) Information: Current System Status (Source / Color mode /Resolution /Color System Equivalent lamp hour/ MAC address) (7) PointBlank: TBD
DISPLAY
Contrast Ratio : 3000:1
Distanza di proiezione: 0.37m - 3.7m
Throw ratio: 0.61
Lamp type: 210 watt
Luminosità: 3000 Lumens
Color Wheel: 6-Seg RGBCYW / 7200rpm
Color Gamut: 90% NTSC 1931 CIE
Lamp life ( Normal / Eco / Dynamic Eco ): 4000 / 6000 (hours)
Tipo: 0.55" Digital Micromirror Device (DLP™)
Risoluzione: XGA 1024 × 768 (Native)
Keystone: Vertical digital keystone correction: ± 40 degrees
Obiettivo: Manual Zoom/Manual focus
Color Depth: 24 bits, 16.7M Colors (8+8+8)
NOISE LEVEL
Normal: 34dB
Eco-mode: 29dB
LANGUAGE
English/ Frence / Germany/ Italian/ Spanish/ Russian/ T. Chinese/ S. Chinese/ Japanese/ Korean/ Swedish/ Dutch/
Turkish/ Czech/ Portuguese/ Thai/ Polish/ Finnish
WEIGHT
Prodotto senza imballaggio: 3.5kg (7.7lb)
OPERATING CONDITIONS
Umiditá: 10%-90% (non-condensing)
Temperatura: 0°C-40°C
WARRANTY
3 years
