PJD6383s
Advanced DLP Projector
SPECIFICATIONS
- Product SpecificationRisoluzione: XGA (1024 x 768)
Brightness (ANSI Lumens): 3,000
Contrast (with Dynamic Contrast Ratio): 15,000:1
Lamp Hour (Normal / Eco / DynamicEco): 3,500 / 5,000
Throw Ratio in Meters (Wide ~ Tele): 0.61
Zoom ottico: Fixed
Zoom digitale: PC: 1.0x ~ 2.0x
Screen Size: 30” ~ 300”
Offset di proiezione: 130% +/- 5%
Display Colours: 1.07 Billion Colours
Keystone: +/- 40° (Vertical)
Noise min (Normal / Eco): 33dB / 29dB

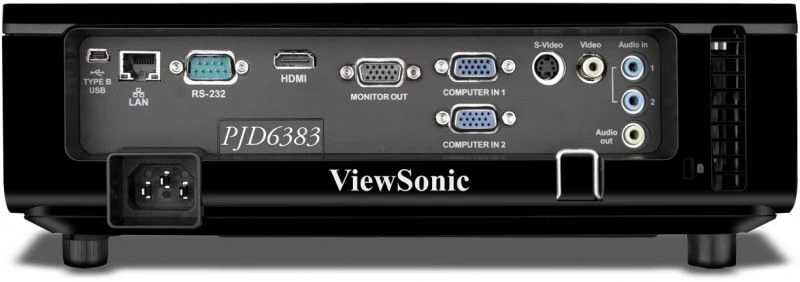

Speaker: 10W x 1 - Input ConnectivityHDMI In: 1
VGA-in: 2
Component Input: shared with VGA-in
S-Video: 1
Composite Input: 1
Ingresso audio (3.5mm): 2
Mini USB: 1 (Firmware, mouse control) - Output ConnectivityVGA-out: 1
Audio-out (3.5mm): 1
- ComandoRS232 (9 pin): 1
Network Mangment (LAN cable): 1 - Advanced Features3D Compatible (optional PGD-350 3D glasses required): Yes
Low Power Standby: <1W
3 sec. on / 0 sec. off: Yes
Network Control: Yes
Sleep Timer: Yes
Presentation Timer: Yes
Password Protection: Yes
Security Bar: Yes
Keypad Lock: Yes
Customized Start-up Screen: Yes
DynamicEco / Movie mode / Contrast: Yes / Yes / Yes - Dimensions and PowerDimension (WxDxH): 294 x 242 x 84mm
Peso netto: 2.99kg
Power Source: 120V ~ 240V / 50~60Hz
Consumo Energetico: 350W (Max) - Supplied AccessoriesPower cord: 1
VGA cable: 1
Remote Control (with batteries): 1 (Laser Pointer)
Quick Start Guide & CD: Yes
Carry bag: Optional (PJ-CASE-004) - Optional AccessoriesPGD-350 (3D glasses x1): Yes
WPG-370 (wireless presentation box): Yes - LanguagesComandi On Screen: English/ French / German/ Italian/ Spanish/ Russian/ T. Chinese/ S. Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Finnish
