Archived

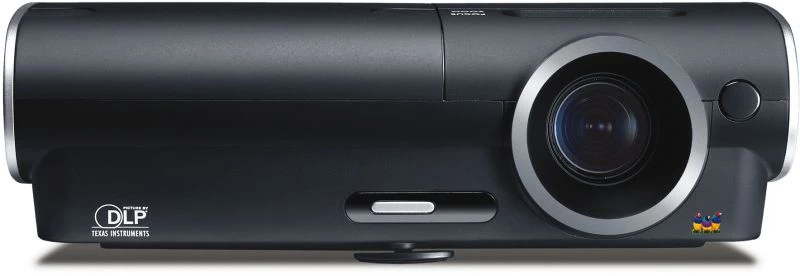

PJ568D
High-performance duett
SPECIFICATIONS
- COLORSBlack
- COMPATIBILITYPC: Analogue: VGA up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
Mac®: Analogue: up to SXGA (scaled), 1024 x 768 @ 60Hz preferred - DIMENSIONSProdotto senza imballaggio (LxPxH): 300 x 94 x 243
W x H x D mm: 386 x 266 x 450
- Contenuto della confezioneDLP Projector, 1.8m power cables (Europe [Schuko]/UK), VGA cable, remote control with laser pointer, batteries, lens cap, soft carrying case, Quick Start Guide (multi-language), ViewSonic Wizard CD (User guide) (multi-language)
- AUDIOSpeaker: 1x1 watts
- INPUT SIGNALFrequency: Fh: 15.31–90kHz; Fv: 50–85Hz

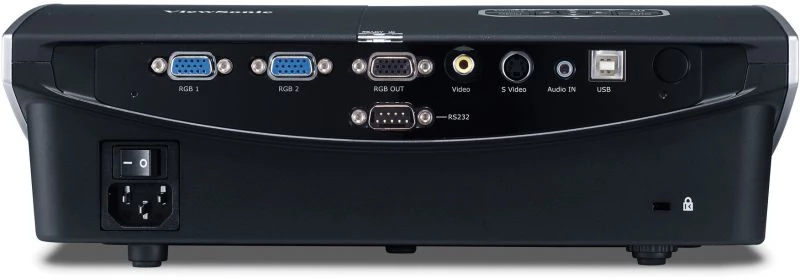

Video: RGB analogue, Video NTSC M, NTSC 4.43, PAL (B, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i) - CONNECTORComposite Video Input: 1 x RCA jack
S-Video Input: 1 x 4-pin mini-DIN
Component Video Input: 15-pin mini D-sub to 3 x RCA component video adapter (optional)
Audio Input: 1 x 3.5mm stereo mini jack
Comando: 1 x 9-pin D-sub RS-232
USB: 1 x USB Typ B (for mouse control)
PC-VGA-In: 2 x 15-pin mini D-sub
PC-VGA-Out: 1 x 15-pin mini D-sub - POWERVoltaggio: AC 100–240V, 50/60Hz (auto switch)
Consumo: < 250W (typ) - CONTROLSBasic: Standby/On, input, menu
OSD: Main Menu (brightness, contrast, sharpness, colour temperature (3 defaults, user RGB], saturation, tint, gamma, colour space, reset), Configuration Menu (blank screen, auto source detection, auto off, volume, OSD position, OSD display, OSD background, reset), Setup Menu (H/V position, keystone, aspect ratio, advanced feature [user RGB, white peaking, logo display, fan speed security lock], reset), Utility Menu (video type, projection (rear, front, ceiling), frequency, tracking, digital zoom, reset), Language Menu (English, French, German, Italian, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese), Status Menu (video information, active source, lamp timer, lamp timer reset, eco mode, daylight mode) - OPERATING CONDITIONSTemperatura: 5°C–35°C
Umiditá: 10%–80% (non condensation) - WEIGHTProdotto senza imballaggio: 2.7kg
Prodotto con imballaggio: 5.2kg - DISPLAYBrightness (maximum): 2500 ANSI lumens
Contrast Ratio : 2000:1
Display size: 0.6m-6.9m (23"-273" ) (Diagonal)
Rapporto d'aspetto: 4:3 (native), 16:9
Distanza di proiezione: 1.0m–10.0m
Throw ratio: 1.8-2.1:1
Lamp type: 200W, 3000 hours (Eco mode 4000 hours, Boost mode 2000 hours) - NOISE LEVELNormal: 33db (typ)
Eco-mode: 29dB (typ) - OTHERVertical digital keystone correction, progressive scan, 3:2 pull down, Eco mode, daylight mode, unplug and go, USB mouse support
- DLPTipo: 1.4 cm / 0.55" DDR XGA DMD DLP
Risoluzione: 1024 x 768 XGA native, (1280 x 1024 SXGA compressed)
Obiettivo: Manual zoom, manual focus
Digital Keystone: Vertical ± 15º
Zoom Factor: 1.15 (F = 2.53-2.72/f = 21.3mm-24.5mm)
