E96fSB

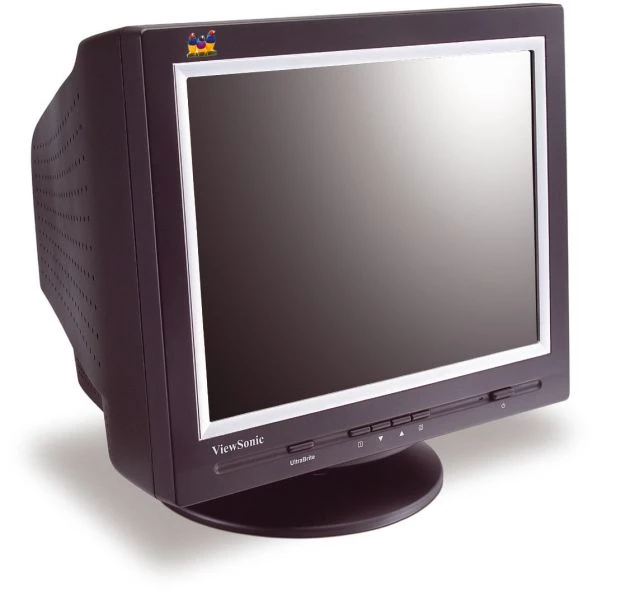

CRT MONITOR 48cm / 19" (18" VIEWABLE) E²® SERIES CRT

COLORS
Black
COMPATIBILITY
PC: PC and compatible (from VGA up to 1792 x 1344)
Mac®: Power Mac™ G3/G4 (from 640 x 480 up to 1152 x 864)
DIMENSIONS
Prodotto senza imballaggio (LxPxH): 445mm (W) x 424mm (H) x 465mm (D)

INPUT SIGNAL
Frequency: Fh: 30 – 86kHz
Fv: 50 – 160Hz
Video: RGB analogue (0.7 Vp-p, 75 ohms)
Sync: H/V separated (TTL)
CONNECTOR
Alimentazione: 3-pin plug (IEC320)
Signal: 15-pin mini D-sub
POWER
Voltaggio: AC 100 – 240V, 50/60Hz (+/-3Hz) (auto-switch)
Consumo: 55 watts (typ.)
CONTROLS
Basic: Power on/off, menu, up, down, select, UltraBrite
OSD: Contrast, brightness, zoom, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, moiré reduction,
degauss, ViewMatch® colour (9300k, 6500k, 5000k user), ViewMeter, OSD position, language, OSD lock, Memory recall
OPERATING CONDITIONS
Temperatura: 32-104ºF (0-40ºC)
Umiditá: 5% to 95% (no condensation)
WEIGHT
Prodotto senza imballaggio: 18.0kg
VIDEO INPUT
Bandwidth: 210MHz (typ.)
POWER MANAGEMENT
Meets MPR II
CRT
Tipo: 48cm / 19" (18" viewable) CRT, 90° deflection, PerfectFlat
Dot Pitch: 0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
Phosphor: RGB P22 (Cd free)
Glass Surface: Tint: (TM ~ 53.6%), anti-reflection, anti-static
PLUG & PLAY
DDC1, DDC2B
MISCONVERGENCE
0.25mm (max.) at centre
0.35mm (max.) at corner
PROGRAMMABLE MODES
Factory: 10
User: 12
DISPLAY AREA
Factory Setting: 352mm (H) x 264mm (V) (typ.)
Maximum Scan: 360mm (H) x 270mm (V) (depending on signal timing used)
