Key Features
  • Integrated with myViewBoard software
  • Multi-tasking capabilities for enhanced lesson delivery
  • Embrace simplicity and organization with the USB-C one-cable solution, offering 65W of Power Delivery.
  • Intuitive user interface and fast app launch for smooth operation
  • Powered by Android 11

ViewBoard IFP6533
Product Description
The ViewBoard IFP33 Series harmonizes a touch display with versatile software to create a comprehensive classroom solution for interactive and engaging learning. This interactive flat panel delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colors, enhanced contrast, and reduced glare. The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in front-facing speakers and a USB-C port sort out for a complete and convenient multimedia experience. The ViewBoard IFP33 Series is preinstalled with myViewBoard to offer advanced lesson delivery options for teachers and powerful device management tools for administrators.

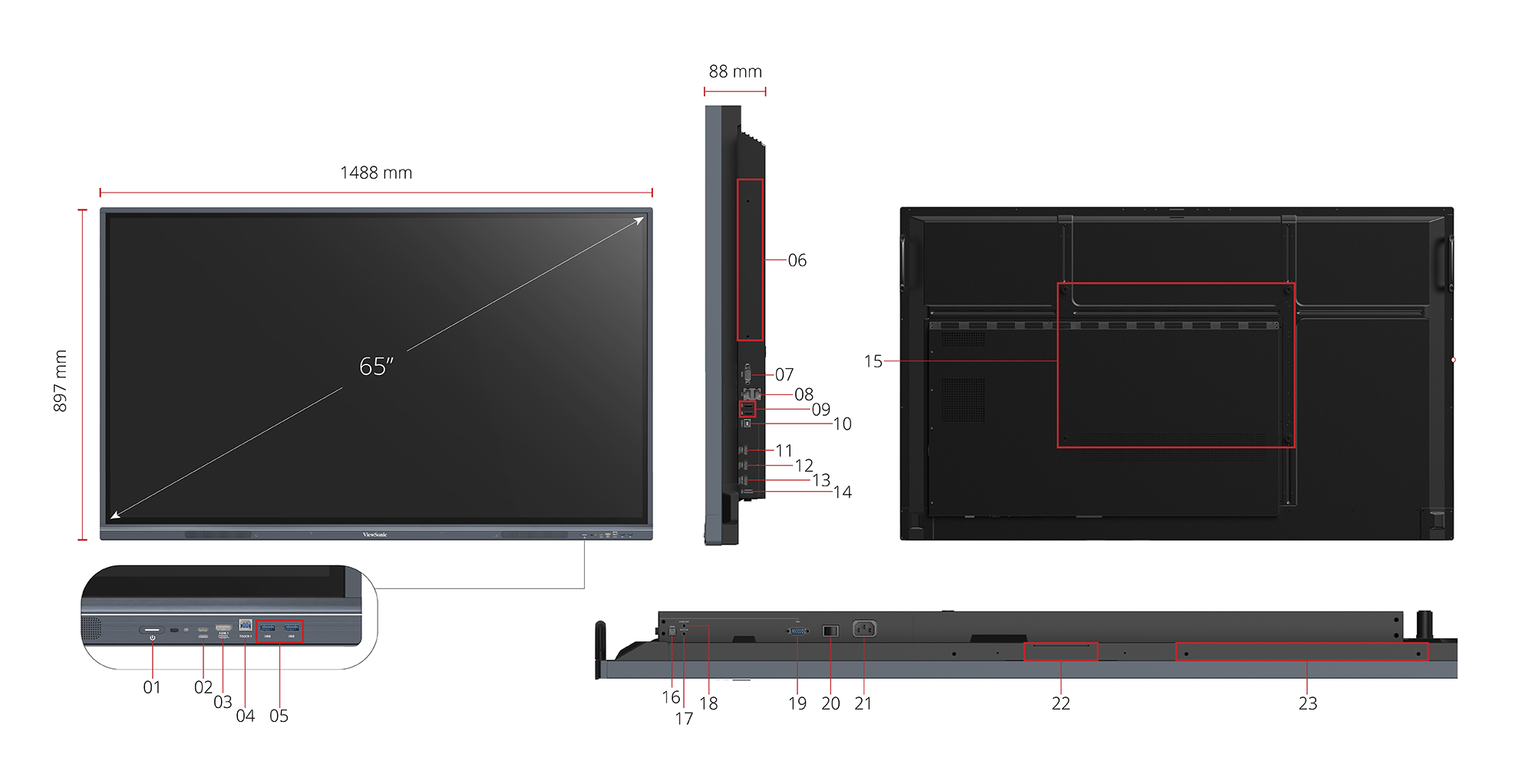

  1. POWER ON/OFF
  2. USB C
  3. HDMI 1
  4. TOUCH 1
  5. USB 3.0x2
  6. OPS Slot
  7. RS-232
  8. LAN
  9. USB 2.0x2
  10. TOUCH 2
  11. HDMI 2
  12. HDMI 3
  13. HDMI OUT
  14. USB
  15. VESA® Wall Mount (600x400mm)
  16. SPDIF
  17. AUDIO in
  18. AUDIO out
  19. VGA
  20. Power On/OFF
  21. AC IN
  22. Wi-Fi Slot
  23. Sensor Mount
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 65"
    Panel Type: TFT LCD Module with DLED Backlight. IPS
    Display Area (mm): 1428.48(H) × 803.52(V) (64.5” diagonal)
    Aspect Ratio: 16:9
    Resolution: UHD 3840x2160(Pixels)
    Colors: 1.07B colors
    Brightness: 450 nits
    Contrast Ratio: 5000:1 (max. with DCR enabled)
    Response Time: 8ms
    Viewing Angles: H=178, V=178
    Backlight Life: 50,000 Hours (Min.)
    Surface Treatment: Hardness: 9H Anti-glare coating
    Orientation: Landscape
  • PLATFORM
    Processor: Quad-core ARM Cortex (A55*4 )
    RAM: 4GB DDR4
    Storage: 32 GB
  • TOUCH
    Type/ Tech: Ultra Fine Touch Technology
    Touch Point: 40 points touch
  • INPUT
    HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz)
    RGB / VGA: x1
    Audio: x1
    RS232: x1
    OPS: x1 (Optional Intel Standard OPS)
    WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)
  • OUTPUT
    HDMI: HDMI 2.0 x1
    Audio: x1
    SPDIF: x1
  • LAN
    RJ45: x2
  • USB
    Type A: USB3.0:Front x2, Rear x2；
    USB2.0 x1
    Type B: x2 (Rear x1 + Front x1)
    Type C: Front*1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)
  • SPEAKERS
    16W x 2
  • TOP CAMERA PLATE
    Yes
  • EMBEDDED OS
    Android 11
  • BUNDLE SOFTWARE
    Basic Annotation Software: myViewBoard Whiteboard
    Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
    Wireless Presentation: myViewBoard Display
    Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
  • SPECIAL FEATURES
    All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
    Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
    Light Sensor: Yes
  • POWER
    Voltage: 100-240V AC
    Consumption: On:99W ; Off: ≤ 0.5W
  • ERGONOMICS
    Wall Mount (VESA® ): 600*400
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% RH non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 1488 x 897 x 88 mm / 58.6 x 35.3 x 3.5 in
    Packaging (inch / mm): 1628x208x1005 mm / 64.1x 8.2x 39.6in
  • WEIGHT
    Net (lb / kg): 77.1lb/34.95kg
    Gross (lb / kg): 98.5 lb/44.7kg
  • REGULATIONS
    FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI,BIS
  • PACKAGE CONTENTS
    1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m
  • COMPATIBLE SLOT-IN PC
    VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16
