TD2760

27" 10-point Touch Screen Monitor

SuperClear® technology
Advanced ergonomic stand for tilt or flat
HDMI, DisplayPort and VGA inputs
50M:1 dynamic contrast ratio
Supports Windows® 7/8/10/11 and selected Linux, Chrome, and Android

Sales Enquiry

GALLERY

OVERVIEW

The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and a full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10/11, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mount display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. Even more, the ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0

10-Point Multi-Touch

Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, and commercial use.

10-Point Multi-Touch

Viewing Clarity from Wide Angles

Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.

SuperClear® 178°/178°

Advanced Ergonomic Stand for Optimal Touch Experience

A flexible ergonomic stand makes it easy to adjust this touch monitor for optimal comfort and viewing. Simply tilt, raise, and lower the monitor for the most natural position, or lay it completely flat to create a comfortable working environment.

Tilt, Raise, Lay flat

Advanced Ergonomic Stand for Optimal Touch Experience 1

Versatile Connectivity

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.

DisplayPort, HDMI, VGA

Mega Dynamic Contrast Ratio

A superior MEGA dynamic contrast ratio better defines the relationship between the darkest and brightest colors, ensuring that this monitor delivers an incredibly immersive experience with accurate, rich, and vibrant images.

Maximized Color & Contrast

Cross-Platform Compatibility

Cross-platform compatibility with a wide range of operating systems including: Windows 7/8/10/11, Linux, Chrome, and Android*. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0

Windows 7/8/10/11, Linux, Chrome, Android

Control Multiple Devices

RS232 offers local control for set-top boxes, and other RS232 connected devices. The HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices directly through the display.

HDMI CEC, RS232

Dual Integrated Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

Dual Integrated Speakers

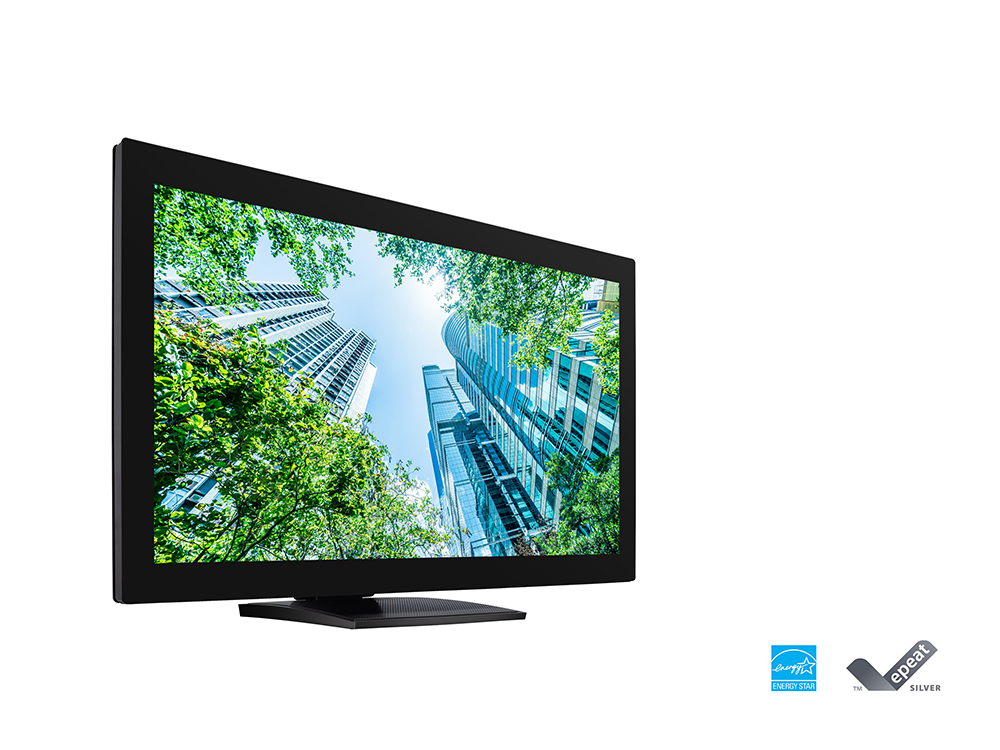

Certified Environmental Sustainability

The TD2760 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.

Energy Star & EPEAT

Certified Environmental Sustainability 1

Enhanced Viewing Comfort

Flicker-Free Technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.

Blue Light Filter, Flicker-Free

VESA-Compatible Mount

Mount the monitor as you see fit using its convenient VESA-compatible mount design.

100mm x 100mm

Internal Speakers
VESA Compatible(Wall Mount 100x100mm)
AC In
DisplayPort
HDMI
VGA
USB Down Stream X 2
USB Up Stream
RS232
Earphone
Audio In

REVIEWS

Tạp chí PCMag

“ViewSonic là thương hiệu màn hình tốt nhất 2020”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 6ms
Response Time (GTG w/OD): 6ms
Response Time (Typical Tr+Tf): 12ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Pitch: 0.311 mm (H) x 0.311 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Anti-Glare, Hard Coating (≧6H)
Cover Glass Thickness: 1.88mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
RS232 In: 1

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 19W
Eco Mode (optimized): 22W
Consumption (typical): 26W
Consumption (max): 28W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 15 ~ 90KHz
Frequency Vertical: 50 ~ 76Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Tilt (Forward/Back): -4º / 90º
Weight (imperial)
Net (lbs): 17.4
Net Without Stand (lbs): 12.2
Gross (lbs): 22.6
Weight (metric)
Net (kg): 7.9
Net Without Stand (kg): 5.5
Gross (kg): 10.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 29.6 x 20.7 x 8
Physical (in.): 26 x 17.5 x 9.4
Physical Without Stand (in.): 26 x 16.2 x 2.3
Dimensions (metric) (wxhxd)
Packaging (mm): 753 x 525 x 204
Physical (mm): 660 x 443 x 239
Physical Without Stand (mm): 660 x 410 x 58
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS, CCC, China RoHS, China Energy Label, CECP
PACKAGE CONTENTS: TD2760 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
