New
ID2456
24” Touch Monitor with MPP2.0 Active Pen
- PCAP touch technology for fast and accurate touch response
- USB-C for instant plug-and-play connectivity via a single cable
- Ergonomic flexibility for optimal positioning in any task or setup
- Extended Windows Ink workspace for digital writing and design
- Compatible with all devices that support Microsoft Pen Protocol
OVERVIEW
Expand your workspace with the ID2456, a 24” Full HD touch monitor designed to break free from the limitations of a mouse and give you the freedom of working with a pen in hand. The MPP2.0 active pen combines with PCAP technology and Palm Rejection to deliver pinpoint accuracy when writing or drawing so you can optimize presentations, collaboration, and communication with the ability to freely capture and convey ideas in digital form. The multifunctional display covers 120% sRGB color gamut for a stunning viewing experience supported by advanced eye-care technology and ergonomic flexibility. Complete with seamless connectivity via USB-C and compatibility with all devices that support Microsoft Pen Protocol, the ID2456 adds a natural, intuitive, and hands-on experience to your personal workflow.A Digital Podium for next-level learning
A future-proof solution for dynamic presentations. Allowing presenters to take notes, sketch ideas, and connect with their audiences on a deeper level.
Seamless hybrid teaching integration with ViewDirector
ID2456 features exclusive ViewDirector software. A powerful live streaming software which allows teachers having clear communication-Be Professional and Neat: Switch web camera source with no hassle.
-Intuitive to Use: Concise and easy understand user Inerface.
-Your Personalized UI: Customize your in-screen layout with dragging, enlarging and narrowing down to suit your needs.
Make Your Lecture Flow
Break free from the limitations of a mouse and enjoy the free-flowing precision of a pen. Powered by MPP2.0 technology for pinpoint accuracy and combined with PCAP 10-point touch and Palm rejection technology, the ID2456 fully harnesses the natural feeling of working with a pen in hand.Note:
1. A full charge for stylus will last for about 100 hours of constant use.
2. The stylus will automatically enter power saving mode after 3 minutes.
3. For the first-time recharge of the stylus, please use a 5V/1A recharge device with a USB Type-A to Type-C cable. Do not charge for more than 4 hours to avoid battery damage.
4. It is recommended to use a USB Type-A to Type-C cable and coonect to the USB Type-A port of the ID2456 to charge the pen.
5. Please note when using a silicone pen tip cover it will affect the stylus's signal transition state and always stay in ink mode. This may cause drawing or writing inaccuracies.
PCAP touch and MPP 2.0
Ink with Pixel-perfect Precision
Supporting 4,096 levels of pressure sensitivity and +/-50゜tilt range, the MPP2.0 pen delivers pure precision for accurate handwriting, detailed drawing, and easy annotation in Windows Ink, PowerPoint, and a range of other applications designed for classroom teaching or hybrid learning.Expression with Windows Ink platform

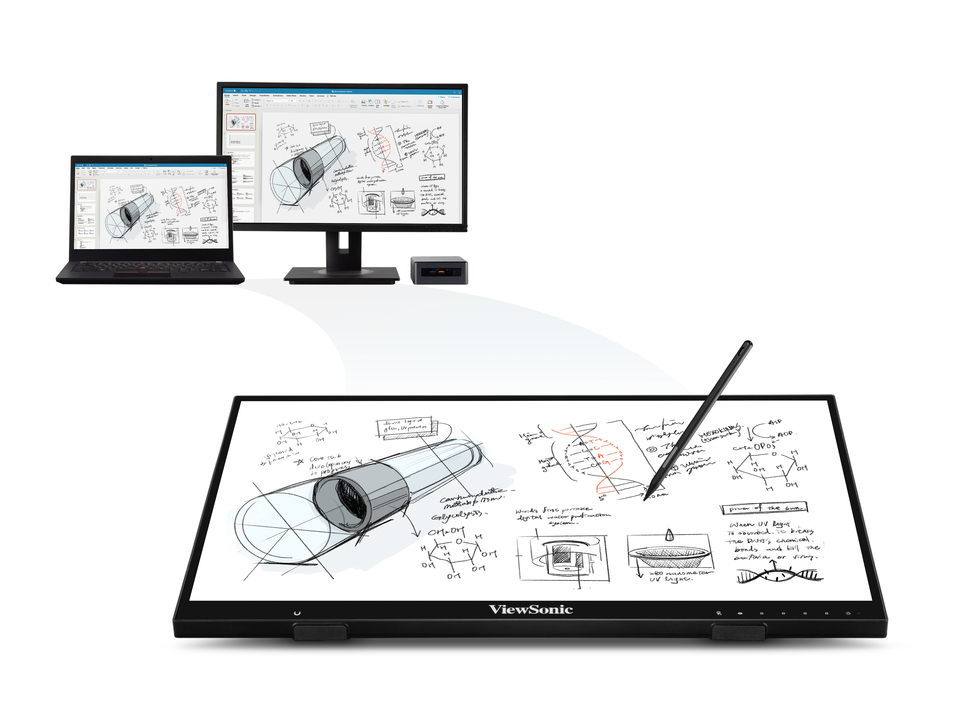

Expand The Way You Teach
Functioning as your primary monitor or as a supporting display, the ID2456 delivers a stunning 24" of added productivity to your classroom podium. Fully adjustable for optimal ergonomic positioning and compatible with all Windows 10 devices, the ID2456 seamlessly extends your workspace for a more productive, touch-enabled workflow.Compatible with All Windows 10 laptop and PC
Connect and Share Instantly
USB-C delivers the latest and fastest connectivity with data, video, audio, and power delivered though a single cable for plug-and-play access to your display and a workplace free of cable clutter, while the HDMI output enables easy screen mirroring with projectors and monitors.USB-C with 90W Power Delivery HDMI output

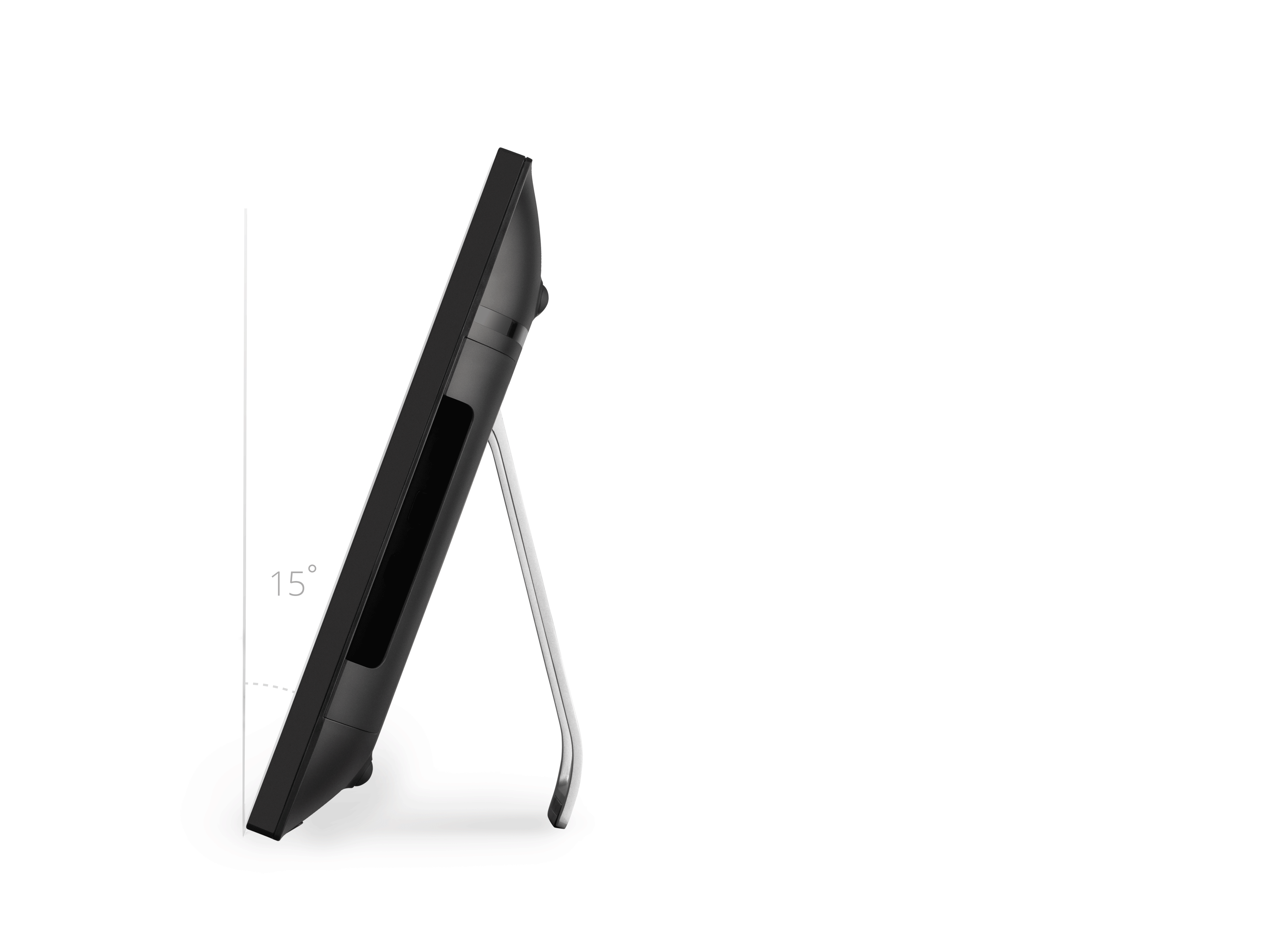

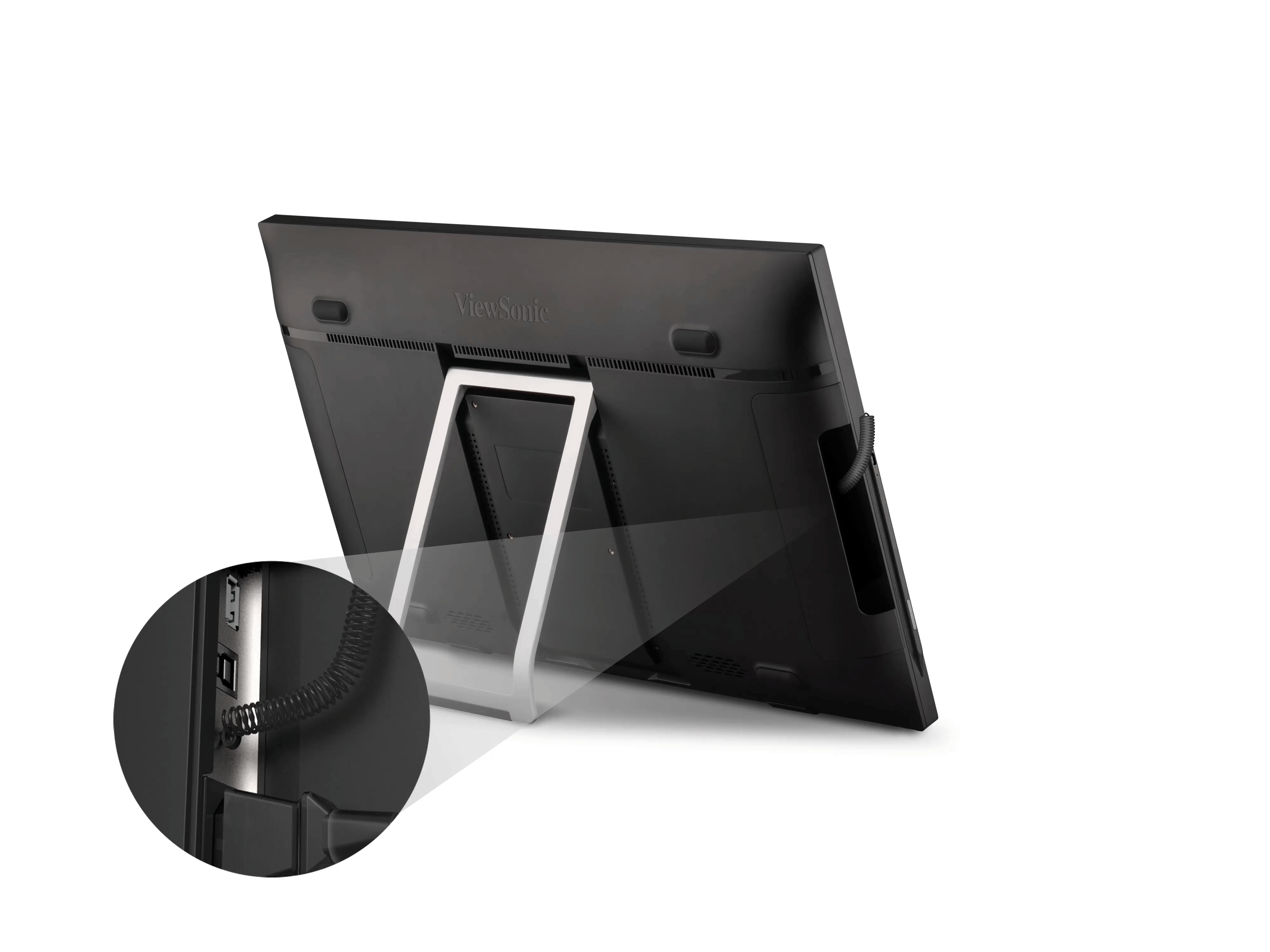

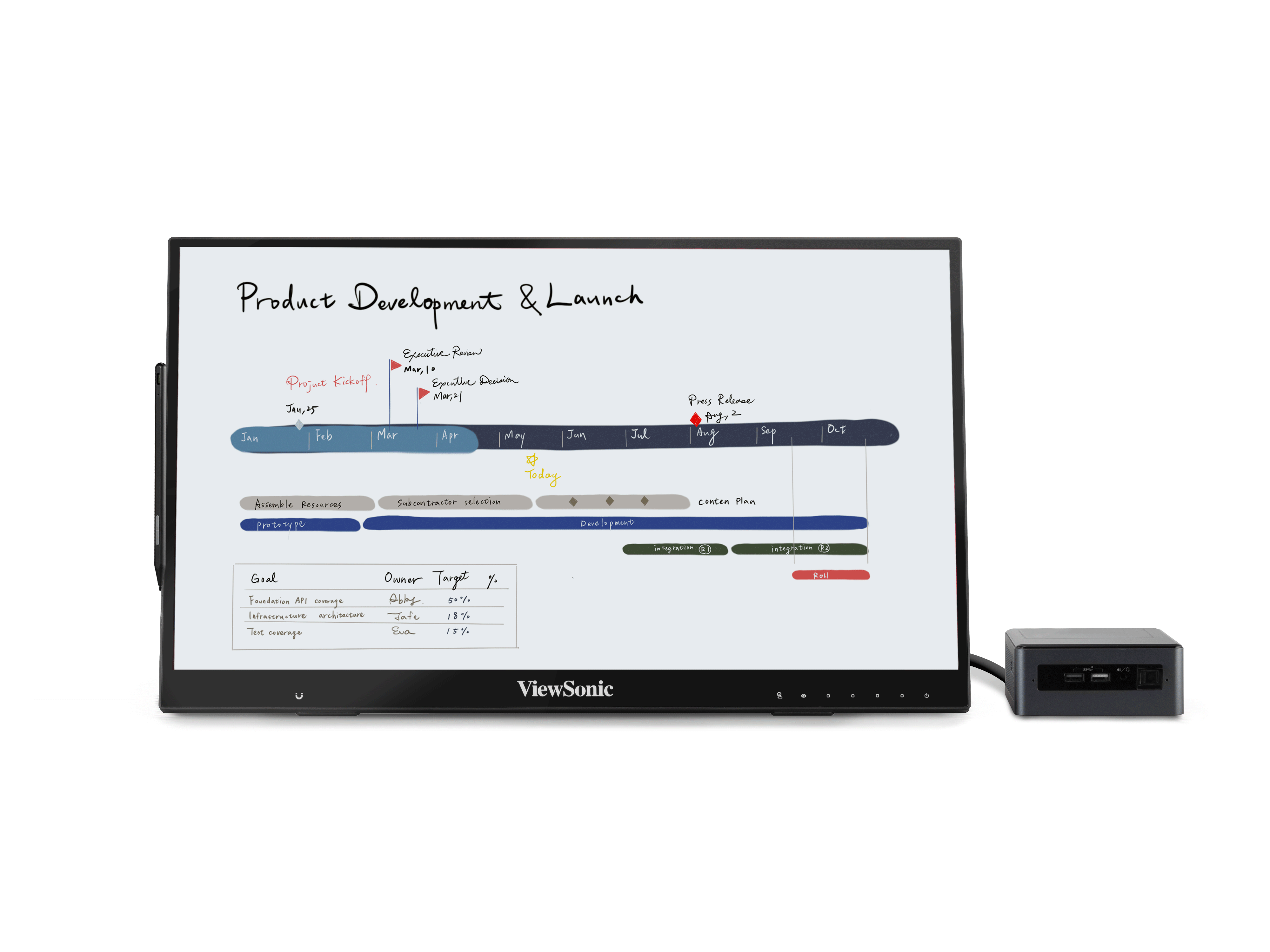

Seamlessly Adjust For Any Task
The ergonomically advanced hinge stand allows for effortless adjustment of the display between 15°-70° for optimal positioning in any setup or task, from note taking to conference calling to group presentations. the magnetic strip on three sides and the back to hold the pen when not in use.Stand Hinge Design 3-side magnet base and pen holder
Built to Work Hard
Protected by a glass cover that measures 6H on the Moh scale of mineral hardness and an additional anti-glare coating, the ID2456 is built to withstand hours of daily usage without affecting the high-quality visual performance of the display.6H hardness with Anti-glared coating
Designed for Long Hours
Blue light filter and Flicker-Free technology combine to deliver a superior viewing experience that is both eye friendly and energy efficient, effectively eliminating eye strain and fatigue even on days that require extra hours.Blue light filter, Flicker-free

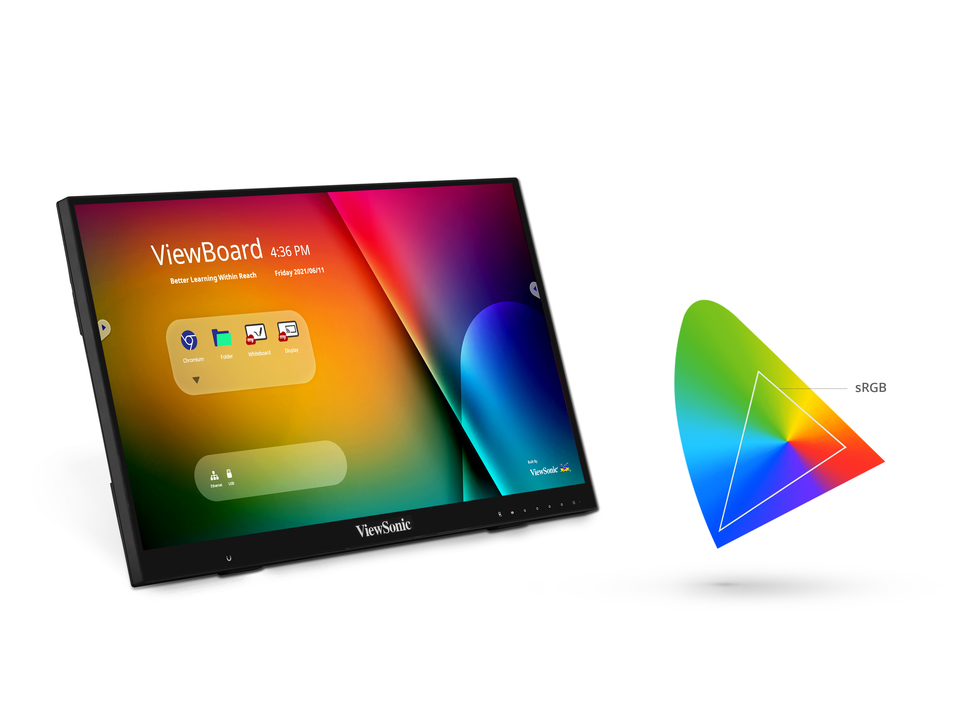

All the Color You Need, And More
Covering 120% sRGB color gamut, the ID2456 meets and exceeds digital display color standards to deliver stunning, true-to-life images through an expanded range of viewable color shades.120% sRGB Color Coverage

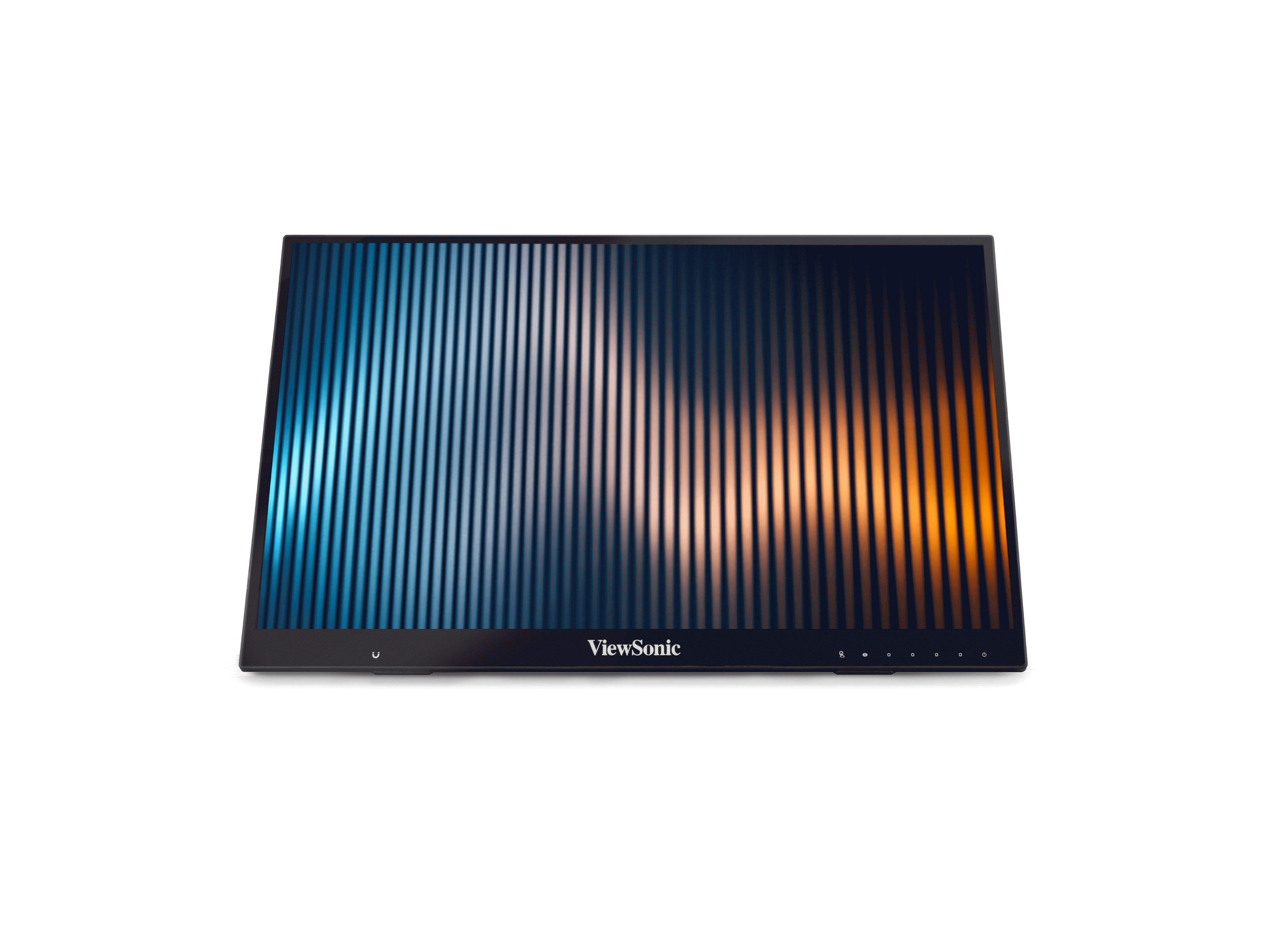

A Clutter-Free Audio Experience
Enjoy crisp and clear audio for conference calls, podcasts, and videos in a workspace free of cable clutter. The built-in dual speakers of the ID2456 deliver out-of-the-box audio capability designed to support hassle-free remote communication, reduce set up time, and keep your workspace tidy.Dual 3W Speakers

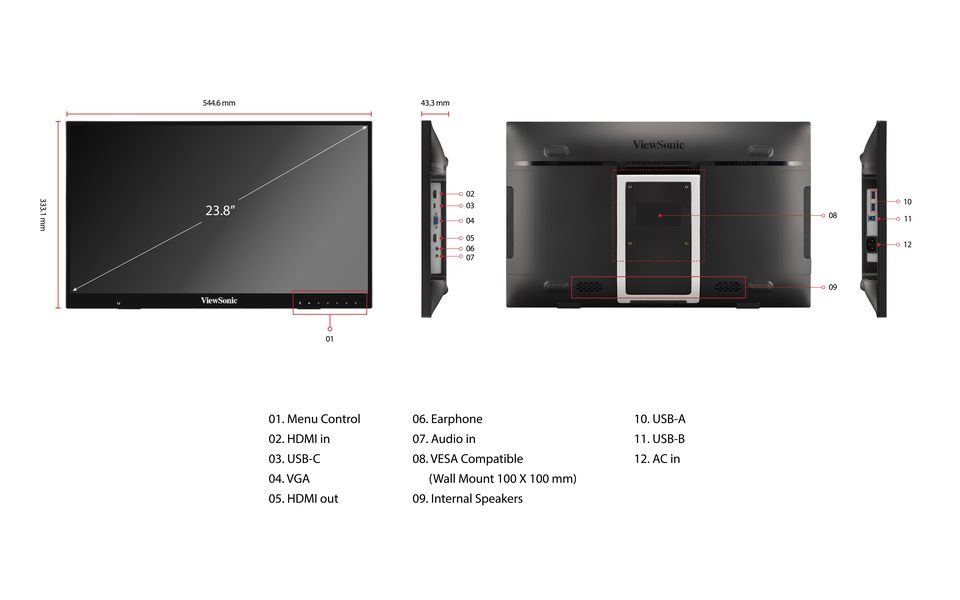

Dimension & I/O Ports
- Menu Control
- HDMI in
- USB-C
- VGA
- HDMI out
- Earphone
- Audio in
- VESA Compatible
(Wall Mount 100 x 100mm) - Internal Speakers
- USB-A
- USB-B
- AC in
FAQ
Q: Can I use another stylus for ID2456?A: Yes, ViewStylus ACP501 is compatible with ID2456. However, you need to download firmware before you use. Please download firmware by clicking the “ID2456 firmware update for ACP501” link below.
And further details for ACP501, please visit https://www.viewsonic.com/global/products/pendisplay/ACP501
SPECIFICATIONS
- DisplayDisplay Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 88% size (Typ)
sRGB: 120% size (Typ)
Pixel Pitch: 0.275 mm (H) x 0.275 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Anti-Glare, Hard Coating (6H)
Cover Glass Thickness: 2mm - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080 - Connector
- AudioInternal Speakers: 3Watts x2
- PowerEco Mode (Conserve): 25.72W
Eco Mode (optimized): 29.22W
Consumption (typical): 31W
Consumption (max): 32W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Key 0 (touch enable/disable), Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 15 ~ 86KHz, Type C: 15 ~ 86KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, Type C: 24 ~ 75Hz - Video InputDigital Sync: TMDS - HDMI (v1.4), Micro-Packet - Type C
Analog Sync: Separate/Composite/SOG - RGB Analog - ErgonomicsTilt (Forward/Back): 15º / 70º
- Weight (imperial)Net (lbs): 11
Net Without Stand (lbs): 11
Gross (lbs): 15 - Weight (metric) Net (kg): 5
Net Without Stand (kg): 5
Gross (kg): 6.8 - Dimensions (imperial) (wxhxd)Packaging (in.): 23.8 x 15.9 x 4.9
Physical (in.): 21.44 x 13.11 x 1.7
Physical Without Stand (in.): 21.44 x 13.11 x 1.7 - Dimensions (metric) (wxhxd)Packaging (mm): 605 x 405 x 125
Physical (mm): 544.6 x 333.1 x 43.3
Physical Without Stand (mm): 544.6 x 333.1 x 43.3 - GeneralRegulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, CE, CE EMC, LVD/CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, BIS
PACKAGE CONTENTS: ID2456 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, Quick Start Guide x1, MPP2.0 Active Pen x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
