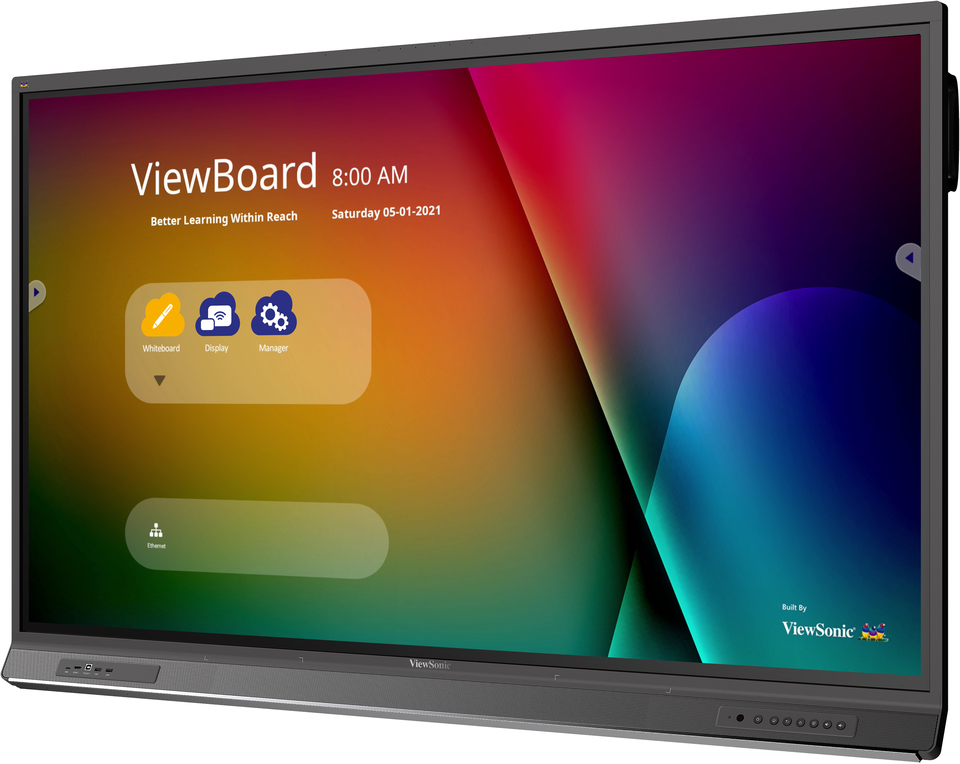

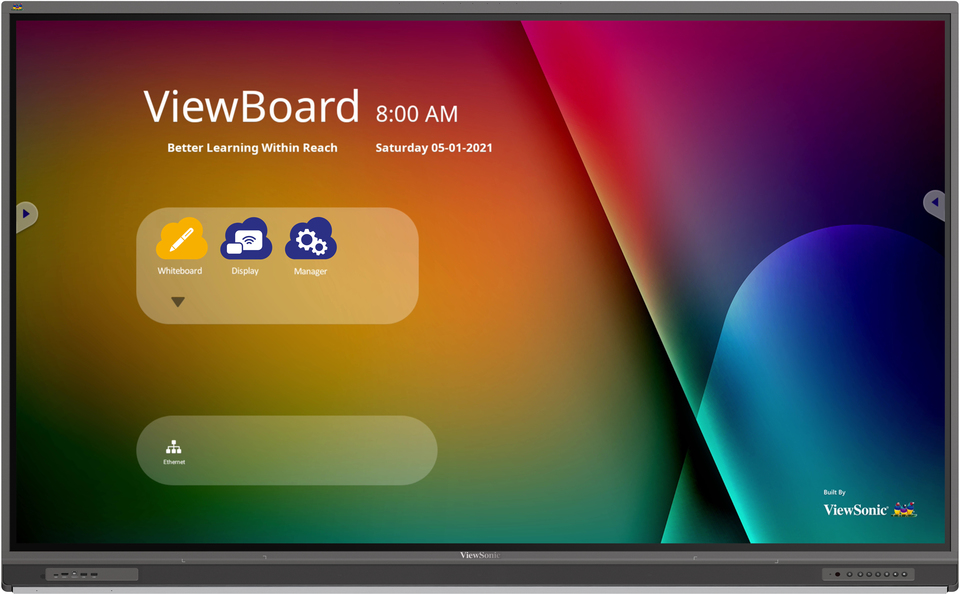

ViewBoard IFP8652-1CF

HDMI: 2.0 x4 ( 3840x2160 @60Hz ,HDCP2.2, HDMI 2 with CEC/ARC)
RGB / VGA: x1(1920x1080@60Hz)
Audio: x1(PC audio in)
RS232: x1
OPS: module slot x 1
WiFi: WiFi module slot x 1

HDMI: x1 (720p@60Hz, 1080p@60Hz, 4K@60Hz RGB)
Audio: 1 (Earphone out)
SPDIF: 1(optical)

RJ45: 1 in 1 out
(10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)

Type A: USB2.0 x 3 (Front x2, Side x1)
USB3.0 x 2(Side x 2)
Type B: x3(Front x1, Rear x 2)), for touch
Type C: x1 (USB2.0, DP1.2, Ethernet 100M, PD65W)

15W x 2 front soundbar + 15W x 1 subwoofer

8-array microphone

YES

Android 11

Basic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: vCast & myViewBoard Display
Device Management: myViewBoard Manager

All-in-one USB port: USB 3.0 “SmartPort USB” to all channels.
Simple LAN sharing between IFP and slot-in device: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On: 286.4 (typ.) / Off: <0.5W

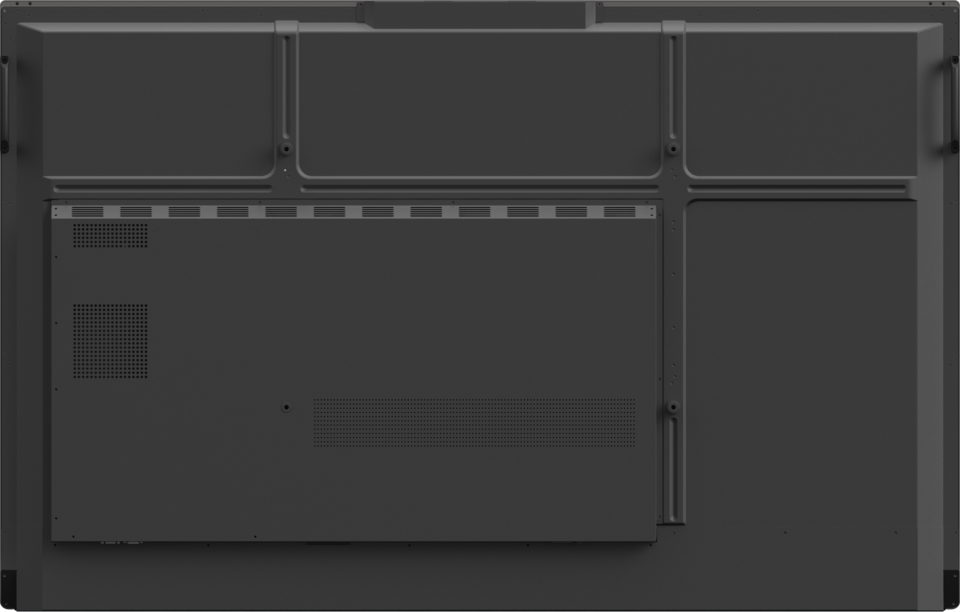

Wall Mount (VESA® ): 800 x 600

Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing

Physical (inch / mm): 1953 x 1211 x 120 mm / 76.89 x 47.68 x 4.72 in
Packaging (inch / mm): 2112 x 1332 x 280 mm / 83.15 x 52.44 x 11.02 in

Net (lb / kg): 151.35lb/68.65kg
Gross (lb / kg): 179.46lb/81.40kg

1. 3m power cord by ship area
2. Remote control with AAA battery
(new VS remote control)
3. 3m touch USB cable
4. Touch pen x 2 (a set)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8 (camera 2+2, wall mount 4)
10. HDMI cable 3m
11. Typc-C cable 1.8 (Data & power charged)
12. Eraser

VPC2-O series / VPC2-O-1B series / VPC12-WPO-15/16 / VPCF5 series / VPC33 series / VPC35 series / VPC37 series
