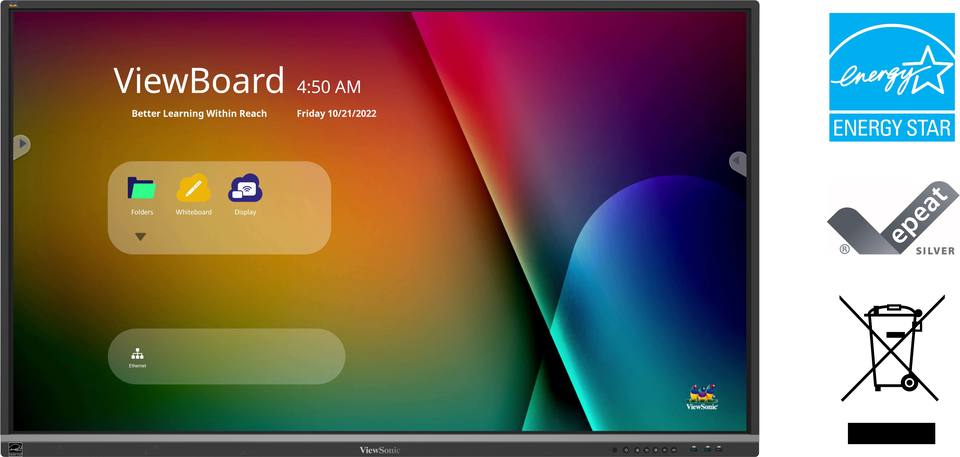

ViewBoard 6550-5
ViewBoard® 65” 4K Interactive Display
- Ultra Fine Touch Technology offering up to 40-point touch for a pen-on-paper writing experience
- myViewBoard Whiteboard software with engaging classroom tools
- Screen share via USB-C or wirelessly via myViewBoard Display and ViewBoard Cast with Airplay and Chromecast
- Intuitive remote device control and multimedia broadcast with myViewBoard Manager
- Android 11 OS powered by an octa-core CPU for optimized efficiency and security (Upgradable to Android 13)
SPECIFICATIONS
- DisplayPanel Size: 65"
Panel Type: TFT LCD Module with DLED Backlight.IPS
Display Area (mm): 1428.48(H) × 803.52(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160
Colors: 1.07B colors (10bit)
Brightness: 450 nits (typ.)
Contrast Ratio: 1200:1 (typ.) 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours (Min)
Surface Treatment: Hardness: 9H, Anti-glare coating
Bezel: Slim
Orientation: Landscape - PlatformProcessor: ARM Cortex-A73*4 + Cortex-A53*4
RAM: 4GB
Storage: 32GB - TouchType/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32768 ×32768
Touch Point: Windows: 40 points of touch, Android : 20 points of touch
- INPUTHDMI: 2.0 x 3 (3840x2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
RS232: x1
OPS: x1
WiFi: x 1 module slot - OUTPUTHDMI: x1 (4K@60Hz)
Audio: x1 (Earphone out)
SPDIF: x1 (optical) - LANRJ45: x2
- USBType A: 2.0 x 2
3.0 x 4
Type B: x2, for touch
Type C: x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M) - SPEAKERS12W x 2 + 16W x 1 subwoofer
- Top Camera PlateYes
- Embedded OSAndroid 11 (Upgradable to Android 13)
- Bundle SoftwareBasic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation: vCast/myViewBoard Display App - Special FeaturesAll-in-one USB port: “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: Yes
Light Sensor: Yes - PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: 95W(typ.), 0.5W (off) - ERGONOMICSWall Mount (VESA® ): 600 mm x 400 mm
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 58.6 x 35.3 x 3.5 in / 1488 x 897 x 90 mm
Packaging (inch / mm): 65.7 x 39.8 x 8.8 in / 1669 x 1010 x 223 mm - WEIGHTNet (lb / kg): 89.3lb/40.5kg
Gross (lb / kg): 109.6lb/49.7kg - PACKAGE CONTENTS1. Power cord
2. Remote control with AAA battery
3. Touch USB cable
4. Touch pen x 2
(VB-PEN-009)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8
10. HDMI cable - Compatible Slot-in PC• VPC2-O series
• VPC2-O-B series
• VPC25-W33-O1-1B
• VPC27-W53-O1-1B
• VPC12-WPO-17
• VPC12-WPO-18
