Key Features
  • Bundled with myViewBoard™ digital whiteboard software and ViewBoard® Cast content sharing software
  • Powerful system with Intel® Core™ i5-8500 processor, 8GB DDR4 memory, and 128GB SSD storage

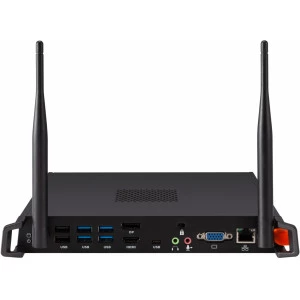

VPC16-WP-3
Product Description
The ViewSonic® VPC16-WP-3 Windows slot-in PC is the ideal integrated solution for ViewBoard® interactive displays. This slot-in PC module supports high-definition audio and video, and is bundled with myViewBoard™ digital whiteboard software and ViewBoard® Cast content sharing software. With wired connectivity, dual-band Wi-Fi and Bluetooth, a powerful Intel® Core™ i5 processor, 8GB DDR4 memory, and 128GB SSD storage, the VPC16-WP-3 contains the computing power needed to operate CPU intensive applications.
Visit Us
  • www.viewsonic.com
  • CORE
    CPU: Intel 8th Gen. coffee Lake series with vPro, TPM
    i5-8500 3.0GHz
    Grafik: Integrated Intel® HD Graphics 630
    Total Available Graphics Memory: 64GB
    Max Resolution up to 4096x2304@60Hz
  • PENYIMPANAN
    Tipe: 260-pin DDR4 SO-DIMM x 2
    Kapasitas: 8GB
    Dimensi: M.2 -2242(22 x 42 mm) / 2280(22 x 80 mm)
    Kapasitas: 128GB SSD
    Interface: M.2 -2242/2280
  • PERANGKAT LUNAK
    Sistem operasi: Windows 10 Pro 64 bit
  • INPUT
    MIC (Mikrofon): x1
  • OUTPUT
    RGB / VGA: x1
    DisplayPort: x1 (max. resolution 4096x2304@60Hz)
    HDMI: x1 (max. resolution 3840x2160@24Hz)
    Audio: x1 Earphone Out
  • LAN
    RJ45: 1 x RTL8111(Gigabit)
  • NIRKABEL / BLUETOOTH
    Nirkabel / Bluetooth: Intel 9260 or 9560 WiFi+BT5.0 Module dual band
  • USB
    Tipe A: USB 3.0 x 4, USB 2.0 x 2
    Tipe C: USB 3.1 x 1
  • MENDUKUNG FORMAT MEDIA
    Format video: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
    Format gambar: Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF
    Audio codec: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA
  • BUNDLE SOFTWARE
    Bundle Software: myViewBoard for Windows
    QuickLaunch
    Intel Unite
    SureMDM
    Nix Agent
  • POWER
    Tegangan: AC 110-240V 50 / 60Hz
    Konsumsi: 95W
  • OPERATING CONDITIONS
    Suhu (º C): -5°C to 45°C
    Kelembaban: 10% ~ 90% @ 40°C Non-condensing.
  • DIMENSI (W X H X D)
    Fisik (inci / mm): 246.2*265.4*32.2mm
    Kemasan (inci / mm): 350*310*90mm (1pc)
    495*370*340mm (5pcs)
  • WEIGHT
    Net (lb / kg): 4.3lb / 1.95kg
    Gross (lb / kg): 4.63lb / 2.1kg
  • REGULATIONS
    REGULATIONS: CE, R&TTE, FCC, FCC-IC-ID, cTUVus, , RCM, BSMI, NCC (TBD)
  • ISI PAKET
    ISI PAKET: 1. VPC16-WP
    2. ViewSonic Wizard CD
    3. QSG
  • KODE UPC
    Kode UPC: 76690700320 8
