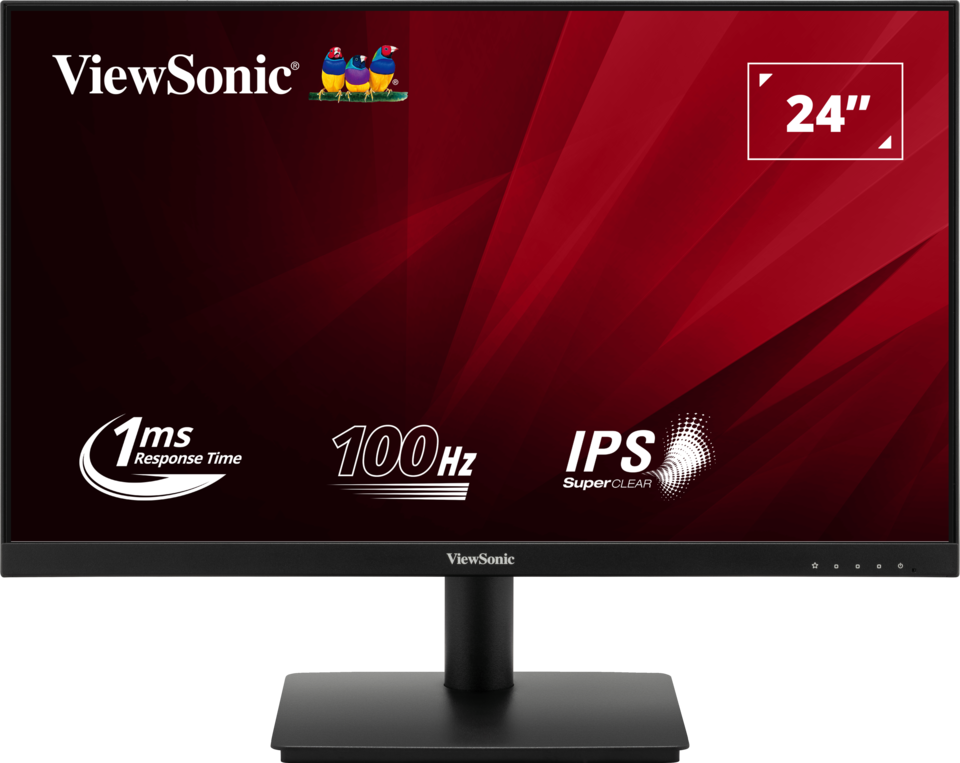

ViewSonic VA240-H 24” Full HD Monitor with Fast 1ms Response Time - Datasheet

Key Features

SuperClear® IPS panel
Full HD 1080p resolution
100Hz Variable refresh rate delivers fluid visuals
1ms (MPRT) response time for precision
HDMI and VGA inputs for flexible connectivity

Product Description

The ViewSonic VA240-H is a 24” Full HD monitor featuring HDMI and VGA inputs for business and home use. The optimal screen performance and comfortable viewing without tearing or stuttering are delivered through variable refresh rate, Eye ProTech technology, and various ViewMode presets. Experience truly seamless multitasking on just one screen with a VESA-compatible mount at a low power consumption.

Menu Control Panel
HDMI
VGA
Power In
VESA Compatible(Wall Mount 75 x 75mm)

Visit Us

www.viewsonic.com

TAMPILAN

Display Size (in.):	24
Viewable Area (in.):	23.8
Jenis Panel:	IPS Technology
Resolusi:	1920 x 1080
Jenis Resolusi:	FHD (Full HD)
Rasio Kontras Statis:	1,000:1 (typ)
Rasio Kontras Dinamis:	50M:1
Sumber cahaya:	LED
Kecerahan:	250 cd/m² (typ)
Colors:	16.7M
Color Space Support:	8 bit (6 bit + FRC)
Aspect Ratio:	2024-04-24
Response Time (MPRT):	1ms
Sudut Pandang:	178º horizontal, 178º vertical
Backlight Life (Jam):	30000 Hrs (Min)
Lengkungan:	Flat
Refresh Rate (Hz):	100
Variable Refresh Rate Technology:	Yes
Filter Cahaya Biru:	Yes
Low Blue Light:	Software solution
Flicker-Free:	Yes
Color Gamut:	NTSC: 72% size (Typ) sRGB: 104% size (Typ)
Ukuran Piksel:	0.275 mm (H) x 0.275 mm (V)
Surface Treatment:	Anti-Glare, Hard Coating (3H)

KESESUAIAN

Resolusi PC (max): 1920x1080

Resolusi Mac® (maks): 1920x1080

Sistem Operasi PC: Windows 10/11 certified; macOS tested

Resolusi Mac® (min): 1920x1080
KONEKTOR

VGA: 1

HDMI 1.4: 1

Power in: DC Socket (Center Positive)
POWER

Mode Eco (Hemat): 16W

Eco Mode (optimized): 18W

Konsumsi (khas): 20W

Konsumsi (maks): 22W

Tegangan: AC 100-240V

Stand-by: 0.3W

Sumber Daya listrik: External Power Adaptor
PERANGKAT KERAS TAMBAHAN

Slot Kunci Kensington: 1
KONTROL

Kontrol Fisik: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)

Pada Tampilan Layar: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
OPERATING CONDITIONS

Suhu: 32°F to 104°F (0°C to 40°C)

Kelembaban (tanpa kondensasi): 20% to 90%
WALL MOUNT

VESA Compatible: 75 x 75 mm
SINYAL INPUT

Frekuensi Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 120KHz

Frekuensi Vertikal: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz
VIDEO INPUT

Sinkronisasi Digital: TMDS - HDMI (v1.4)

Analog Sync: Separate - RGB Analog
ERGONOMIS

Miring (Maju / Mundur): -3º / 15º
BERAT (IMPERIAL)

Net (lbs): 6.4

Bersih Tanpa Dudukan (lbs): 5.7

Gross (lbs): 8.8
WEIGHT (METRIC)

Net (kg): 2.9

Jaring Tanpa Dudukan (kg): 2.6

Gross (kg): 4

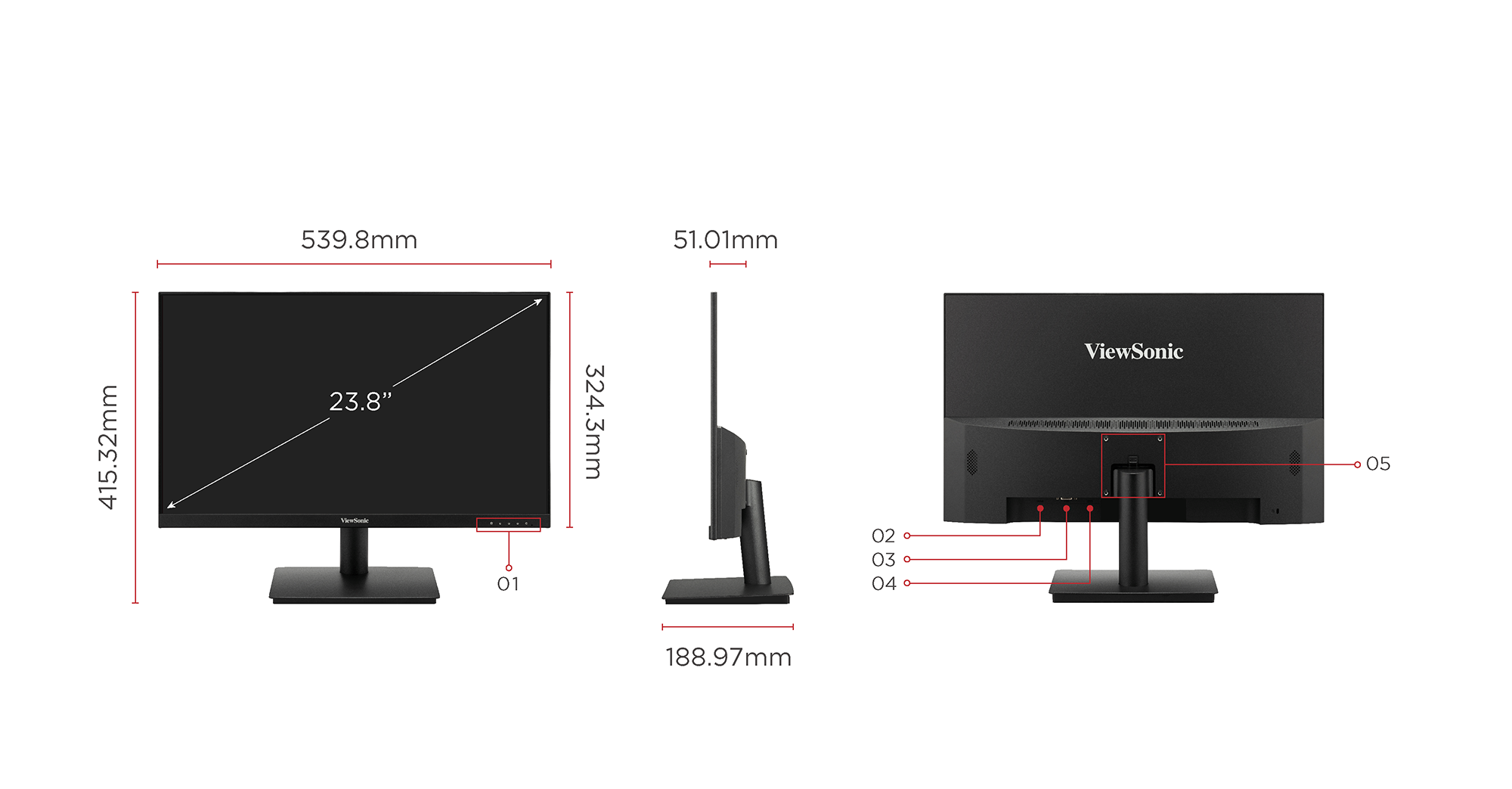

DIMENSI (IMPERIAL) (WXHXD)

Kemasan (in.): 23.9 x 16.5 x 4.3

Fisik (in.): 21.25 x 16.35 x 7.44

Fisik Tanpa Berdiri (masuk): 21.25 x 12.77 x 2.01
DIMENSI (METRIK) (WXHXD)

Kemasan (mm): 606 x 419 x 110

Fisik (mm): 539.8 x 415.32 x 188.97

Physical Without Stand (mm): 539.8 x 324.3 x 51.01

UMUM

Regulasi:	CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
ISI PAKET:	VA240-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x1 or 2 (by country) for VSE
Daur Ulang / Pembuangan:	Please dispose of in accordance with local, state or federal laws.
Warranty:	*Warranty offered may differ from market to market

Resolusi PC (max):	1920x1080
Resolusi Mac® (maks):	1920x1080
Sistem Operasi PC:	Windows 10/11 certified; macOS tested
Resolusi Mac® (min):	1920x1080

Mode Eco (Hemat):	16W
Eco Mode (optimized):	18W
Konsumsi (khas):	20W
Konsumsi (maks):	22W
Tegangan:	AC 100-240V
Stand-by:	0.3W
Sumber Daya listrik:	External Power Adaptor

Kontrol Fisik:	Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
Pada Tampilan Layar:	Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Suhu:	32°F to 104°F (0°C to 40°C)
Kelembaban (tanpa kondensasi):	20% to 90%

Frekuensi Horizontal:	RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 120KHz
Frekuensi Vertikal:	RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz

Sinkronisasi Digital:	TMDS - HDMI (v1.4)
Analog Sync:	Separate - RGB Analog

Kemasan (in.):	23.9 x 16.5 x 4.3
Fisik (in.):	21.25 x 16.35 x 7.44
Fisik Tanpa Berdiri (masuk):	21.25 x 12.77 x 2.01

Kemasan (mm):	606 x 419 x 110
Fisik (mm):	539.8 x 415.32 x 188.97
Physical Without Stand (mm):	539.8 x 324.3 x 51.01

VGA:	1
HDMI 1.4:	1
Power in:	DC Socket (Center Positive)

Net (lbs):	6.4
Bersih Tanpa Dudukan (lbs):	5.7
Gross (lbs):	8.8

Net (kg):	2.9
Jaring Tanpa Dudukan (kg):	2.6
Gross (kg):	4
