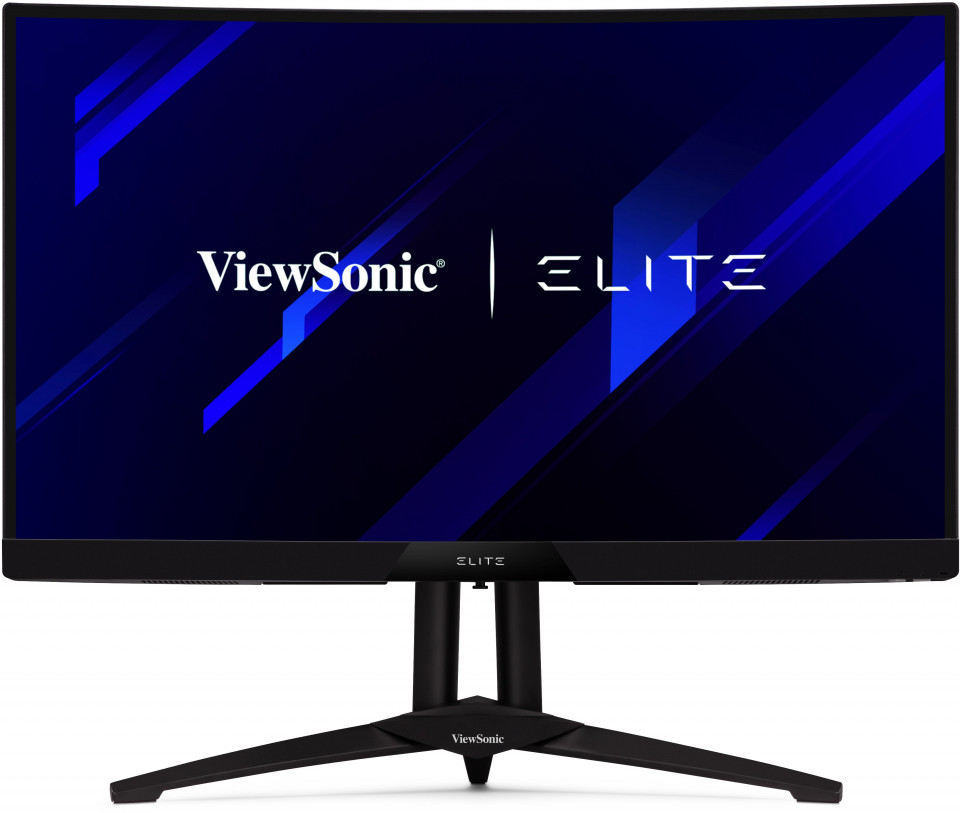

ViewSonic XG270QC 27” 165Hz QHD Curved Gaming Monitor

DISPLAY

Display Size (in.):	27
Viewable Area (in.):	27
Panel Type:	VA Technology
Resolution:	2560 x 1440
Resolution Type:	QHD (Quad HD)
Static Contrast Ratio:	3,000:1 (typ)
Dynamic Contrast Ratio:	120M:1
Light Source:	LED
Brightness:	550 cd/m² (typ)
Colors:	16.7M
Color Space Support:	8 bit true
Aspect Ratio:	16:9
Response Time (MPRT):	1ms
Viewing Angles:	178º horizontal, 178º vertical
Backlight Life (Hours):	30000 Hrs (Min)
Curvature:	1500R
Refresh Rate (Hz):	165
Variable Refresh Rate Technology:	Yes
Blue Light Filter:	Game Modes, Display, Input Select, ViewMode, Audio Adjust, Setup Menu
Flicker-Free:	VESA HDR400
Color Gamut:	DCI-P3: 86% size (Typ) NTSC: 82% size (Typ) sRGB: 116% size (Typ)
Pixel Size:	0.233 mm (H) x 0.233 mm (V)
Surface Treatment:	Anti-Glare, Hard Coating (3H)

COMPATIBILITY

PC Resolution (max): 2560x1440

Mac® Resolution (max): 2560x1440

PC Operating System: 48~165Hz

Mac® Resolution (min): 2560x1440
CONNECTOR

USB 3.2 Type A Down Stream: 3

USB 3.2 Type B Up Stream: 1

Micro USB: 1

3.5mm Audio Out: 1

HDMI 2.0 (with HDCP 2.2): 2

DisplayPort: 1
AUDIO

Internal Speakers: 3Watts x2
POWER

Eco Mode (Conserve): 45W

Eco Mode (optimized): 55W

Consumption (typical): 59W

Consumption (max): 63W

Voltage: External Power Adaptor DC

Stand-by: 33W

Power Supply: 14
ADDITIONAL HARDWARE

Cable Organization: Yes
CONTROLS

Physical Controls: 70000

On Screen Display: Joystick key: Up, Right, Down, Left, Center; Quick Access; Power
OPERATING CONDITIONS

Temperature: 32°F to 104°F (0°C to 40°C)

Humidity (non-condensing): 20% to 90%
WALL MOUNT

VESA Compatible: 120, VESA Compatible mm
INPUT SIGNAL

Frequency Horizontal: HDMI (v2.0): 30 ~ 230KHz, DisplayPort (v1.4): 30 ~ 250KHz

Frequency Vertical: HDMI (v2.0): 48 ~ 144Hz, DisplayPort (v1.4): 48 ~ 165Hz
VIDEO INPUT

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)
ERGONOMICS

Swivel: 23º

Tilt (Forward/Back): Mattº / -5º

Pivot (Right/Left): 0º / 25º
WEIGHT (IMPERIAL)

Net (lbs): 16.6

Net Without Stand (lbs): 10.8

Gross (lbs): 24.4
WEIGHT (METRIC)

Net (kg): 7.5

Net Without Stand (kg): 4.9

Gross (kg): 11.1
DIMENSIONS (IMPERIAL) (WXHXD)

Packaging (in.): 28.5 x 20.7 x 11

Physical (in.): 24.1 x 18.97~23.69 x 14

Physical Without Stand (in.): 24.1 x 14.6 x 4
DIMENSIONS (METRIC) (WXHXD)

Packaging (mm): 725 x 525 x 280

Physical (mm): 612 x 481.8~601.8 x 356

Physical Without Stand (mm): 612 x 372 x 103

GENERAL

PACKAGE CONTENTS:	XG270QC x1, 3-pin Mickey Mouse Plug (IEC C5) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal:	Please dispose of in accordance with local, state or federal laws.
Warranty:	*Warranty offered may differ from market to market

PC Resolution (max):	2560x1440
Mac® Resolution (max):	2560x1440
PC Operating System:	48~165Hz
Mac® Resolution (min):	2560x1440

USB 3.2 Type A Down Stream:	3
USB 3.2 Type B Up Stream:	1
Micro USB:	1
3.5mm Audio Out:	1
HDMI 2.0 (with HDCP 2.2):	2
DisplayPort:	1

Eco Mode (Conserve):	45W
Eco Mode (optimized):	55W
Consumption (typical):	59W
Consumption (max):	63W
Voltage:	External Power Adaptor DC
Stand-by:	33W
Power Supply:	14

Physical Controls:	70000
On Screen Display:	Joystick key: Up, Right, Down, Left, Center; Quick Access; Power

Temperature:	32°F to 104°F (0°C to 40°C)
Humidity (non-condensing):	20% to 90%

Frequency Horizontal:	HDMI (v2.0): 30 ~ 230KHz, DisplayPort (v1.4): 30 ~ 250KHz
Frequency Vertical:	HDMI (v2.0): 48 ~ 144Hz, DisplayPort (v1.4): 48 ~ 165Hz

Swivel:	23º
Tilt (Forward/Back):	Mattº / -5º
Pivot (Right/Left):	0º / 25º

Packaging (in.):	28.5 x 20.7 x 11
Physical (in.):	24.1 x 18.97~23.69 x 14
Physical Without Stand (in.):	24.1 x 14.6 x 4

Packaging (mm):	725 x 525 x 280
Physical (mm):	612 x 481.8~601.8 x 356
Physical Without Stand (mm):	612 x 372 x 103

Net (lbs):	16.6
Net Without Stand (lbs):	10.8
Gross (lbs):	24.4

Net (kg):	7.5
Net Without Stand (kg):	4.9
Gross (kg):	11.1
