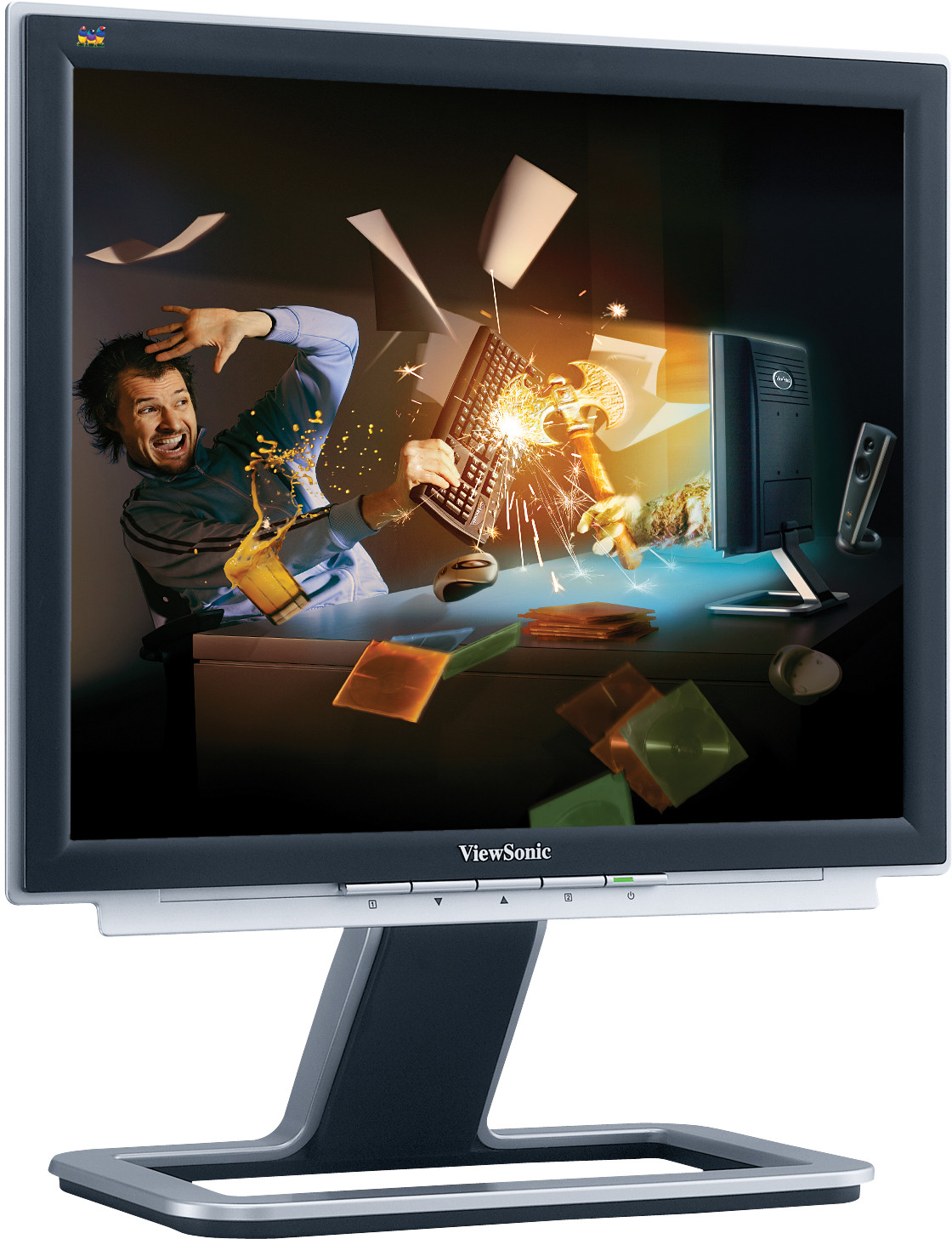

ViewSonic VX922 19" XTREME LCD MONITOR WITH 2MS ULTRA-FAST RESPONSE TIME

LCD

Type:	19” TN colour TFT active matrix SXGA LCD
Contrast Ratio:	650:1 (typ.)
Viewing Angles:	150° horizontal, 135° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Display Area:	37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Optimum Resolution:	1280 x 1024
Response Time:	2ms (grey-to-grey)
Panel Surface:	Anti-glare
Pixel Pitch:	0.294mm
Colour Support:	16.2M colours (6-bit+2-bit FRC)
Pixel Clock:	135MHz
Brightness:	270cd/m²

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced (max. 60Hz)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz)
DIMENSIONS

W x H x D mm: 431 x 468 x 201 (with stand)
431 x 370 x 66 (without stand)
PACKAGE CONTENTS

LCD monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide,
ViewSonic Wizard CD-ROM (User Guide/drivers)
WARRANTY

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
INPUT

Sync: H/V separate (TTL), composite, sync on green

Digital: DVI-D (TMDS, 100 ohm)

Analogue: RGB analogue (0.7 Vp-p, 75 ohm)

Frequency: Fh: 30 – 82kHz, Fv: 50 – 75Hz
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Digital: DVI-D (detachable cable)

Power: 3-pin (CEE22)
POWER

Voltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Consumption: 35 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:	Power on/off, menu [1], up, down, select [2]
OSD:	Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperature: 0°C to 40°C

Humidity: 10% to 90% (non-condensation)
WEIGHT

Net: 6.7kg (with stand), 5.3kg (without stand)
POWER MANAGEMENT

Meets TCO’99 and Energy Star® standards
ERGONOMICS

Tilt: 35 watt (typ.), <1 watt in power save mode

PC:	VGA up to 1280 x 1024 non-interlaced (max. 60Hz)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz)

Sync:	H/V separate (TTL), composite, sync on green
Digital:	DVI-D (TMDS, 100 ohm)
Analogue:	RGB analogue (0.7 Vp-p, 75 ohm)
Frequency:	Fh: 30 – 82kHz, Fv: 50 – 75Hz

Analogue:	15-pin mini D-Sub (detachable cable)
Digital:	DVI-D (detachable cable)
Power:	3-pin (CEE22)

Voltage:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption:	35 watt (typ.), <1 watt in power save mode

Temperature:	0°C to 40°C
Humidity:	10% to 90% (non-condensation)
