Key Features
  • Windows 10 Pro (ViewSonic recommends Windows 11 Pro for business)*
  • Ideal Integrated Solution for ViewBoard® Interactive Displays & Commercial Displays​
  • Powerful Intel® 10th Core Processors​
  • Improved System Stability, Security, & Thermal Control

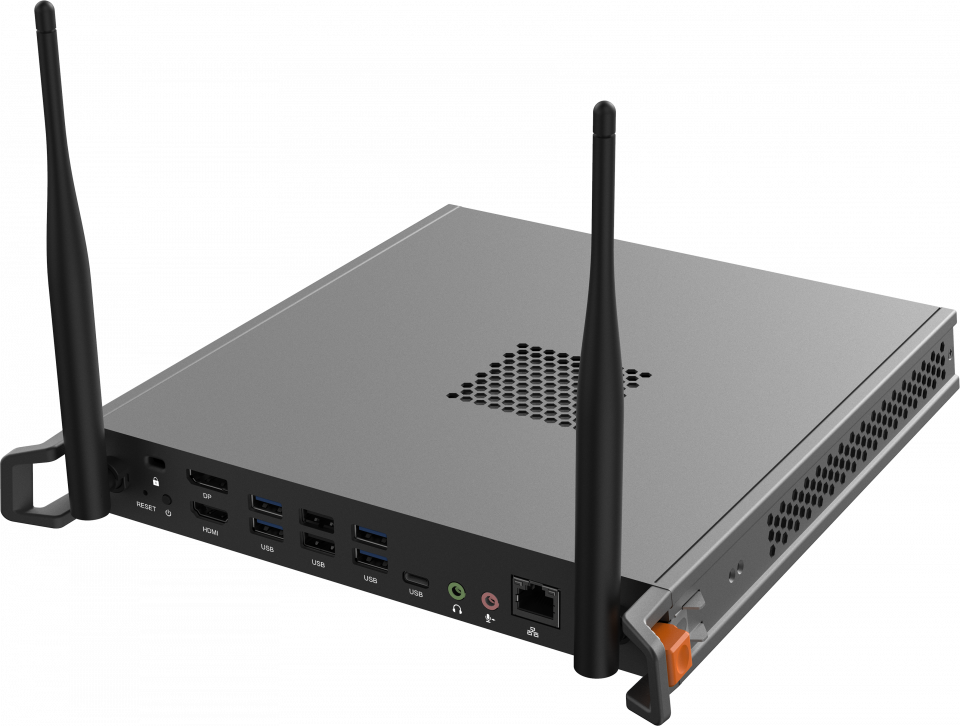

VPC25-W33-P1
Product Description
Seize power to get more done when you sync your ViewBoard® interactive displays and presentation displays with the ViewSonic VPC25-W33-P1 slot-in PC. Integrated with an exceptional performance from Intel® 10th Gen Core™ processors, 8GB DDR4 memory, and 256GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, DP1.4, USB 3.0, and Gigabit LAN RJ45 for faster workflows.​
  1. USB 2.0
  2. DisplayPort
  3. Anti-theft lock
  4. Reset
  5. Power
  6. HDMI
  7. USB type C
  8. Headphone
  9. Microphone
  10. RJ45
  11. USB 3.0
Visit Us
  • www.viewsonic.com
  • SOFTWARE
    Operating System: Windows 10 Pro 64 bit (ViewSonic recommends Windows 11 Pro for business)*
  • CORE
    CPU: Intel Core i5-10400T (non vPro) 2.0GHz Turbo boost 3.6GHz
    Graphics: Integrated Intel® UHD Graphics 630 Intel H410 chipset
  • MEMORY
    Capacity: 8GB DDR4
  • STORAGE
    Dimension: M.2 2280 (22 x 80 mm)
    Capacity: 256GB SSD
    Interface: PCIE and SATA 3
  • INPUT
    MIC(Microphone): x1
  • OUTPUT
    DisplayPort: x 1 (1.4, resolution 3840x2160@60Hz)
    HDMI: x 1 (2.0 max, resolution 3840x2160@60Hz)
    Audio: x 1 Line out
  • LAN
    RJ45: GbE LAN Port
  • WIRELESS / BLUETOOTH
    Intel® Wi-Fi 6 AX200.NGWG.NV + BT5.2 Module dual band
  • USB
    Type A: USB 3.0 x 4, USB 2.0 x 2
    Type C: USB 3.2 x 1 (data only)
  • BUNDLE SOFTWARE
    Adobe Reader / myViewBoard WhiteBoard for Windows / BIOS Winflash tool / FinchGuard (Watch Dog) / Intel Unite
  • POWER
    Voltage: AC 110-240V 50/60Hz
    Consumption: 110 W
  • OPERATING CONDITIONS
    Temperature (º C): -5°C to 40°C
    Humidity: 10% ~ 90% @ 40°C Non-condensing.
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 9.69 x 10.37 x 1.27 inch / 246.2 x 263.4 x 32.2 mm
    Packaging (inch / mm): 13.78 x 12.2 x 3.54 inch / 350 x 310 x 90 mm
  • WEIGHT
    Net (lb / kg): 4.3 lb / 1.95 kg
    Gross (lb / kg): 4.63 lb / 2.1 kg
  • PACKAGE CONTENTS
    1. VPC OPS
    2. QSG
  • DISCLAIMER
    *Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware(see Windows 11 Specifications https://www.microsoft.com/en-us/windows/windows-11-specifications?r=1).
