Detachable PC Modules
VPC12-WPO-16
Key Features
- Windows 10 Pro (ViewSonic recommends Windows 11 Pro for business)*
- Intel Core i5-8259U
- High Definition Audio Stereo
- Intel HD graphic 655
- Max Resolution up to 4096x2304@60Hz
Product Description

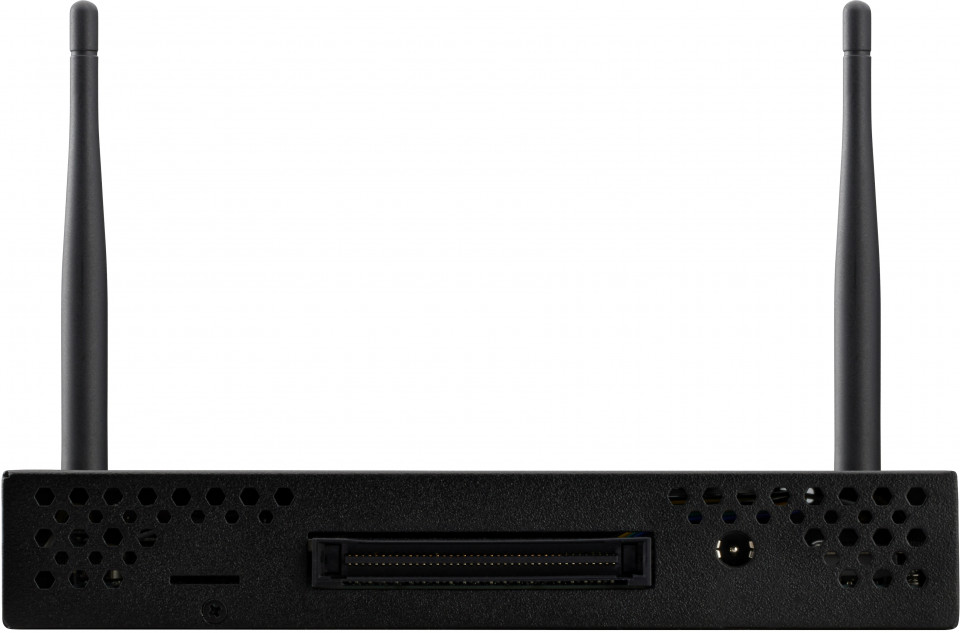

The ViewSonic® VPC12-WPO-16 slot-in PC is the ideal integrated solution for the ViewBoard® interactive displays and presentation displays. With dual-band Wi-Fi and Bluetooth, a powerful Intel® Core™ i5-8259U Processor, 8GB DDR4 SO-DIMM memory, and 256GB SSD storage, the VPC12-WPO-16 contains the computing power needed to operate CPU intensive applications.
Visit Us
- www.viewsonic.com
-
SOFTWARE
Operating System: Windows 10 Pro (ViewSonic recommends Windows 11 Pro for business *) -
CORE
CPU: Intel® Core™ i5-8259U Graphics: Intel® Iris® Plus Graphics 655 Total Available Graphics Memory: 32GB Max Resolution up to 4096x2304@60Hz -
MEMORY
Type: DDR4 SO-DIMM Capacity: 8GB( up to 64GB ) -
STORAGE
Capacity: 256GB SSD Interface: M.2 SATA Rev. 3 -
INPUT
MIC(Microphone): x1 -
OUTPUT
Audio: Audio x1 (Line out) HDMI: x1(1.4, max. resolution 4096x2160@30Hz) -
WIRELESS / BLUETOOTH
Intel® Dual Band Wireless-AC 3165 802.11 ac/a/b/g/n (2.4GHz/5GHz) / BT4.2 ; BLE -
USB
Type A: USB3.0 x 4 Type C: USB2.0 x 1 -
SUPPORT MEDIA FORMAT
Video format: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U Image format: Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF Audio codec: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA -
POWER
Voltage: DC 12/19V Consumption: 65W -
OPERATING CONDITIONS
Temperature (º C): 23°F to 113°F (-5°C to 45°C) Humidity: 10% ~ 90% non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 202 x 119 x 30 mm / 7.95” x 4.69” x 1.18” Packaging (inch / mm): 254 x 196 x 77 mm / 10.00” x 7.72” x 3.03” -
WEIGHT
Net (lb / kg): 0.8kg / 1.76lb Gross (lb / kg): 1.1kg / 2.43lb -
DISCLAIMER
*Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware. (see Windows 11 Specifications https://www.microsoft.com/en-us/windows/windows-11-specifications?r=1).
