Key Features

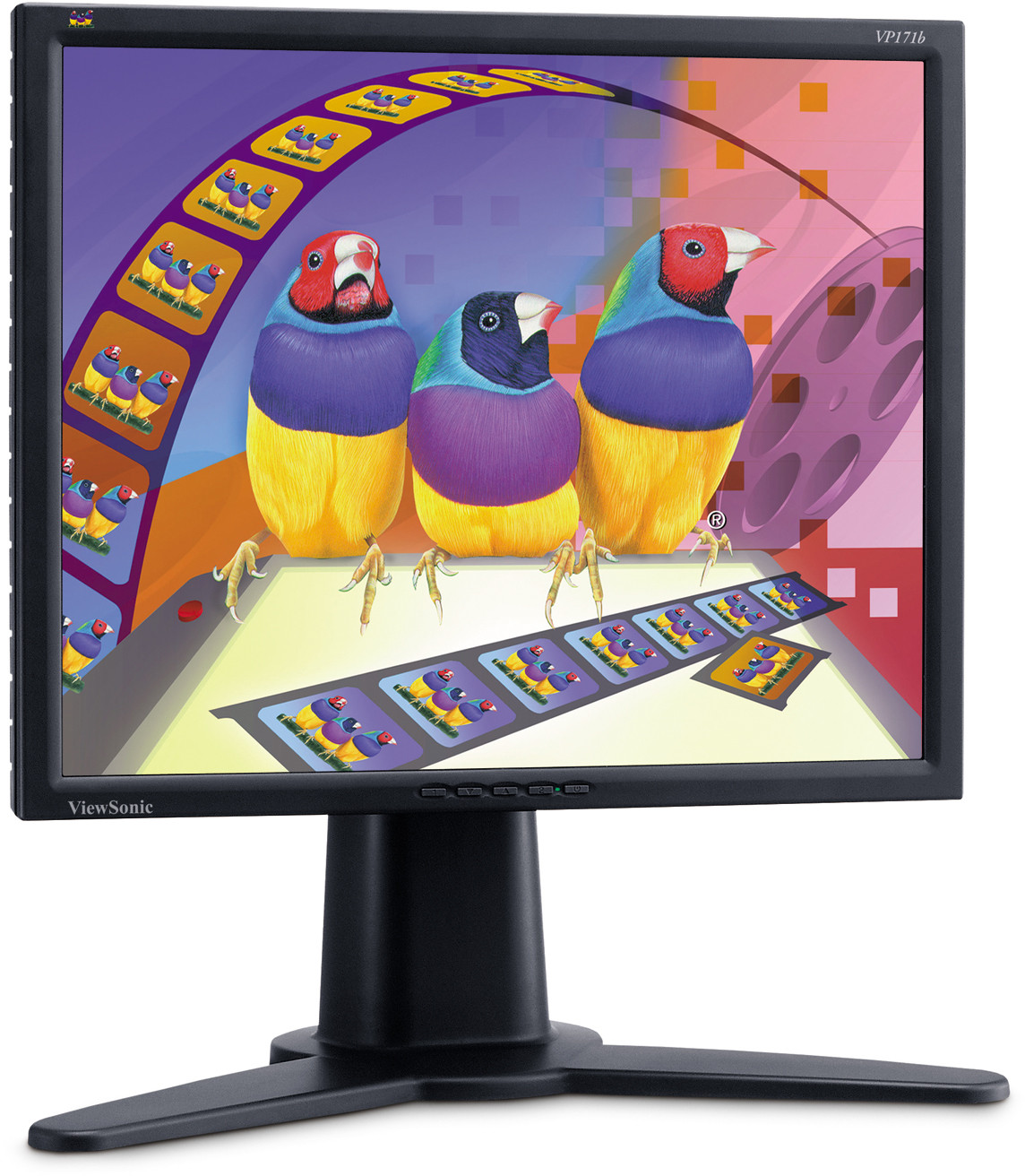

VP171b
Product Description
Whether you’re a graphics professional, corporate executive, or power gamer, the VP171b (black) and VP171s (metallic-on-black) LCD monitors will enhance your productivity and enjoyment. Their THINEDGE ULTRA-SLIM BEZEL DESIGN enables multiple-display configurations in immaculate digital high-definition clarity for powerful multi-tasking and mixed-media data analysis. XtremeView™ wide viewing angles and Metallic-on-black ClearMotiv™ 8ms broadcast-quality video response ensure intense visual performance. Class-leading features include comprehensive HEIGHT, PIVOT, TILT AND SWIVEL adjustments as well as multiple digital/analogue inputs.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 43cm / 17" colour TFT active matrix SXGA LCD
    Contrast Ratio: 500:1 (typ)
    Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
    160° horizontal, 160° vertical (at 5:1)
    Glass Surface: Anti-glare
    Display Area: 33,8cm (horizontal) X 26,9cm (vertical); 43,2cm diagonal
    Optimum Resolution: 1280 x 1024
    Response Time: 8ms (typ)
    Colour Support: 16.2M colours (6-bit+2-bit FRC)
    Brightness: 300 cd/m2 (typ)
  • COMPATIBILITY
    Mac®: Power MacTM G3/G4 up to 1280 x 1024
    PC: Compatible from VGA up to 1280 x 1024 non-interlaced
  • DIMENSIONS
    Physical (WxHxD): 392mm x 350mm x 238mm (w/ stand)
    371mm x 309mm x 65mm (w/o stand)
  • CONNECTOR
    Analogue: 15-pin mini D-sub
    Digital: Digital DVI-D
    Power: 3-pin plug
  • POWER
    Voltage: AC 100-240V (universal), 50-60Hz
    Consumption: 3W (typ); ≤ 2 watt in power save mode
  • CONTROLS
    Basic: Power, 1, down, up, 2
    OnView®: Auto image adjust, contrast, brightness, input select, colour adjust (9300K, 6500K, 5400K, 5000K, user colour), information (mode, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, touch tone), memory recall
  • OPERATING CONDITIONS
    Temperature: 0-40°C
    Humidity: 10-90% (non-condensing)
  • WEIGHT
    Net: 6.5 kg (w/ stand); 4.2 kg (w/o stand)
  • VIDEO INPUT
    Frequency: Fh: 30~82kHz, fv: 50~85Hz
    Sync: H/V separated (TTL), composite sync-on-green
    Analogue: Two RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
  • POWER MANAGEMENT
    Meets TCO and Energy Star® standards
