Key Features

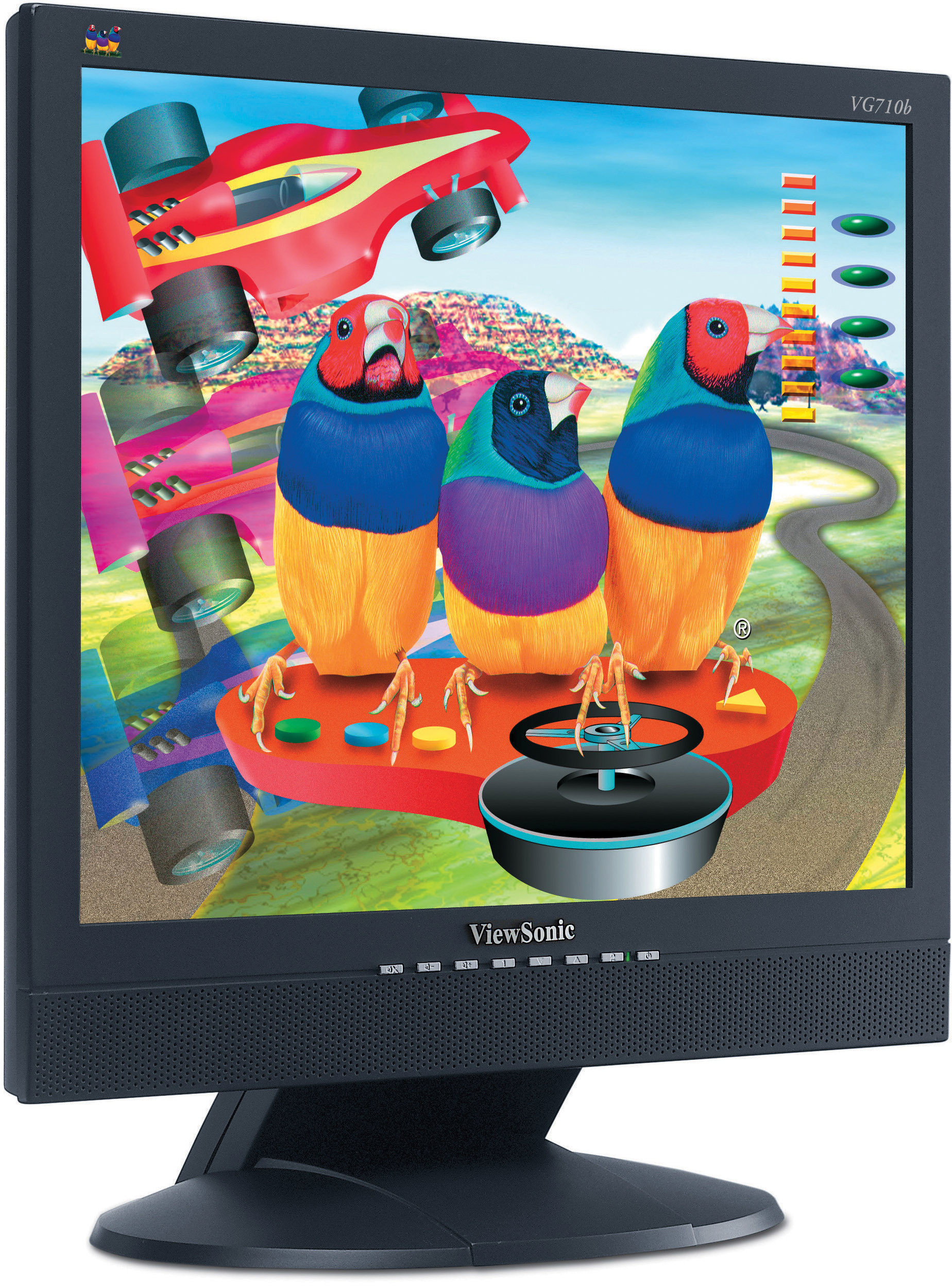

VG710b
Product Description
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 43mm / 17.0" colour TFT active matrix SXGA LCD
    Contrast Ratio: 450:1 (typ)
    Viewing Angles: 140° horizontal, 120° vertical
    Display Area: 33.8cm horizontal x 27cm vertical; 43.2cm diagonal
    Optimum Resolution: 1280x1024
    Response Time: 16ms (typ.)
    Panel Surface: Anti-glare
    Brightness: 250 cd/m² (typ)
  • COMPATIBILITY
    PC: VGA up to 1280x1024
    Mac®: Power Mac™ G3/G4 up to 1280x1024
  • DIMENSIONS
    Physical With Stand: 378mm x 405mm x 177mm (with stand)
    Physical Without Stand: 378mm x 405mm x 50mm (without stand)
  • AUDIO
    Speaker: 2x3-watts
    Amplifier: 3 watts @1kHz
  • CONNECTOR
    Power: 3-pin AC plug
    Audio: 3.5mm audio line-in
    Signal: 15-pin mini D-sub, DVI-D
  • POWER
    Voltage: AC 100–240V external adapter
    Consumption: < 36W (typ)
  • CONTROLS
    Basic: Power (soft), 1, down, up, 2, mute, volume up, volume down
    OSD: Auto image adjust, contrast, brightness input select, audio adjust
    (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500Kdefault,
    5400K, 5000K, user colour), information (mode, model
    number, serial number), manual image adjust (H. size, H. position,
    V. position, fine tune, sharpness), setup menu (language, resolution
    notice, OSD position, OSD timeout), memory recall
  • OPERATING CONDITIONS
    Temperature: 0–40°C
    Humidity: 10–90% (non-condensing)
  • WEIGHT
    Net: 5.3kg
  • VIDEO INPUT
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
    Frequency: Fh: 30~82kHz, Fv: 50~85Hz
  • POWER MANAGEMENT
    Meets TCO’03 (VG710s), TCO’99 (VG710b) and ENERGY standards.
