LCD Display

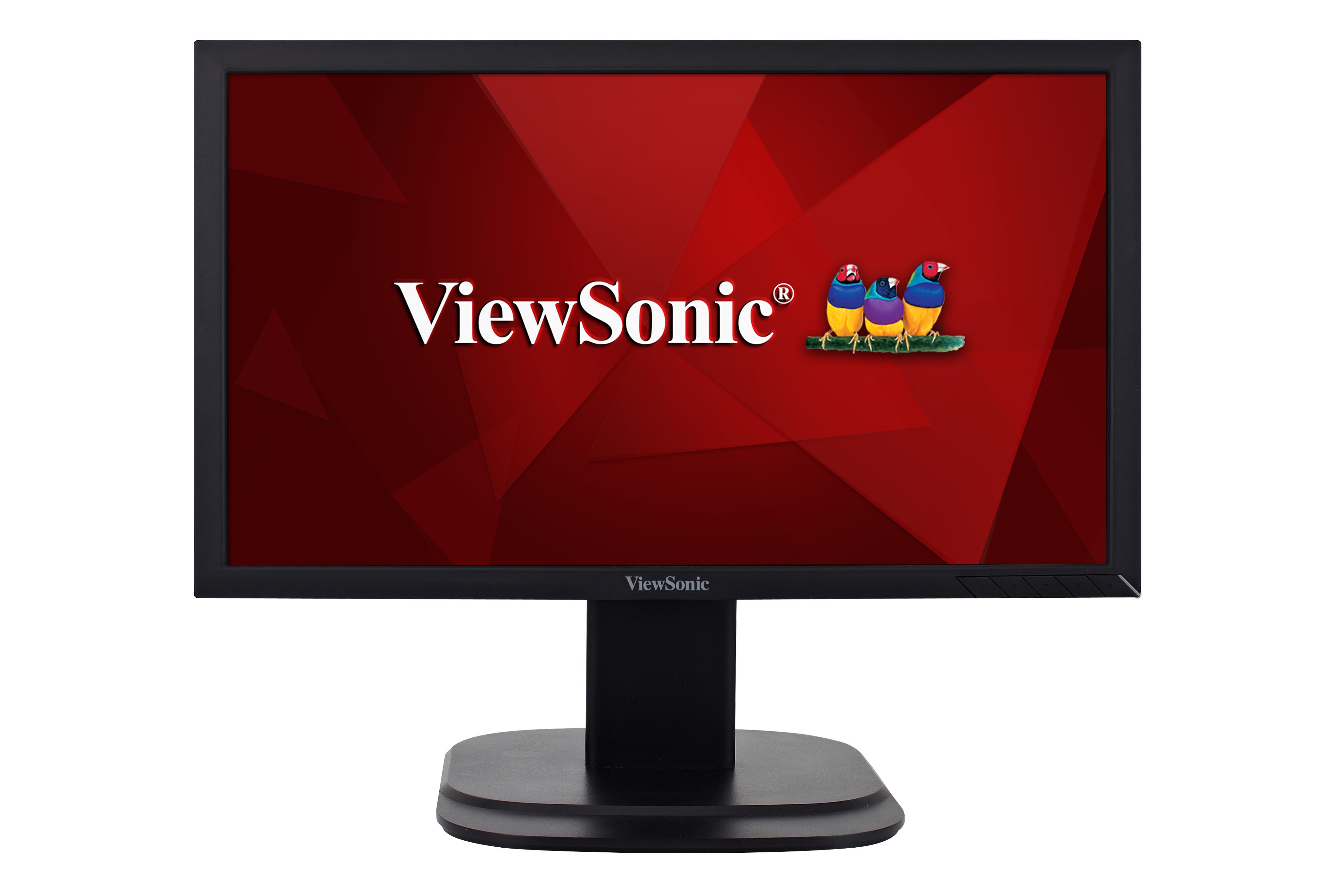

VG2039m-LED
Key Features
Product Description
The ViewSonic VG2039m-LED is a 50.8cm / 20" (49.5cm / 19.5" viewable) widescreen display ideal for demanding business professionals. With a native 1600x900 resolution, the VG2039m-LED delivers vibrant images and crisp text. Users will also find comfort in the ergonomic height adjust, swivel, and tilt features. Versatile input options, including DisplayPort, DVI-D, VGA and USB ports, provide flexible connectivity for multitasking. Equipped with a VESA-mountable design, the display can be mounted on a wall or any VESA-compliant monitor stand. The thin bezel design, coupled with hidden stereo speakers, make the VG2039m-LED a space-saving option for the desktop. In addition to saving space, the VG2039m-LED also saves up to 50%* in energy usage with its efficient LED backlight and ViewSonic proprietary ECO mode. With ViewSonic's industry-leading pixel performance policy, and a 3-year limited warranty, the VG2039m-LED provides users with peace of mind.
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 20 Viewable Area (in.): 19.5 Panel Type: TN Technology Resolution: 1600 x 900 Resolution Type: WSXGA (Wide Super XGA) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 20M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 16:9 Response Time (Typical Tr+Tf): 5ms Viewing Angles: 170º horizontal, 160º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ) Pixel Size: 0.271 mm (H) x 0.263 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1600x900 Mac® Resolution (max): 1600x900 PC Operating System: Windows 7/8 certified; macOS tested Mac® Resolution (min): 1600x900 -
CONNECTOR
VGA: 1 USB 2.0 Type A: 2 USB 2.0 Type B: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 DisplayPort: 1 DVI-D: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
AUDIO
Internal Speakers: 2Watts x2 -
POWER
Eco Mode (Conserve): 10W Eco Mode (optimized): 12W Consumption (typical): 15W Consumption (max): 18W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 24 ~ 82KHz Frequency Vertical: 50 ~ 75Hz -
VIDEO INPUT
Digital Sync: TMDS - DVI-D, PCI-E - DisplayPort (v1.2) Analog Sync: Separate/Composite/SOG - RGB Analog -
ERGONOMICS
Height Adjust (mm): 80 Swivel: 360º Tilt (Forward/Back): -5º / 20º -
WEIGHT (IMPERIAL)
Net (lbs): 8.4 Net Without Stand (lbs): 5.6 Gross (lbs): 10 -
WEIGHT (METRIC)
Net (kg): 3.8 Net Without Stand (kg): 2.6 Gross (kg): 4.5 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 20.5 x 17.5 x 5.1 Physical (in.): 18.5 x 15.17~18.32 x 9.9 Physical Without Stand (in.): 18.5 x 10.9 x 2.5 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 520 x 445 x 130 Physical (mm): 470 x 385.34~465.34 x 250 Physical Without Stand (mm): 470 x 278 x 63 -
GENERAL
PACKAGE CONTENTS: VG2039M-LED x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT
