LCD Display

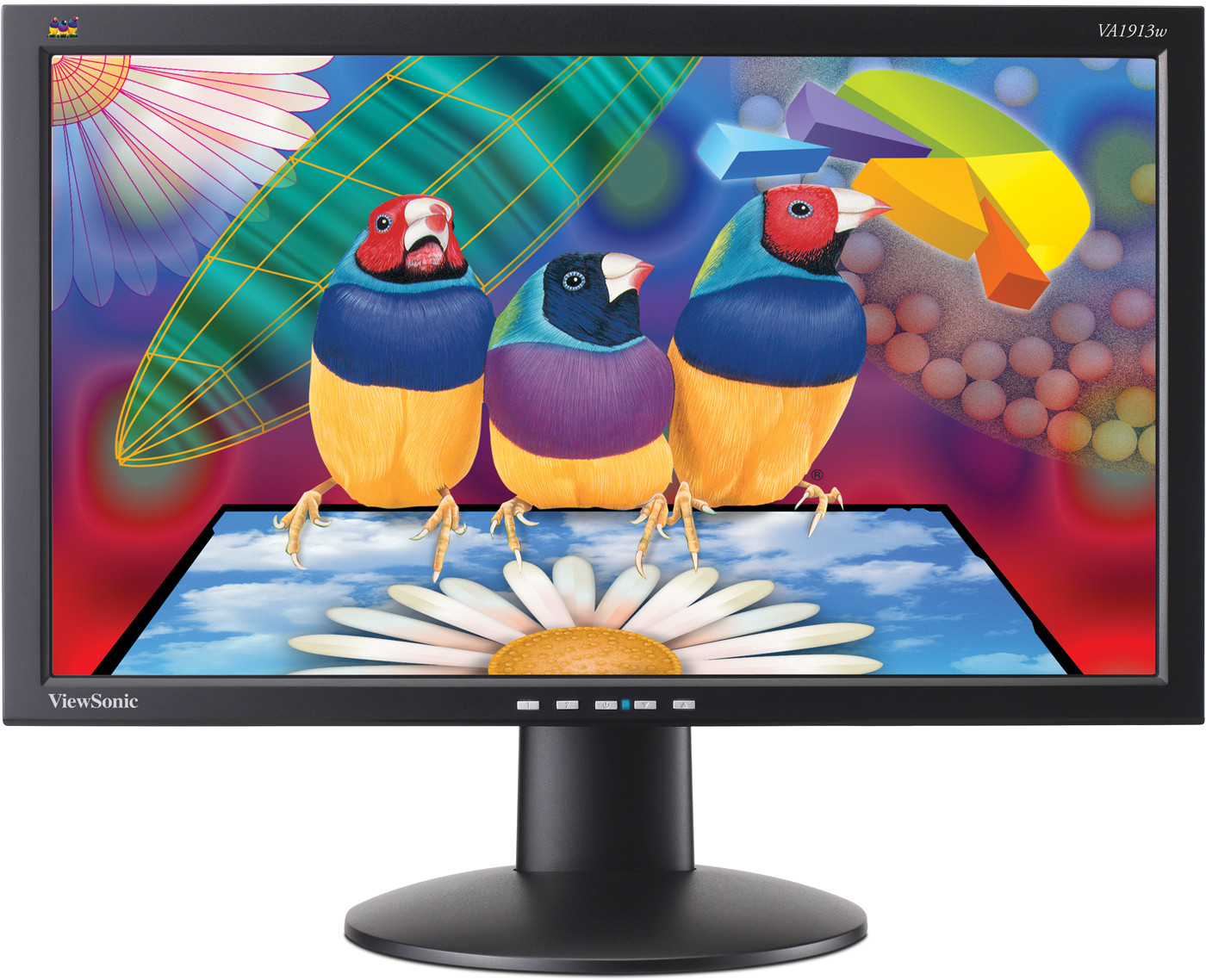

VA1913w
Key Features
Product Description
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Contrast Ratio: 1000:1 (Typ.) Viewing Angles: 170° (H), 160° (V) (CR 10:1) Brightness: 300 cd/m² (Typ.) Display Area: 409.8mm (H) × 230.4mm(V) Optimum Resolution: 1366×768 Response Time: 5ms Light Source: 50,000 hrs (Typ.) Panel Surface: Anti-Glare, Hard coating (3H) Pixel Pitch: 0.3mm (H)×0.3mm (V) Size: 46.99 cm (18.5") wide Color TFT Active Matrix LCD 16:9 aspect ratio Color Support: 16.7 M ( 6-bits + Hi FRC ) Panel Dynamic Contrast Ratio: 10000:1 -
COMPATIBILITY
PC: VGA up to 1366×768 Non Interlaced Mac®: Power Mac, up to 1366×768 -
DIMENSIONS
Physical With Stand: 447 × 350 × 199 (mm), 17.6 × 13.8 × 7.8 (in) Physical Without Stand: 447 × 268 × 63(mm), 17.6 × 10.6 × 2.46 (in) -
INPUT
Sync: Separate Sync Analogue: RGB Analog ( 75 ohms, 0.7 / 1.0 Vp-p) Frequency: Fh: 24-82kHz, Fv: 50-85Hz -
CONNECTOR
Analogue: 15 pin mini D-sub×1 Power: Built-in power Adapter, 3-Pin plug -
POWER
Voltage: AC 100-240V (Universal); 50/60Hz(Switch) Consumption: 23W (Max.) Eco Mode: optimize 18W / conserve 15W Save Mode (W): <=1W -
CONTROLS
Basic: [1], [2], Power, Down[▼], Up[▲] OnView®: Auto image adjust, contrast, brightness, ViewMatch® color
adjust (sRGB, 9300K, 6500K – default, 5400K, RGB), information
(resolution, H-freq, V-freq, pixel clock, model number, serial
number, web site), manual image adjust (H. size, H. position,
V. position, fine tune, sharpness), setup menu (language,
resolution notice, OSD position, OSD timeout, OSD background),
memory recall -
OPERATING CONDITIONS
Temperature: 5°C - 35°C (41°F - 95°F) Humidity: 20 - 80% (Non condensed) -
WEIGHT
Net: 3.4 kg (7.5lbs) -
VESA MOUNT COMPLIANT
VESA 100mm x 100mm -
ERGONOMICS
Tilt: 20° ~ -5°
