Key Features
  • WXGA resolution
  • 4-in-1 power button
  • Vertical lens shift with centered lens
  • PortAll® compartment for wireless dongle
  • LAN control support-Crestron, AMX and PJ Link

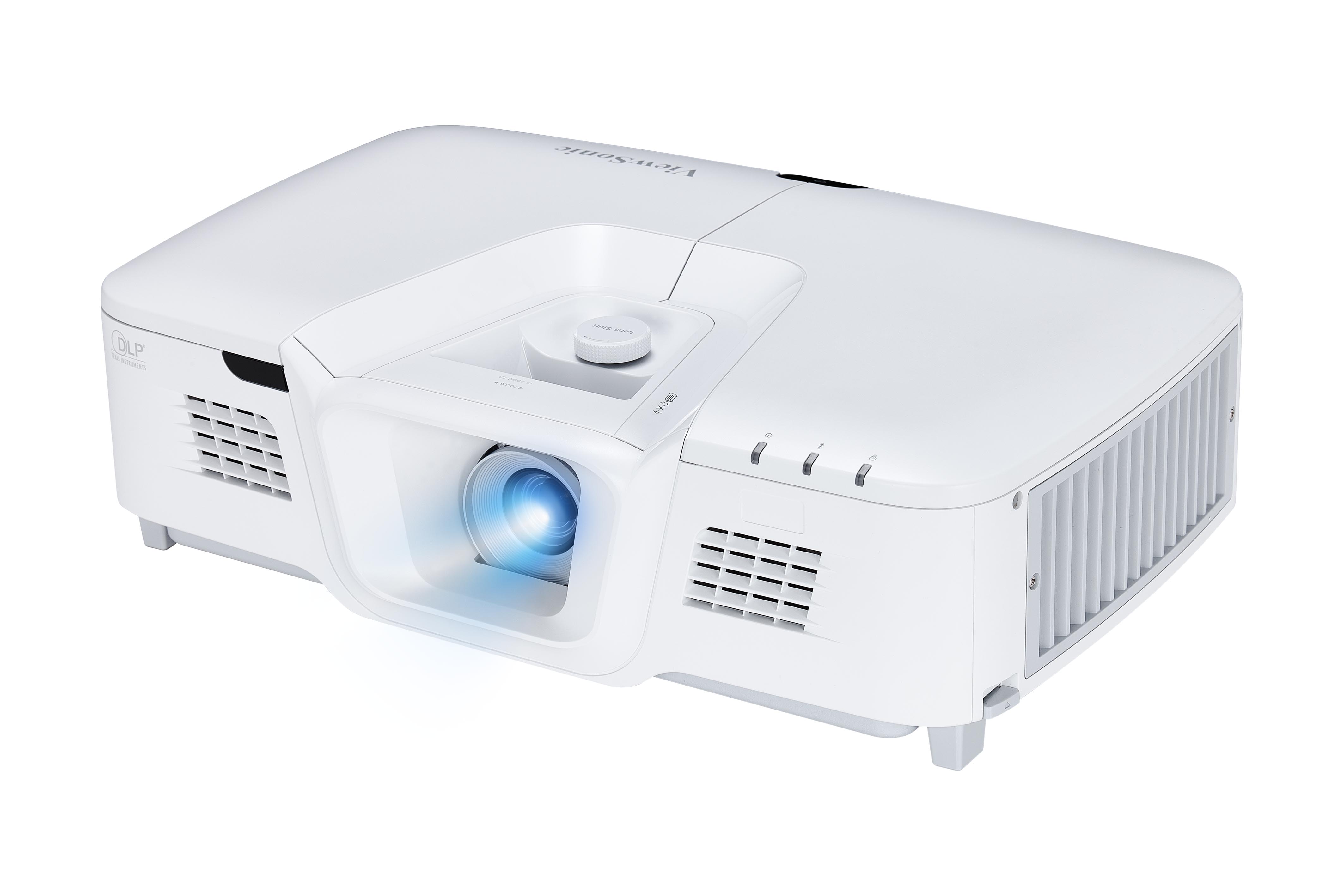

PG800W
Product Description
Delivering 5000 lumens of brightness in WXGA resolution, the ViewSonic PG800W is the perfect installation projector for large, brightly lit environments such as conference rooms, classrooms, or any other large public venue. Utilizing an intuitive design, PG800W is highly flexibility and easy to install. It comes equipped with centered lens and vertical lens shift, which offer extra flexibility that makes the projectors more adaptable to difficult installation locations. The concealed PortAll® compartment can accommodate optional HDBT or wireless dongles for versatile content projection. PG800W is certified by Creston, AMX, PJ Link and Extron, meaning that it can be controlled remotely via LAN connection for efficient projector management. Other notable features include SuperColor™ technology for true-to-life image color, SonicExpert, and SonicMode for incredibly clear sound which allows PG800W to deliver a professional audio-visual experience.
  1. Front IR receiver
  2. Lens shift adjustment
  3. 1.3X optical zoom
  4. 10W x 2 cube
  5. Air filter
  6. keypad
  7. LAN
  8. HDMI
  9. 4-in-1 power button
  10. 3D VESA
  11. Monitor out
  12. Computer in
  13. S-Video
  14. Audio in/out
  15. IR out
  16. Kensington lock
  17. Mini USB for service
  18. RS232
  19. Video
  20. Audio in L/R(RCA)
  21. 12V out
  22. Security bar
  23. Cable management screw hole
  24. USB type A (5V/2A)
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1280 x 800
    DC type: DC3
    Brightness: 5000 ANSI lumens
    Contrast Ratio with SuperEco mode: 5000:1 (with Eco mode)
    Display Color: 1.07 Billion Colors‎
    Light Source: Lamp
    Light source life (Nor/SuperEco): 2000/2500 (Nor/Eco)
    Lamp Watt: 370W
    Lens: F=2.59-2.87, f=16.88-21.88mm
    Projection Offset: 110%+/-5%
    Throw Ratio: 1.21-1.57
    Image size: 30" - 300"
    Throw Distance: 0.78m-10.14m(100" @2.61m)
    Keystone: ±40° (Vertical)
    Lens Shift V. Range: Yes (+7.5%, -0%)
    Optical Zoom: 1.3x
    Audible Noise (Eco): 33dB
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (D-SUB 15 pin): 2
    Composite: 1
    S-video: 1
    Audio-in (3.5mm): 2
    Audio-in (RCA R/L): 1
    Microphone in: 1 (shared with Audio-in 2)
    HDMI: 2 (Back & PortALL)
    3D VESA (Sync): 1
  • OUTPUT
    Monitor out (D-SUB 15 pin): 1
    Audio out (3.5mm): 1
    Speaker: 10W Cube x 2
    USB type A (Power): 1 (5V2A)
    USB type Micro B (Power): 1 (5V2A Front)
    12V Trigger: 1 (3.5mm)
    IR out: 1
  • CONTROL
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
    Wired Remote Control - Out: 1 (Share to top IR)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Power Consumption: Normal: 574W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 6.2kg
    Dimensions (WxDxH) w/adjustment foot: 470x316x140mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
