Key Features
  • 22,000:1 contrast ratio
  • Integrated USB reader
  • Screen mirroring for smart devices via USB
  • LAN/WiFi display with vPresenter Pro
  • Horizontal and Vertical keystone

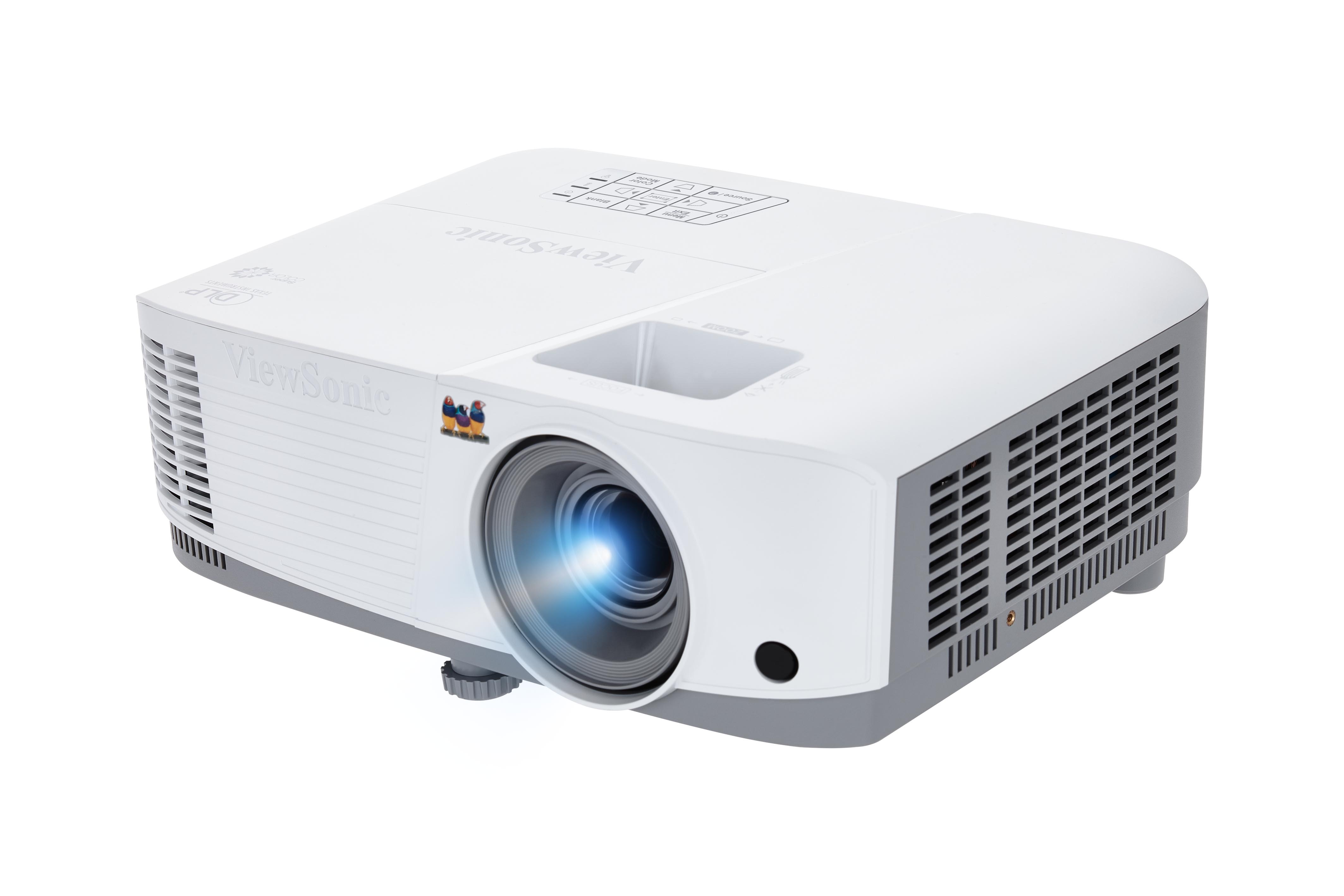

PG603X
Product Description
The ViewSonic PG603X projector features XGA resolution and a brightness output of 3800 ANSI Lumens for projecting clear, detailed images in brightly lit environments. PG603X has wireless sharing capabilities and allows you to share content from laptops and other smart devices from anywhere in the room via the projector’s LAN/Wi-Fi display with vPresenter Pro app. Smart device content can also be mirrored directly to the PG603W through USB connection for a simplified way to share content. The projector’s integrated USB reader allows you to plug in thumb drives through the USB port to display image files such as JPG and BMP, as well as Word, PowerPoint, and Excel files without the need for a PC. In addition, the energy-saving SuperEco mode reduces power consumption and extends lamp life to a lengthy 15,000 hours for dependable long-term projection.
  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Zoom/Focus
  5. Projection Lens
  6. Front IR
  7. Audio in/out
  8. HDMI
  9. Computer in
  10. Monitor out
  11. Mini USB for service
  12. Video
  13. LAN
  14. USB Reader / USB WIFI
  15. RS232
  16. Kensington Lock
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1024x768
    Brightness: 3800 ANSI Lumens
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 15000
    Lamp Watt: 190W
    Lens: F=2.56-2.68, f=22-24.1mm
    Projection Offset: 120%+/-5%
    Throw Ratio: 1.96-2.15
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1.19m-13.11m
    (100"@3.98m)
    Keystone: H:+/-20° , V:+/-30°
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 54ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    HDMI: 1
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
    USB Type A: 2
    (USB2.0 Reader x1,
    Wifi dongle x 1)
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 2
    (USB2.0 - 5V/500mA,
    share with USB A Input)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type Mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 260W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.3kg
    Gross Weight: 3.3Kg
    Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm
    Packing Dimensions: 365x300x188mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    (w/ laser pointer)
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-108
    Air Filter: RSPL
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
