Key Features
  • 6,000 ANSI Lumens to deliver bright images up to 300" in size
  • 2nd generation Laser Phosphor technology with a 20,000-hour lifespan
  • Wide H/V lens shift and 1.6x optical zoom for flexible installation
  • Creativity supported by 360° projection & portrait mode
  • Dual HDMI 2.0b supporting 4K HDR/HLG content
  • Cost-effective compact size and built-in HDBaseT

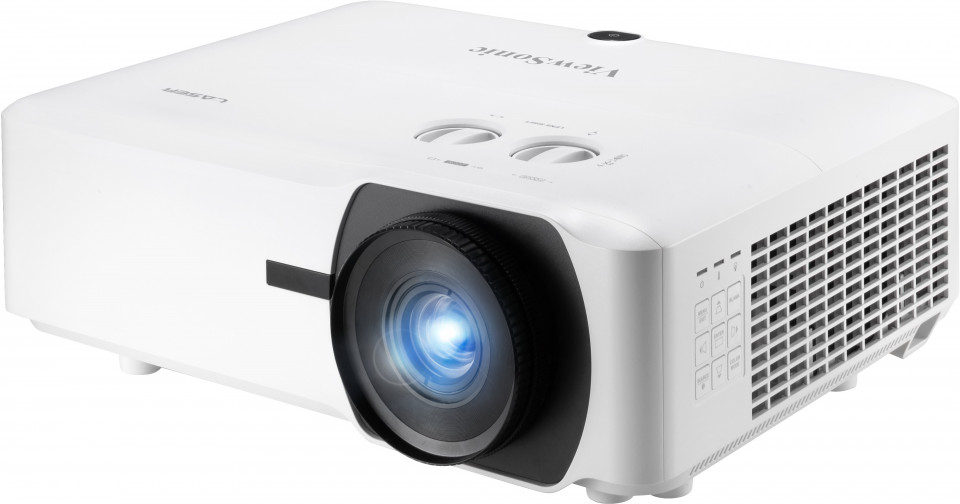

LS920WU
Product Description
The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Adopting 2nd generation Laser Phosphor technology, the LS920WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 300". Wide lens shift, 1.6x optical zoom, 360° projection, and portrait mode combine for incredible flexibility that gives life to captivating creative installations, especially ideal for auditoriums, board rooms, commercial displays, restaurants, and sports bars. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. Add to that the compact size and the built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.
  1. Power Key & IR
  2. Front IR
  3. Lens
  4. Lens Shift Control Knob
  5. Zoom/Focus Ring
  6. Adjustment Foot
  7. LED Indicator
  8. Keypad
  9. Composite
  10. S-Video
  11. USB Type A(5V/1.5A)
  12. HDMI X 2
  13. HDBaseT
  14. Computer In
  15. Monitor Out
  16. LAN
  17. Audio In & Out
  18. 3D VESA
  19. 12V OUT
  20. RS-232
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1920x1200
    Brightness: 6000 (ANSI Lumens)
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor system
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lamp Watt: Nichia 74W x2
    Lens: F=1.81-2.1, f=14.3-22.9mm
    Projection Offset: 0%
    Throw Ratio: 1.36-2.18
    Optical Zoom: 1.6X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.88-14.09m
    (100"@2.93m)
    Keystone: H:+/-40° , V:+/-40°
    Lens Shift V. Range: +50%, -50%
    Lens Shift H. Range: +23%, -23%
    Audible Noise (Normal): 36dB
    Audible Noise (Eco): 29dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    S-Video: 1
    HDMI: 2
    (HDMI 2.0, HDCP 1.4/2.2)
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    3D VESA (Sync): 1
    HDBaseT: 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W x2
    USB Type A (Power): 1 (5V/ 1.5A)
    12V Trigger (3.5mm): 1
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 450W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 6.5
    Gross Weight: 9
    Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm
    Packing Dimensions: 515x490x276mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    (w/ laser pointer)
    QSG: Yes
    Warranty: *Warranty offered may differ from market to market
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
