ViewBoard
IFP7560-predatasheet
Key Features
Product Description

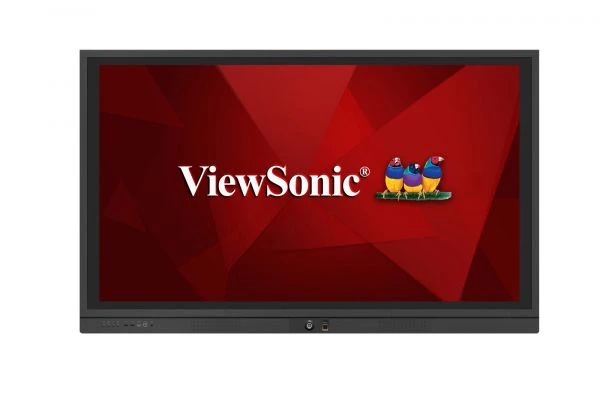

The ViewBoard® IFP7560 is a 75” 4K (3840 x 2160) interactive flat panel display with an open platform design and diverse collaborative capabilities. ViewBoard® IFP7560 is fit for integration into Google-based & Chrome environments, offers seamless Windows accessories & office365 compatibility, and comes equipped with Mac multi-touch gesture mirroring (driver needed). InGlass™ technology delivers a more accurate and sleek touchscreen experience with lag-free writing and drawing in two colors with different thicknesses. Pairing ViewBoard® IFP7560’s 20-point touch display with pre-installed tools, such as vBoard for annotation, ViewBoard® Cast for content sharing, and Zoom conference software, allows multiple users to remotely write, share, and interact simultaneously. Connecting to more powerful computing platforms is possible via the board’s dual PC slots for the optional Intel United® certified OPS* (Open Pluggable Specification) and SDM (Smart Display Module) which allow users to switch their system to Windows OS. Connecting to the board is made easy through SmartPort™ shared front USB ports for internal and external PCs. Finger print recognition bolsters security and enables easy login to Windows or myViewBoard™ for your digital whiteboard in the cloud. Versatile connectivity to a multitude of devices combined with VESA-compatibility and a trolley design allows for flexible installation anywhere, no matter the occasion.
*ViewSonic OPS VPC12-WPO
*ViewSonic OPS VPC12-WPO
- Internal Speakers
- Menu Controls
- USB 2.0 x2
- HDMI 1.4 In
- MIC
- USB B Touch Port
- VESA® Compatible Wall Mount 800 x 400 mm
- Audio Out 3.5 mm
- SPDIF
- RS232 In
- HDMI Out
- USB 2.0
- USB 3.0 x2
- USB B Touch Port
- HDMI 2.0 In x2
- Displayport
- Audio In
- VGA In
- Ethernet Lan (RJ45)
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Size: 75" Type/ Tech: TFT LCD Module with DLED Backlight Display Area (mm): 1650.24(H)X928.26(V) mm (74.5” diagonal) Aspect Ratio: 16:09 Resolution: 3840 x 2160 Colors: 1.07B (8Bit+FRC) Brightness: 350 nits (typ.) Contrast Ratio: 4000:1 (typ.) Response Time: 8 ms Viewing Angles: H = 178, V = 178 (typ.) Backlight: DLED Backlight Life: 30,000 Hours Min. Hardness: 7H -
TOUCH
Type/ Tech: Flatfrog InGlass IR Touch Resolution: 26394 x 14847 Touch Point: 20 points touch, 10 points writing Response Time: 6.7ms System: Win 7pro/Ultimate/8/8.1/10, Chrome OS Linux kernel 3.15 or later, Android 4.4 with linux kernel 3.15 or later, Linux OS kernel 3.15 or later, Mac OS 10.10 or later -
INPUT
HDMI: 1 x HDMI 1.4a, 4K@30Hz, support CEC on/off, HDCP 1.4
2 x HDMI 2.0, 4K@60Hz, support CEC on/off, HDCP 2.2RGB / VGA: x 1 DisplayPort: x 1 (4K@30Hz) Audio: x 1 PC audio (3.5mm) CVBS (AV): x 1 RS232: x 1 PC Slot: x 2 (Intel OPS, Intel SDM) -
OUTPUT
HDMI: x 1 HDMI 2.0, 4K@60Hz, no CEC support Audio (Earphone out): x 1 SPDIF: x 1 RS232: x 1 -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC) 3.0 Type A: x 2 2.0 Type B (For touch): x 2 (front x 1 for HDMI 1.4; back side x 1 for HDMI2.0, DP, VGA) -
SPEAKERS
10W x 2 -
BUILT-IN PC
Processor: ARM Cortex A53 Quad Core 1.4G Hz CPU Graphic: ARM Mali-450 MP4 Quad Core Memory: 2GB DDR3 Storage: 16GB eMMC Networking: 10/100M auto-identification and DHCP -
COMPATIBILITY
VGA: Refer to timing table HDMI: 3840x2160 DP: 3840x2160 -
POWER
Voltage: 100V-240V,50/60Hz (AC) Consumption: 297W (Without OPS & SDM)
357W (With OPS but without SDM) -
ERGONOMICS
Wall Mount (VESA® ): 800 x 400mm; Screw: M8 x 25mm -
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C) Humidity: 20% ~ 80% non-condensing -
WEIGHT
Net w/o Stand (kg / lb): 62kg / 136.69lb Gross (kg / lb): 80.3kg / 177.03lb -
WHAT'S IN THE BOX?
1. HDMI cable(1.5 meters)
2. Power cable(3 meters) x 4 (A+E+M+U)
3. Remote control
4. USB cable(1.8 meters)
5. Touch pen x 2
6. Quick Start Guide
7. Plate
8. Wall mount Screw x 4 (on backcover)
