Key Features
  • InGlass™ Technology for increased accuracy
  • FIPS201 certified fingerprint reader
  • 20-Point Multi-Touch
  • Dual Expansion PC Slots
  • Built-in ARM Quad-core CPU with 16GB Storage

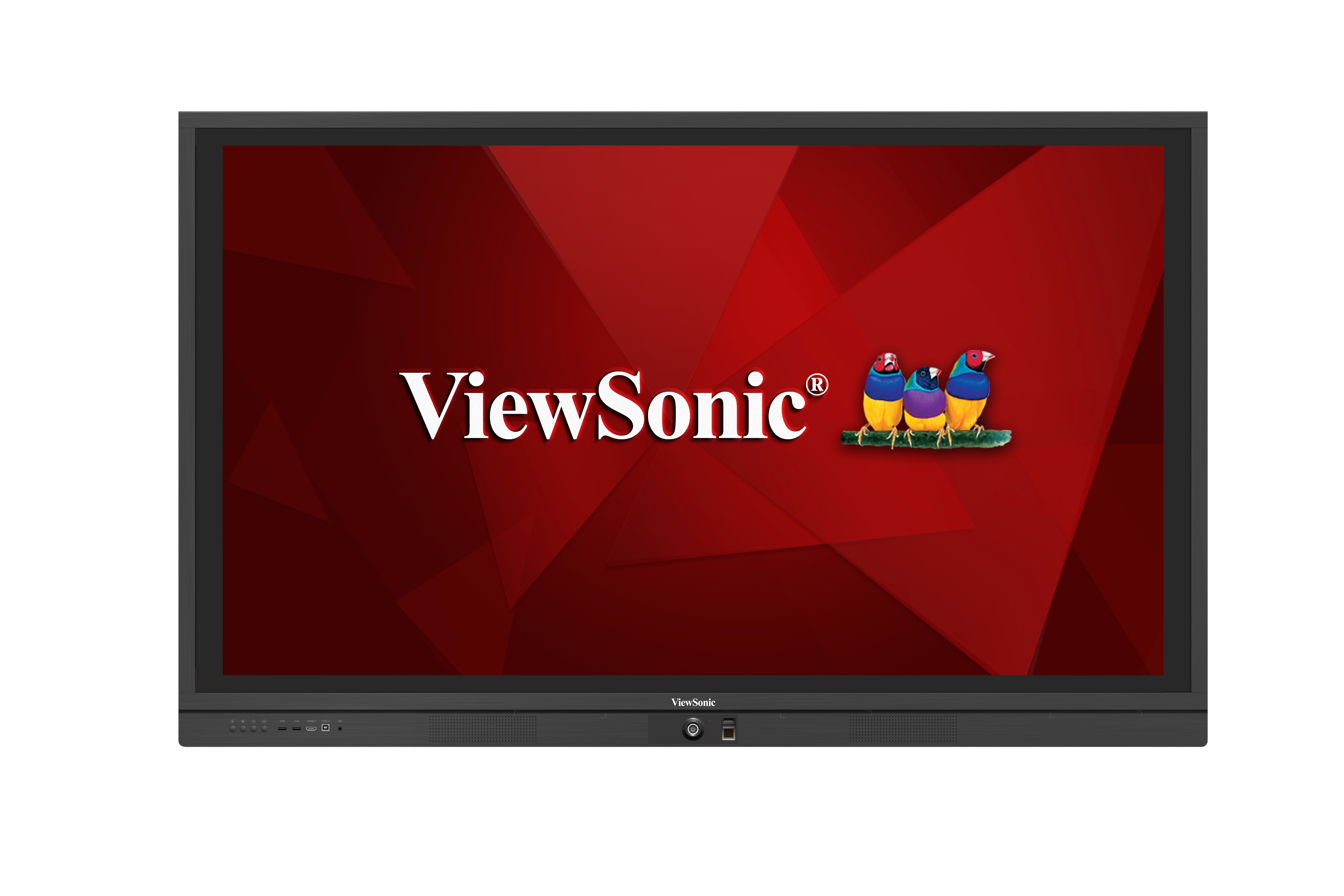

IFP6560
Product Description
The ViewBoard® IFP6560 is an 65” 4K (3840 x 2160) digital whiteboard feature InGlass™ technology delivers a more accurate and sleek touchscreen experience with lag-free writing and drawing in two colors with different thicknesses. Pairing ViewBoard® IFP6560’s 20-point touch display with pre-installed tools, such as vBoard for annotation, ViewBoard® Cast for content sharing, and Zoom conference software, allows multiple users to remotely write, share, and interact simultaneously. The built in Finger print recognition bolsters security and enables easy login to Windows or myViewBoard™ for your digital whiteboad in the cloud. The optional Intel certified OPS (Open Pluggable Specification) which allows users to switch their system to Windows OS. ViewBoard® IFP6560 is fit for integration into Google-based environments, offers seamless Windows accessories & office365 compatibility, comes equipped with Mac multi-touch gesture mirroring, and supports Linux PC touch back remote control.
  1. INTERNAL SPEAKERS
  2. VESA® Wall Mount 600 x 400 mm
  3. MENU CONTROLS
  4. USB 2.0 x 2
  5. HDMI 1.4 IN
  6. USB B TOUCH PORT
  7. MIC
  8. POWER ON / OFF
  9. FIPS201 CERTIFIED FINGERPRINT READER
  10. DISPLAY PORT
  11. HDMI 2.0 In X 2
  12. USB TOUCH PORT
  13. USB 3.0 X 2
  14. USB 2.0
  15. HDMI OUT
  16. AUDIO IN
  17. VGA IN
  18. LAN
  19. RS232 IN
  20. SPDIF
  21. EARPHONE
  22. Intel Unite® Certivied OPS SLot
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 65"
    Type/Tech: TFT LCD Module with DLED Backlight
    Display Area (mm): 1428.48(H) x 803.52(V) mm (64.5” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    Colors: 16.7M (8bit)
    Brightness: 350 nits (typ.)
    Contrast Ratio: 4000:1 Typ.
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours (Min)
    Surface Treatment: AG G2
    Bezel: Slim
    Orientation: Landscape
  • TOUCH
    Type/ Tech: Flatfrog InGlass technology P-series
    Touch Resolution: 22855X12856
    Touch Point: 20 points touch
  • INPUT
    HDMI: 1.4a x1 (3840x2160@30Hz); 2.0 x2 (3840x2160@60Hz)
    RGB / VGA: x1
    DisplayPort: x1(3840x2160@30Hz)
    Audio: x1 (PC Audio in)
    RS232: x1
    OPS: x1 PC Slot (Intel OPS Standard)
  • OUTPUT
    RGB / VGA: Refer to timing table
    HDMI: x1( 1080p, 4K@60hz)
    Audio: x1 (Earphone out)
    SPDIF: x1
    RS232: x1
  • LAN
    RJ45: x1
  • USB
    Type A: USB 2.0 x3 (including 2 USB port in front); USB 3.0 x2
    Type B: x2, for touch
  • SPEAKERS
    10 Wx2
  • CAMERA PLATE ON TOP FOR SREW-IN WEBCAM INSTALLATION
    Yes ( Support external Logitech Meet-up )
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    HDMI: 3840x2160
  • EMBEDDED OS
    Android 5.0.1
  • USB SUPPORTED FILE FORMAT
    Picture -
    MBP, JPG, JEPG

    Video -
    Codec: MPEG1/2, MPEG4, H.263, H.264, MVC, AVS, AVS+, WMV3, VCI, Motion JPEG, VP8, VP9
    Container: MPEG PROGRAM STREAM, MPEG TRANSPORT STREAM, MP4, 3GPP, AVI, MKV, ASF, WMV, WEBM

    Audio -
    Codec: MPEG 1/2, AAC
  • BUNDLE SOFTWARE
    Basic Annotation Software: vBoard
    Pro Annotation Software: myviewboard for Windows (Pre-install in VPC12-WPO-3)
    Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
    Screen Split: ViewSplit (Windows based): Yes (download from ViewSonic website)
    Zoom: Yes
    ViewSonic Launcher: Embedded
  • SPECIAL FEATURES
    All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front USB SmartPort™ to all channels
    One Click to Cloud Drive: Integrate into side tool bar
    Simple LAN sharing between IFP and slot-in device: Yes
  • POWER
    Voltage: 100V-240V,50/60Hz (AC)
    Consumption: Operation:
    210W (typ) - without OPS
    270W (typ.) -with OPS
    ≤ 0.5 W ("Off")
    *Max power consumption from OPS doesn’t over 60W.
  • ERGONOMICS
    Wall Mount (VESA® ): 600 x 400
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% RH non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 61.63x3.72 x 38.07 in/ 1565.5x967.1x94.5 mm
    Packaging (inch / mm): 67.52x11.02x40.31 in/1715x280x1100 mm
  • WEIGHT
    Net (lb / kg): 106.9 lb / 48.5 Kg
    Gross (lb / kg): 134.5 lb / 61 Kg
  • PACKAGE CONTENTS
    1. HDMI cable(1.5 meters)
    2. Power cable(3 meters) x 4 (A+E+M+U)
    3. Remote control with AA battery
    4. USB cable(1.8 meters)
    5. Touch pen x 2
    6. Quick Start Guide & Compliance statement
    7. Webcam Plate
    8. Wall mount Screw x 4
  • COMPATIBLE SLOT-IN PC
    VPC12-WPO-2 ( Intel i5-6300U with vPro+Win10 Pro 64 bit )
  • UPC CODE
    76690796351 9
