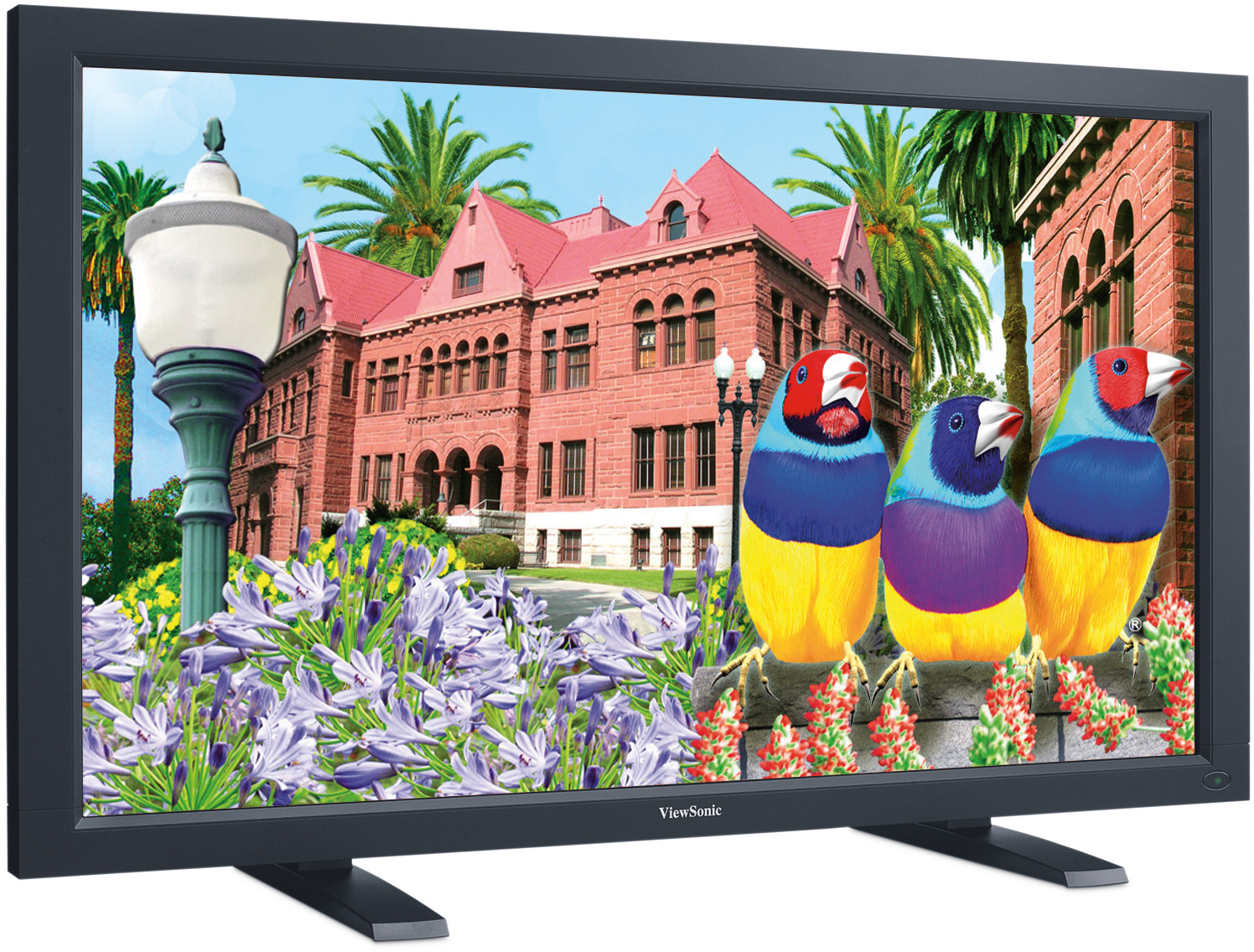

ViewSonic CD4620 117 cm / 46" 1080P COMMERCIAL HD LCD DISPLAY

COLORS

Black

LCD

Type:	117 cm / 46" wide colour TFT active matrix, 1920 x 1080
Contrast Ratio:	1500:1 (typ.)
Viewing Angles:	176° horizontal, 176° vertical (at 10:1)
Brightness:	450cd/m² (typ.)
Glass Surface:	Anti-glare, hard coating (2H)
Display Area:	101.8 cm horizontal x 57.3cm vertical, 116.8cm diagonal
Response Time:	6ms (grey-to-grey)
Aspect Ratio:	16:9
Native Resolution:	1920 x 1080
Colour Support:	16.7M colours supported (8-bit)

DIMENSIONS

Physical (WxHxD): 1122 x 663 x 138 mm (without stand)
PACKAGE CONTENTS

LCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
AUDIO

Speakers: 2 x 10 watt with SRS TruSurround¹
INPUT SIGNAL

TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p

Frequency: Fh: 31-91kHz,

Fv: 50-75Hz

Digital: HDMI (HDCP enabled; TMDS, 100 ohm)

Sync: H/V separate (TTL)

CONNECTOR

Audio Out:	1 x RCA (left/right) 2 x speaker connectors (for optional speakers)
Composite Video Input:	1 x RCA (CVBS)
S-Video Input:	1 x 4-pin mini DIN jack (Y/C)
Component Video Input:	1 x RCA set (YPbPr/YCbCr)
Audio Input:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Analogue-In:	1 x 15-pin mini D-Sub (detachable cable)
Analogue-Out:	1 x 15-pin mini D-Sub (detachable cable)
Composite Video Output:	1 x RCA (CVBS) 1 x BNC
Power:	3-pin plug
Control/Net-Out:	1 x D-sub RS-232
Control/Net-In:	1 x D-sub RS-232

POWER

Voltage: AC 100–240V (universal), 50/60Hz

Consumption: 285 watt (max.), <5 watt in power save mode

CONTROLS

Basic:

Power, menu, exit, source, channel +/-, volume +/-, main power switch

OSD:

Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature [10500K, 9300K, 7500K, 6500K, User-RGB], picture reset), Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset), Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset), Configuration Menu (auto setup, auto adjust, power save, language [English, French, German, Russian, Simplified Chinese, Spanish], screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset), Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], date/time, auto on/off scheduler [day, hour, minute, input], DDC/CI, advanced reset)

OPERATING CONDITIONS

Temperature: 0°C–40°C

Humidity: 10–85% (non-condensing)
WEIGHT

Net: 34.6kg (with optinal stand), 29.3kg (without stand)

Gross: 35.9kg
VIDEO INPUT

Analog/Digital: HDMI (x2), S-video, component, composite, RCA (x2)
VESA MOUNT COMPLIANT

VESA FDMI 400mm x 200mm, M6 screws

TV/Video comp.:	480i, 480p, 720p, 1080i, 1080p
Frequency:	Fh: 31-91kHz, Fv: 50-75Hz
Digital:	HDMI (HDCP enabled; TMDS, 100 ohm)
Sync:	H/V separate (TTL)

Voltage:	AC 100–240V (universal), 50/60Hz
Consumption:	285 watt (max.), <5 watt in power save mode

Net:	34.6kg (with optinal stand), 29.3kg (without stand)
Gross:	35.9kg

Temperature:	0°C–40°C
Humidity:	10–85% (non-condensing)
