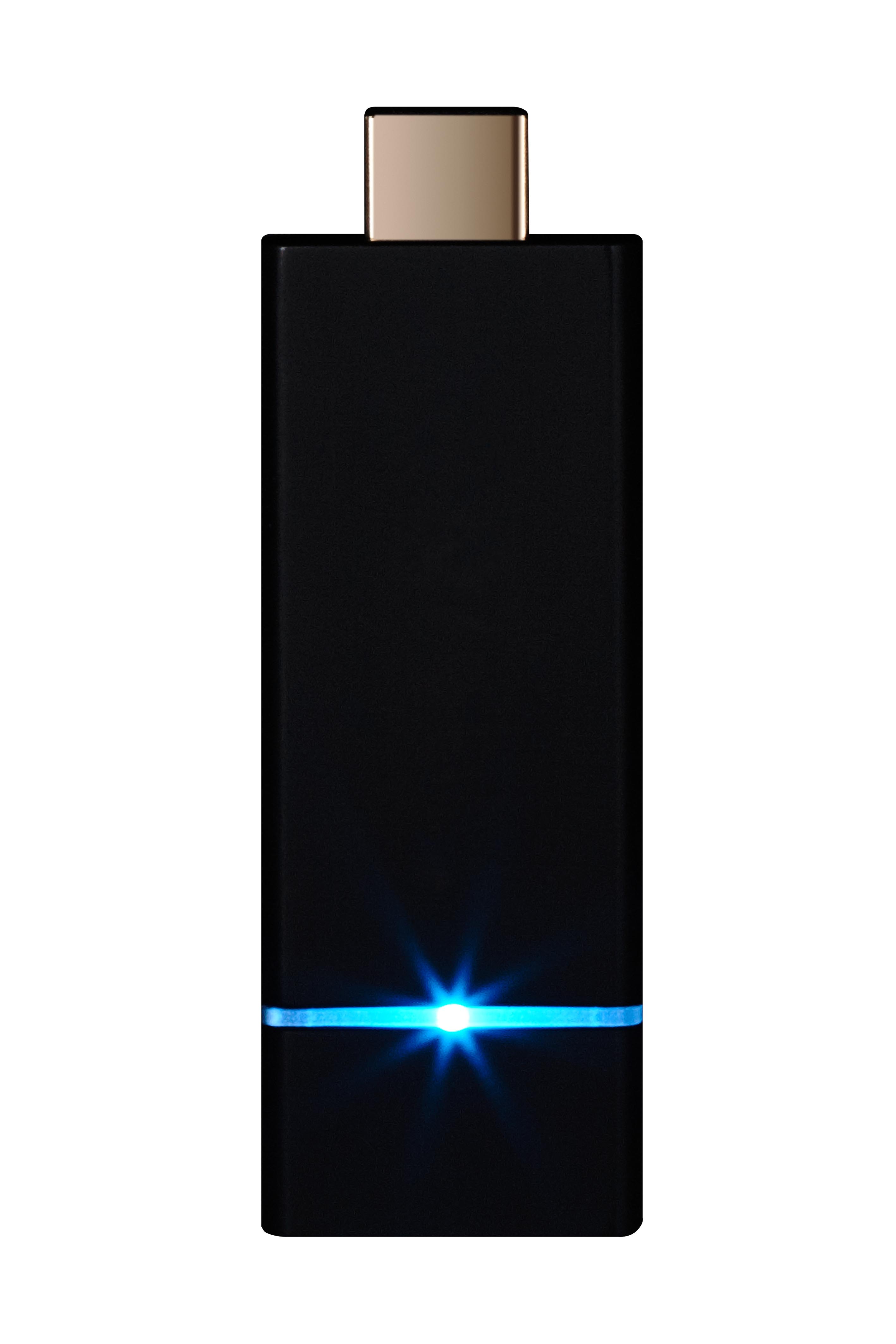

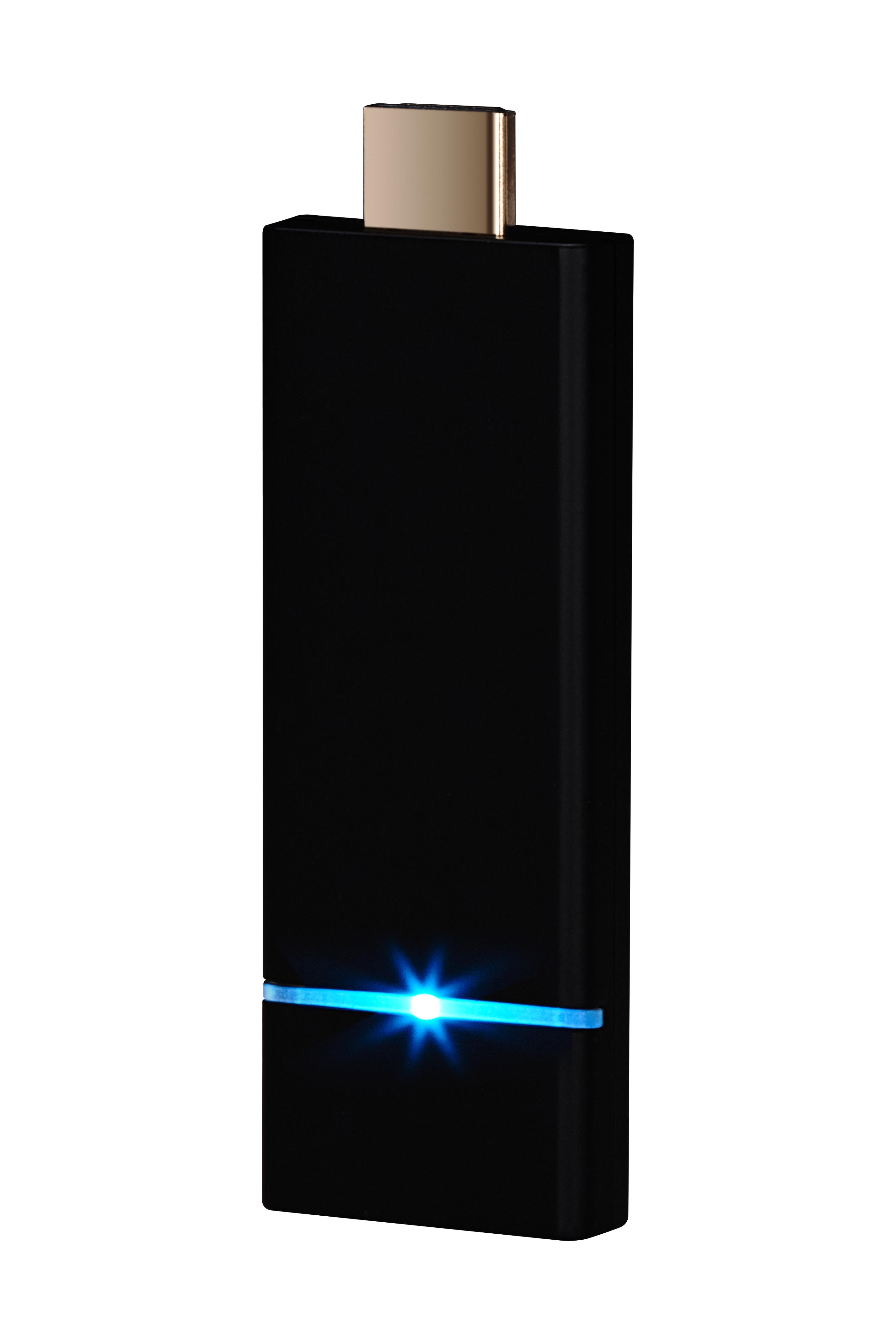

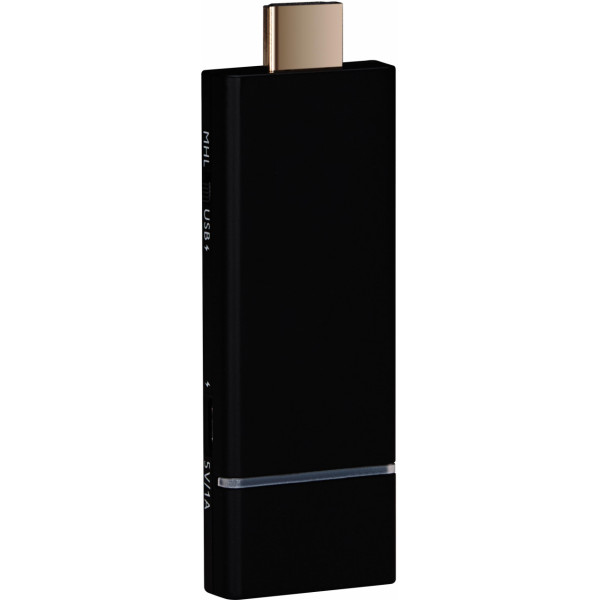

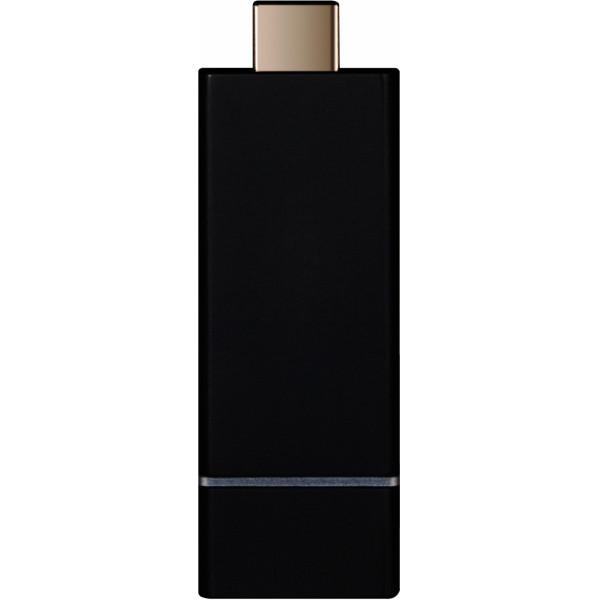

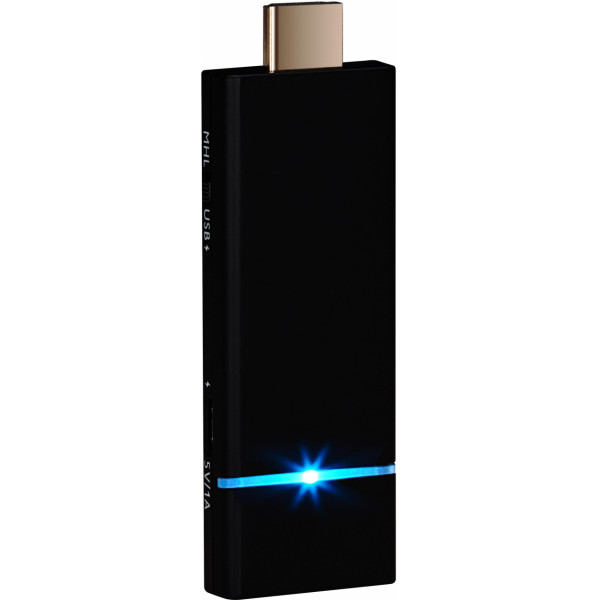

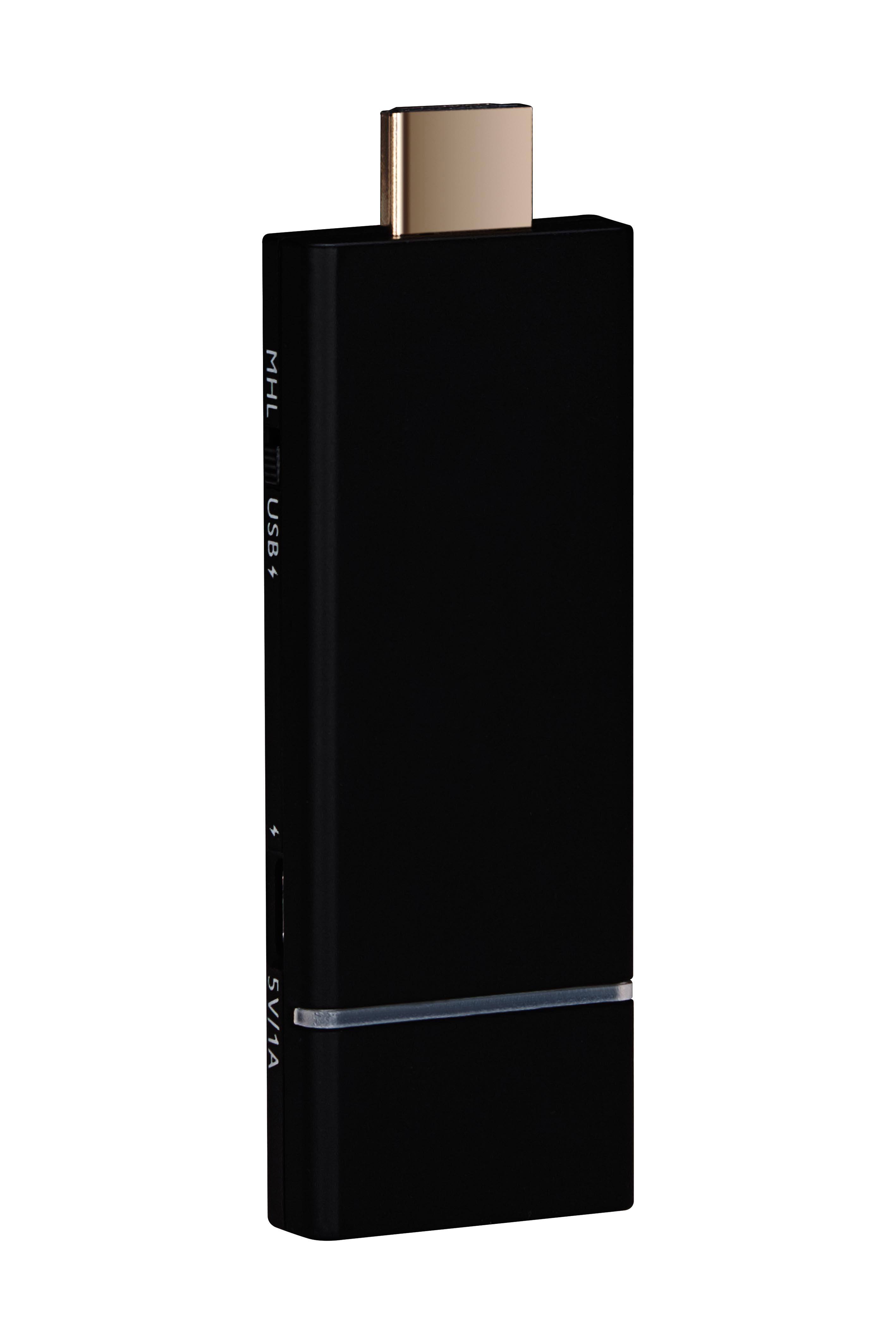

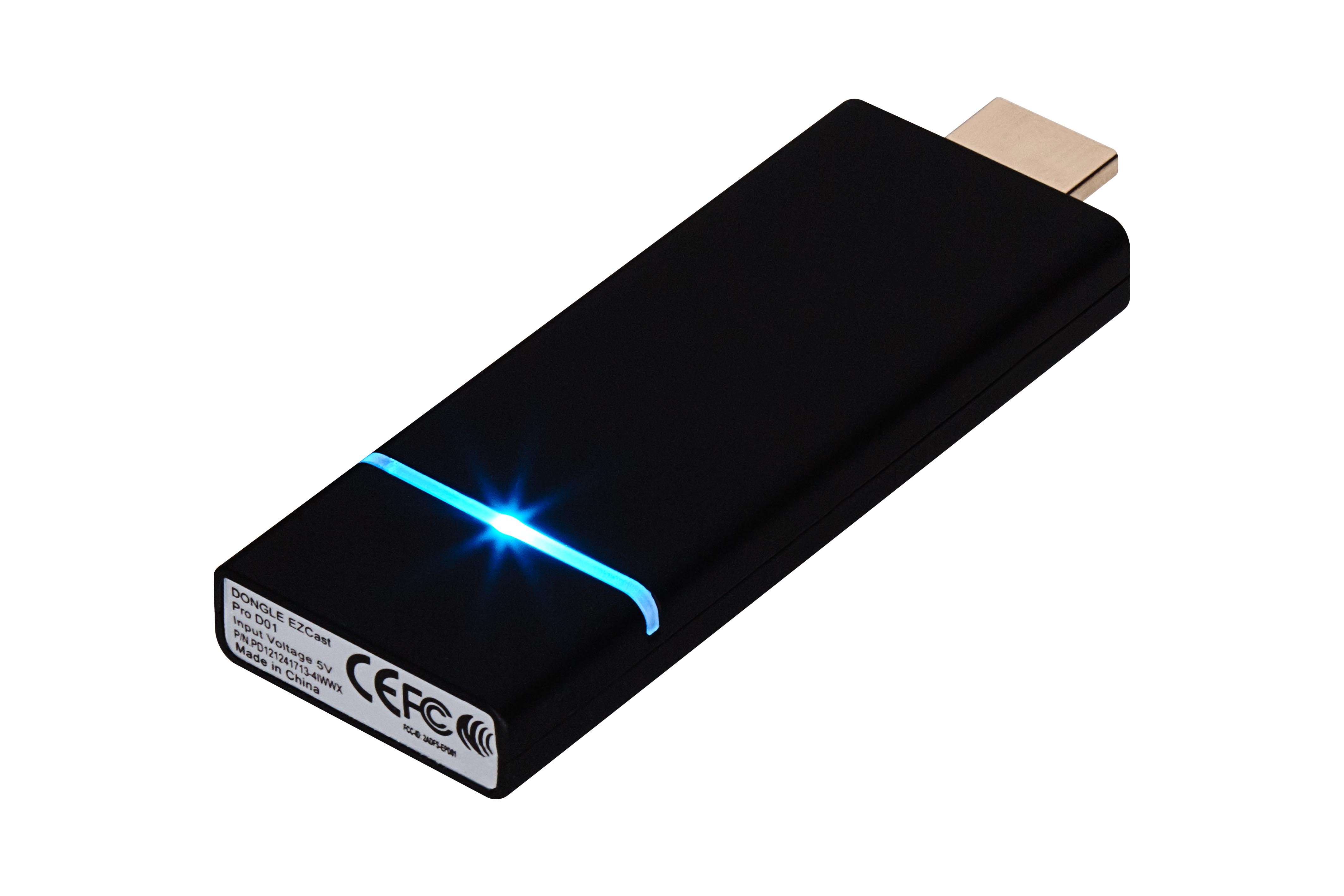

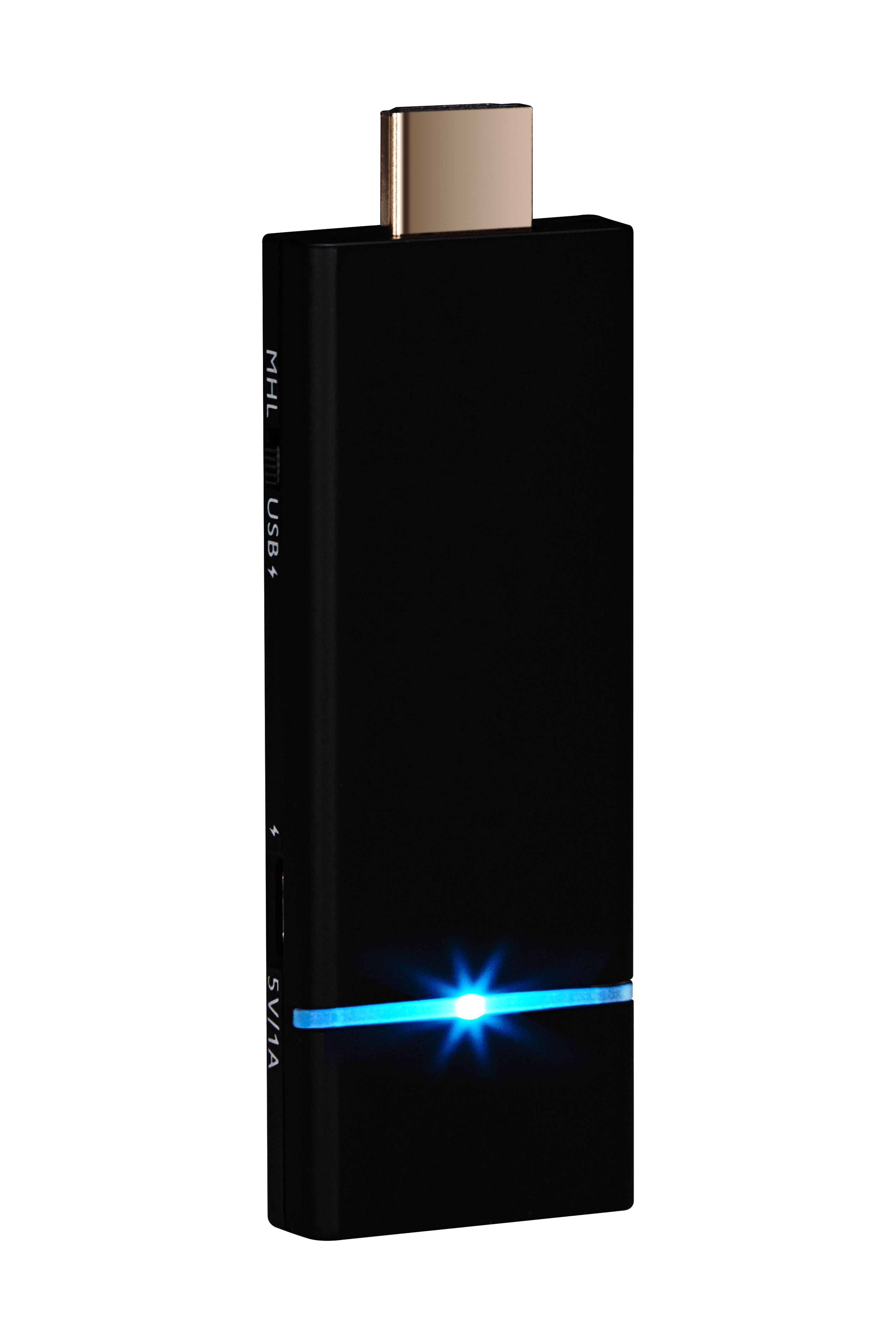

VC10

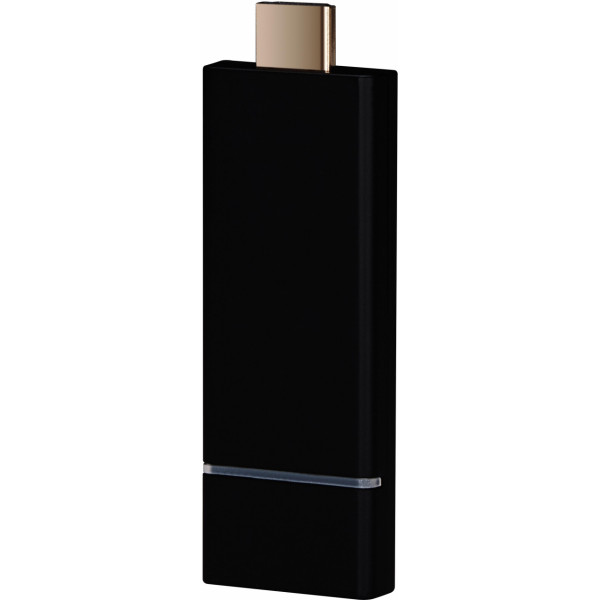

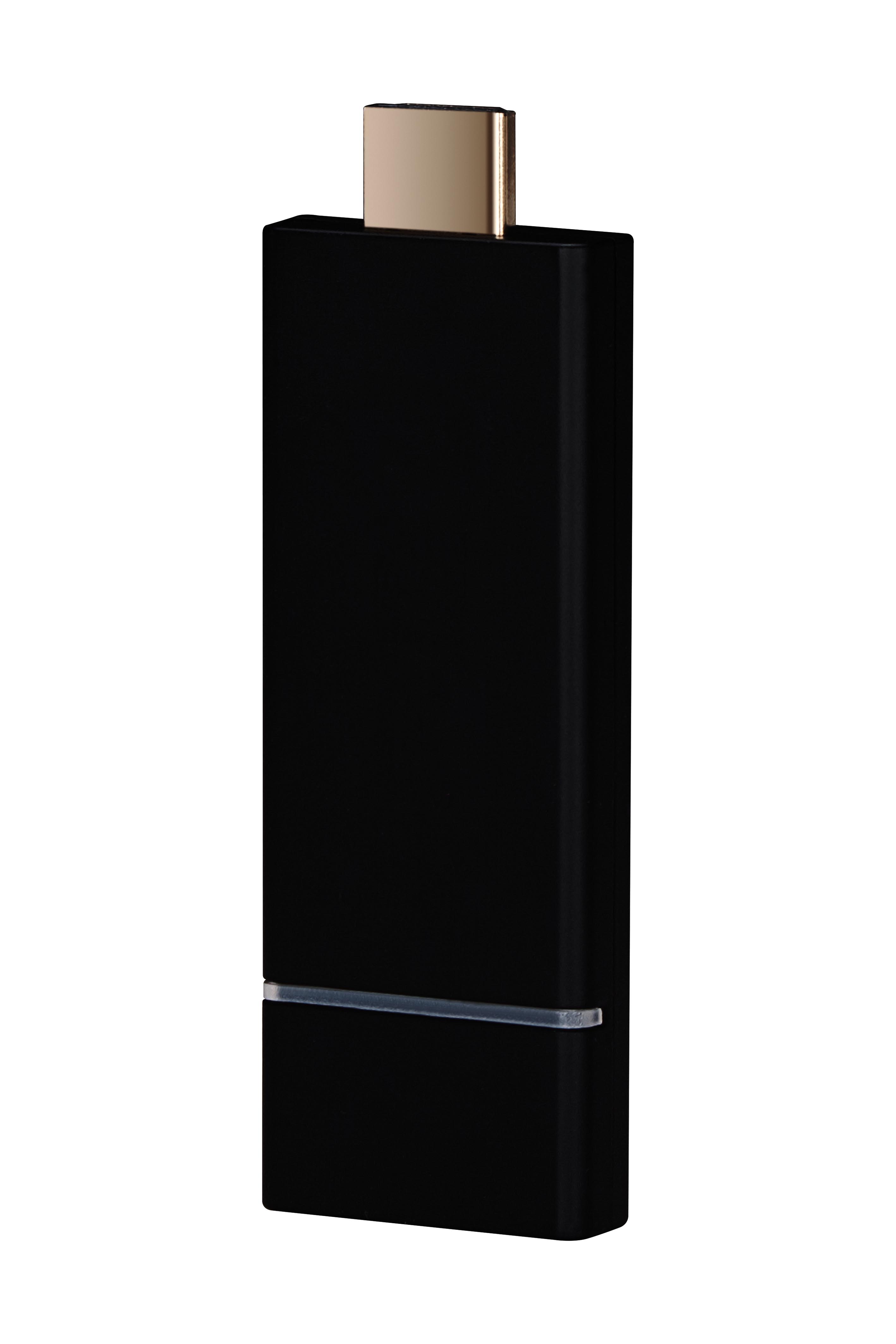

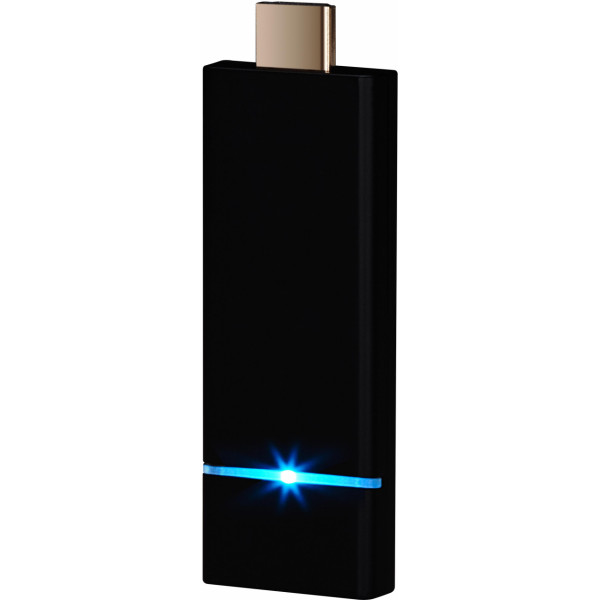

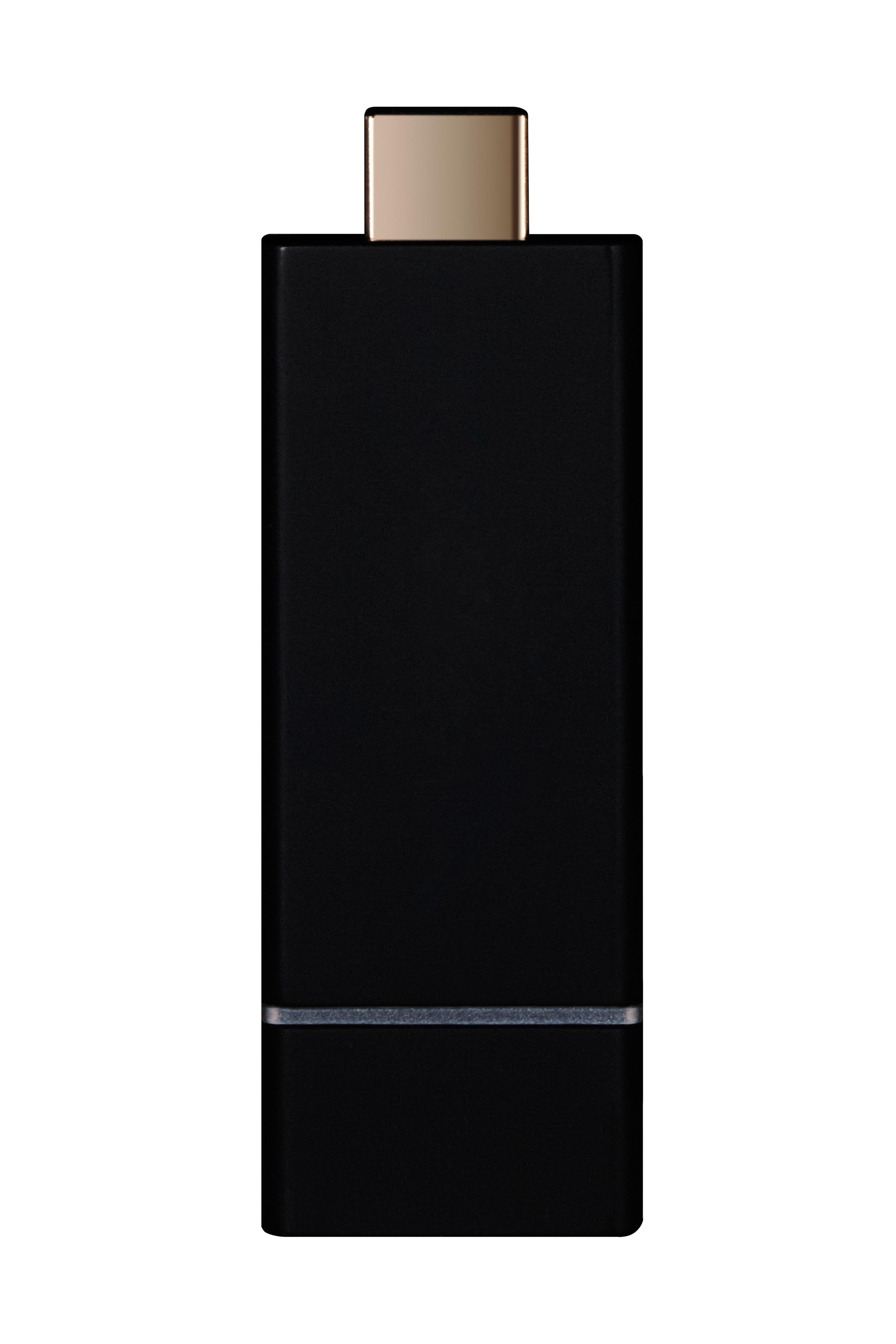

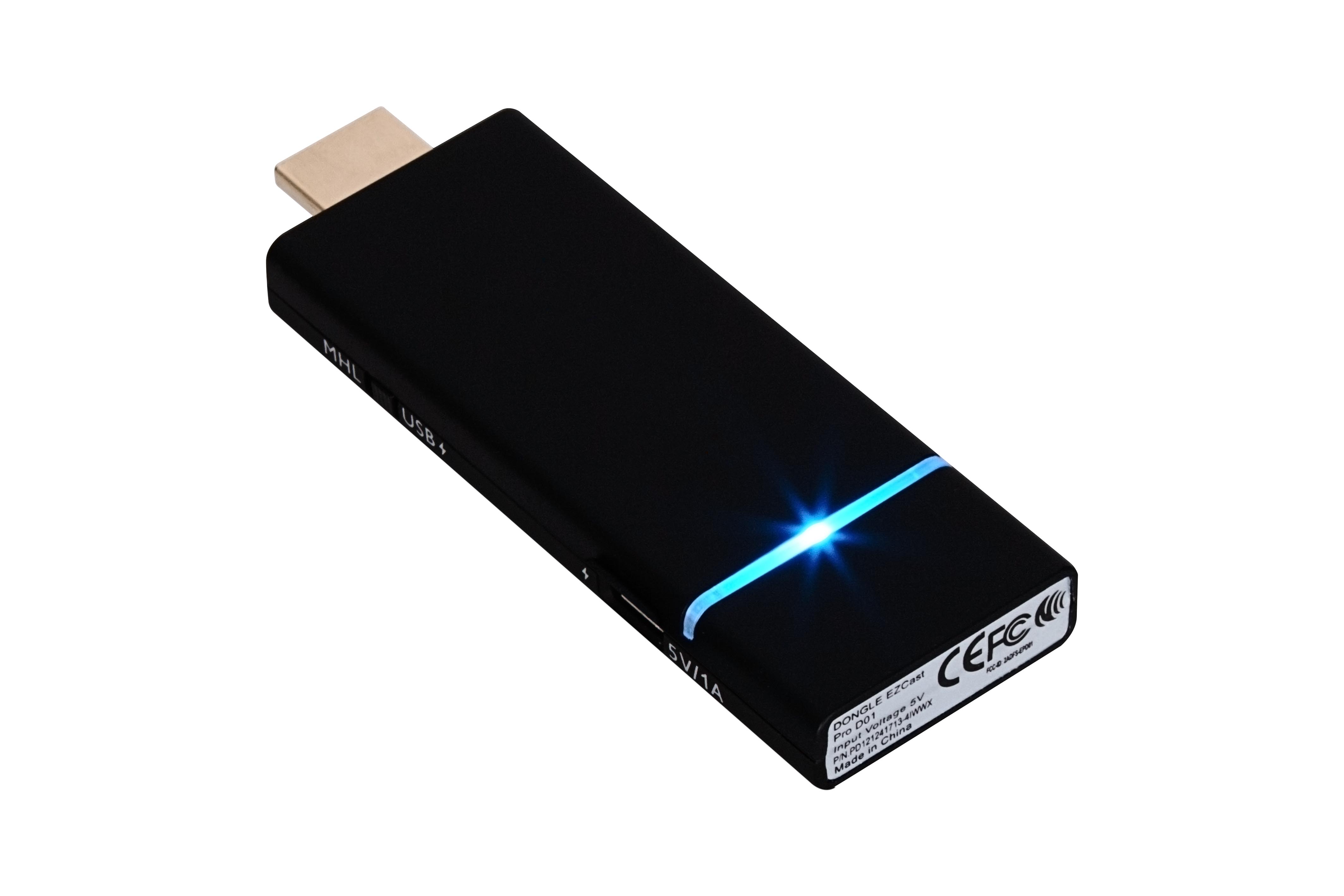

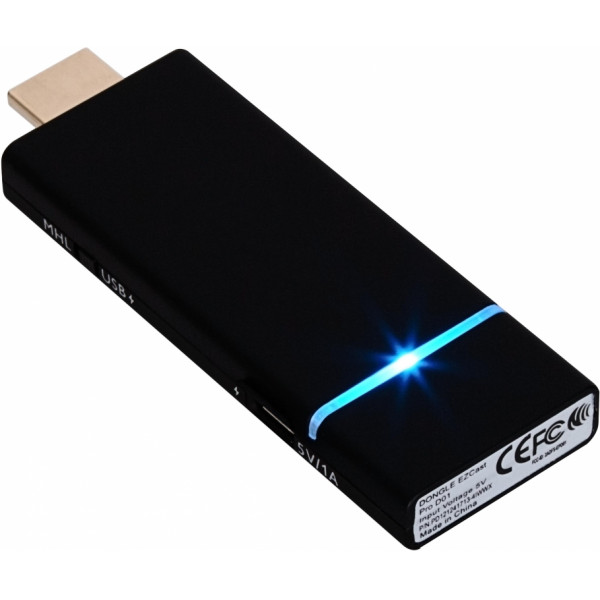

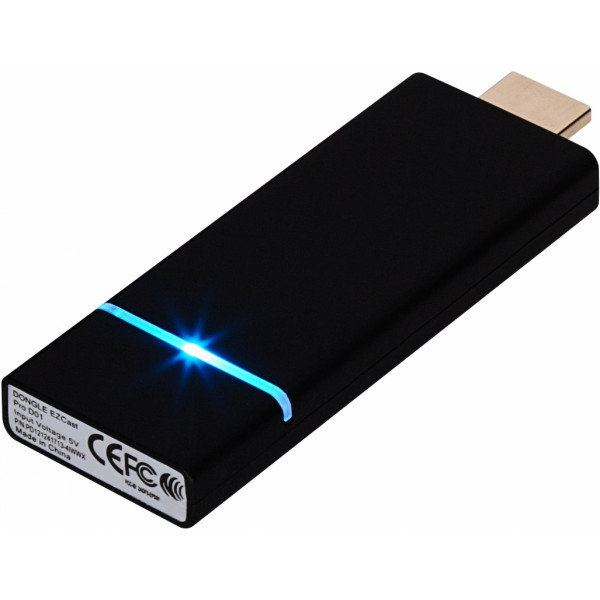

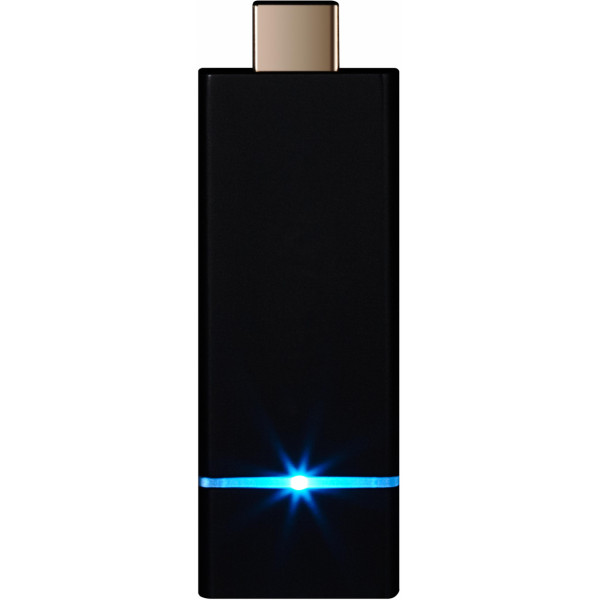

Wireless Presentation Dongle
SPECIFICATIONS
- Key ComponentProcessor: Action Micro AM8251
Wireless Module: RTL8192EU 2.4G 2T/2R - System requiremetWiFi Display(vPresenter Pro): • w/o smoothly video playback : Celeron 2.0G above CPU
• Video playback smoothly – i5 2.4G CPU with SandyBridge
• iOS 7 and above
• Android 4.0 and above - Wireless NetworkInterface: Built-in 802.11 b/g/n 2T2R
Frequency Band: 2.4GHz(2.312~2.472GHz, 2.484GHz)
Data transfer speeds: • 150Mbps (max) @ 20MHz
• 300Mbps (max) @ 40MHz
- Wireless SecuritySecurity/ Encryption: WPA2, WPA2-PSK
- Video outpurSupport Output Resolution: HDMI: 1080P 24/30/60Hz, 720P24/60Hz , XGA, ,WXGA
- ConnectorHDMI: • HDMI 1.3 with HDCP(2.0/1.x) / MHL compatible
• MHL 2.0 (just compatible MHL2.0 later)
Network: Wireless(802.11a/b/g/n)2.4G, 2T2R
Power: Type Micro USB B (x1) (for HDMI connecton)

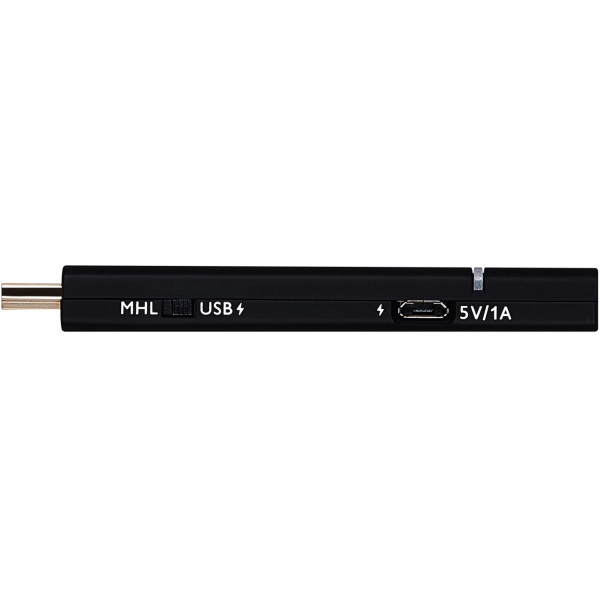

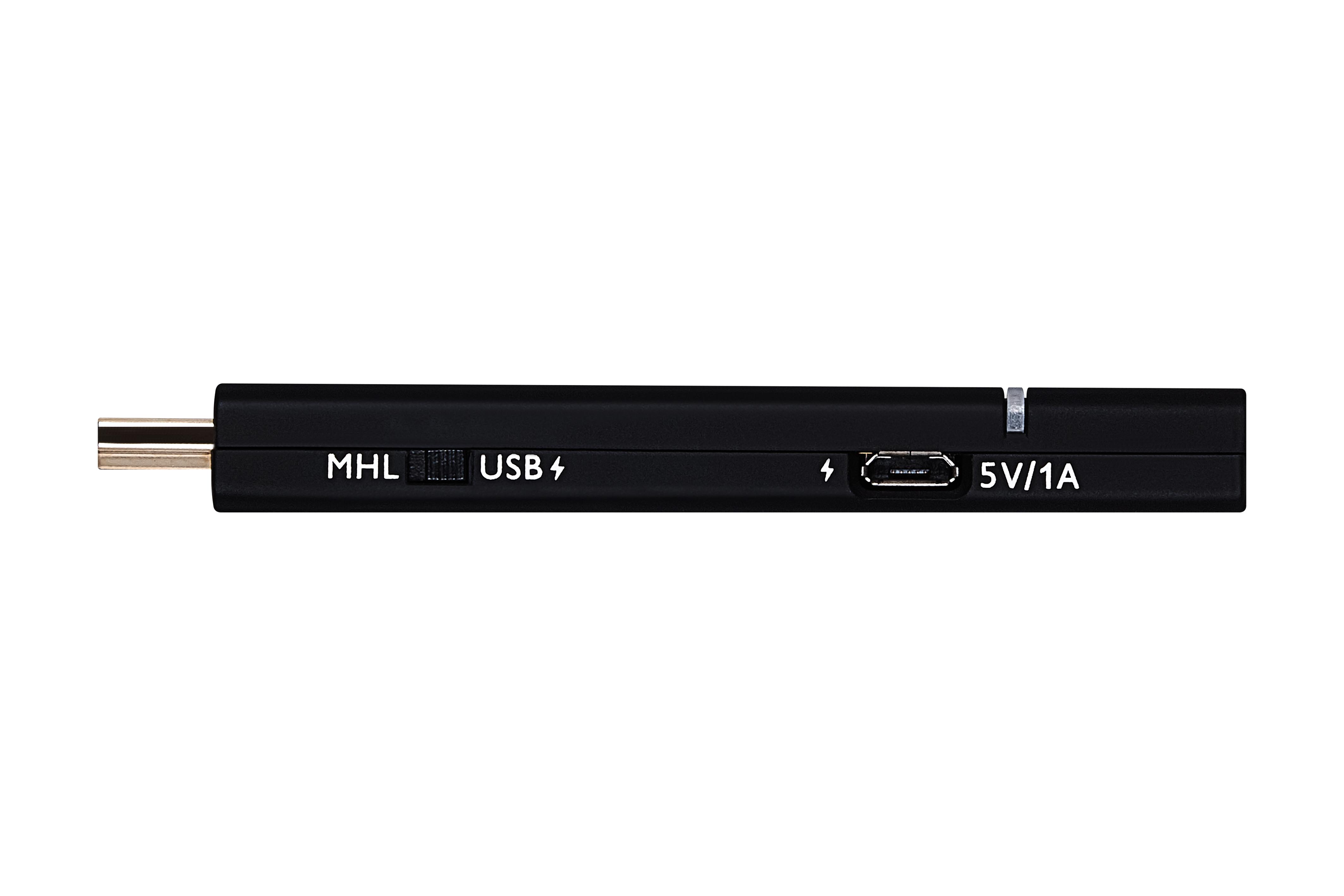

Slide Switch: Switch HDMI & MHL function. - PowerDC: 5V/1A or MHL by switch
Consumption: 5W (Maximum)
No standby mode - ControlsSetitng: Control by virtual remote on APP
- Operating ConditionTemperature: 23°F to 113°F (-5°C to 45°C)
Humidity: 0% to 95% Non-Condensing
Altitude: 0 to + 13123 ft - Storage ConditionTemperature: -22°F to 140°F (-30°C to +60°C)
Humidity: 0% to 95% Non-Condensing
Altitude: 0 to + 50033 ft - DimensionsPhysical: 94.3 x 32.34 x12.54 (mm)
- WeightNet: 0.06 (lbs)
Gross: 0.22 (lbs) - User GuideLanguage (Print): English (WW)
Language (Digital): English, French and Spanish(VSA)
English, German, Russian and Turkish(VSE)
English and Traditional Chinese(VSI) - Included AccessoriesThe Top Level Assembly shall consist of :
1.VC10
2.HDMI extender
3.UBA cable (A to micro B)
4.QSG
